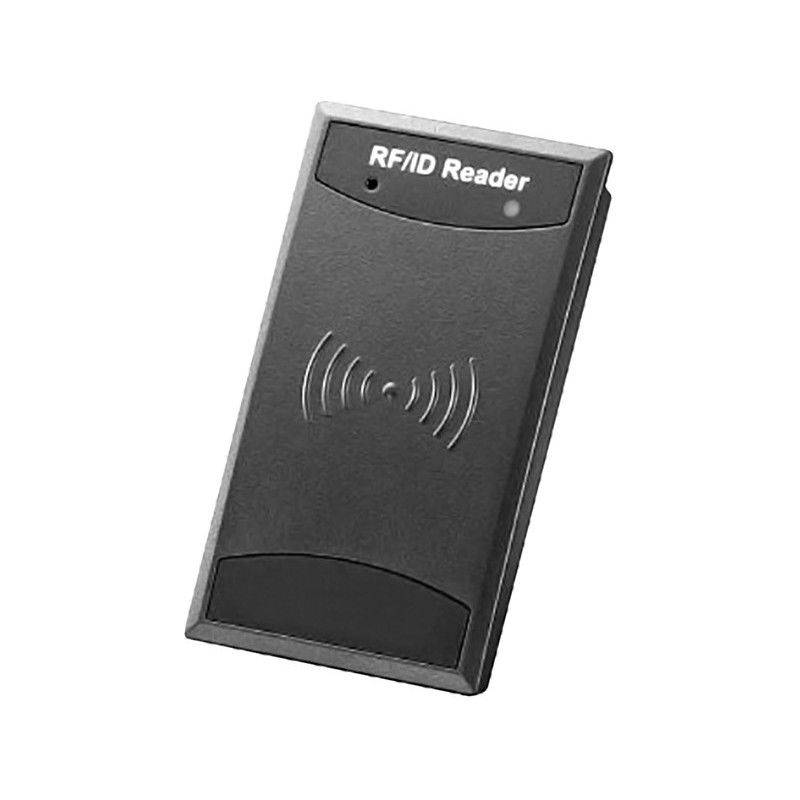

RFID Reads Mifare - Ultralight and MF1 Standard Card (Wiegand and RS232) with serial connection / RS232

RFID Reader for Mifare Ultralight and Mifare1 Standard Card, Wiegand, MSR ABA TK2 and RS232 Interface, 5 - 18VDC

Reading distance: Up to 5 cm
Frequency: 13.56 MHz
Read Mifare Ultralight and Mifare F1 Standard Tag
Mifare 1024/4096 byte, Ultralight 512bit, ISO 14443A
3 in 1 interface : Wiegand, MSR ABA TK2 and RS232
LED and Buzzer
Quick Data Transfer
Weatherproof, ABS
Cable Length: 90 cm
Cable is not terminated with DB9
Easy to install
Supply: 5 - 18VDC (Liniary PSU)
Dim: 83 x 47 x 16 mm

957.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number RFID-MR
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -10 til +60 °C
Andet Monteret med 90 cm kabel
Interface Wiegand og RS232
Rækkevidde Op til 5 cm
Tag-typer Mifare Classic 1k og 4k Mifare Ultralight Mifare DESFire
Udformning Til montering på væg
Dimensioner 47 x 83 x 16 mm

Mifare standarden for RFID blev oprindeligt defineret af Philips i 1994 til brug for berøringsfri elek­tro­nisk billettering og blev senere beskrevet i ISO/IEC 14443A standarden for 13,56 MHz berøringsfri smart cards. Derfor er der ikke lagt vægt på stor læseafstand, der typisk er op til 8 cm ved brug af gængse tags og læsere. Mifare bruges bl.a. i rejsekortet i Danmark. Mifare tags har ligesom tags til EM-standarden for 125 KHz en Unik ID (UID) – men har desuden indbygget hukommelse, der lagres i ”sektorer” i taggen.

Mifare teknologien findes i flere varianter:

Mifare Classic er forsynet med 1k eller 4k hukommelse, der er organiseret i sektorer

Mifare UltraLigt har 512 Bytes hukommelse i sektorer – men fungerer ellers som Mifare Classic

MIfare PRO Fungerer som et ”Smart card” med cpu og mulighed for at indlægge et operativsystem i taggen, så det er nok den mest fleksible af Mifare teknologierne. Der er desuden en dedikeret processor indbygget til DES-kryptering, så der er mulighed for at sikre data mod uønsket adgang.

Mifare DESFire understøtter AES-kryptering samt DES- og 3DES-kryptering ved adgang til sektordata i taggen. Derfor kan data med meget høj sikkerhed beskyttes mod uønsket læsning og kopiering. Fungerer som et ”Smart card” med cpu og operativsystem indbygget i et PROM område i taggen, der er optimeret for hurtig læsning af data. Kan bruge UID på op til 64 bits.
