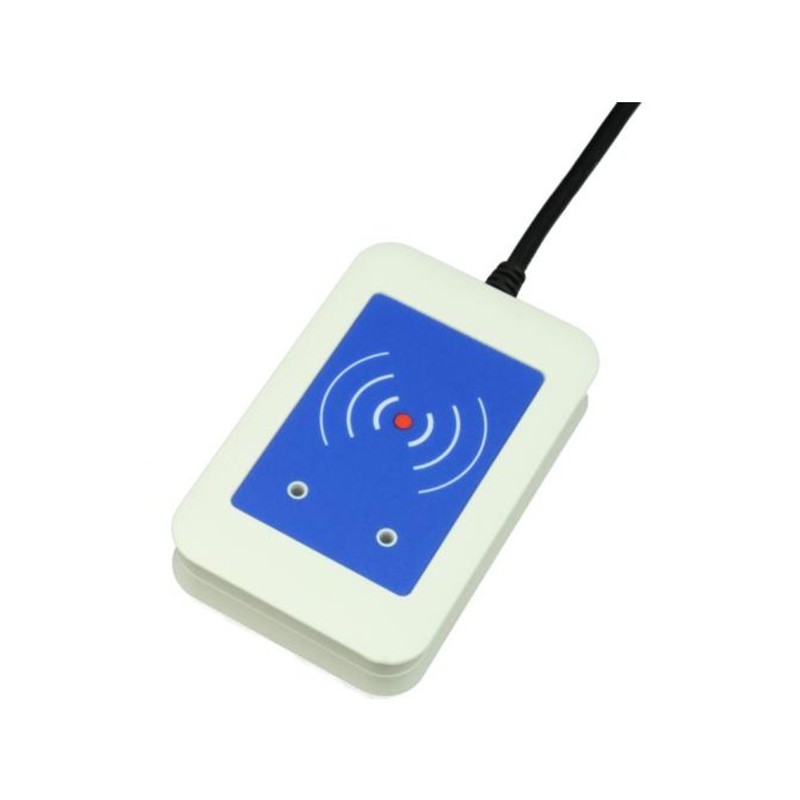

Multi 13.56 MHz Mifare Reader
RS232 Connection
5VDC (Power Jack 5.5 / 5.1mm) Not included
Cabinet: ABS, indoor IP65
Dim: 88 x 56 x 18 mm
Multi 13.56 MHz Mifare Reader / Writes with RS232 Connection.
There can be loaded a script in the reader that changes its function. It is a text file with a program in a simplified version of C ++ traversed by scanning. It can change the way it interprets and outputs the id. F. EX. Type of Taggens is outlined with its ID and the 2 LEDs and the sensor can be controlled.
Can read the following tag Types:
ISO14443A: MIFARECLASSIC 1K4K, MIFARECLASSIC 1K4K EV13), mini, Desfireev1, plus S, X, Pro X, SmartMX, Ultralight, Ultralight C, Ultralight EV13), Legic Advant1), PayPass2), SLE44R35, SLE66RXX (My-D Move), Ntag2xx3)
ISO14443B: Calypso2), CEPAS2) Moneo2), Picopass2), Srrt512, Srt512, Sri4K, Srix4K
ISO15693: EM4X33, EM4X35, ICODE SLI, TAG-IT, SRF55VXX (My-D Vicinity) 2), M24LR16 / 64, MB89R118 / 119, HID ICLASS1 ), HID ICLASS SE / SR1)
ISO18092 / NFC: NFC Forum Tag Type 1-4
Sony Felica1)
1) UID Only 2) UID Only -Read / Write on Request < / p>
Switch mode type
100 - 240VAC to & nbsp; 5 VDC, 2 A
DC plug: 5.5 / 2.1mm
Waterproof RFID reader
only with Wiegand Interface
Connect to access controls with Wiegand
TAG Type: EM / Mifare
Reading distance: 5.8 cm
IP68
Frequency: 125kHz / 13,56MHz
LED and Buzzer
Cable out from the back
Detachable Backpiece
Supply Voltage: 12VDC
Dimensions: 86 x 86 x 22mm
Keyboard Emulation: 8 digits, 32bit HEX
Frequency: 13,56MHz Mifare Ultra Light
versions: Mifare S50, S70, ISO15693, ISO14443A / B
UID in positive Normal sequence
Power supply: 5VDC from USB port
Operating temperature: -10 - + 75 ° C
Reading distance: 5 ~ 15 cm
Cable length: Solved USB cable
Dimension: 118 (L) x 75 (W) x 17 ( H) mm
Weight: 250g ± 10%
desktop - table model
Mifare Desktop 13.56MHz RFID reader
NFC 1-4, ISO 14443A, ISO 15693
Other formats on request
HID, Keyboard emulation
Can be programmed for Virtual COM
HEX or Decimal, ordered upon purchase
13.56MHz
5VDC/100mA
-20 - +60°C
Dimensions: 100 x 65 x 25
Dual band RFID card reader for USB - Decimal
10 characters decimal (ASCII) - 40bit
125 kHz, 13.56 MHz, NFC
125khz: EM4001, EM4002, EM4200
Mifare: ISO 1443a / B / 15693
HID - Keyboard Emulation
Reading distance: Up to 10 cm
Align via USB
USB interface
ID Format setting with DIP switches - see Table
Operating Temp. -25 ° to + 70 ° C
target: 88 x 56 x 18 mm
