10.1 Windows Rugged Tablet Intel®

Celeron® N5100 processor, 4 MB Intel® Smart Cache

4 GB LPDDR4 RAM (8 GB 64 GB SSD on request, 128 GB SSD on request)

1280 x 800 resolution (on request 1920 x 1200)

700 nits IPS display on demand for clear visibility in sunlight

Front 5MP, rear 8MP cameras

Dual-band Wi-Fi 802.11 a/b/g/n/ac Bluetooth V4.2,

Support must be ordered: NFC and RFID, (fingerprint reader and 1D and 2D barcode scanner on request)

Support must be ordered: 4G, WLAN, BT and GNSS

1x USB 3.0

1x USB Type-C

1x Mini HDMI

Micro-SIM and TF card slots 256 GB

Supports a removable 7.6V 5000mAh battery with a lifespan of 6 hours.

OS support: Windows 10 or 11 operating system

IP67 and MIL-STD-810H certified

Operating temperature: -10°C to 50°C

12.2" Rugged Tablet

Windows 11 IoT/Home/Pro

CPU Intel Lake N5100

RAM 8GB (16GB can be purchased)

Storage: 128GB EMMC

Support Wifi, Bluetooth, 4G and GPS

2 USB 2.0 and 1 USB 3.0

1 pc RJ45 (100Mbps)

Battery 7.4V/6300mAh

Built-in speaker

DC12V/4A

IP65, Vibration and 1.22m drop resistance

12PIN Pogo Pin for truck mounting or docking station

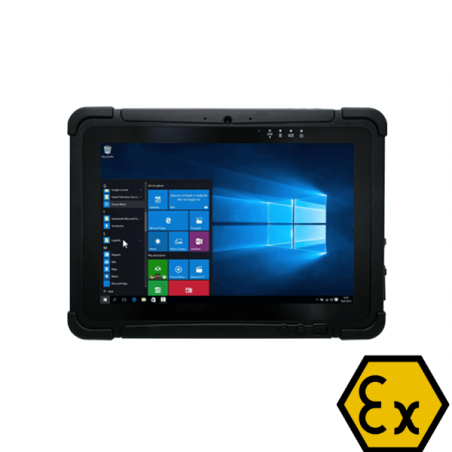

10.1" Rugged ATEX Tablet

ATEX/IECEx Zone 2 Approved

Intel® Core™ i5-1235U

Up to 2TB M.2 NVMe SSD

Up to 32GB RAM

10.1” 1920 x 1200 IPS LED

800 Nits

Optical Bonding

IP65 Approved

Windows 10 & 11

WiFi and BT Support

WWAN 4G/5G Support (Optional)

Dimensions 271.5 x 198.2 x 23.3 mm

11.6" FHD (1920 x 1080) display
1000 nits brightness
Intel® Core™ i5-1230U CPU
512GB PCIe SSD
Multi-Carrier 5G, 1x Nano SIM card
1x RJ45 10/100/1000 Ethernet
Intel® Wi-Fi 6E AX211 (802.11ax), Bluetooth® V5.3
Main battery: Li-Ion, 7.6V, 4800mAh
1x Thunderbolt, 1x USB 3.2 Gen1 (type A)
Windows® 11 Pro 64-bit
Operating Temperature: - 20°C ~ 60°C
317x215x23.8mm 1.39 kg
IP66 and MIL-STD-810H, MIL-STD-461G certification

Screen type 11.6" TFT LCD

Resolution 1920 x 1080

Brightness 350 nits

CPU Rock Chip ARM Cortex A55 RK3568 Quad-Core 2.0GHz CPU

Graphics card Mali-G52

Memory 4GB LPDDR4

Storage space 16 GB eMMC

OS support Android 12 (optional Android 13)

Communication WLAN: 802.11 b/g/n module

Bluetooth 4.2

IO ports 1 x Micro SD card slot

1 x USB 2.0

1 x micro USB 2.0

1 x LAN port (optional PoE function)

1 x Mini HDMI

3 x Pogo pin (left, right, bottom)

VESA Mount 75 x 75

12Vdc

295.8x189.6x26mm

Celeron® processor N5100
Size: 10.1" 16:10
Resolution: 800*1280 IPS
Brightness: 1000nits
RAM: 4GB LPDDR3
ROM: 64GB EMMC
5 points Capacitive Touch
Option: Battery 1000mAh/7.4V - (9-15 minutes)
WiFi and Bluetooth 5.0 (BLE)
Option: NFC, 4G LTE
GPS
USB 3.0 / IP65
Extension on order RS232/RS485/RJ45
Working temperature: -20°C to +60°C
9V-36V DC
Dimensions: 265 x 184 x 23 mm

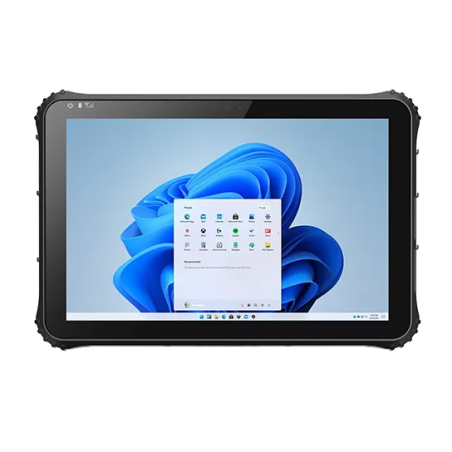

Industrial tablet 12.2" IPS TFT LCD

1920x1200 16:9 400 nits

10 points Touch PCT

Windows System

Intel® Core™ i5-1235U processor, Intel Iris Xe

8GB RAM

128GB SSD

2 x USB 3.0

1x HDMI 1.4a

1 x TF slot max. 128 GB SDHC/SDXC

1 x SIM slot

1 x 12-PIN POGO

Speaker 2 x 0.8W

G-sensor

Front camera 2.0 MP, rear 8.0 MP

Dual capacity battery design

Supports 4G LTE, NFC module (Ordered separately)

Supports GNSS, Wi-Fi 6, Bluetooth 5.1 (ordered separately)

Supported barcode scanner, RJ45, DB9, USB2.0 module (ordered separately)

IP65

339.3x230.3x26mm

1.5 kg

19V/3.42A (jack), 700mAh/7.4V (built-in); 6300mAh/7.4V (removable)

MIL-STD-810G drop test 1.22m

-20°C ~ 60°C

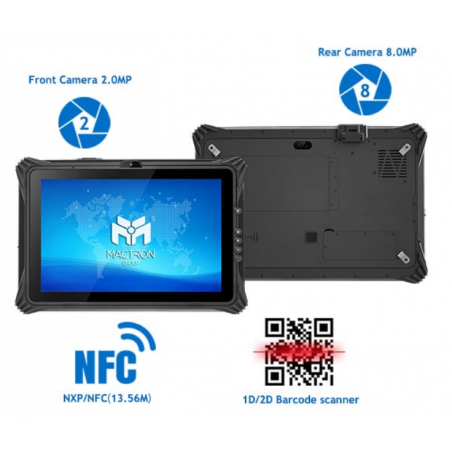

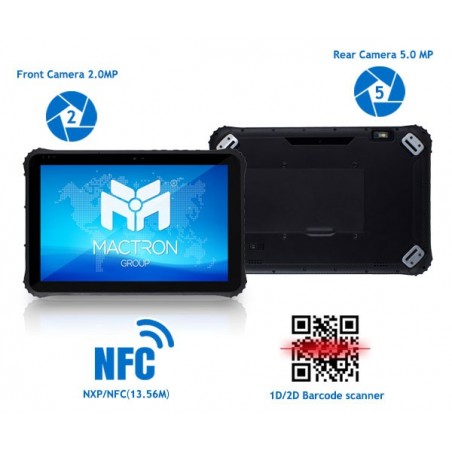

12.2" 1920 x 1200 IPS screen 16:10

650 Nits, Intel UHD Graphics

Intel® Celeron® N5100 Quad Core

Touch: 10 Points Projected Capacitive Touch

128GB eMMC

8 GB RAM

1 x USB2.0 Type A

2 x USB 3.0 Type A

1 x USB Type C

1 x LAN

1 x HDMI 1.4a Type c

1x RS232, 1 x RS485

Wifi: WLAN - 802.11 a/b/g/n/ac, 2.4GHz/5.8GHz

Camera front 5.0MP, Rear 8.0MP

Barcode scanner 1D/2D

Speaker 2x 0.8W

4G, 1 x SIM slot

GNSS - GPS, Glonass

Bluetooth 5.0

G-Sensor

NFC 13.56M

IP65

2 x 8W waterproof Speaker

Lots of expansion/addons possibilities!

Windows 11

MIL-STD-810G

Operation Temperature -20°C ~ 60°C

Relative Humidity 95% (non-condensing)

Drop Test 1.22m

Dimensions: 420 x 240 x 60mm, 1500 g

19 V/3.42 A, 1000mAh/7.4V (Built-in); 6300mAh/7.4V (Removable),

10.1" Mobile tablet - Windows

1280x800 (16:10)

700 nits

CPU Celeron N5100 Quad Core

Windows 11 support

RAM LPDDR4 8GB

SSD 128GB

1 x USB 3.0, USB-C

Bluetooth 5.0

Support Anti-Scratch Touch Panel

Built-in 13.56MHz RFID, NFC

Support 1D / 2D Barcode Scanner (Purchased as additional equipment)

4G, LTE, GPS (Purchased as additional equipment)

Fingerprint reader (Optional)

Front camera 5.0MP / Rear camera 8.0MP

IP65

Up to 6 hours on a single charge, * 6 hours (default 50% volume, default 200nit, play 1080HD video)

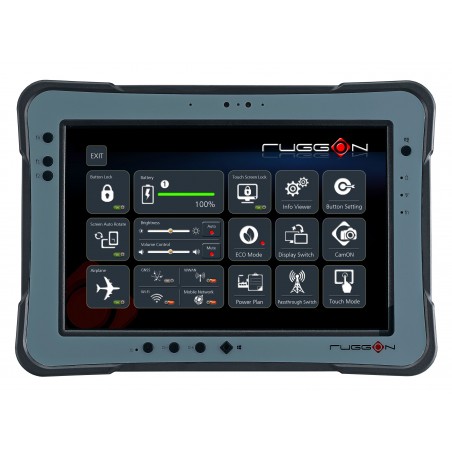

Gen. 13th Intel® Core™ i5-1335UE processor 1.3GHz
8GB DDR5 SDRAM, 128GB M.2 SSD
IP65, MIL-STD-810H
1000 nits sunlight readable (before touch), 1920x1200 Gorilla Glass
850 nits sunlight readable (after touch) with hyper dimming option
Capacitive multi-touch screen, glove touch, water rejection
GNSS, Wi-Fi 6E, Bluetooth and on order 5G LTE
Vibration, shock and 5’ drop resistance
2 megapixel front kamera, 8 megapixel back camera (LED flash)
1 x RS-232, 1 x USB-A 3.1, 1 x USB-C 3.1
1 x Nano SIM slot, 1 x docking connector
1 x RJ 45 gigabit ethernet
AC adapter 65W, 100-240V
Battery with 4500mAh
Windows 11 IoT Enterprise

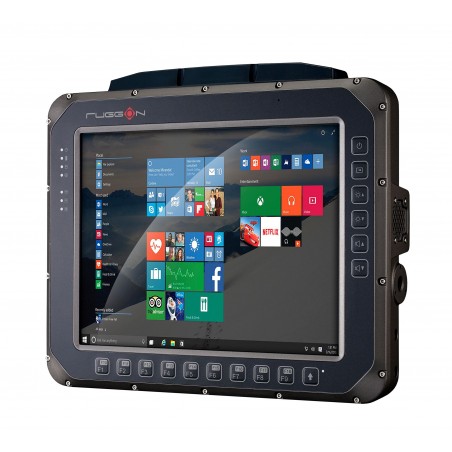

12" Robust Tablet PC with IP 66
Intel® Core™ 3955U 2GHz
4GB DDR3L RAM, upgradeable to 32GB
M.2 2280 SSD, SD SLOT
built-in 3-axis sensor, dual speaker
700 nits LED backlight
Resistive touch, support defroster function
9 x programmable button
2 x contrast adjustment button
2 x sound adjustment button
2 x RS232 (COM1 with power), RS-232/422/485
2 x USB 2.0 / 3.0, USB 2.0
1 x CAN bus (SAE J1939 / OBDI II supported)
1 x Audio jack
Vesa 75/100 mounting
Power supply 9-60V DC

Windows 10 IoT Enterprise

Intel® Atom™ E3815 1.46GHz
2GB DDR3L SODIMM; mSATA and Micro SD slot
500 nits with auto-dimming
Capacitive multi-touch (PCT)
5 x programmable buttons
2 x volume adjustment buttons
1 x RS-232, 1 x RS232/422/485
2 x USB (3.0, 2.0)
1 x Dual Micro SIM slot
1 x CAN bus (SAE J1939 supported)
1 x Gigabit Ethernet (RJ45)
IEC 60529 IP65 (except bottom I/O)
Vibration (during operation) : MIL-STD-810G, Method 514.7 c2/c3/c4
Shock (during operation) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
-30°C to +60°C
9~36 VDC input
Vehicle power protection (ISO 7637-2)

Windows 10 IoT

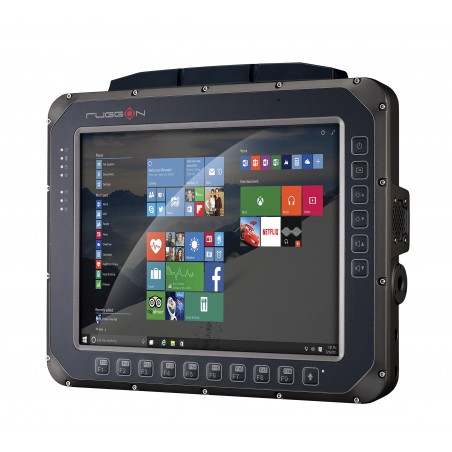

12" Robust Tablet PC with IP 66
Intel® Core™ i5-6300U 2.4GHz
4GB DDR3L RAM, upgradeable to 32GB
M.2 2280 SSD, SD SLOT
Windows 10 IoT Enterprise
built-in 3-axis sensor, dual speaker
1200 nits LED backlight
Resistive touch, support defroster function
9 x programmable button
2 x contrast adjustment button
2 x sound adjustment button
2 x RS232 (COM1 with power), RS-232/422/485
2 x USB 2.0 / 3.0, USB 2.0
1 x CAN bus (SAE J1939 / OBDI II supported)
1 x Audio jack
Vesa 75/100 mounting
Power supply 9-60V DC

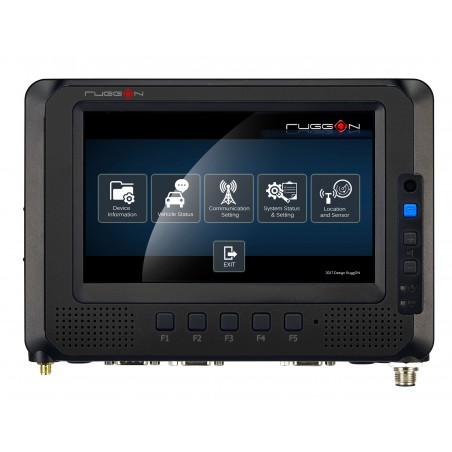

7 "Robust Tablet PC with IP65
Intel® Atom ™ E3815 1.46GHz
2GB DDR3L SODIMM
mSATA SSD, Micro SD slot
built-in 3-axis sensor, dual speaker
500 Nits LED Backlight
Capcitive Multi Touch
5x Programmable Button
2x Sound Adjustment Button
1X Contrast Adjustment Button
1 x RS232 (COM1 with Power)
1 x RS-232 / 422/485
1 x USB 2.0
1 x USB 3.0
1 x Dual Micro SIM slot
1 x CAN bus (SAE J1939)
1 x Audio jack
1 x 9-36V DC Input
Vehicle Power Protection (ISO7637-2)
Vesa 75/100 Mounting
