10.4 "Rugged PC tablet, IP65, LED 1024 x 768, Wifi, resistive touch, 1000 nits

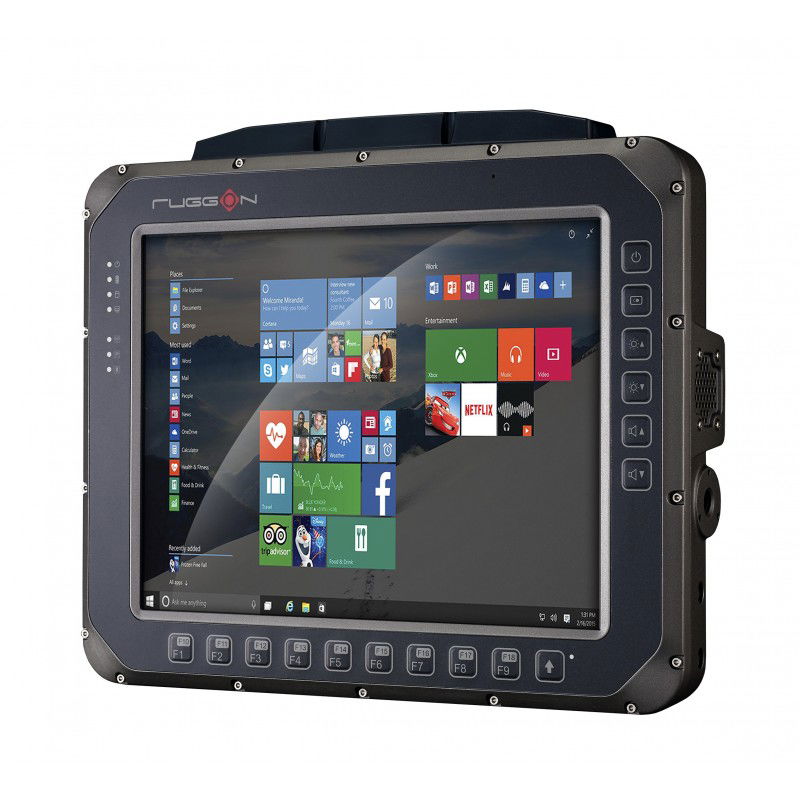

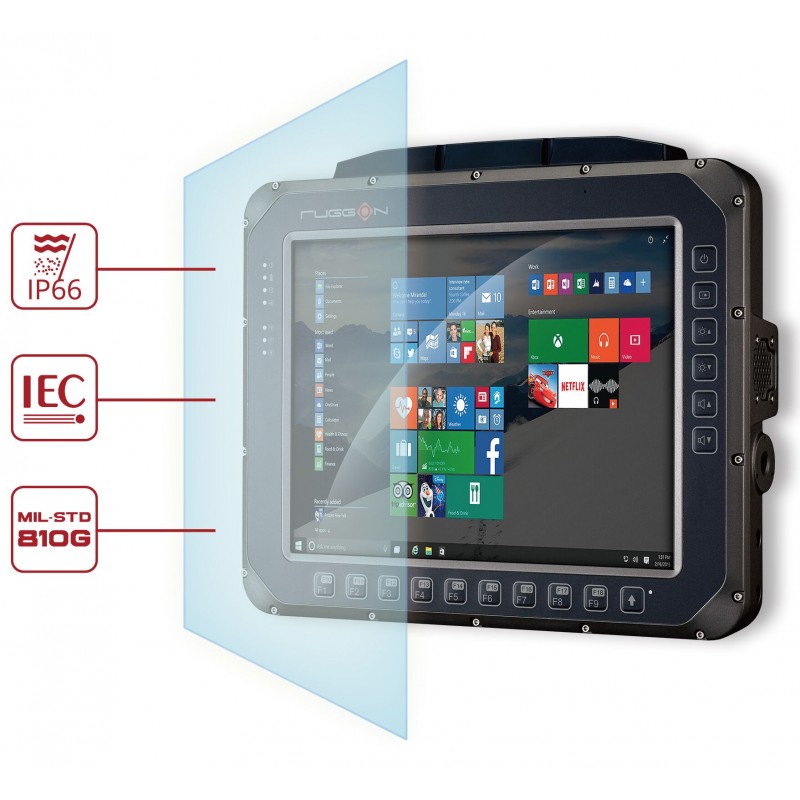

12" Robust Tablet PC with IP 66
Intel® Core™ i5-6300U 2.4GHz
4GB DDR3L RAM, upgradeable to 32GB
M.2 2280 SSD, SD SLOT
Windows 10 IoT Enterprise
built-in 3-axis sensor, dual speaker
1200 nits LED backlight
Resistive touch, support defroster function
9 x programmable button
2 x contrast adjustment button
2 x sound adjustment button
2 x RS232 (COM1 with power), RS-232/422/485
2 x USB 2.0 / 3.0, USB 2.0
1 x CAN bus (SAE J1939 / OBDI II supported)
1 x Audio jack
Vesa 75/100 mounting
Power supply 9-60V DC

TABLET12-RV
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

DashON Software
Optional: ntel® Atom® E3827 Processor 1.75GHz
Optional: 4G LTE / GPRS / HSPA +
Optional: GNSS (GPS / QZSS or GLONASS)
Optional: defrost / defog Button x 1
Optional: Video input x 4

Robust tablet PC for service.

With Resistive & Touch

Contact our Sales Department for further information

CPU
Intel® Core™ i5-6300U 2.4GHz
bluetooth
V4.0 Class 2
Certifications
CE, FCC, CB
Chok/Vibration
MIL-STD-810G, Method 514.7 c2/c3/c4
Dimensioner
325 x 280 x 67 (mm)
Driftstemperatur
Operating temperature -30°C to +55°C
Harddisk
M.2 2280 SSD, SD slot
Hukommelse
4GB DDR3L SODIMM, expandable to 32GB

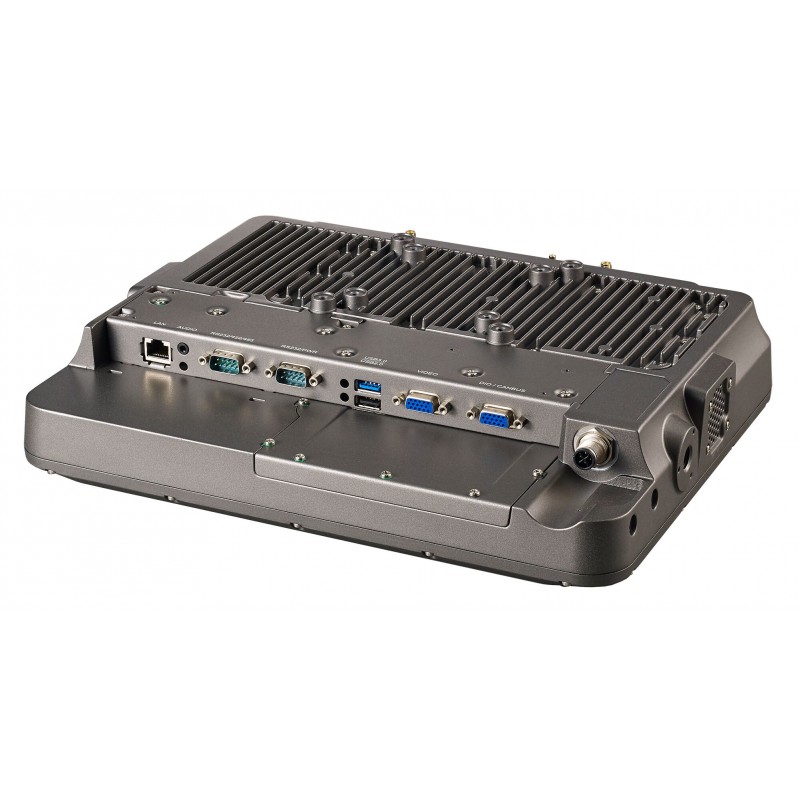

I/O
1 x RS232, 1 x RS-232/422/485, 1 x USB 3.0, 1 x USB 2.0, 1 x CAN bus, 2 x DI, 2 x DO, 1 x Audio jack
Kontrast
1200 Nits
Netværk
Dual Gigabit Ethernet (RJ45)
Skærm
12.1” XGA TFT LCD with LED backlight (1024 x 768)
Software
DashON
Strømforsyning
9~60 VDC input
Touch
5-wire resistive touch supports defroster function
Weight
Weight : 4.83 kg, 4.90 kg with IPBOX
WiFi/WLAN
Wi-Fi 802.11 a/b/g/n/ac
