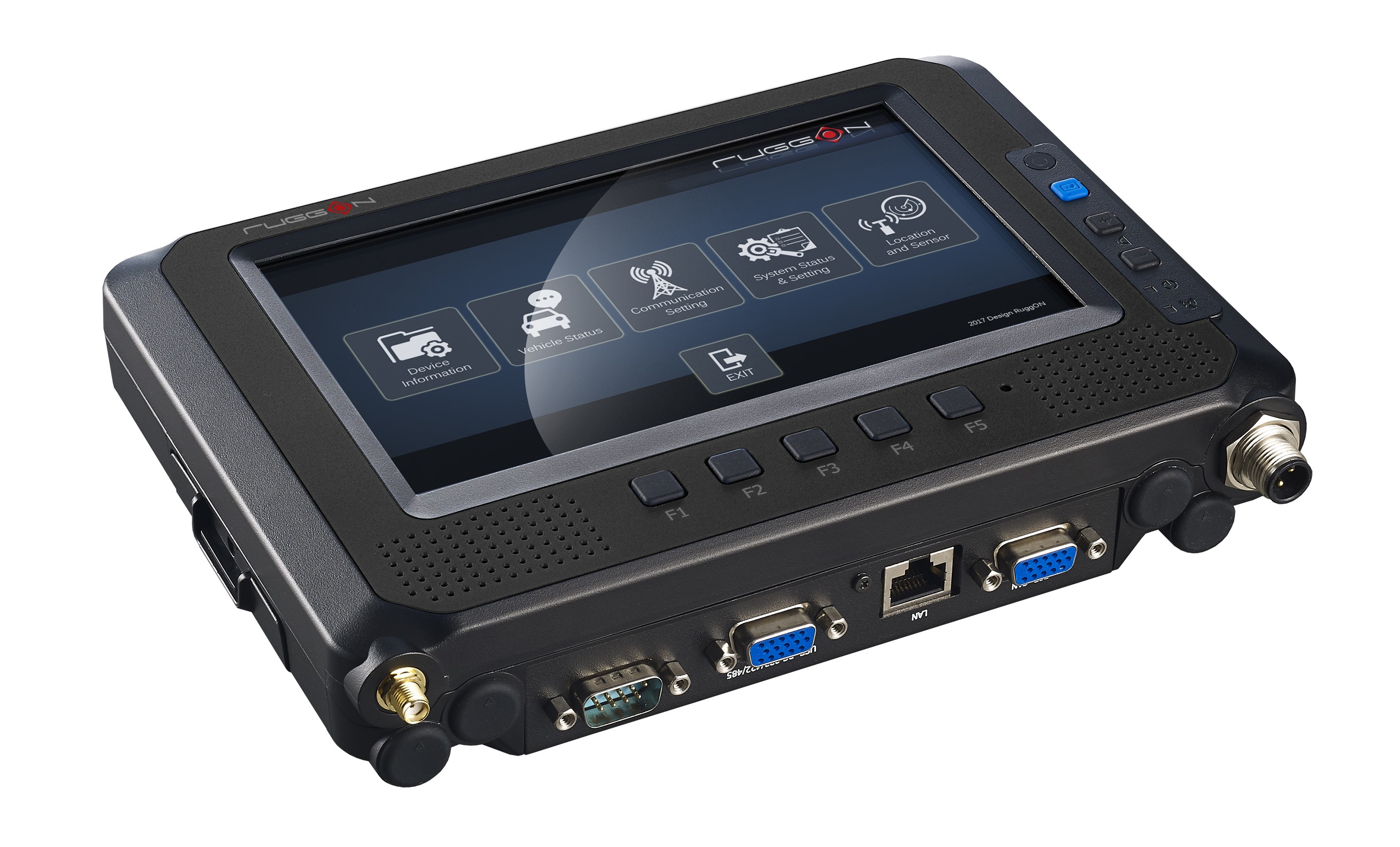

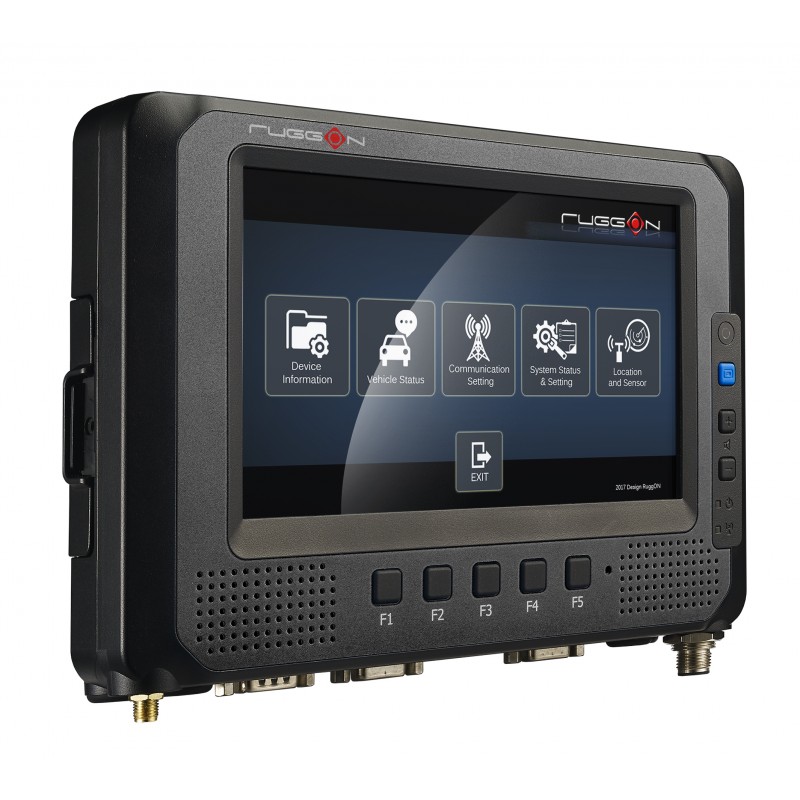

17 "Rugged PC tablet, IP65, LED 1024 x 600, Wifi, Capacitive multi touch, 500 nits

7 "Robust Tablet PC with IP65
Intel® Atom ™ E3815 1.46GHz
2GB DDR3L SODIMM
mSATA SSD, Micro SD slot
built-in 3-axis sensor, dual speaker
500 Nits LED Backlight
Capcitive Multi Touch
5x Programmable Button
2x Sound Adjustment Button
1X Contrast Adjustment Button
1 x RS232 (COM1 with Power)
1 x RS-232 / 422/485
1 x USB 2.0
1 x USB 3.0
1 x Dual Micro SIM slot
1 x CAN bus (SAE J1939)
1 x Audio jack
1 x 9-36V DC Input
Vehicle Power Protection (ISO7637-2)
Vesa 75/100 Mounting

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number TABLET7-RV-WIN
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel® Atom™ E3815 1.46GHz, optional Intel® Atom™ E3826 1.46GHz
Operating Temp. -30°C to +60°C
Chok/Vibration Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4
Harddisk mSATA SSD, Micro SD slot
Hukommelse 2GB DDR3L SODIMM
I/O 1 x RS232, 1 x RS-232/422/485, 1 x USB 3.0, 1 x USB 2.0, 1 x Dual Micro SIM slot, 1 x CAN bus, 2 x DI, 2 x DO, 1 x Audio jack
IP-Tæthed IEC 60529 IP65 (except bottom side I/O)
Montering VESA 75
Netværk Gigabit Ethernet (RJ45 )
Skærm 7” WSVGA TFT LCD (1024 x 600), 500 nits brightness
Touch Capacitive multi touch (PCT)
Weight 1.25kg
Dimensioner 220 x 152 x 40 (mm)
Certifications CE, FCC, eMark

DashON software
Optional: Intel® Atom ™ E3826 1.46GHz
Optional: Wi-Fi 802.11 a / b / g / n / ac
Optional: 4G LTE / HSPA + / GPRS
Optional : Bluetooth V4.0 Class 2

Rugged Tablet PC for Service.

With Capacitive & Touch

Contact our Sales Department for Further Information
