The SFP family consists of Small Form Factor Pluggable (SFP) transceiver (send / receive) modules specially designed for high-performance integrated duplex data connection over single mode optical fiber. These transceiver modules comply with the SFP Multisource Agreement (MSA) and the Hot Plug. The modules are easy to insert into SFP MSA compliant ports.
SFP Mini-GBIC Gigabit Ethernet modules can be installed in Switch products with...
The SFP family consists of Small Form Factor Pluggable (SFP) transceiver (send / receive) modules specially designed for high-performance integrated duplex data connection over single mode optical fiber. These transceiver modules comply with the SFP Multisource Agreement (MSA) and the Hot Plug. The modules are easy to insert into SFP MSA compliant ports.
SFP Mini-GBIC Gigabit Ethernet modules can be installed in Switch products with SFP mini-GBIC interface. Single Mode is available in several power types and can have a range of up to 120 kilometers (Single-mode, LC).
There are 10 products.
SFP - Optical Gigabit Transceiver
1000 Mbit
Mini GBIC Media Converter
LC, for duplex fiber cable
Single Mode
1310 nm
Max. 10 km
MiniGBIC / SFP, LC type, 1310 nm, 50 km, single mode
MiniGBIC / SFP optical transceiver
LC fiber cables
1310 nm
up to 10 km, single mode

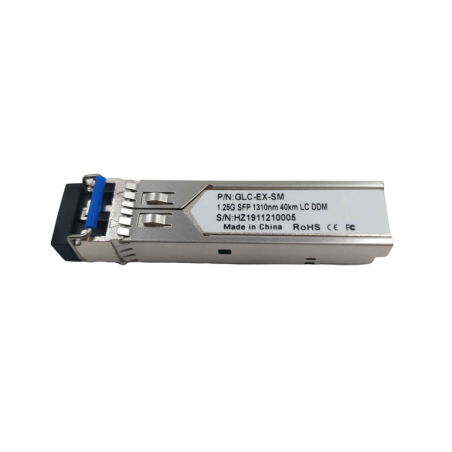

The data rate of 1.25Gbps to fiber cables
1310nm DFB laser and PIN photodetector for 40km transmission
compatible with SFP MSA and SFF-8472 with duplex LC receptacle
Compatible with SONET OC-24 LR 1 and RoHS
Switch to switch inte race
Router / server interface
+ 3.3V single power supply
Operating temperature: 0 to + 70 ° C
product consists of two SFP modules
Bidirectional SFP module
Single Fiber LC
3KM
RX 1310nm
TX 1550nm
Bidirectional SFP module
Single Fiber LC
3KM
TX 1310nm
RX 1550nm

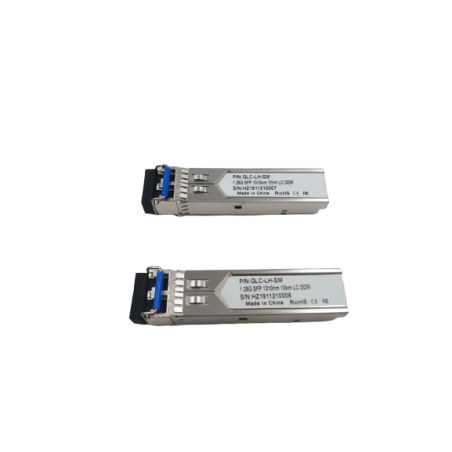

Dual data-rate of 1.25Gbps / 1.063Gbps
1310nm FP laser and PIN photodetector for 10km transmission
Compatible with SFP MSA and SFF-8472 with duplex LC receptacle
Compatible with SONET OC-24 LR-1
Switch to switch interface
Router / server interface
+ 3.3V single power supply
Operating temperature: 0 to +70°C

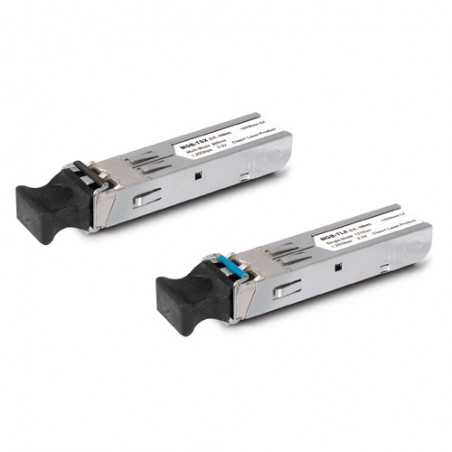

Single Mode SFP module Duplex.
IEEE 802.3z 1000BASE-LX mini-GBIC.
Fiber Contact: LC / UPC.
Up to 80 km.
Wavelength 1550nm.
Operating temperature : -40 ~ + 75 ° C.
2.5Gbit SFP optical transceiver Single Mode
Mini GBIC - Small Factor
LC Single Mode fiber cables (9 my)
Estimated range is 20 km
Wavelength: 1310 nm
2.5Gbit single core WDM optisk transceiver
Single Mode Wavelength-Division-Multiplexing
Mini GBIC - small form factor
Til simplex fiber (enkelt core) med LC stik
Estimeret rækkevidde er 20km
Driftstemperatur: -40 - +70°C
Tilkøb modpart som monteres i anden ende af fibren
CNV-SFP2.5G-WDM-B
