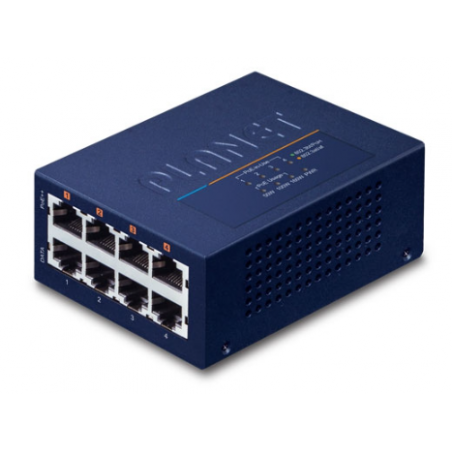

Injector

4 x 10/100/1G/2.5G/5GBASE-T Gbit RJ45 data input
4 x 10/100/1G/2.5G/5GBASE-T Gbit RJ45 data + PoE output
100~240VAC, 3.33Amp PSU with DC 52V~54V power output
Complies with 802.3bt PoE Plus Plus end-span and mid-span PSE
Backward compatible with IEEE 802.3at PoE Plus end-span/mid-span PSE
Up to 4 IEEE 802.3at/IEEE 802.3bt PoE devices powered
4 x PoE ports with 90-watt 802.3bt PoE++ type 4 PSE or 95-watt PoH PoE injector function
4 x PoE ports support 802.3at end-span/mid-span PoE+ 36-watt injector function
DIP switch for 802.3bt, PoH and Force mode selection
Auto detects if devices can be PoE powered (PD)
Circuit protection prevents power interference between ports
Forwards both Ethernet data and PoE power to remote device over a 100-meter distance
EEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet., IEEE 802.3ab Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
Dimensions: 94 x 70.3 x 39.2 mm
Weight: 275g
Enclosure: Metal case

PoE++ power supply via Ethernet cable, up to 60 Watt
LAN without PoE in, gives LAN with PoE out
PoE++ 48-53VDC/60W
Mid-span and End-span give 60Watt
For 100/1000/2500/5000Mbit networks.
Power is supplied from 48 - 54VDC
Temperature range: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
DIN mount

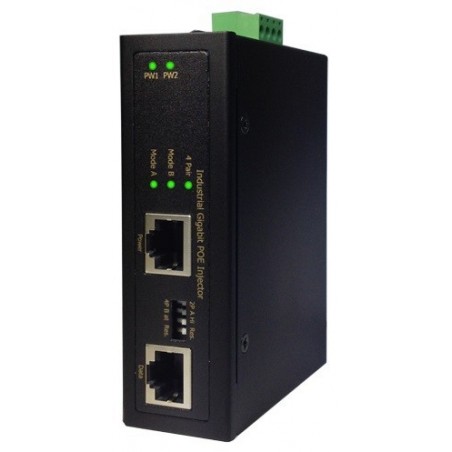

PoE++ power supply via Ethernet cable, up to 95 Watt
LAN without PoE in, gives LAN with PoE out
PoE++ 54VDC/95W
Mid-span and End-span give 95 Watts
For 100/1000/2500/5000Mbit networks.

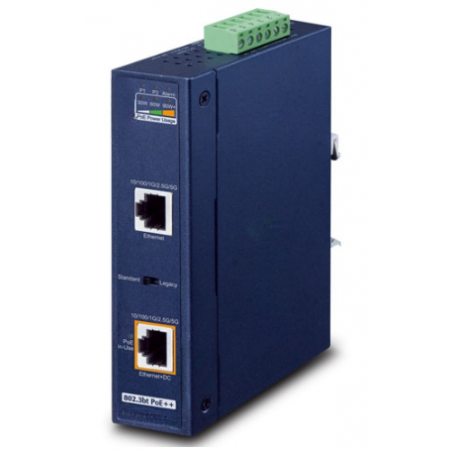

PoE power output DC 24V~54V input: Max. 89.5W@1m cable, Max. 75W@100m cable
PoE power output DC 12V input: Max. 60W@1m cable, Max. 52W@100m cable
Temperature range: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
DIN installation
Powersupply input from 12 - 54VDC

TILBEHØR: KØLER/ FAN TIL ETH-POE24x POE INJECTOR

PoE+ Injector via Ethernet cable, 30Watt
Anit interference protected
OVERLOAD and monitor protected
Network: 10/100 / 1000Mbps
RJ45 Pin Assignment: 1/2 (-), 3/6 (+)
Power Supply: 100 - 240Vac

Waterproof Outdoor PoE+ Injector 30Watt
1 x RJ45 Data
1 x RJ45 Data and PoE+
1 x 2-pin DC Phoenix connectors
IK10 Vandal safe
Supply voltage: 24 - 56VDC
POE Standard: IEEE 802.3 at / af
End-Span
Pin: (+ 1.2) (- 3.6)
Operating temperature: -40 - +75°C
wall mounting
Size: 170 x 73 x 44 mm
Weight: 340g

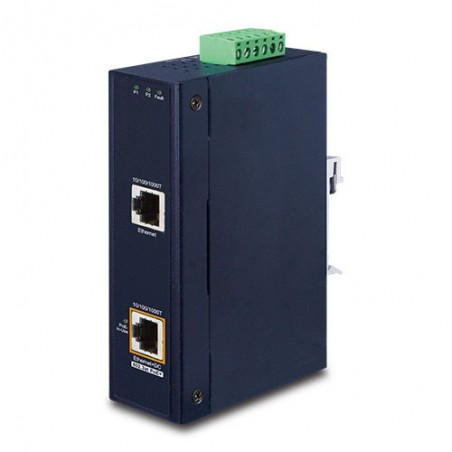

POE power supply via Ethernet cable, up to 30 watt
LAN without PoE in, gives LAN with PoE out
Poe +, 56VDC / 30W
10/100/1000Mbit network.
Power supplies from 12 -48VDC / 32W Max
Redundant Power Input via Terminal Block
Power supply not included
Dim: 135 x 87 x 32 mm
Operating temperature: -40 ~ +75°C

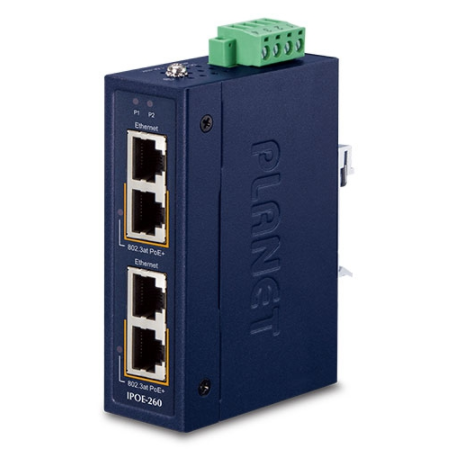

2 Ports Poe Injector provides 2 x 36Watt for PD equipment
10/100/1000 Mbit
pin 4/5 (+), pin 7/8 (-)
4 x RJ45 (2 with data and 2 with data + PoE for equipment)
supply voltage: 12 - 56VDC
Power Budget is 60 - 72 Watt
Dim: 105 x 70 x 30 watts
Weight: 280g
Operating temperature: -40 - + 75 ° C
DIN mounting

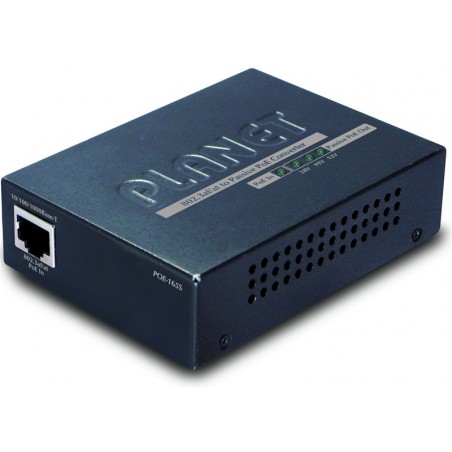

Passive PoE Injector with 12 / 19 / 24 VDC 0.7A output
From Active to Passive PoE converter
PoE input port: IEEE 802.3af/at RJ-45 STP / PD. Supplied from an active PoE switch
Passive PoE output port: non-802.3af/at RJ-45 STP / PSE. For equipment that is NOT for active PoE.

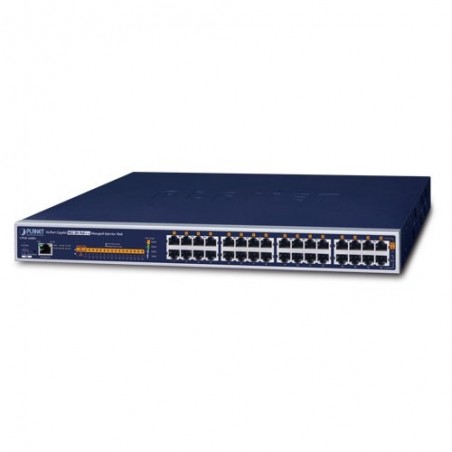

24 ports PoE++ strømforsyning med fuld effekt 95 Watt per port
LAN uden PoE ind, giver LAN med PoE ud
Til 10/100/1000 netværk

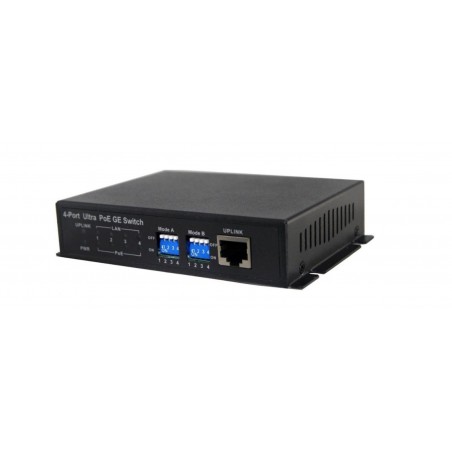

4 x RJ45 port with PoE ++ (Ultra PoE)
1 x RJ 45 Uplink port (not PoE).
60W for every PoE-Port
Power Budget is 120 watts
IEEE 802.3at / by PoE.
Dip on / off PoE
Power supply: 100 - 240VAC
Operating temperature: 0 - +40°C
Size: 119 x 88 x 27 mm
Weight: 1.3 kg

Switches without PoE can with this Injector "upgraded" to PoE switch
24 ports PoE full power supply

Per port DC 52V 30.8/15.4 watts
LAN without PoE in, LAN with PoE out
10 / 100 / 1000Mbit network

Max PoE 440 Watts

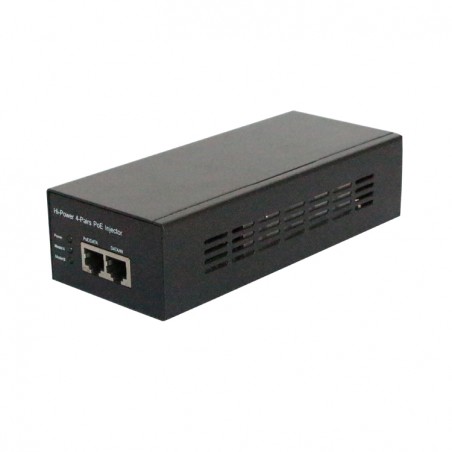

POE INJECTOR via Ethernet cable, 60 watts
anit interference protected
Overload and supervise protected
Network: 10/100 / 1000Mbps
RJ45 Pin Assignment: 1/2, 7/8 (- ), 3/6, 4/5 (+)
Power Supply: 100 - 240vac
Measure: 168 x 74 x 44 mm

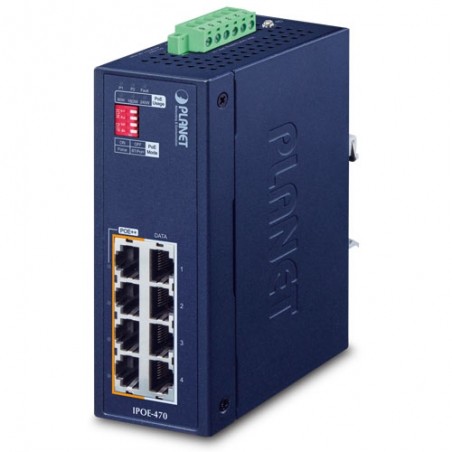

Connect switches without PoE for PoE PSE to Equipment
IEEE 802.3bt back compatible to IEEE 802.3at
Supports 10/100 / 1000Mbit speeds
4 x LAN input from the switch without PoE
4 x LAN with up to 95 Watt PoE
Max. PoE power total is 240Watt (PoE power budget)
Auto-detect devices with PoE input for not destroying not PoE
Supply voltage: 48 - 54VDC max. 244 Watt
Setting with DIP switches
DIN bracket for wall mounting and
Operating temperature: -40 - +75°C
Dimensions: 135 x 88 x 50 mm
Weight: 537g

PoE power supply via Ethernet cable, up to 30 watts

LAN without PoE input, provides LAN with PoE

For 10/100/1000Mbit network.

Power supply from 100 - 240VAC / 0.6A

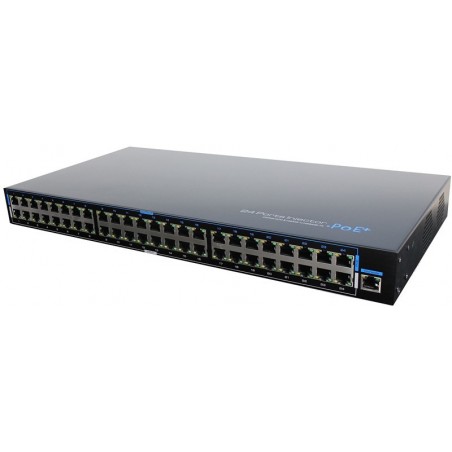

24-ports PoE strømforsyning 30 W, 10/100 Mbit

LAN without PoE voltage gives LAN with PoE
4 port PoE power supply 30 Watt per port
Connects between non-PoE switch and e.g. IP cameras with PoE
For 10/100/1000Mbit networks
Power supply included
Can be powered with 52-56VDC / 122Watt
Pin 4/5 +, 7/8 - (Mid-span)
Dimensions: 97 x 70 x 26 mm
Temp: -10 - +70°C

PoE ULTRA Power Supply via Ethernet Cable, 60 Watt
Output Voltage: 50 - 57VDC 1.2Amp
Supporter Mid-span and End-span
Using the 4 x Pair for PoE voltage

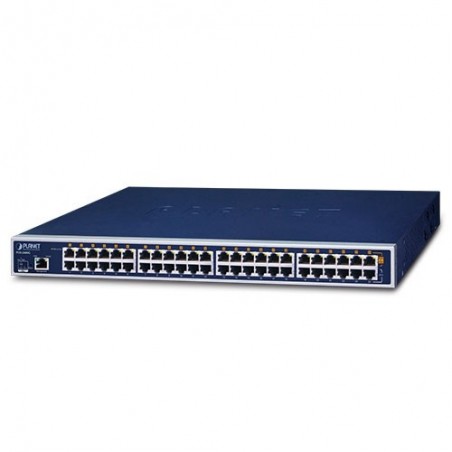

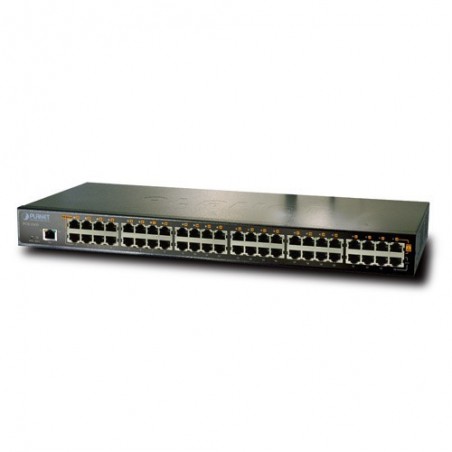

24 ports PoE strømforsyning med 15,4 Watt per port
LAN uden PoE ind, giver LAN med PoE ud
Til 10/100Mbit netværk

PoE injector
2 x 10/100 / 1000Mbit RJ45 (PoE)
UTP / TCP Cat.5e or over
Rugged Aluminum, IP30 protection
Maximum POE 95watts at 56VDC input
Dust temperature: -40 ° C ~ 75 ° C
humidity: 5% to 95% (Non-condensing)
Dimensions: 103.5 x 32 x 81.5 mm & nbsp;
Metal housing with IP30 density
DIN rail and Wall Mount
