PoE Gigabit Injector, 30 Watt PoE+, output voltage between 50-54VDC. 100 - 240VAC
PoE power supply via Ethernet cable, up to 30 watts
LAN without PoE input, provides LAN with PoE
For 10/100/1000Mbit network.
Power supply from 100 - 240VAC / 0.6A
POE power supply via Ethernet cable, up to 30 watt
LAN without PoE in, gives LAN with PoE out
Poe +, 56VDC / 30W
10/100/1000Mbit network.
Power supplies from 12 -48VDC / 32W Max

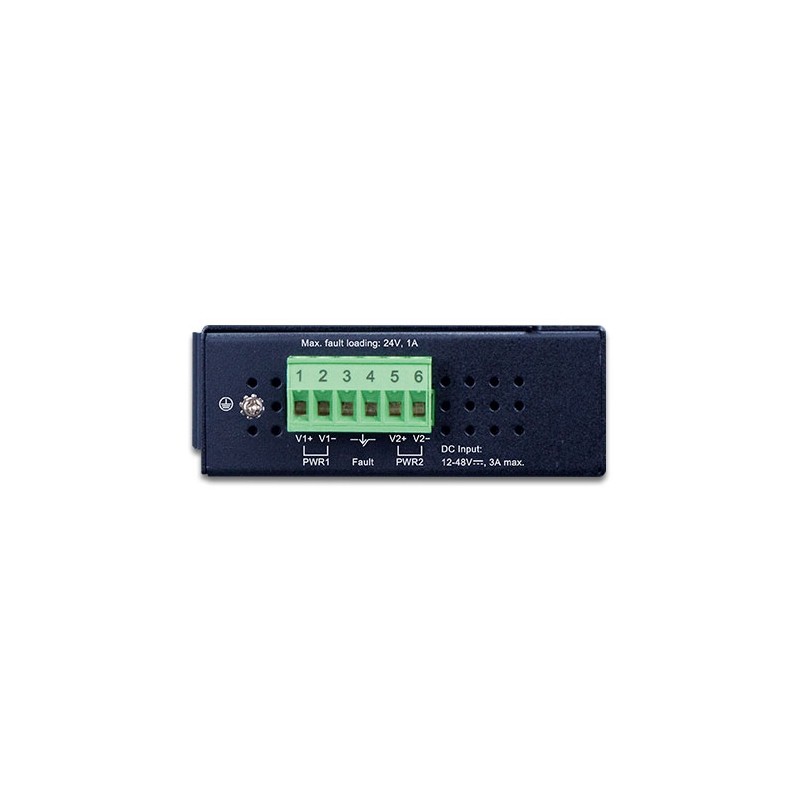

Redundant Power Input via Terminal Block
Power supply not included
Dim: 135 x 87 x 32 mm
Operating temperature: -40 ~ +75°C

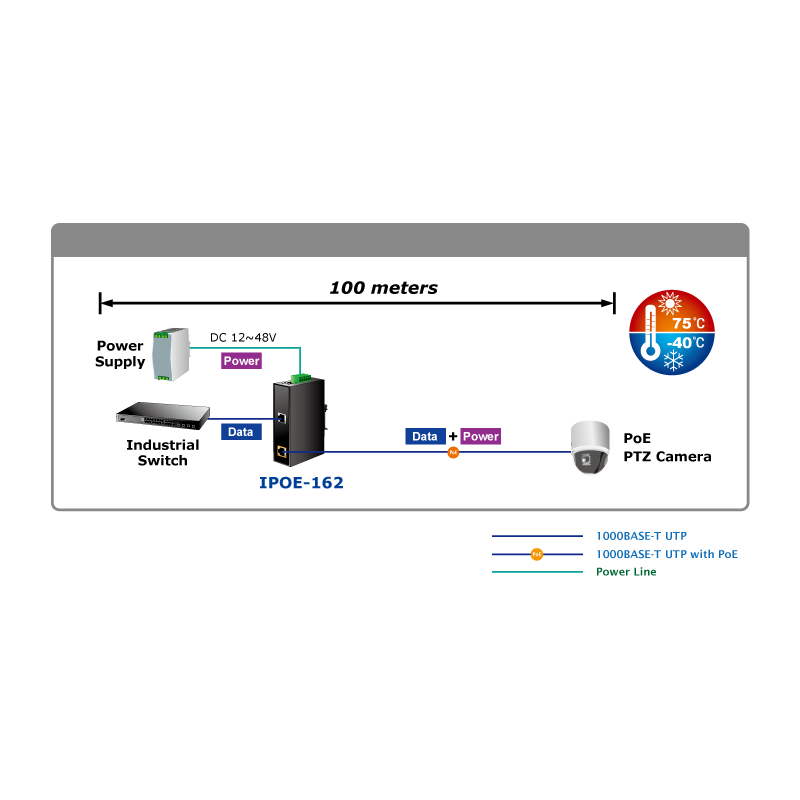

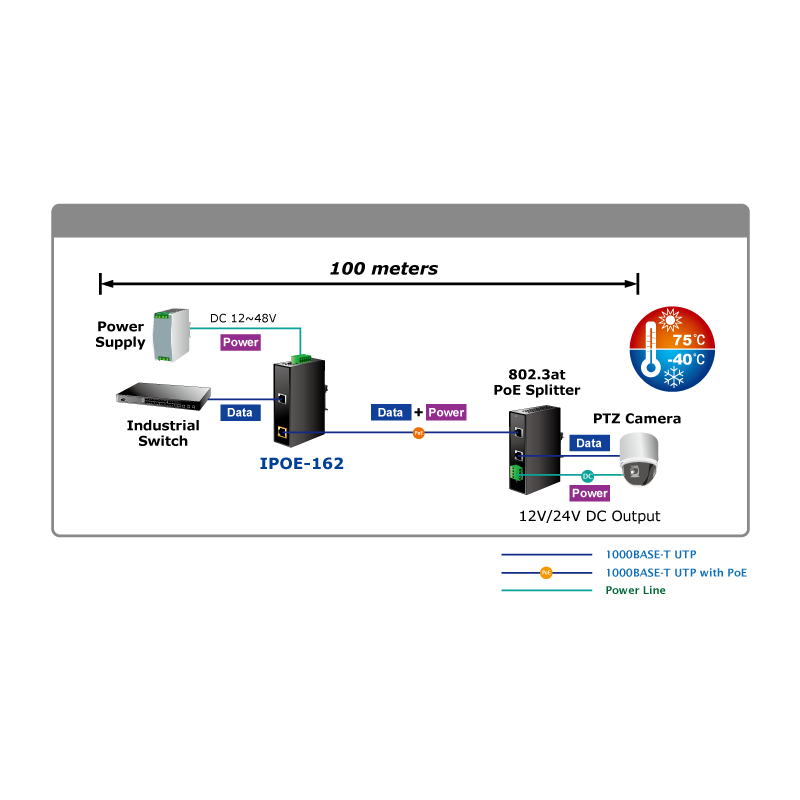

Injector ETH-POE56-DC12-48 can supply 30-watt 56V DC via CAT.5 / 5e / 6 Ethernet cables that allow data and power to transmit simultaneously through the cable between Injector and PoE PD (power supplied) or Poe splitter. The maximum distance between the injector and the splitter is 100 meters. With Industrial IEEE 802.3at Power Over Ethernet Plus devices installed, the system administrator only needs a single RJ45 Ethernet cable to drive both power and data to each device. It would make the network implementation easier and more reliable.

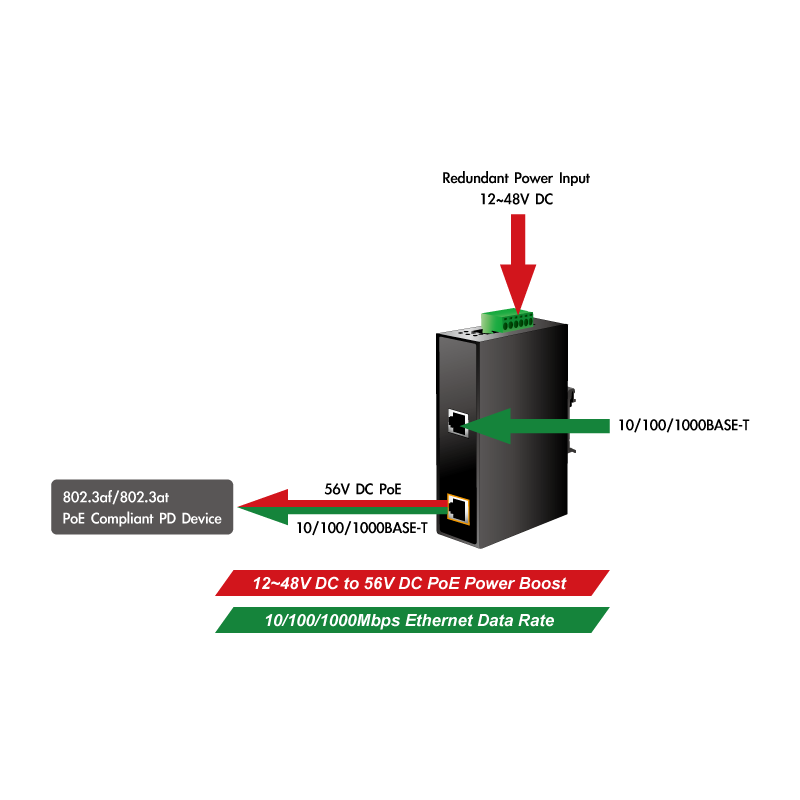

Practical and reliable power supply. To facilitate 802.3at POE usage with commonly used 12 ~ 48V DC power input for transport and applications on industrial level ETH-POE56-DC12-48 Power Boost technology to solve the power source problem, but does not require special power supplies. Its extensive voltage design is suitable for usefulness throughout the world with high availability applications requiring double or backup power inputs.
PoE power supply via Ethernet cable, up to 30 watts
LAN without PoE input, provides LAN with PoE
For 10/100/1000Mbit network.
Power supply from 100 - 240VAC / 0.6A
2 Ports Poe Injector provides 2 x 36Watt for PD equipment
10/100/1000 Mbit
pin 4/5 (+), pin 7/8 (-)
4 x RJ45 (2 with data and 2 with data + PoE for equipment)
supply voltage: 12 - 56VDC
Power Budget is 60 - 72 Watt
Dim: 105 x 70 x 30 watts
Weight: 280g
Operating temperature: -40 - + 75 ° C
DIN mounting
POE INJECTOR via Ethernet cable, 60 watts
anit interference protected
Overload and supervise protected
Network: 10/100 / 1000Mbps
RJ45 Pin Assignment: 1/2, 7/8 (- ), 3/6, 4/5 (+)
Power Supply: 100 - 240vac
Measure: 168 x 74 x 44 mm
LAN without PoE voltage gives LAN with PoE
4 port PoE power supply 30 Watt per port
Connects between non-PoE switch and e.g. IP cameras with PoE
For 10/100/1000Mbit networks
Power supply included
Can be powered with 52-56VDC / 122Watt
Pin 4/5 +, 7/8 - (Mid-span)
Dimensions: 97 x 70 x 26 mm
Temp: -10 - +70°C
