24 ports Mid-span PoE injektor, 10/100Mbit, 230VAC
24 ports PoE strømforsyning med 15,4 Watt per port
LAN uden PoE ind, giver LAN med PoE ud
Til 10/100Mbit netværk
Built 100-240V AC power supply

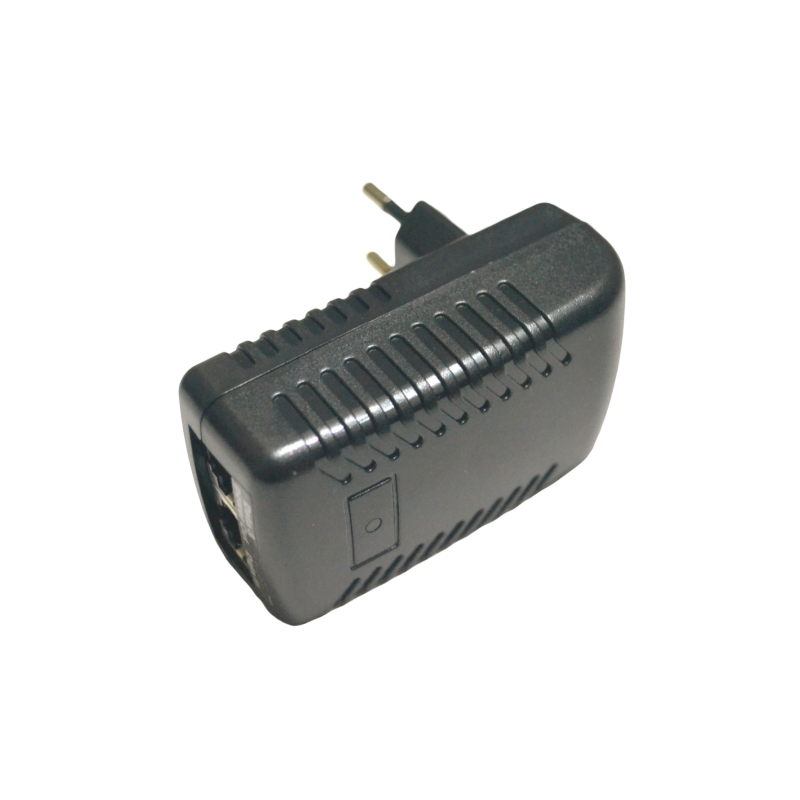

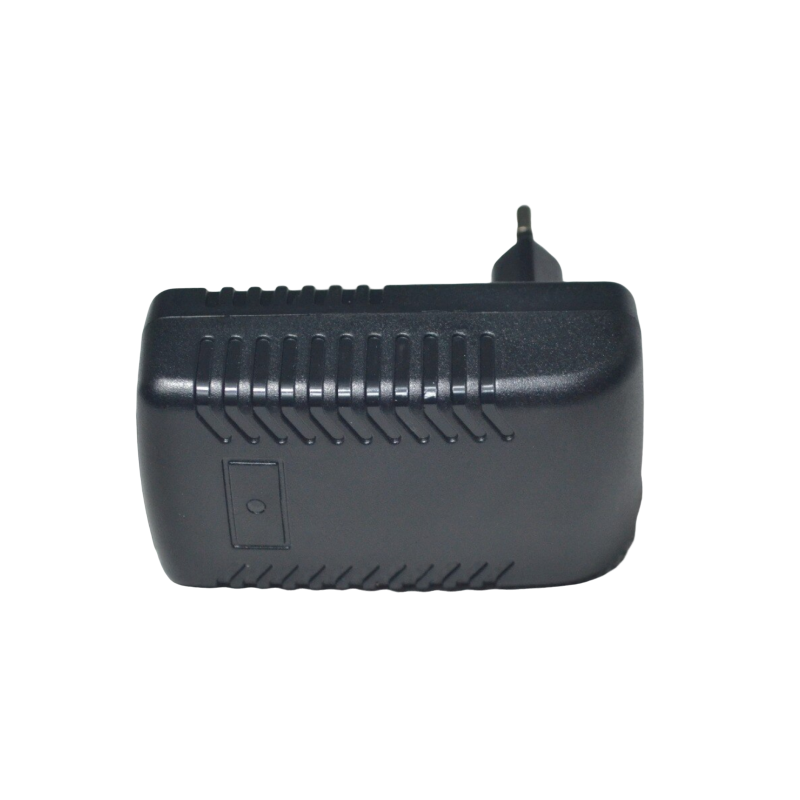

POC - Power Over Cable power
Meets NOT PoE specifications.
Constant voltage out.

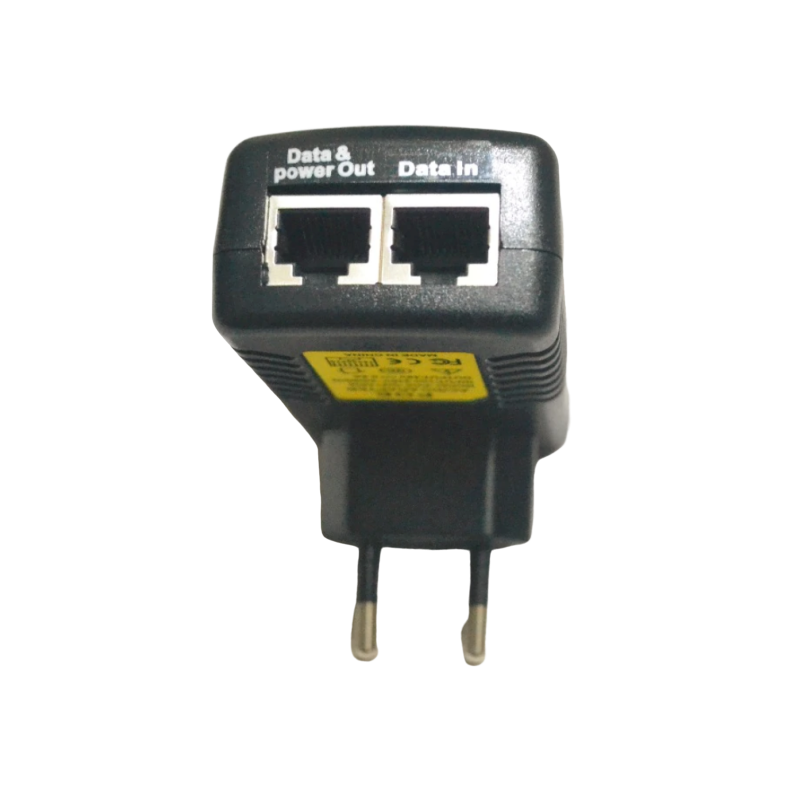

2 x RJ45 ports - data input and data + voltage output
output voltage: DC 48V 0.5A
DC output: + (4.5) - (7.8)
Data: 1,2,3,6
Dimensions: 82 x 44 x 55 mm ( LxWxH)
Weight: 104g
PoE adapter injector outlet
Used for wireless access points, IP telephony, IP camera, gateway switches.
It is a POC power.
Not compliant PoE specs !!
24 ports PoE strømforsyning med 15,4 Watt per port
LAN uden PoE ind, giver LAN med PoE ud
Til 10/100Mbit netværk
Switches without PoE can with this Injector "upgraded" to PoE switch
24 ports PoE full power supply
Per port DC 52V 30.8/15.4 watts
LAN without PoE in, LAN with PoE out
10 / 100 / 1000Mbit network
Max PoE 440 Watts
LAN without PoE voltage gives LAN with PoE
4 port PoE power supply 30 Watt per port
Connects between non-PoE switch and e.g. IP cameras with PoE
For 10/100/1000Mbit networks
Power supply included
Can be powered with 52-56VDC / 122Watt
Pin 4/5 +, 7/8 - (Mid-span)
Dimensions: 97 x 70 x 26 mm
Temp: -10 - +70°C
PoE injector
2 x 10/100 / 1000Mbit RJ45 (PoE)
UTP / TCP Cat.5e or over
Rugged Aluminum, IP30 protection
Maximum POE 95watts at 56VDC input
Operating Temperature: -40 ° C ~ 75 ° C
Humidity: 5% to 95% (Non-condensing)
Dimensions: 103.5 x 32 x 81.5 mm & nbsp;
Compliant with 95W Power over HDBaseT (PoH) Standard
Metal housing with IP30 density
DIN rail and wall bracket
