PoE injector which provides 12V, 19V or 24V DC passive PoE for equipment - non-standard

Passive PoE Injector with 12 / 19 / 24 VDC 0.7A output
From Active to Passive PoE converter
PoE input port: IEEE 802.3af/at RJ-45 STP / PD. Supplied from an active PoE switch
Passive PoE output port: non-802.3af/at RJ-45 STP / PSE. For equipment that is NOT for active PoE.

623.00 DKK
Tax excluded
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

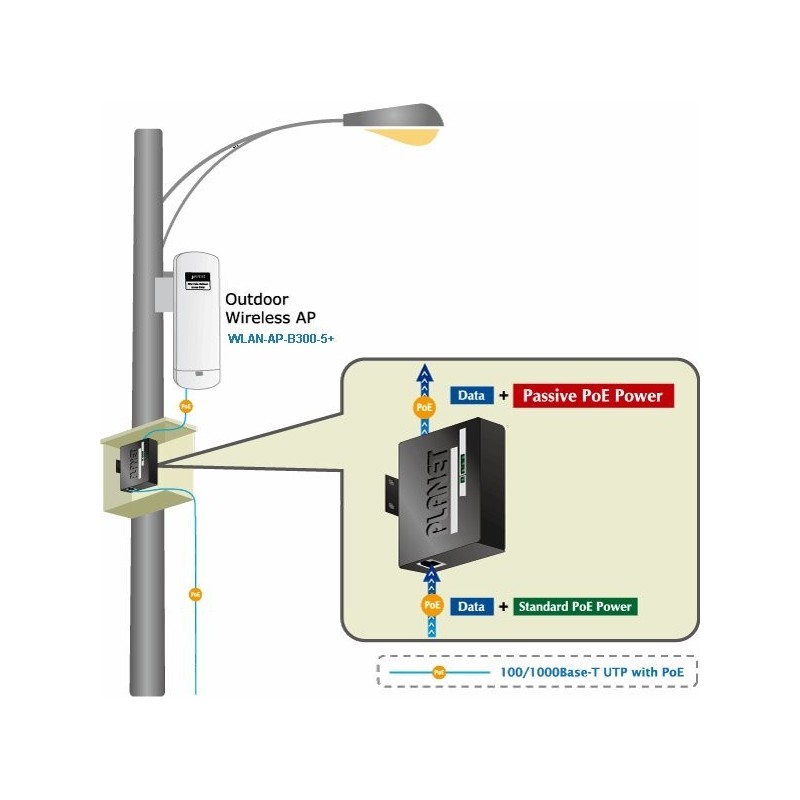

Active PoE to passive PoE converter.

Supply passive PoE equipment via PoE. 12, 19 or 24 volts.

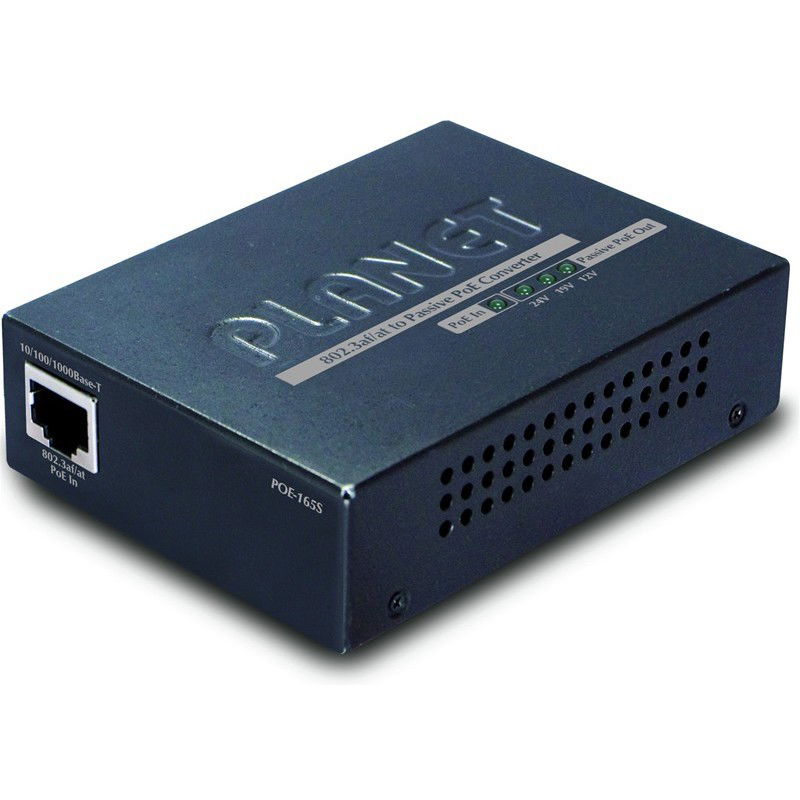

The ETH-POE50PAS is a PoE to "passive PoE" converter. Thus, devices that only support "passive PoE" can be supplied via a regular PoE switch or injector.

The ETH-POE50PAS can deliver up to 0.7A at a voltage of 12, 19 or 24 VDC. It requires that it is connected to a PoE switch or injector that supports the PoE standard IEEE802.3at.

-40 – 75 °C. Luftfugtighed: 5 – 90 % ikke-kondenserende
PoE konverter, der konverter PoE-signalet til ”passiv PoE”
Understøtter PoE standarderne IEEE802.3af og IEEE802.3at på indgangen
PoE konverteren tilsluttes en PoE switch eller injector
12, 19 eller 24 VDC. Maks. 0,7A, via terminal 4/5(+) og 7/8(+)
10/100/1000 Mbit Ethernet (10Base-T, 100Base-TX og 1000Base-T)
