PoE Tester for units over PoE network
Quick and Easy PoE tester
IEEE 802.3af / at
UTP Cat 5 or above
100 meters max.
Dimensions: 23 x 70.1 x 22 mm | Operating temperature: -10 ~ 60 C
weight: 20g
PoE++ power supply via Ethernet cable, up to 95 Watt
LAN without PoE in, gives LAN with PoE out
PoE++ 54VDC/95W
Mid-span and End-span give 95 Watts
For 100/1000/2500/5000Mbit networks.
PoE power output DC 24V~54V input: Max. 89.5W@1m cable, Max. 75W@100m cable
PoE power output DC 12V input: Max. 60W@1m cable, Max. 52W@100m cable
Temperature range: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
DIN installation
Powersupply input from 12 - 54VDC
Advanced industrial multi-gigabit and 802.3bt PoE++ network solution

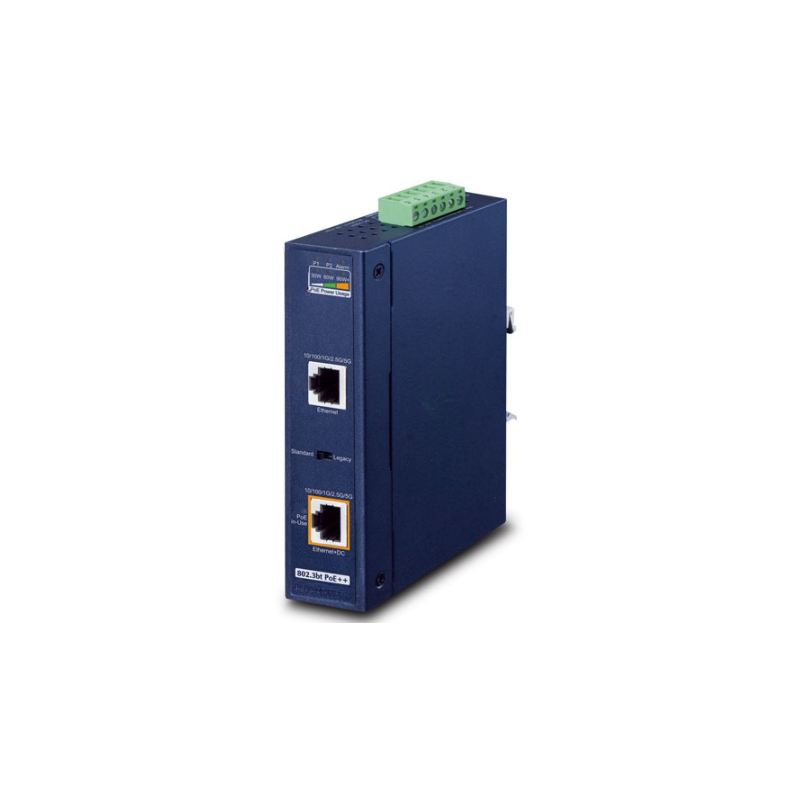

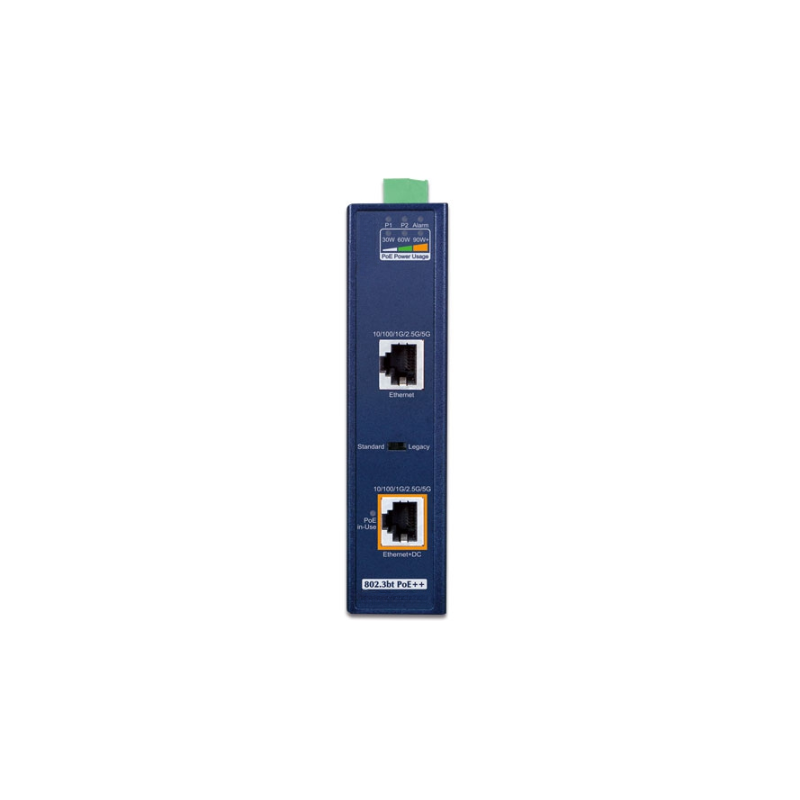

The ETH-POE54-95W is a single-port, industrial 802.3bt Power over Ethernet injector with a maximum output power of up to 95 watts over Ethernet cables. It is also equipped with 100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission. ETH-POE54-95W supplies Ethernet digital data with 54V DC power over the twisted pair cables as a 95 watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, will separate the digital data and the power to three optional outputs (12V/24V DC) with distance up to 100 meters.

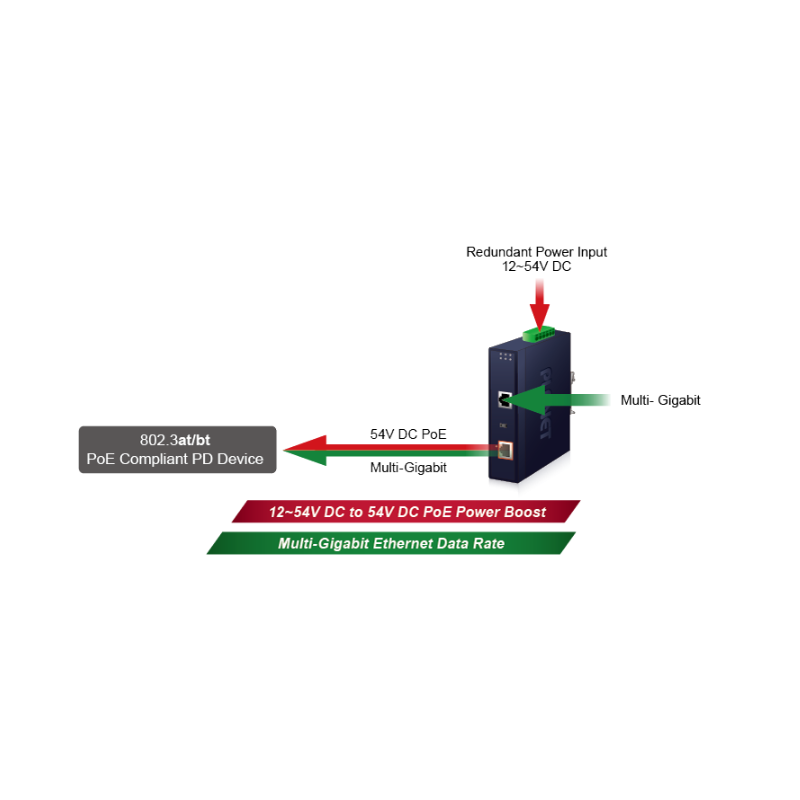

Reliable power system is very important and 802.3bt PoE++ is with commonly used 12~54V DC power input for transportation and industrial applications, ETH-POE54-95W uses 12~54V DC to 54V power boost technology to solve the power source problem but does not require special power supplies. The ETH-POE54-95W provides an integrated power solution with a wide range of voltages (12~54V DC). It also provides dual-redundant, reversible polarity 12~54V DC power supply input for high availability applications. The injector delivers 95 watts over 4-pair UTP.

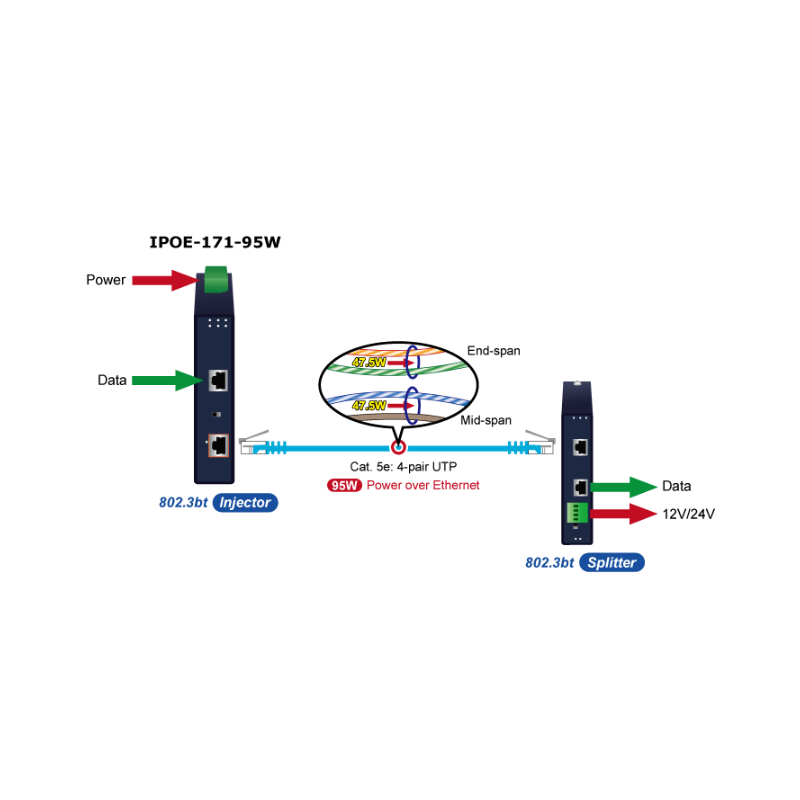

Instead of delivering power over 2-pair twisted UTP - whether end-span (pins 1, 2, 3 and 6) or mid-span (pins 4, 5, 7 and 8), the ETH-POE54- 95W the capacity to retrieve up to 95 watts by using all four pairs of standard Cat. 5e/6 Ethernet cables.
Quick and Easy PoE tester
IEEE 802.3af / at
UTP Cat 5 or above
100 meters max.
Dimensions: 23 x 70.1 x 22 mm | Operating temperature: -10 ~ 60 C
weight: 20g
4 x 10/100/1G/2.5G/5GBASE-T Gbit RJ45 data input
4 x 10/100/1G/2.5G/5GBASE-T Gbit RJ45 data + PoE output
100~240VAC, 3.33Amp PSU with DC 52V~54V power output
Complies with 802.3bt PoE Plus Plus end-span and mid-span PSE
Backward compatible with IEEE 802.3at PoE Plus end-span/mid-span PSE
Up to 4 IEEE 802.3at/IEEE 802.3bt PoE devices powered
4 x PoE ports with 90-watt 802.3bt PoE++ type 4 PSE or 95-watt PoH PoE injector function
4 x PoE ports support 802.3at end-span/mid-span PoE+ 36-watt injector function
DIP switch for 802.3bt, PoH and Force mode selection
Auto detects if devices can be PoE powered (PD)
Circuit protection prevents power interference between ports
Forwards both Ethernet data and PoE power to remote device over a 100-meter distance
EEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet., IEEE 802.3ab Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
Dimensions: 94 x 70.3 x 39.2 mm
Weight: 275g
Enclosure: Metal case
PoE++ power supply via Ethernet cable, up to 60 Watt
LAN without PoE in, gives LAN with PoE out
PoE++ 48-53VDC/60W
Mid-span and End-span give 60Watt
For 100/1000/2500/5000Mbit networks.
Power is supplied from 48 - 54VDC
Temperature range: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
DIN mount
2 Ports Poe Injector provides 2 x 36Watt for PD equipment
10/100/1000 Mbit
pin 4/5 (+), pin 7/8 (-)
4 x RJ45 (2 with data and 2 with data + PoE for equipment)
supply voltage: 12 - 56VDC
Power Budget is 60 - 72 Watt
Dim: 105 x 70 x 30 watts
Weight: 280g
Operating temperature: -40 - + 75 ° C
DIN mounting
