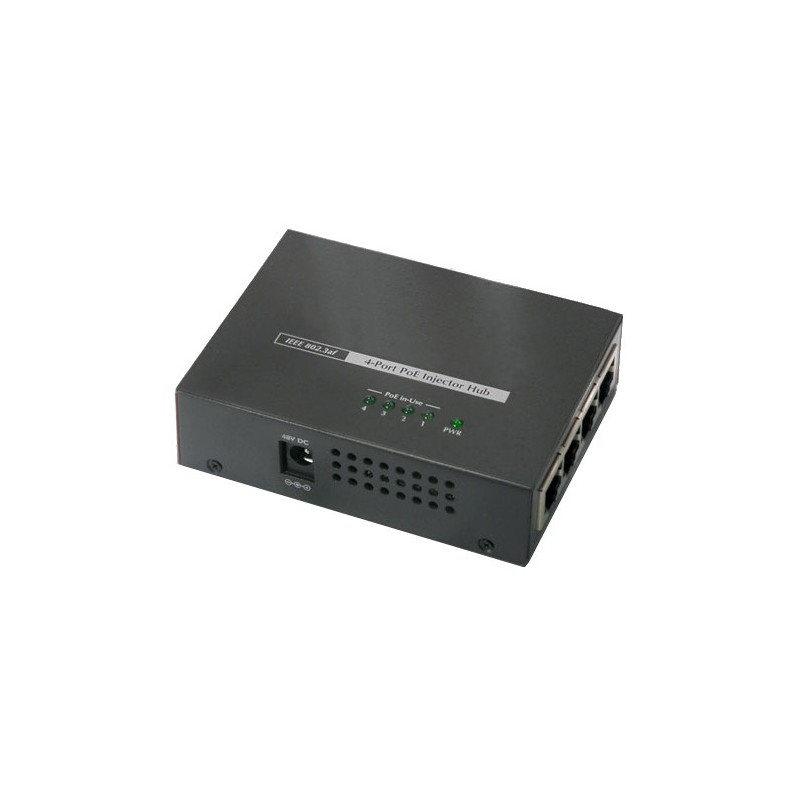

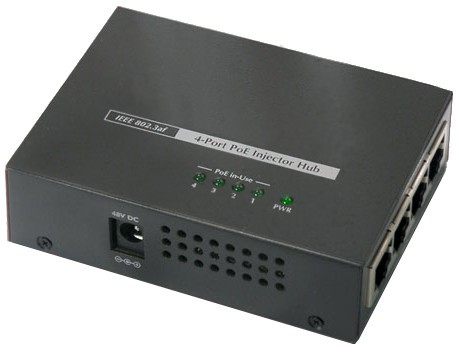

ETH-POEGH supplies up to 4 LAN networks with PoE+ for e.g. IP cameras

4 port PoE Injector 30 Watt per port, 4 x LAN in, 4 x LAN with PoE+ out

LAN without PoE voltage gives LAN with PoE
4 port PoE power supply 30 Watt per port
Connects between non-PoE switch and e.g. IP cameras with PoE
For 10/100/1000Mbit networks
Power supply included
Can be powered with 52-56VDC / 122Watt
Pin 4/5 +, 7/8 - (Mid-span)
Dimensions: 97 x 70 x 26 mm
Temp: -10 - +70°C

1,016.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number ETH-POE4GH
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. 0 til +50° C
Andet Leveres inkl. Strømforsyning til 100 – 250 VAC
Kapacitet Op til 30 W pr. port
LED LED indikation af PoE ved hver port
Porte 4 x RJ45 10/100/1000 Mbit
Standarder Overholder IEEE802.3af PoE. samt IEEE802.3at PoE+
Strømforbrug Maks. 120 watt
Strømforsyning 100 – 240 VAC eller 52 VDC

With this mid span injector, PoE network devices such as surveillance cameras, IP phones, access points etc. power is supplied via the network cable even if the switch does not support PoE. This injector is inserted between the switch and network devices and supplies voltage to the network cable.
