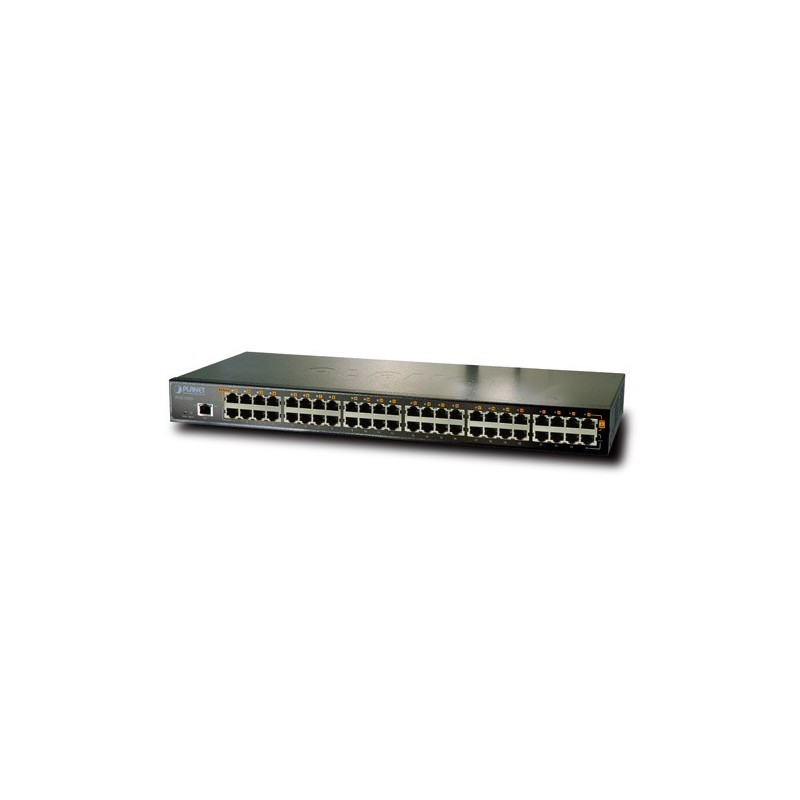

24 ports Mid-span PoE injektor, 10/100Mbit, 230VAC

PoE+ Injector via Ethernet cable, 30Watt
Anit interference protected
OVERLOAD and monitor protected
Network: 10/100 / 1000Mbps
RJ45 Pin Assignment: 1/2 (-), 3/6 (+)
Power Supply: 100 - 240Vac

Waterproof Outdoor PoE+ Injector 30Watt
1 x RJ45 Data
1 x RJ45 Data and PoE+
1 x 2-pin DC Phoenix connectors
IK10 Vandal safe
Supply voltage: 24 - 56VDC
POE Standard: IEEE 802.3 at / af
End-Span
Pin: (+ 1.2) (- 3.6)
Operating temperature: -40 - +75°C
wall mounting
Size: 170 x 73 x 44 mm
Weight: 340g

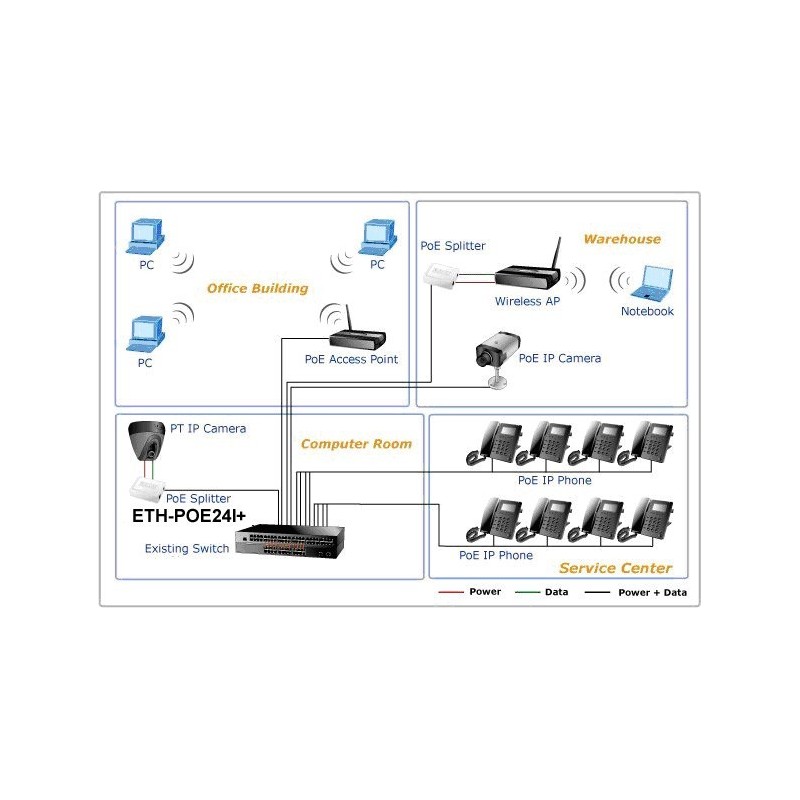

Switches without PoE can with this Injector "upgraded" to PoE switch
24 ports PoE full power supply 15.4 watts per port
LAN without PoE in, LAN with PoE out
10 / 100 / 100Mbit network

Connect switches without PoE for PoE PSE to Equipment
IEEE 802.3bt back compatible to IEEE 802.3at
Supports 10/100 / 1000Mbit speeds
4 x LAN input from the switch without PoE
4 x LAN with up to 95 Watt PoE
Max. PoE power total is 240Watt (PoE power budget)
Auto-detect devices with PoE input for not destroying not PoE
Supply voltage: 48 - 54VDC max. 244 Watt
Setting with DIP switches
DIN bracket for wall mounting and
Operating temperature: -40 - +75°C
Dimensions: 135 x 88 x 50 mm
Weight: 537g
