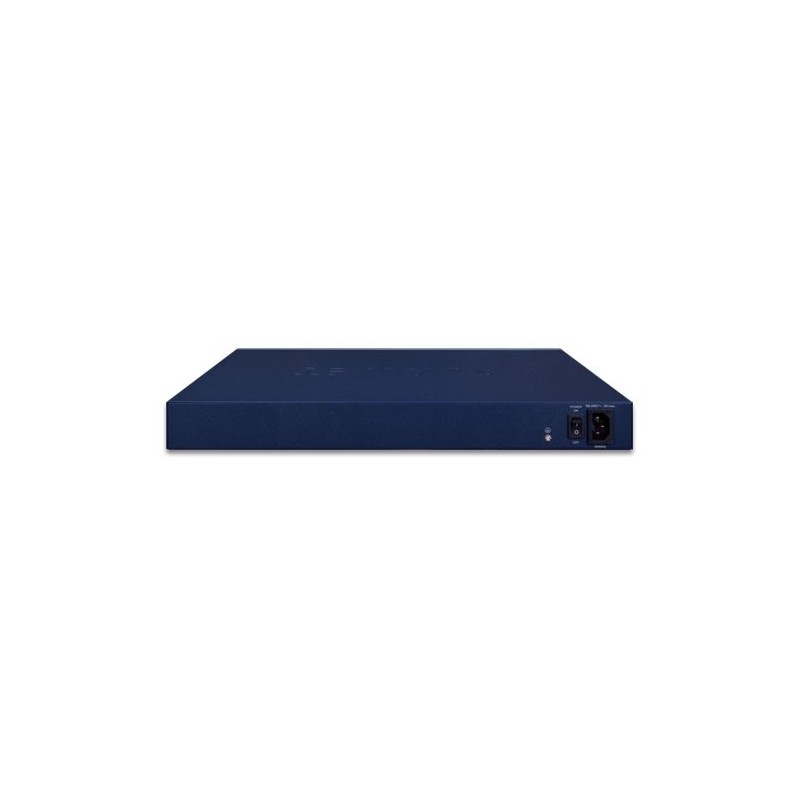

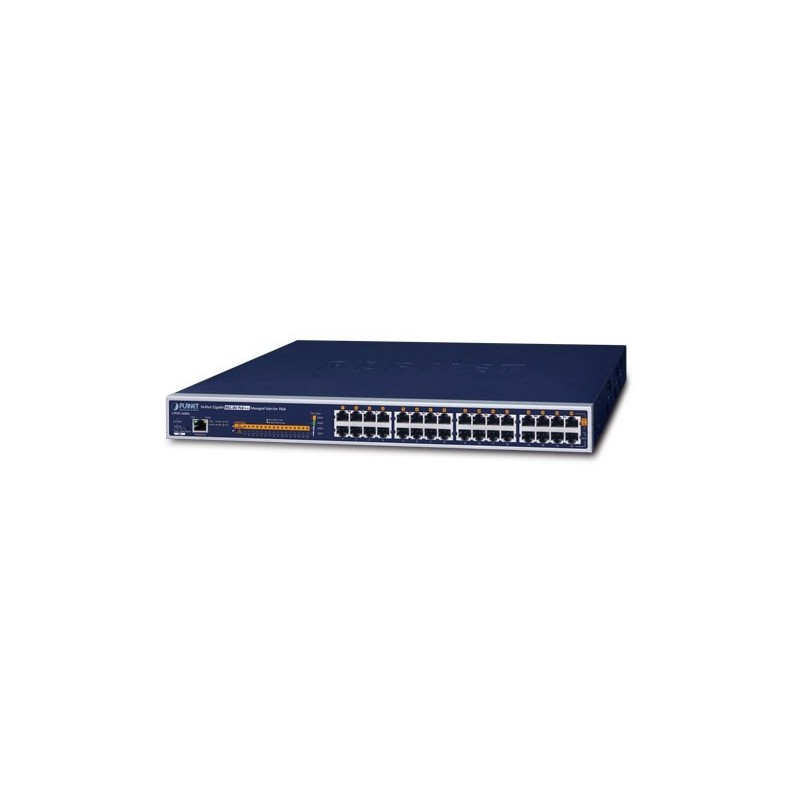

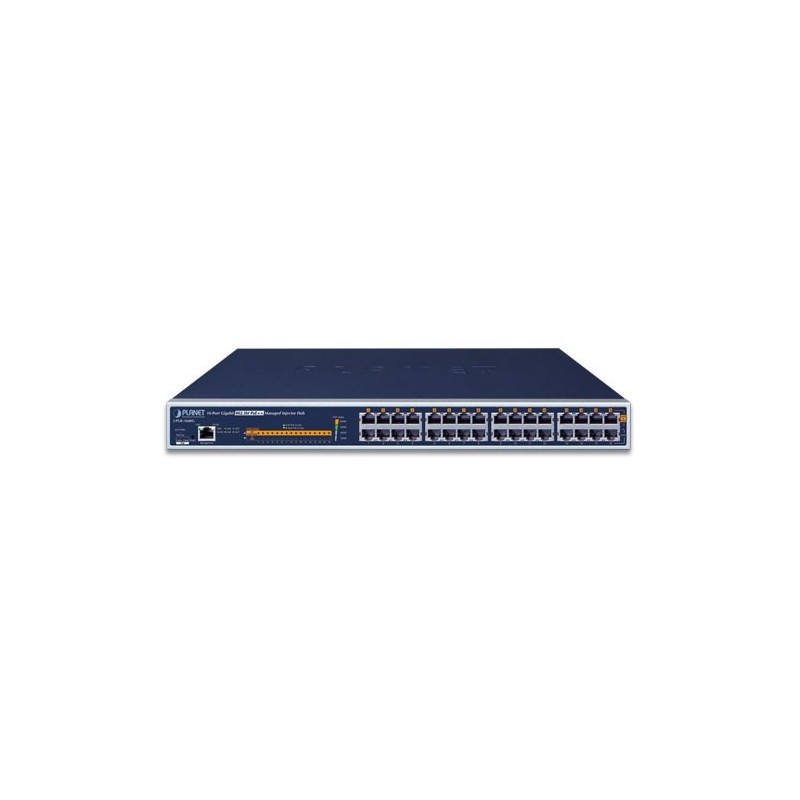

16-Port Gigabit PoE++ Injector | 95W per Port | 600W Total Power
16-Port Gigabit PoE++ Injector | 95W per Port | 600W Total Power
16-Port Gigabit PoE++ Injector | 95W per Port | 600W Total Power
Previous
Next
16-Port Gigabit PoE++ Injector | 95W per Port | 600W Total Power
16-Port Gigabit PoE++ Injector | 95W per Port | 600W Total Power
16-Port Gigabit PoE++ Injector | 95W per Port | 600W Total Power

16 Ports Gigabit PoE++ Injector, 95W per port | 600 Watts total

24 ports PoE++ strømforsyning med fuld effekt 95 Watt per port
LAN uden PoE ind, giver LAN med PoE ud
Til 10/100/1000 netværk

7,000.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number ETH-POE16G
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. 0 ~ 50 degrees C
Mål og vægt 4,8kg
PoE 600W Total & 95W Max pr. port
Porte 16x RJ45 10/100/1000 Mbit
Strømforbrug Maks 800 watt
Strømforsyning 100-240V AC, 50/60 Hz, 8A

Other products in same category:

24 port Gigabit Midspan PoE Injector, 15Watt per port, 230VAC
24 port Gigabit PoE Injector, 15Watt per port, PoE+

Switches without PoE can with this Injector "upgraded" to PoE switch
24 ports PoE full power supply

Per port DC 52V 30.8/15.4 watts
LAN without PoE in, LAN with PoE out
10 / 100 / 1000Mbit network

Max PoE 440 Watts



3,900.00 kr
Item Number: ETH-POE24G
Physically in stock
ADD TO CART
Quick view
DC POE injector 12v, 19v, 24vdc over ethernet cable
PoE injector which provides 12V, 19V or 24V DC passive PoE for equipment - non-standard

Passive PoE Injector with 12 / 19 / 24 VDC 0.7A output
From Active to Passive PoE converter
PoE input port: IEEE 802.3af/at RJ-45 STP / PD. Supplied from an active PoE switch
Passive PoE output port: non-802.3af/at RJ-45 STP / PSE. For equipment that is NOT for active PoE.

623.00 kr
Item Number: ETH-POE50PAS
Physically in stock
ADD TO CART
Quick view
PoE + Injector with 30W - 100-240VAC - DANBIT A/S
PoE Gigabit Injector, 30 Watt PoE+, output voltage between 50-54VDC. 100 - 240VAC

PoE power supply via Ethernet cable, up to 30 watts

LAN without PoE input, provides LAN with PoE

For 10/100/1000Mbit network.

Power supply from 100 - 240VAC / 0.6A

432.00 kr
Item Number: ETH-POE56+
Physically in stock
ADD TO CART
Quick view
2 x PoE+ injektor 2 x PoE+ PSE og 2 x LAN. Gigabit. Mid-span injektor
2 x PoE+ injector 2 x PoE + PSE and 2 x LAN. Gigabit. Mid-Span injector 802.3at. 2 x 36watt. 12 - 56VDC input

2 Ports Poe Injector provides 2 x 36Watt for PD equipment
10/100/1000 Mbit
pin 4/5 (+), pin 7/8 (-)
4 x RJ45 (2 with data and 2 with data + PoE for equipment)
supply voltage: 12 - 56VDC
Power Budget is 60 - 72 Watt
Dim: 105 x 70 x 30 watts
Weight: 280g
Operating temperature: -40 - + 75 ° C
DIN mounting

1,190.00 kr
Item Number: ETH-POE2+12-56
On the way in
ADD TO CART
Quick view
PoE Switch CAT. 5/6/7/8 60W for every PoE-port
4 Ports PoE Switch / PoE Injector 60 Watt per port. PoE 48 or 56VDC. Gigabit. 1 XRJ45 Uplink, 4 x RJ45 PoE port.

4 x RJ45 port with PoE ++ (Ultra PoE)
1 x RJ 45 Uplink port (not PoE).
60W for every PoE-Port
Power Budget is 120 watts
IEEE 802.3at / by PoE.
Dip on / off PoE
Power supply: 100 - 240VAC
Operating temperature: 0 - +40°C
Size: 119 x 88 x 27 mm
Weight: 1.3 kg

1,832.00 kr
Item Number: ETH-POE-DIP-4X1G
On the way in
ADD TO CART
Quick view
PoE+ Injector Powered by External 12 - 48V Supply
PoE+ Gigabit Injector, 30 Watt. PoE out 56VDC, Supply voltage 12 - 48VDC, -40 - +75°C

POE power supply via Ethernet cable, up to 30 watt
LAN without PoE in, gives LAN with PoE out
Poe +, 56VDC / 30W
10/100/1000Mbit network.
Power supplies from 12 -48VDC / 32W Max
Redundant Power Input via Terminal Block
Power supply not included
Dim: 135 x 87 x 32 mm
Operating temperature: -40 ~ +75°C

933.00 kr
Item Number: ETH-POE56-DC12-48
Physically in stock
ADD TO CART
Quick view
4 Port PoE Injector ++, 95 Watt, 4 x LAN in, 4 x LAN out with PoE++
4 ports PoE injector++, 95 Watt, 4 x into LAN, 4 x LAN out with PoE++, PoE 48-54VDC, Gigabit DIN, 48 - 54VDC, -40 - +75°C

Connect switches without PoE for PoE PSE to Equipment
IEEE 802.3bt back compatible to IEEE 802.3at
Supports 10/100 / 1000Mbit speeds
4 x LAN input from the switch without PoE
4 x LAN with up to 95 Watt PoE
Max. PoE power total is 240Watt (PoE power budget)
Auto-detect devices with PoE input for not destroying not PoE
Supply voltage: 48 - 54VDC max. 244 Watt
Setting with DIP switches
DIN bracket for wall mounting and
Operating temperature: -40 - +75°C
Dimensions: 135 x 88 x 50 mm
Weight: 537g

2,225.00 kr
Item Number: ETH-POE4GH+
Physically in stock
ADD TO CART
Quick view

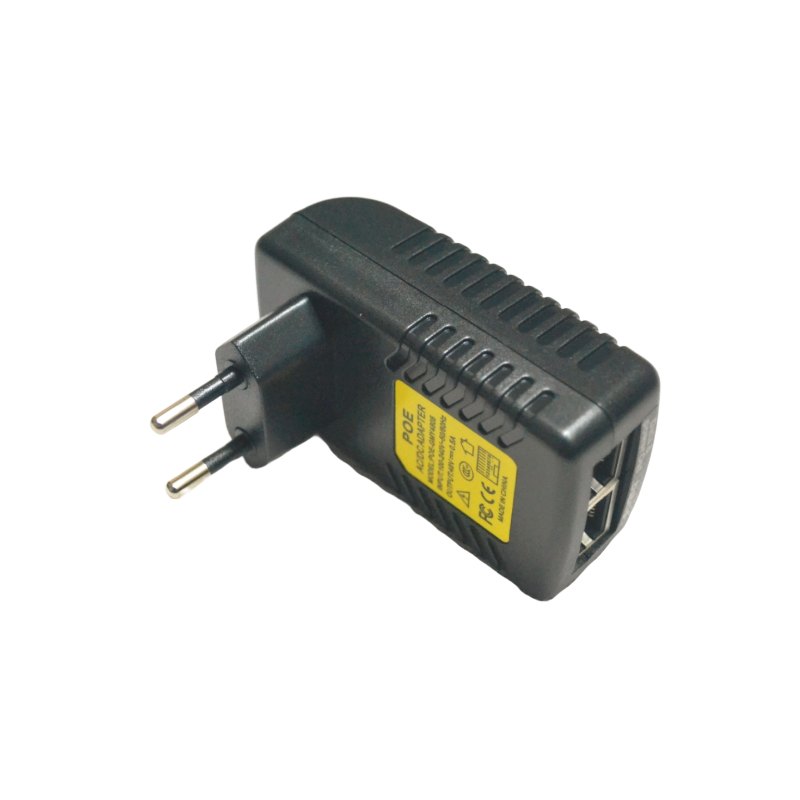

48VDC Passive PoE Injector with RJ45, POC
48V Passive PoE power injector with RJ45, 0.5 amps to power outlet

Built 100-240V AC power supply
POC - Power Over Cable power
Meets NOT PoE specifications.
Constant voltage out.
2 x RJ45 ports - data input and data + voltage output
output voltage: DC 48V 0.5A
DC output: + (4.5) - (7.8)
Data: 1,2,3,6
Dimensions: 82 x 44 x 55 mm ( LxWxH)
Weight: 104g

290.00 kr
Item Number: ETH-POE-POC48
Physically in stock
ADD TO CART
Quick view
