Injector

Built 100-240V AC power supply
POC - Power Over Cable power
Meets NOT PoE specifications.
Constant voltage out.
2 x RJ45 ports - data input and data + voltage output
output voltage: DC 48V 0.5A
DC output: + (4.5) - (7.8)
Data: 1,2,3,6
Dimensions: 82 x 44 x 55 mm ( LxWxH)
Weight: 104g

Built 100-240V AC power supply
POC - Power Over Cable power
Meets NOT PoE specifications.
Constant voltage out.
2 x RJ45 ports - data input and data + voltage output
output voltage: DC 24V 1A
DC output: + (4.5) - (7.8)
Data: 1,2,3,6
Dimensions: 82 x 44 x 55 mm (LxWxH )
Weight: 104g

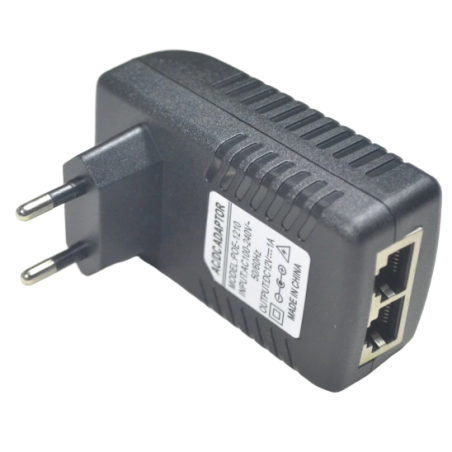

Built 100-240V AC power supply
POC - Power Over Cable power
Meets NOT PoE specifications.
Constant voltage out.
2 x RJ45 ports - data input and data + voltage output
output voltage: DC 12VDC 1A
DC output: + (4.5) - (7.8)
Data: 1,2,3,6
Dimensions: 82 x 44 x 55 mm (LxWxH )
Weight: 104g

Quick and Easy PoE tester
IEEE 802.3af / at
UTP Cat 5 or above
100 meters max.
Dimensions: 23 x 70.1 x 22 mm | Operating temperature: -10 ~ 60 C
weight: 20g

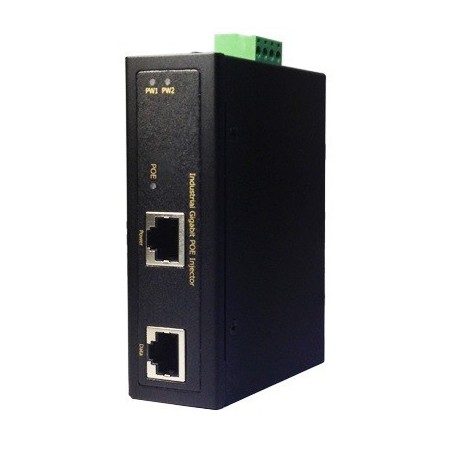

PoE injector
2 x 10/100 / 1000Mbit RJ45 (PoE)
UTP / TCP Cat.5e or over
Rugged Aluminum, IP30 protection
Maximum POE 95watts at 56VDC input
Operating Temperature: -40 ° C ~ 75 ° C
Humidity: 5% to 95% (Non-condensing)
Dimensions: 103.5 x 32 x 81.5 mm & nbsp;
Compliant with 95W Power over HDBaseT (PoH) Standard
Metal housing with IP30 density
DIN rail and wall bracket
