PoE Gigabit 60Watt Injector PoE++, Output voltage approx. 50VDC, Supply 48 - 54VDC, 2A. DIN

PoE++ power supply via Ethernet cable, up to 60 Watt
LAN without PoE in, gives LAN with PoE out
PoE++ 48-53VDC/60W
Mid-span and End-span give 60Watt
For 100/1000/2500/5000Mbit networks.
Power is supplied from 48 - 54VDC
Temperature range: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
DIN mount

1,546.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number ETH-POE50-60W
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Advanced industrial multi-gigabit and 802.3bt PoE++ network solution

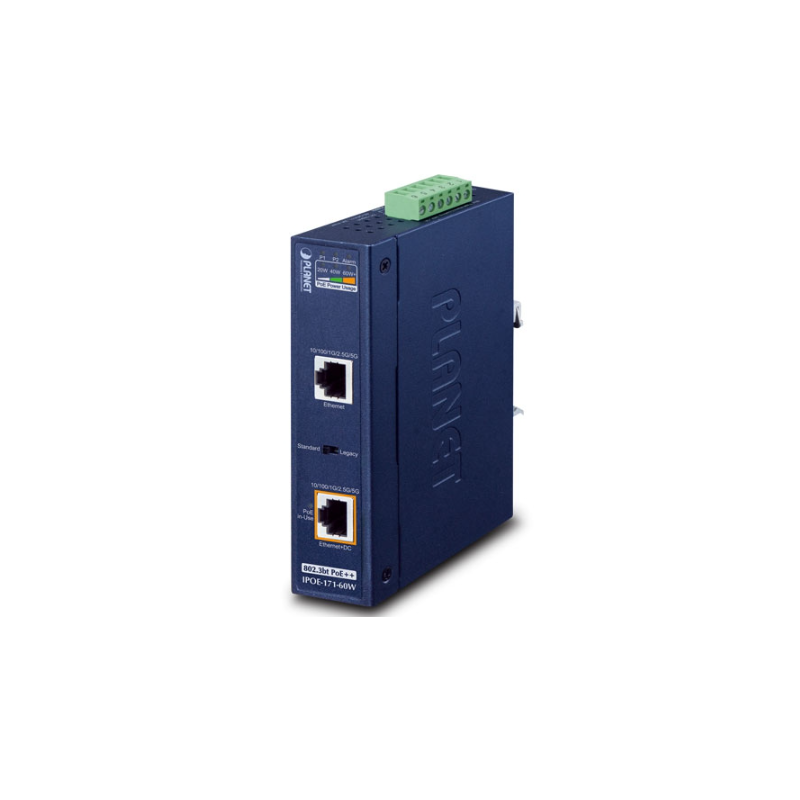

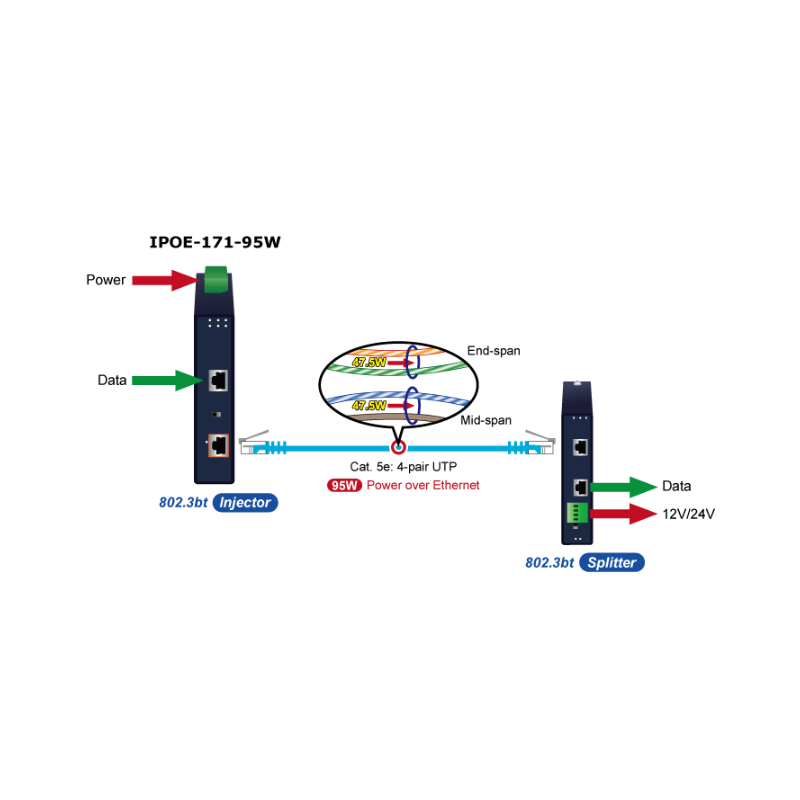

The ETH-POE50-60W is a single-port, industrial 802.3bt Power over Ethernet injector with a maximum output power of up to 60 watts over Ethernet cables. It is also equipped with 100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission. The ETH-POE50-60W supplies Ethernet digital data with 48-53V DC power over the twisted pair cables as a 60 watt Power over Ethernet Injector, and the connected Power over Ethernet splitter, will separate the digital data and the power to three optional outputs (12V/ 24V DC) with a distance of up to 100 meters.

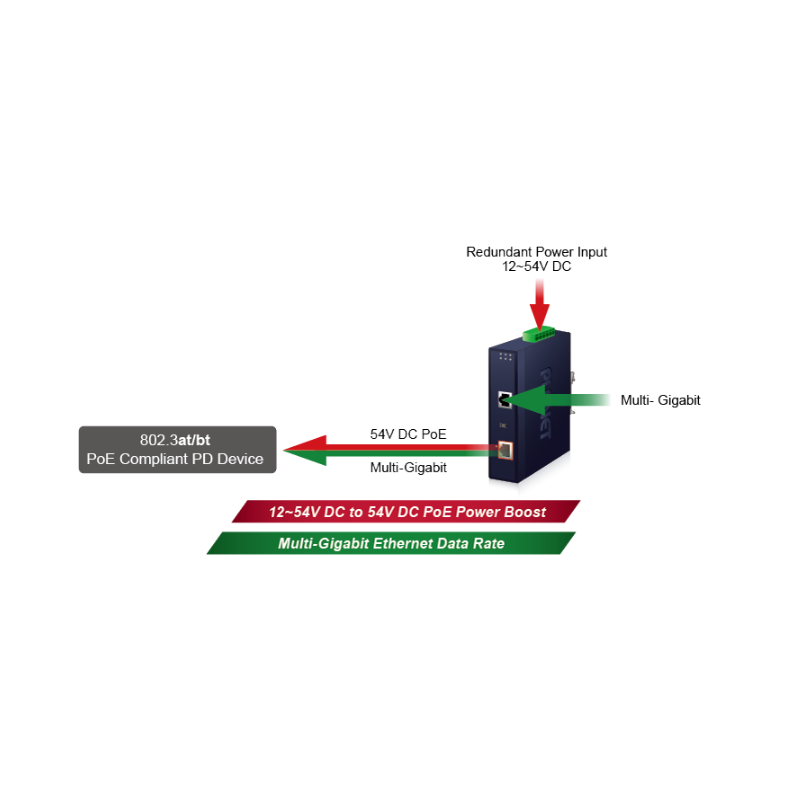

Reliable power system is very important and 802.3bt PoE++ is with commonly used 48~54V DC power input for transportation and industrial applications, ETH-POE50-60W DC to 50V power boost technology is used to solve the power source problem, but does not require special power supplies. The ETH-POE50-60W provides an integrated power solution with a wide range of voltages (48~54V DC). It also provides dual-redundant, reversible polarity 48~54V DC power supply input for high availability applications. The injector delivers 60 watts over 4-pair UTP.
Instead of delivering power over 2-pair twisted UTP – whether end-span (pins 1, 2, 3 and 6) or mid-span (pins 4, 5, 7 and 8), the ETH-POE50- 60W the capacity to retrieve up to 60 watts by using all four pairs of standard Cat. 5e/6 Ethernet cables.
