Backplane

Passive bus card with 1 x PICMG1.3, 4 x PCI, 5 x PCIexpress

Passive bus card with 12x PCI, 1x ISA and 2x PICMG

Passive bus card with 4 x PCI slots, ISA slots 4 x and 6 x PCI-Ex slots

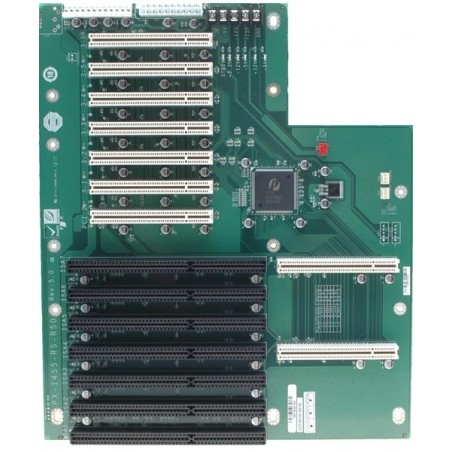

Passive bus card with 2 x PICMG 1.0 slots, 5 x ISA slots 7 x PCI slots, e.g. for S-IND19”OEM+G.

Passive bus card with 12x PCI-X and 2x ePCI-X.

Passive bus card with 12x PCI
6 x ISA and 2 PICMG

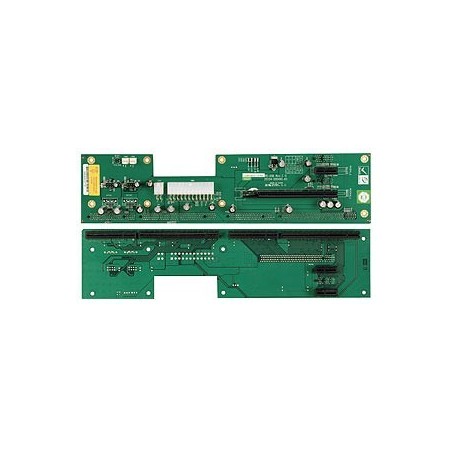

Buskort MED 3x PCIE (1x), 1x PCIE (16x), 1x PICMG 1.3

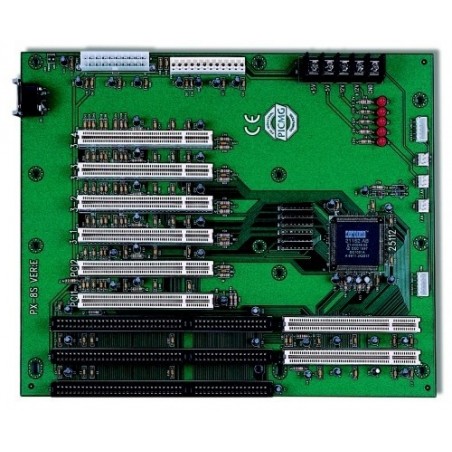

Passive bus card with 1 x PICMG & 4 x 64 bit PCI

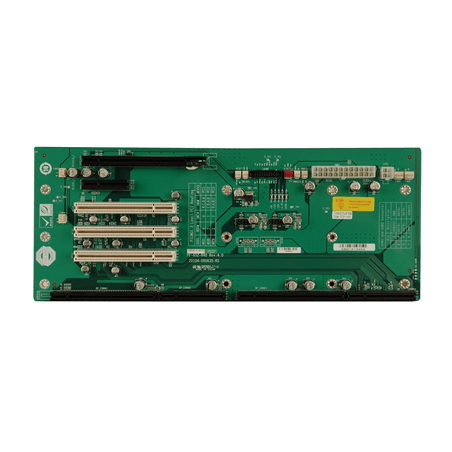

Busskort med 2x PCI, 3x PCI-eX och 1x PICMG 1.3

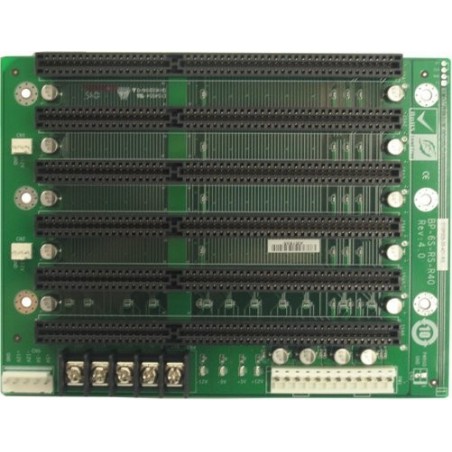

6 x ISA

Passiv buss passerar 5x PCI-X och 1 x PICMG 1.2, 2U

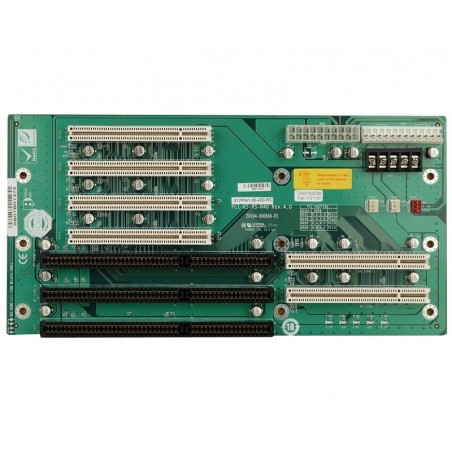

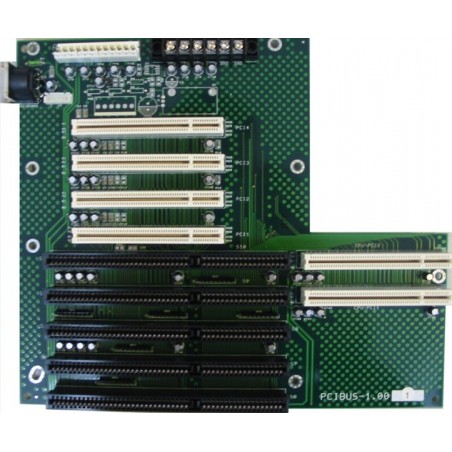

Busskort med 3 x ISA. 4 x PCI, 2 x ISA / PCI

Passiv busskort med 6x PCI, 2x PICMG och 1x ISA

Bus card with 4x PCI, 4x PCI-eX (1x), 1x PCI-eX (16x) and 1x PICMG 1.3

6-Slot ISA/PCI Backplane

6 slot PICMG 1.0 backplane
4 x PCI
2 x ISA
2 x PICMG 1.0
AT/ATX PSU

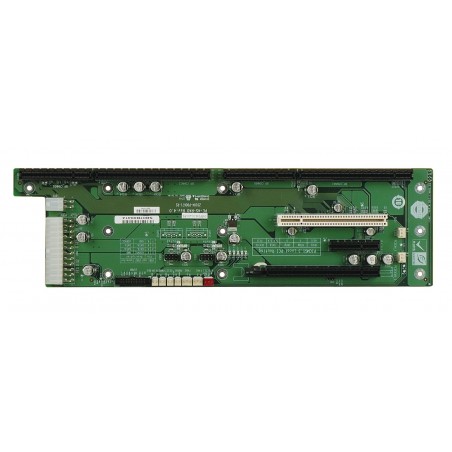

4 slots in total
1x PICMG 1.3
1x PCIe SLOT x16
1x PCIe SLOTS x4
1x PCI SLOT
PSU type 24 + 4 pin ATX
USB Header x 4

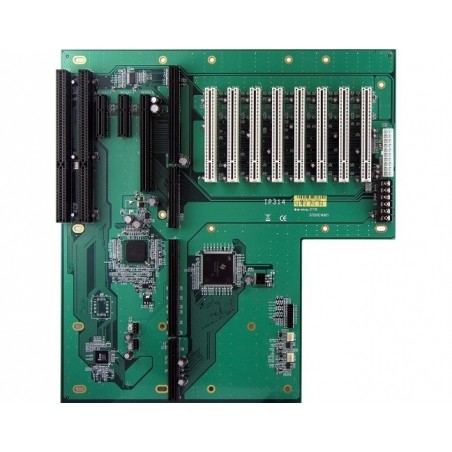

PICMG1.3 14-slot Backplane med 1x PCI-E 16-lane slot, 2x PCI-E 4-lane slot, 2x ISA, 8x PCI

13-slot ATX-supported PICMG1.3 Bus Passive Backplane

14-slot backplane with 4 PCI slots and 8 ISA slots

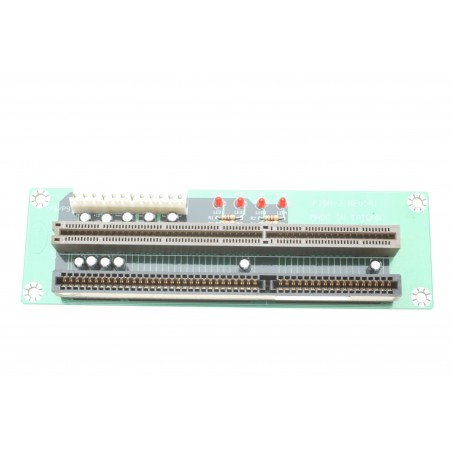

PISA-2 PISA Backplanes with ISA and PISA-Slots
