Remote control / measuring via Ethernet and GSM

Clearance

Ethernet I/O med 12/6 isolerede I/O kanaler.
Med tæller og Integreret WEB-server med nem Javaprogrammering.
12 kanalers DI, 2 kanalers DO, 2 kanalers tæller - Ethernet-based smart I/O
Fjernmonitorering og -styring
Supporterer Modbus, TCP/IP, UDP, HTTP, DHCP
Web-Server: XML, HTML 5, Java Script

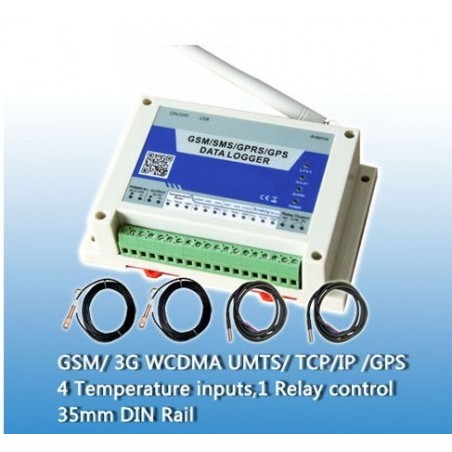

Inkl. 4 stk. temperaturføler + GPS modul

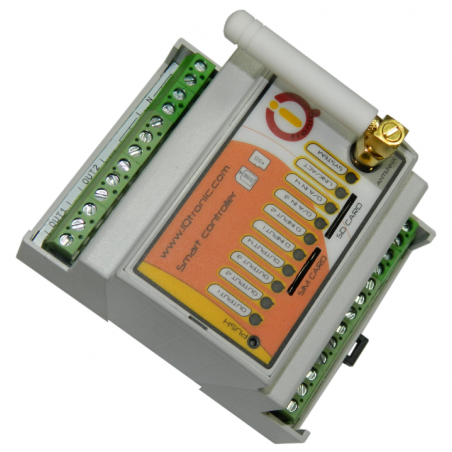

2 x 230VAC power relay /16A – resistive load.
2 x DC switched outputs up to 40VDC/6A, also as PWM for LED, FAN, etc.
2 x independent inputs: 230VAC and up to 24VAC/24VDC, SMS alerts for power failure
SIM card and SD card
Backup battery (not included) as an option – Li-Ion 3.7V (14500)
Switch appliances on and off with SMS messages
GPRS M2M function, TCP/IP Get to directly send input status to Server
Get XML status from server to set device outputs.
Scheduled automatic switching on and off of appliances
Sends power failure warning and recovery.
Restarting appliances, such as servers.
Monitoring of 2 x A/D inputs AC/DC voltages with autodetect
4 x digital inputs DIN1, DIN2, DIN3, DIN4 for DC voltage.
Universal bus (1-wire) for temperature and humidity sensors.
Thermostat function.
Alarm function: Temperature alarm, Humidity alarm, A/D limits, DI change
Alarm in case of jamming of a GSM signal.
Up to 12 alarm numbers, each can be set for different events
Up to 1000 authorized users and 2 administrator numbers.
Bluetooth
All inputs are SO compatible

1 channel detection of fluid leakage with MODBUS
Shutter local alarm of detection of water leakage
Acoustic alarm - adjustable
RS485 2-wire MODBUS RTU
2 x LED indicators for power and alarm
Relay output for alarm for water leakage - 30VDC / 2A
Monitor cable for liquid detector
Sensor cable can be up to 500 meters
Sensitivity is adjustable
Supports DCON and Modbus RTU protocols
Embedded Dual Watchdog
Operating temperature: -25 to + 75 ° C
Small form factor with DIN bracket
Dimensions: 83 x 70 x 29 mm
Operating voltage: 10 - 30VDC

The indoor light-gauge, temperature and humidity sensor 3 in 1
For energy optimization and building automation systems
Measuring range of illumination: 0 to 20,000 lux
Temperature Range: -20 to + 60 ° C
humidity Measuring range: 0 to 100% RH
Supports DCON and Modbus RTU / TCP protocols
Supports MQTT protocol Ethernet interface
With RS485 / RJ45 Ethernet communications interface
Relay output - 6 Amp @ 250VAC
Power supply: PoE and 10 - 48VDC, ca. 2 Watt
Operating temperature: 0 - + 75 ° C
web configuration and firmware update via Ethernet
Ceiling Mounting

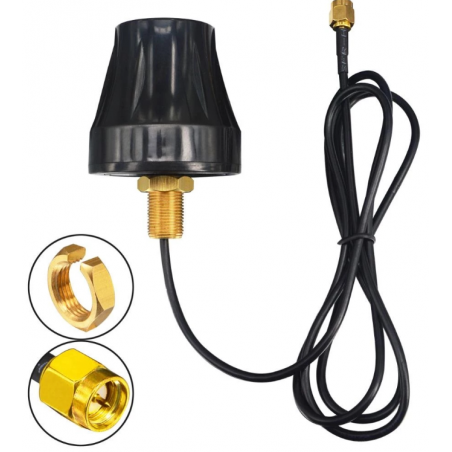

Vandal-proof and waterproof dome antenna
The LTE band 700-2700MHz (including GSM, 3G and 4G)
VSWR: <=1.5
Passive gain: 7-8 dBi
Polarization: Vertical
Nominal power: 50W
Input impedance: 50 Ohm
Cable length: 1.5 meters
Cable type: RG174
Connector type: SMA male
Weight of antenna: 57g
360° Omnidirectional
Center hole mounting

Global 4G LTE Controller, logger and alarm
Supports all LTE frequencies
Setup via USB, SMS and HTTP API
USB setup - use USB cable with Mini B male
2 digital "dry contacts". High on contact
2 analog inputs, 0 - 10VDC or 4-20mA input (10bit)
4 relay outputs, COM, NO and NC
1-Wire input for up to 8 Teracom sensors
1 x RS485 for max. 8 MODBUS RTU sensors
Data logger with 70,000 logs
Upload data to HTTP/HTTPS Post in XML/JSON
SMS alarm and Email alarm to 5 recipients
Push mode – XML data is sent via HTTP Post to a remote server. Responses from server may contain relay setup.
10 to 28VDC, 370mA @ 12VDC - additional PSU
Dimensions: 158 x 119 x 34 mm
Weight: 470g
Temperature: -20 - +55°C

GSM/LTE alarm - 4G - Global version
Supports all LTE frequencies
Configuration via USB (Windows program) or SMS
2 x digital inputs with "dry contact" or "logic level" mode
2 x analogue input from 0 to 60VDC, 10 bits
2 x relay output with NO/NC contacts
1-Wire interface for 4 Teracom temperature and humidity sensors
Input can be navigated with alarm text etc.
SMS alarm - up to 5 numbers
Email alarm - up to 5 email recipients, SMTP with TLS support
1 relay can be activated with calls from up to 100 phone numbers
Push mode – XML data is sent via HTTP Post to a remote server. Responses from server may contain relay setup.
MQTT 3.1.1 support
Firmware update "on air"
Supply voltage: 8 - 32VDC, 2Watt - purchase PSU
Dimensions: 109 x 65 x 32 mm
Weight: 152g

CPU QuadCore Cortex A72 (ARM v8) 64 bit SoC 1.5 GHz

RAM 4GB LPDDR4 standard (1/2/8 optional)

32GB EMMC Flash Memory

1 x Micro HDMI

2x USB 3.0, 2x COM (1xRS-232/422/485, 1xRS-232/485)

RTC: Real Time Clock

1x digital input dry (open/close)/wet (0-3V/10-30V) contact

1x digital output (120VAC @0.5A, 240VAC @0.25A, 30VDC @1A)

DC 9~32V input DC Jack or terminal input

Web-based temperature and moisture data loggs
1-wire bus for a maximum of 16 sensors (Temp / Moisture)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
20 Override Schemes
Email Alarms, Custom (Encrypted Email Servers, such as Gmail)
Real Time Clock With NTP Server Synchronization
No Software Required
Basic Script Support for Advanced Flexibility
Configurable logging
Graph (logged data)
HTTPS / TLS encrypted
static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtration
On-site updates
Robust cabinet for DIN rail / wall
Supply voltage: POE or 9 - 28VDC, 134mA

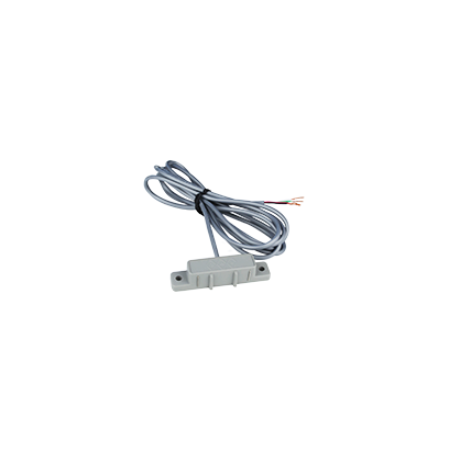

Water detector with normally closed relay output
Supply voltage: 5VDC / 10mA
Relay contact: max. 30VDC/500mA
Red: +5VDC
Black: GND
Green: Relay contact
White: Relay contact
REMEMBER: Relay contact opens when water is removed.

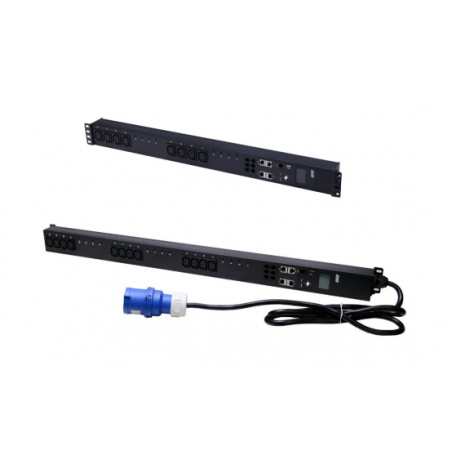

Supports optional choice of ports from 8 - 12 - 16 - 20 - 24 ports.

The Current changes with the various models 16 - 32 A.

Current and voltage (total input) measurement;

Built in temperature and humidity sensor

Embedded technology, support Java, web browsing;

Two level values of warning and overload can be set;

LED indicates the power supply status of each switch;

LED digital display shows the current voltage and current values;

Provide local operation query button of PDU device;

Built in lightning protection circuit, anti voltage surge circuit, effective protection of the server;

Web-based remote control of switching on/off via the Internet
Built-in Web Server. Username + Password
MQTT, Cloud, SNMP
APP for Smartphone
Watchdog with ping of stable website (Google etc.)
4 x 230 VAC sockets - IEC C-13 output 10A and C-14 input 15A.
Web server built-in - password-protected.
VPN Client
Supports: HTTP, HTTPS/SSL, TCP/IP, PPPOE, DHCP, DDNS, SNMP v3, SMTP, NTP, TLS
Supports: Cloud Connect : AWS IOT, GOOGLE Cloud IoT, Microsoft AZURE IOT
Dimensions: 195 x 116 x 45 mm
Rack fittings are purchased separately

On / off via SMS messages
plugged in socket to GSM 2G network
Setup with phone number
Connects to 230vac
Maximum 10 amp
with Schuko connector
SIM card not included

Power distribution device for on and off of 8 x 230vac
monitoring of total power consumption, temperature.
with slave devices Connected: Up to 128 outlets.

Network-based device for switching on/off 230 VAC equipment.

Web server built-in - password protected

Can ping a stable IP address and if there is no response - turn equipment off and on

Timetable for on and off - scheduler

Mains socket is SCHUKO

Network operated relay box for switching on/off 230 VAC equipment
Shows current power consumption and ambient temperature on PC.
Web server built-in - password-protected.
With IP ping to stable website, it checks network outage.
If there is no response, it turns OFF/ON the desired external equipment.
ON/OFF can be controlled remotely from the browser.
Scheduled ON/OFF
HTTP, TCP/IP, DHCP, DDNS, SNMP v1, SMTP, NTP

3,6 V/1200 mAh batteri til ca. 60 timers drift ved fuld opladet

Temperature gauge
1.8 Meter cable
Dallas DS18B20 Chip
