12VDC 1.5Amp (18Watt) power adapter from 110 - 240VAC, plug 5.5 / 2.1mm
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable

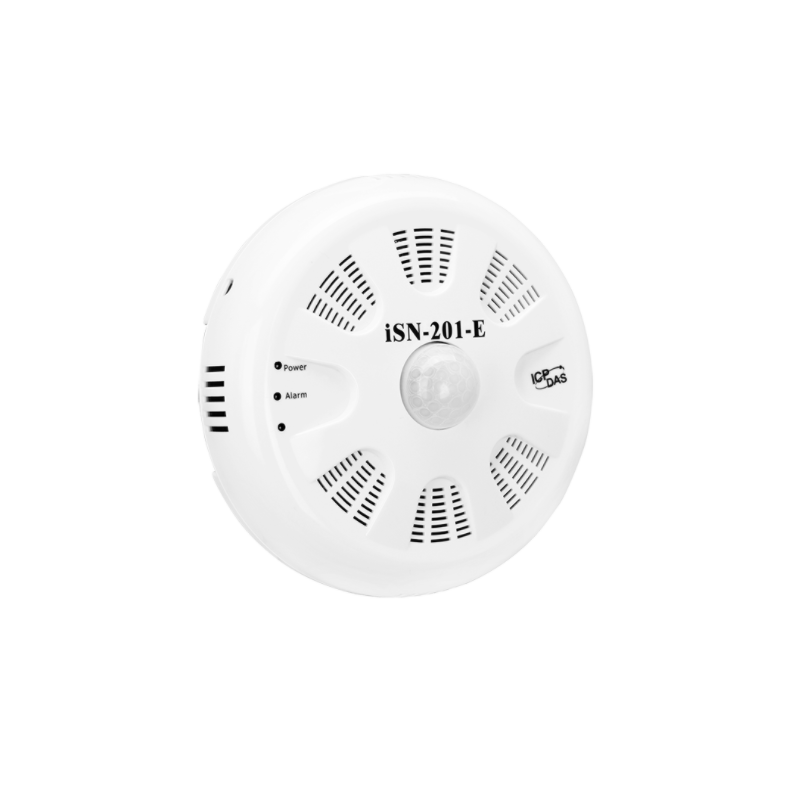

The indoor light-gauge, temperature and humidity sensor 3 in 1
For energy optimization and building automation systems
Measuring range of illumination: 0 to 20,000 lux
Temperature Range: -20 to + 60 ° C
humidity Measuring range: 0 to 100% RH
Supports DCON and Modbus RTU / TCP protocols
Supports MQTT protocol Ethernet interface
With RS485 / RJ45 Ethernet communications interface
Relay output - 6 Amp @ 250VAC
Power supply: PoE and 10 - 48VDC, ca. 2 Watt
Operating temperature: 0 - + 75 ° C
web configuration and firmware update via Ethernet

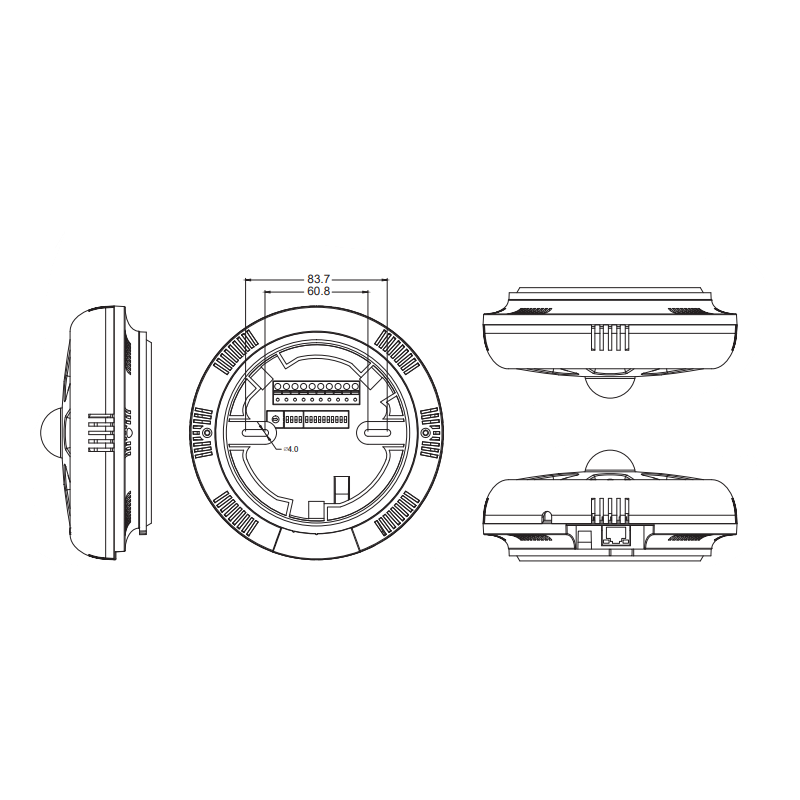

Ceiling Mounting
ET-LUXMULTI-I can be used for measuring indoor lighting, temperature and humidity. A wide variety of interface connections may be selected to suit individual needs, including RS-485 / Ethernet. With DCON- and Modbus RTU / TCP protocols and can be easily integrated into existing HMI / SCADA / central control.
The screwless quick connectors, DIP switch and rotary switch makes the unit easy to install, repair and maintain. The white design ensures that the device is easy to match with the decor. With 3G / 4G we communicate module and electric curtain control these can easily set up via a simple web interface and logic control.
two-way interconnected devices integrates the electric curtains and Building Management System (BMS) and collect sensitive environmental data simultaneously. When detected indoor temperature or humidity rises or the sun's intensity is strong, the module will notify management system which automatically activates the electric forhængs pulling motion or activate a personal scenario to control all curtains or specifically curtain combinations. In addition, the user can edit
scenario and set up the curtain automation at scheduled times.
Rev: LO
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable
AC / DC power supply for DIN rail mounting
100-240V AC, 50 / 60Hz, 1.1A
Output, 24V, 1.7A (40 Watt)
Screw terminal
Adjustable output voltage
Short-circuit, overload and surge protection
Compact dimensions: 40 x 100 x 90 mm
Working temperature: -20-70 ° C
5 kanals analog input
2 kanals analog output
2 kanals digital input
2 kanals digital output
Support input voltage 10 ~ 30VDC
Fully compatible with ISO 11898-2 standard
1 x RJ45 Ethernet interface
2 x CAN bus 9-pole D-sub
Mechanical selection of CAN Bus Baud rate
support for CAN bus ID filter function
Support for CAN Bridge
CAN Bus Monitoring
CAN Baud Rate from 10Kbps to 1Mbps
Modbus TCP Client / Server function Via Configuration
Support for TCP / UDP CAN Pair Connection
Bootloader for firmware updates
Supply voltage: 10 - 30VDC
Operating temperature: -25 to +75°C
Dim: 147 x 107 x 26 mm
MODBUS TCP/IP module with analogue in- and output
User-definable Modbus TCP Slave addressing
Max. 10 clients connected
Supports RESTful API for IIoT applications
Supports peer-to-peer communications
Saves time and wiring costs with daisy-chain topologies
Active communication with WIN-OPC UA Server
Supports SNMP v1
Easy mass deployment and configuration with Device Search utility
Friendly configuration via Web browser
Temperature range -20 to +70°C
DIN Mount
Phoenix contacts
Supply 12 - 36VDC/ 3 Watt
Size: 124 x 84 x 28 mm
8 digital outputs and 4 digital inputs
Open Collector Output
Photocouple Isolation
Digital input channels can be used as 16-bit counters
Configurable Power-on Value settings
Configurable settings for sure value
3750 Vrms insulation voltage
Dual Watchdog
Wide operating temperature range: -25 to + 75 ° C
