1 port PDU with on/off and power measurement over the network. Auto-reset of equipment. Scheduled management. IEC13/14

Event and schedule controlled switching 230VAC/10A
Accurate current measurement
Input for 2 sensors - temp/humidity, pressure
RJ45 to Ethernet
NTP function
Power port on/off via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, MQTT
1-channel watchdog
Power port assigned to Watchdog (ICMP/TCP), auto reboot starts
Power consumption measurement (kwH) with 2 energy counters: one counter counts consistently, the other counter can be reset
Measurement of current (A), voltage (V), active power (W), apparent power (VA) and reactive power (VAr)
Measurement of differential current type A (mA)
Dimensions: 120 x 65 x 53 mm

NPOWER1IEC+A
3,073.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

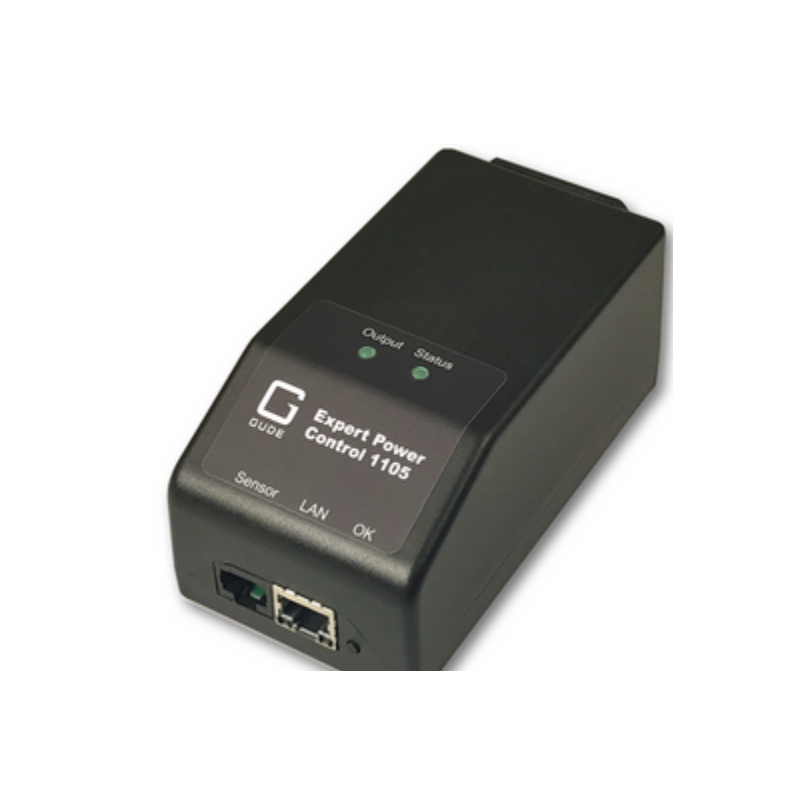

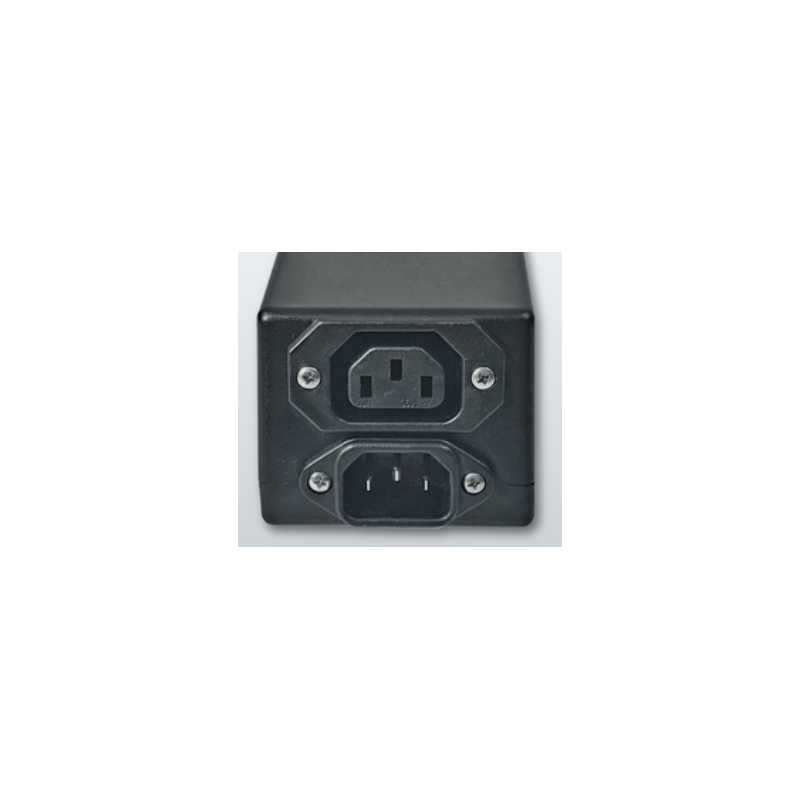

The PDU is a network-compatible power distribution unit with a power port, which enables the switching and current metering of electrical devices via TCP/IP network. The device has a power port IEC C13, max. 10 A.
The power port of the PDU can be switched via a Webinterface, SNMP or directly on the device. At the same time, the Power Distribution Unit has SNMPv3, SSL and IPv6 capability and supports Telnet, Radius and Modbus TCP.
Thanks to the sensor connector a plug-and-play sensor can be connector to monitor environment temperature, humidity and air pressure. The connected load can be switched by the IP watchdog when preset sensor or current thresholds are exceeded.
