4G LTE alarm and remote control, M2M, Datalogger, I/O with Digital and Analog, 1-wire, Relay, MODBUS, 10 - 28VDC

Multi-band 4G LTE Cat.1 controller, logger and alarm

Setup via USB, SMS and HTTP API

USB setup - use USB cable with Mini B male

2 digital “dry contacts”. High on contact

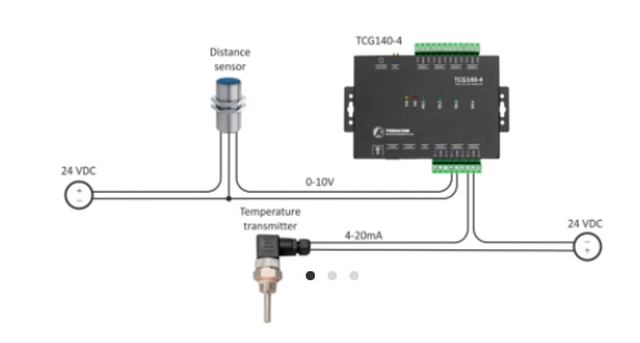

4 analog inputs, 0 - 10VDC or 4-20mA input (10bit)

4 relay outputs, COM, NO and NC

1-Wire input for up to 8 Teracom sensors

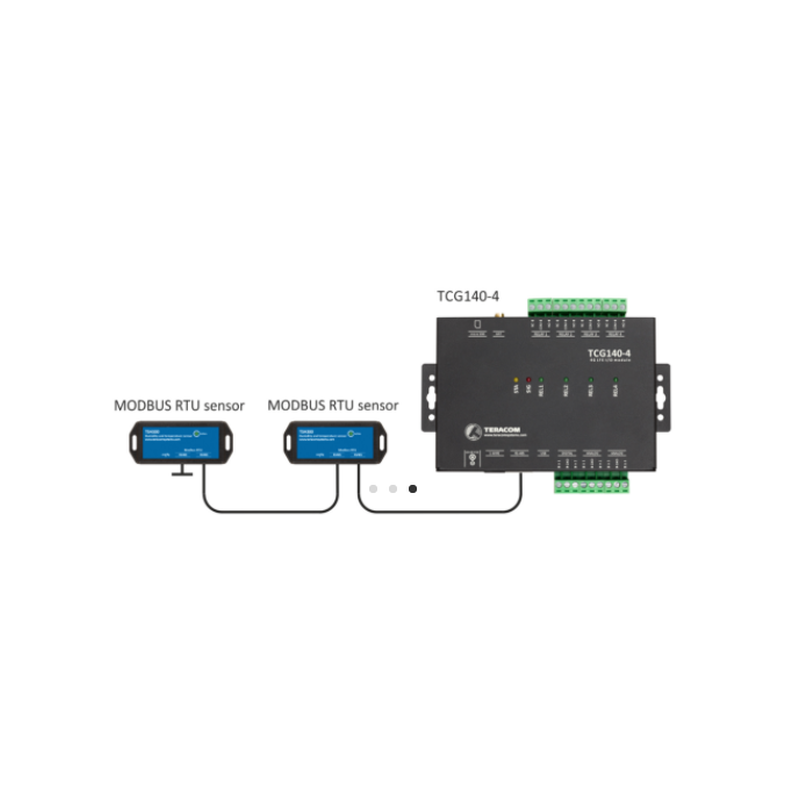

1 x RS485 for max. 8 MODBUS RTU sensors

Data logger with 70,000 loggings

Upload data to HTTP/HTTPS Post in XML/JSON

SMS alarm and Email alarm for 5 recipients

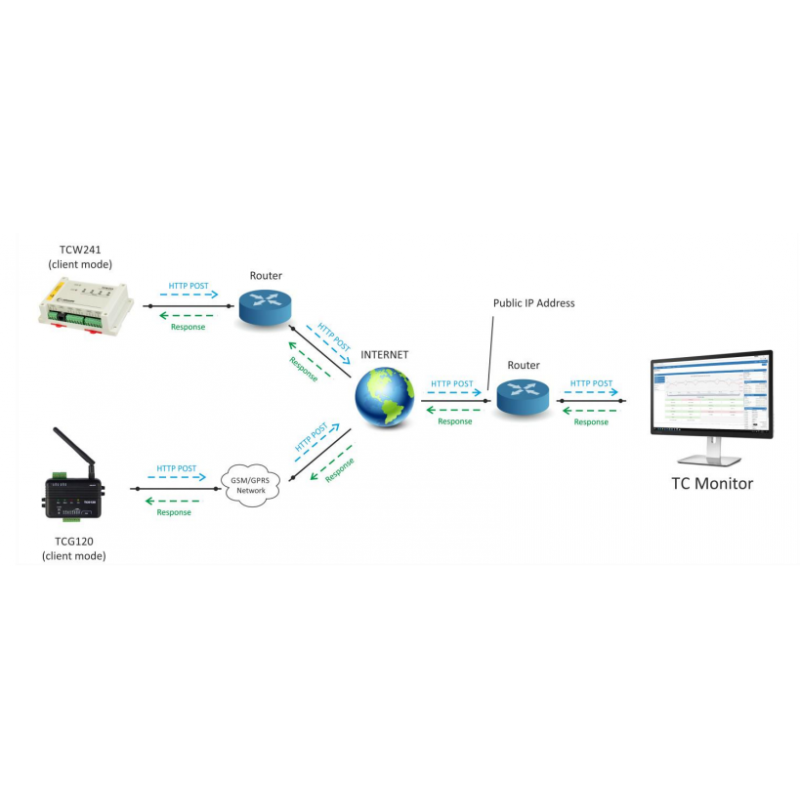

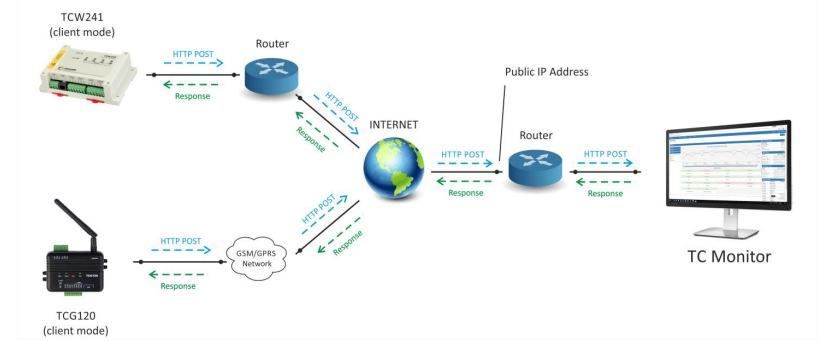

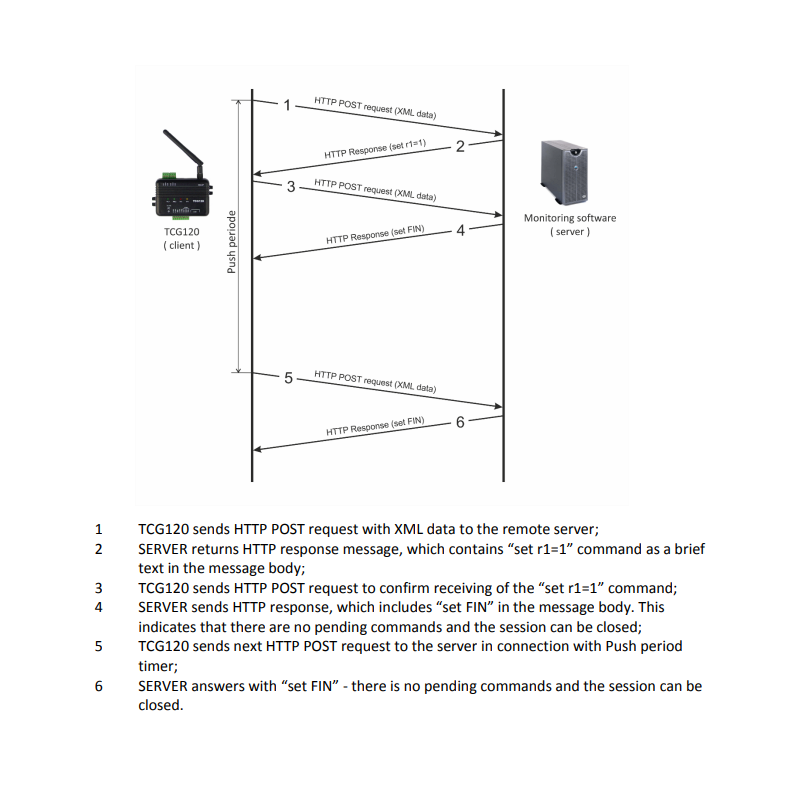

Push mode – XML data is sent via HTTP Post to a remote server. Response from server may contain relay setup.

10 to 28VDC, 370mA @ 12VDC - optional PSU

Dimensions: 158 x 119 x 34 mm

Weight: 470g

Temperature: -20 - +55°C

2,750.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number TCG140-4E
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

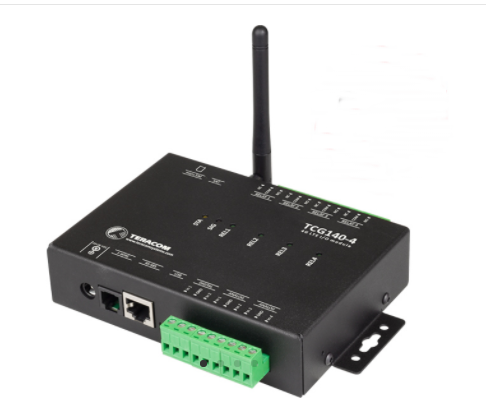

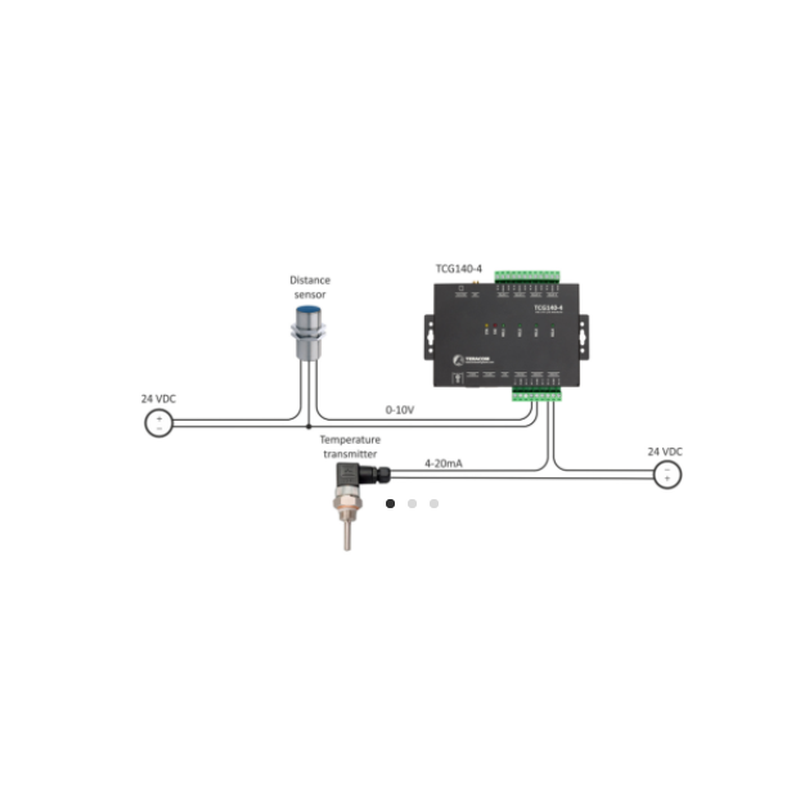

TCG140-4 is a 4G LTE universal IO module. It is LTE Cat.1 communication with up to 5 Mbit upload. The device also supports 3G and 2G wireless communication and provides data connectivity on LTE FDD, DC-HSDPA, HSPA +, HSDPA, HSUPA, WCDMA, EDGE and GPRS networks. The 4G LTE universal IO module can operate autonomously, but it is specially optimized for M2M and IoT applications. The main option for M2M communication is HTTP API. The device supports HTTP and HTTPS Post with XML or JSON file. The module offers a large number of analog inputs with 0 to 10 volts and a current loop - 0 to 20 mA inputs. In addition, the device supports MODBUS RTU interface for all compatible industrial devices, including all Teracom sensors.

The analog inputs with their standard ranges together with the MODBUS RTU interface make the integration of the device into industrial applications very easy.

The TCG140-4 is the successor to the popular TCG140. The two modules differ only in technology and communication areas. The entire input-output peripherals and digital interfaces are 100% identical. This makes it easy to migrate from the 2G device to the 4G LTE module in locations where 2G services need to be shut down. The initial setup of the device is done through the graphical interface using a standard browser. In the field, the device can be set up remotely either with SMS or HTTP API commands. The FW update of the device is also possible over the air.

The 4G LTE universal IO module uses a robust metal case with accessories for DIN rail mounting.


Manufacturer's download page:

https://www.teracomsystems.com/cellular/4g-lte-universal-io-module-tcg140-4/

Power supply Mains adapter from 100 - 240VAC to 12VDC 1.5Amp.
12VDC 1.5Amp (18Watt) power adapter from 110 - 240VAC, plug 5.5 / 2.1mm

Mains adapter - switch mode type

 110-240 VAC to 12VDC/1.5A

 DC plug: 5.5/2.1 mm

1 meter cable

125.00 kr
Item Number: DC12V/1.5A-R-Q
Physically in stock
ADD TO CART
Quick view
24VDC 1.7A Power Supply for DIN Rail, 100-240VAC Input
24VDC 1.7A (40Watt) power supply from 100-240VAC, DIN rail

AC / DC power supply for DIN rail mounting
100-240V AC, 50 / 60Hz, 1.1A
Output, 24V, 1.7A (40 Watt)
Screw terminal
Adjustable output voltage
Short-circuit, overload and surge protection
Compact dimensions: 40 x 100 x 90 mm
Working temperature: -20-70 ° C

265.00 kr
Item Number: DC24V1.7A-D
On the way in
ADD TO CART
Quick view
Previous
Next

Other products in same category:

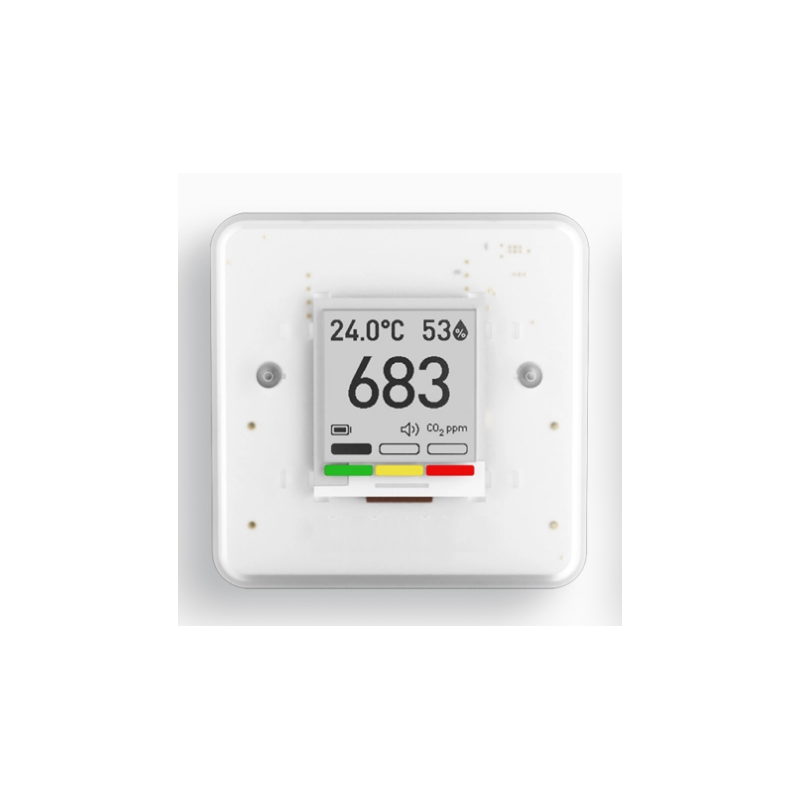

Air quality measurement CO2 moisture, temperature pressure
Air quality sensor, measures CO2 concentration, temperature, relative humidity and atmospheric pressure

Compact environmental meter with e-ink display
CO2 Concentration 0 - 9999 ppm
Temperature 0 - + 50 ° C
Relative humidity 0 - 85%
atmospheric pressure 300 - 1100 hpa < Br> Bluetooth (Via App) or Radio (Via Air-Base)
2 AA batteries up to 3.9 years (10 minute intervals)
Dimensions 70 x 70 x 24 mm
small, portable and easy Using
control air quality to reduce Covid-19 infections

2,160.00 kr
Item Number: AIR4PRO
Physically in stock
ADD TO CART
Quick view

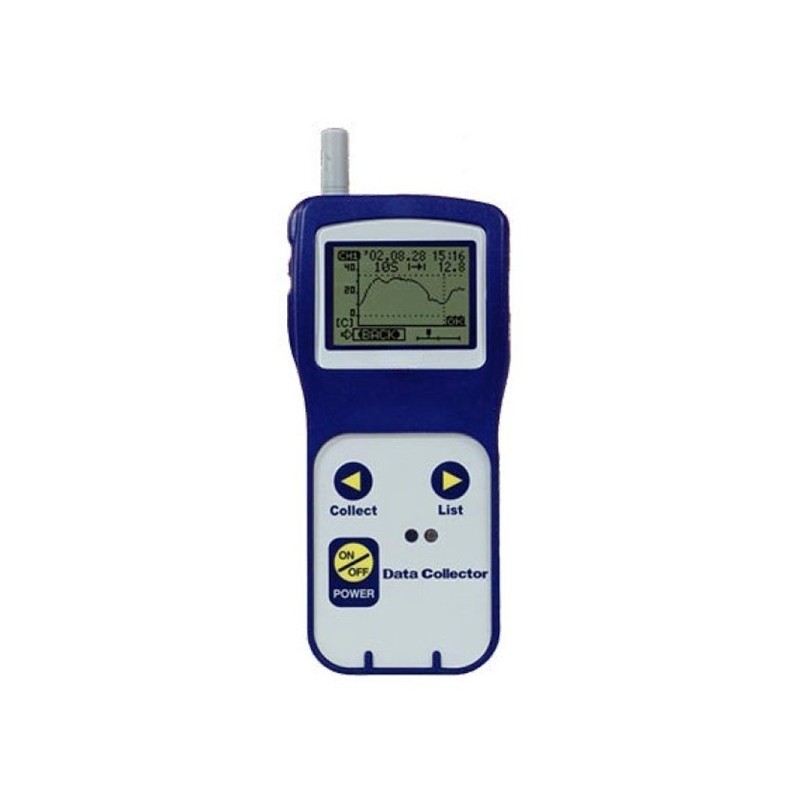

T&D RTR-57U
Dataopsamler til trådløse dataloggere - kun til T&D blå serie

Dataopsamler med display og USB
Kun til T&D BLÅ SERIE Dataloggere

1,900.00 kr
Item Number: LOG-WL57UM
Physically in stock
ADD TO CART
Quick view
Wireless Temperature data logger, Bluetooth, -199°C to +1760°C, 16,000 measurements, Pt100/1000
Wireless temperature data logger, Bluetooth, -199 - +1760°C, 16,000 measurements, PT100/PT1000, TC type, IP30, Battery T&D APP

1 channel temperature data logger - wireless with Low Energy Bluetooth 4.1
Measuring range -199°C to +600°C with pt100 / pt1000
Measuring range -199°C to +1760°C with Termo Coupler Feel
Operating Temperature: -40°C & to + 80°C
IP30 - not waterproof
(-25 to 80°C during wireless communication)
Accuracy is average. ± 0.3°C
Measuring Range: 15 Choices from 1 Sec to 60 Minutes
Option between Endless or Memory is Full
Memory: 16,000 Measurements with Date and Timestamp.
LCD Display, Displays Measurements, Warning, Battery Life, etc.
With Lithium Battery
Dimensions H: 62mm × W: 47mm × D: 19mm
Battery Life: Approx. 1 month to 1.5 years
Purchase temperature sensor

1,302.00 kr
Item Number: LOG-BTR45
On the way in
ADD TO CART
Quick view
Wireless monitoring sensors and base stations
Base station for AIR sensors Data collection

Connect up to 12 "AIR" sensors (optional 100 "AIR" sensors)
Independent local data storage or Cloud
E-mail alert (requires network connection)
SMS alert ( requires supported USB modem)
Measurement data for up to 10 years with 100 sensors
Mesurment intervals: 1, 2, 5, 10 minutes
Power voltage: 12VDC
Operaiting tempeture: 0 °C to 40 °C

4,250.00 kr
Item Number: AIR-BASE
On the way in
ADD TO CART
Quick view
Wall bracket for T&D data logger
Wall bracket for log-wl500gsm

Wall bracket for log-wl500gsm

479.00 kr
Item Number: LOG-WL500GSM-WALL
Physically in stock
ADD TO CART
Quick view
2-channel Wireless Temperature Logger - From -40 to 110°C ⇒ 16,000 measurements
2 Channel temperature logger -40 - + 110 ° C, Wifi, Bluetooth, USB, 2 external temperature sensors

Wireless Temperature Logger with Wifi, Bluetooth
Battery operation from 10 days (1 measurement per minute auto-upload)
Battery operation up to 1 year (1 measurement per hour auto-upload)
Longer battery operation with Bluetooth turned off during logging
2 x 8,000 measurements in memory with Date and time stamp
2 pcs. external thermistor sensors
Accuracy: +/- 0.3 ° C at -20 - + 80 ° C, +/- 0.5 ° C up to 110 ° C
Measuring solution: 0.1 ° C
Sensor response time: approx. 75 seconds
Free Cloud service: T&D WebStorage
LCD display shows current measurements
PC software: tools and presentation included
USB port
Dimensions: 78 x 58 x 26 mm
Battery type: AA
Free T&D WebStorage Cloud Service

2,330.00 kr
Item Number: LOG-L71
Physically in stock
ADD TO CART
Quick view

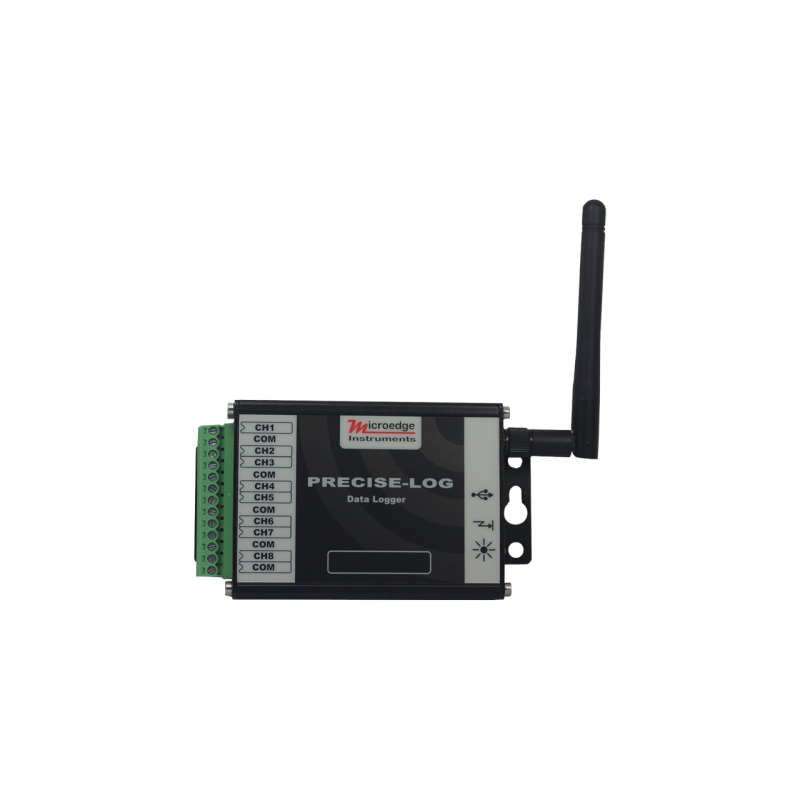

8 channel 0-20VDC, 0-5Vdc voltage data logger speed 20ms to 12 hours, 16bit
8 channel 0-20VDC, 0-5Vdc voltage data logger speed 20ms to 12 hours, 16bit, 8MB of memory Battery operation, WiFi, USB

Spændingsmålings data logs of Wifi
16-bit 0 - 20Vdc / 0 - 5VDC to-digital converter
MODBUS TCP (MODBUS TCP Server) to 8 Megabyte memory to log data
USB, RS232 and WiFi, automatic baud rate up to 115.2kbit
Input ranges (4-20mA, 0-50mA version)
Battery operation - 10 year battery
, if you acquire: Software for configuring, downloading, graphing, analysis and alarm reporting ( not supplied) Configurable
controls the alarm / surge control
measurement speed of from 20 milliseconds (channel 1) to 12 hours
Robust aluminum housing
coated printed circuit board for protection against moisture, corrosion

10,593.00 kr
Item Number: LOG-MPL-VW
On the way in
ADD TO CART
Quick view

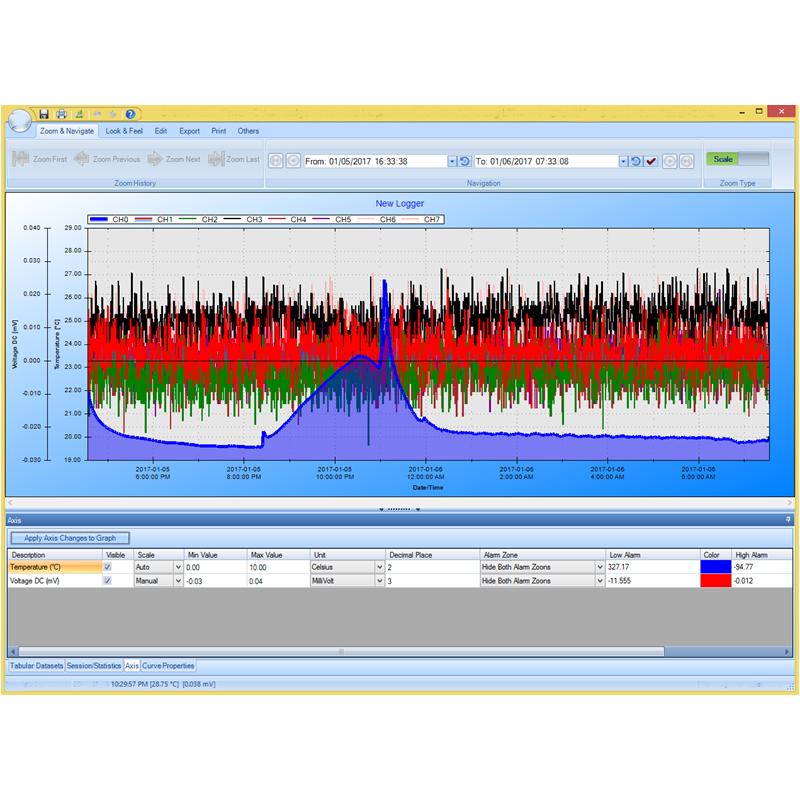

Data Logger PC software for collecting log data from LOG Mxxx Data Logger Series
