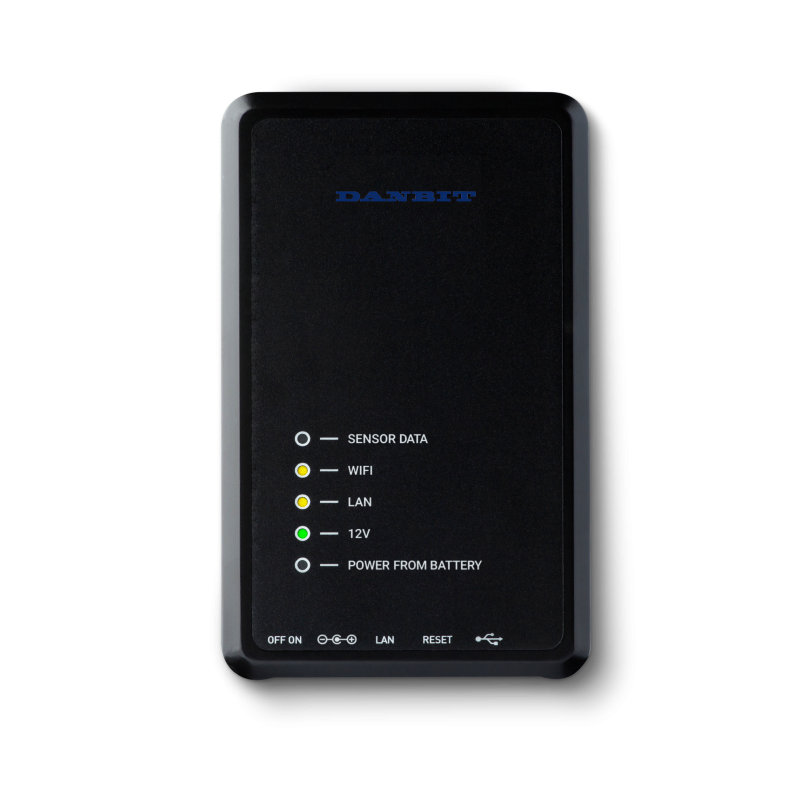

Base station for AIR sensors Data collection

Connect up to 12 "AIR" sensors (optional 100 "AIR" sensors)
Independent local data storage or Cloud
E-mail alert (requires network connection)
SMS alert ( requires supported USB modem)
Measurement data for up to 10 years with 100 sensors
Mesurment intervals: 1, 2, 5, 10 minutes
Power voltage: 12VDC
Operaiting tempeture: 0 °C to 40 °C

AIR-BASE
Call +45 56 66 20 20 for price
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

AIR-BASE is a base station for supported sensors. That will save logged data locally. This data can be access localy via browser. AIR-BASE has function for send notifications via e-mail or sms if the sensors have reached limit.

Alarm
Email / SMS through USB modem
Andet
1, 2, 5, 10 minutes
Certifications
CE, IC, FCC
Dimensioner
107x170x26 mm
Driftstemperatur
0 °C to 40 °C
Hukommelse
Measurement data for up to 10 years with 100 sensors
IP-Tæthed
IP40
Montering
Wall mount bracket included
Porte
12VDC power port, 1 Ethernet, 1 USB A
Weight
190 g
