Environmental monitoring station for industrial and outdoor. CO CO2. Temperature and humidity, APP, display

Environmental measuring station for industry and outdoors. CO CO2. Temperature and humidity, APP, MODBUS RTU/TCP, RJ45, RS485

Name: Environmental measuring station for industry and outdoors. CO CO2. Temperature and humidity, APP, MODBUS RTU/TCP, RJ45, RS485
Brand: Danbit A/S
SKU: ET-AIRCOCO2-I
Price: 6489 DKK
Availability: BackOrder

CO2 - CO - temperature - humidity

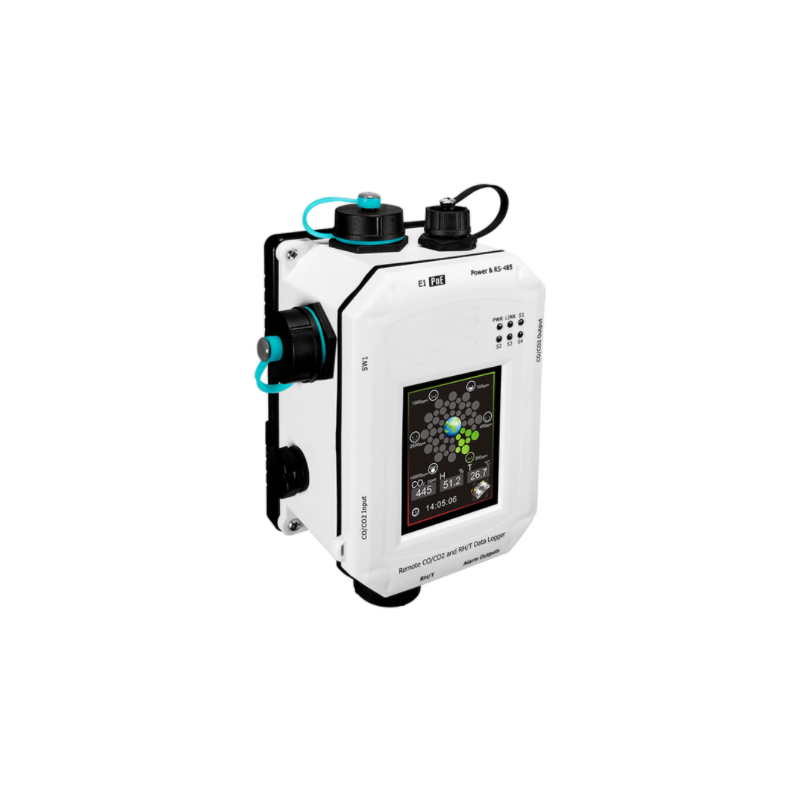

Industrial / outdoor robust environment-measuring station

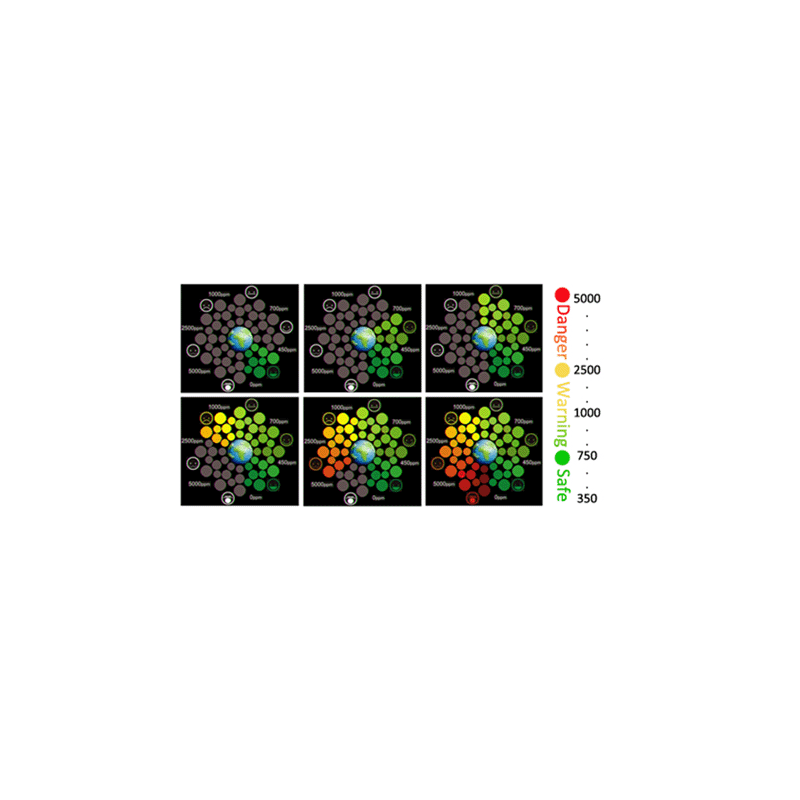

LCD color display
CO2 0-9999 ppm - electrochemical sensor
temperature of -20 - + 50 ° C, humidity 0 to 100% RH
dewpoint measurement based on the temperature and moisture
Up to 450,000 logs with date and time stamps
Web-based configuration interface
APP: iOS APP and Android APP, powerful software

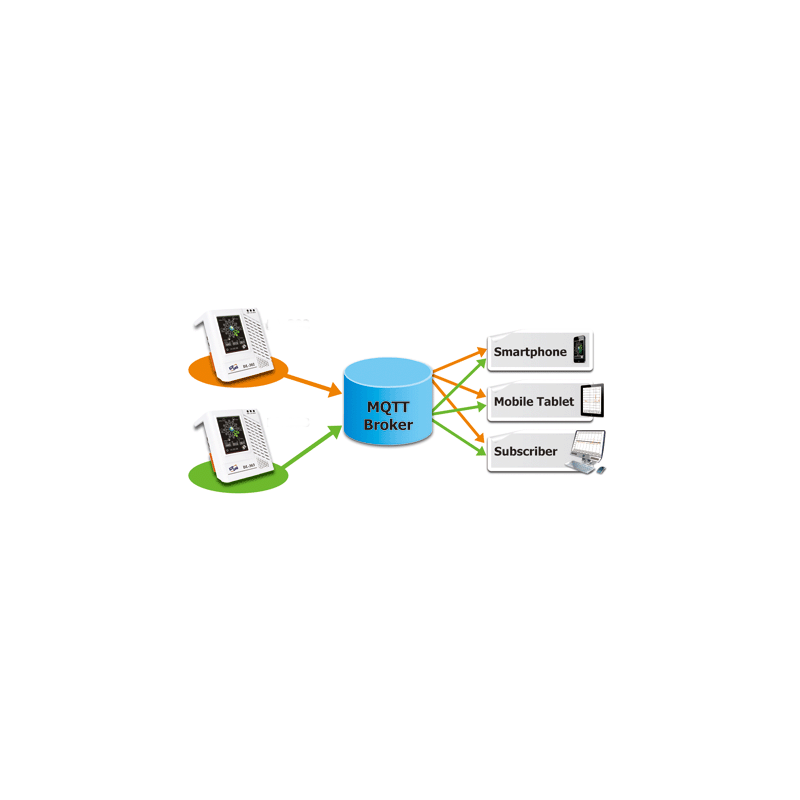

DCON, Modbus RTU / TCP and MQTT protocols
RS-485 / Ethernet / PoE
Relay output for local alarm or building management
power supply: PoE and 12 - 48VDC ca. 3.5Watt
IP43 sealed enclosure (CO2 + temperature sensor)
Dimensions: 211 x 130 x 70 mm
DIN or wall mounting bracket

6,489.00 kr

Excl. VAT

Quantity

On the way in

Product number ET-AIRCOCO2-I

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

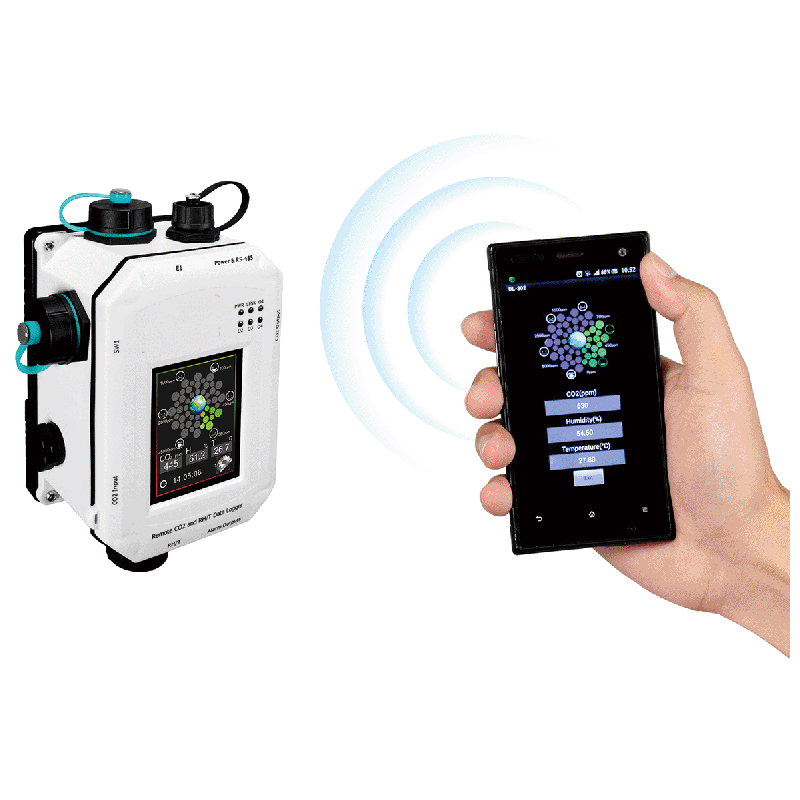

A-AIRCOCO2-I belong to a product module group for measuring CO and CO2. The meter is equipped with LCD display. Can be accessed with APP iOS / Android. Has alarm output to the local alarm bell, etc. A-AIRCOCO2-I data for and to send an alarm when the concentration is too high or temperature or humidity is above selected threshold. Has built-in memory for 450,000 readings with time and date stamp. Real-time data can be accessed from ET AIRCOCO2-in data logger from anywhere, anytime using the free Windows software, the iOS app or Android app, as long as they are connected to the same local network as the data logger. Support is provided for popular industrial protocols such as DCON, Modbus RTU and Modbus TCP and the new machine to machine (M2M) / IoT (Internet of Things) protocol MQTT. ET-AIRCOCO2-I series data logger can be connected via common communication interfaces including RS-485, Ethernet and PoE, which means that the device can be easily integrated into existing HMI or SCADA systems and is easy to maintain in a distributed control system. ET-AIRCOCO2-I series is designed for industrial applications in harsh environments, providing IP65 protection approval. The robust RJ-45 ensure tight, robust connections and ensures reliable operation, even for applications that are subject to high vibration and shock.

Rev: LO

12VDC 1.5Amp (18Watt) power adapter from 110 - 240VAC, plug 5.5 / 2.1mm

Mains adapter - switch mode type

110-240 VAC to 12VDC/1.5A

DC plug: 5.5/2.1 mm

1 meter cable

125.00 kr

Item Number: DC12V/1.5A-R-Q

Physically in stock

PoE+ Splitter, Gigabit. Data + PoE + in and data out. Switch between 5VDC and 12VDC - 20 watts

Strømforsyning af Access Point eller webkamera via Ethernetkablet.

521.00 kr

Item Number: ETH-POE56S

On the way in

24VDC 1.7A (40Watt) power supply from 100-240VAC, DIN rail

AC / DC power supply for DIN rail mounting
100-240V AC, 50 / 60Hz, 1.1A
Output, 24V, 1.7A (40 Watt)
Screw terminal
Adjustable output voltage
Short-circuit, overload and surge protection
Compact dimensions: 40 x 100 x 90 mm
Working temperature: -20-70 ° C

265.00 kr

Item Number: DC24V1.7A-D

On the way in

5 ports 10/100 / 1000Mbit switch, RJ45, PoE +, Unmanaged, 48VDC

5 x 10/100 / 1000Mbit RJ-45 with 4 ports with PoE +
PoE + is 30.8 Watt. PoE max 134 watts, end-span
Auto detects PoE equipment and protects against damage by non-PoE equipment
PoE up to 100 meters
Layer 2 switch with auto-negotiation
IP30 aluminum metal cabinet, DIN Fittings
DIN Rail and Wall Mount
48V DC Redundant Power Input
EFT Protection Up to 6kV for Power Line
6kV Protection on Ethernet Port
-40 to + 75 ° C & nbsp;

1,907.00 kr

Item Number: ESW5G-POE+

On the way in

Other products in same category:

Temperature and humidity meter with RS485. -20 - +60°C, 5 - 95%RH. Modbus RTU. 12-16bit resolution. IP54

RS485 Modbus RTU combi sensor

Temperature: -20 - +60°C +/-0.6°C

Resolution: 0.1°C

Humidity: 5 - 95% rH +/- 5%

Resolution 0.1%rH

IP54 plastic housing, very robust

Up to 32 sensors on the same RS485 bus

16 bits at temperature

12bit when wet

Supply voltage: 4.5 - 26VDC / 25mW

Dimensions: 74 x 66 x 36 mm

1,587.00 kr

Item Number: TSH330

On the way in

Temperature and moisture meter with 1-wire. -20 - +60 ° C, 5 - 95%rh. 12-16bit resolution. IP54 Robust House

1-wire Combi Sensor
Temperature: -20 - +60 ° C +/- 0.6 ° C
Resolution: 0.1 ° C
Humidity (Moisture): 5 -95% Rh +/- 5%
Resolution 0.1%Rh
IP54 Plastic housing, very sturdy
Up to 8 sensors on the same 1-wire
16 bits at temperature
12 bits at moisture
Supply Voltage: 4.5 / 25mW
Dimensions: 74 x 66 x 36 mm

1,520.00 kr

Item Number: TSH230

Physically in stock

Data collector and programmmer with optically JIG and LCD display to T&D data loggers. USB interface for PC. Battery

Base unit with display and optical communication
Jig for programming T&D data loggers
Jig for collecting stored log data from T&D data loggers
USB connection to PC
Free software for PC
Battery operation - Operating time approx. 100 days
OPTIONAL: AC adapter is acquired 6VDC, 3.5 / 1.5 mm plug
Dim: 125 x 58 x 26 mm
Weight: 90 g

4,486.00 kr

Item Number: LOG57U-M

On the way in

GSM / 4G / GPRS base station for T & D data loggers. Mobile data collection from wireless T & D meters. Cloud service

Measurement data via mobile network
for Nano SIM card
protocols: HTTP, HTTPS, FTP, SNTP, SMS
collector measurement data from wireless T&D loggers
can serve up to 20 T&D loggers
Free T&D WebStorage Service - Cloud Based
Notifications with SMS by measurement limit
Setup with Bluetooth or USB
Battery operation Supplement. Powered from 9 - 38VDC
Gradual data collection from units of measurement Up to 150meter
SS relay output and digital input
target: 96 x 66 x 39 mm
Weight: 135g

5,220.00 kr

Item Number: LOG-WL500LTE

On the way in

Industrial controller for measuring and controlling the processes. With ethernet and 4G, with data logging, MQTT, IoT

Advanced Controller with logging
With slot for internal I/O expansion module, A/D, D/A, D/I, D/O, relay
Program with simple logic functions - WISE (Web Inside Smart Engine)
Logic functions with IF-THEN-ELSE logic
Supports SNMP, SMTP, FTP, MQTT, Modbus / TCP / RTU and DCON
Ethernet 10/100 / 1000Mbit
Setup via the built-in Web server
1 x RS232 port
2 x RS485 port
Supply voltage: 12 - 48VDC

8,450.00 kr

Item Number: L-CON-LOG+4G

Physically in stock

Temperature logger -40 - +80°C for refrigerated counters, food transport, EN12830 approved. Waterproof, Internal sensor. Battery

Verify that e.g. goods transport has had the desired temperature
Suitable for quality documentation
Super robust design - for harsh environments
Place the data logger next to the item and let it document the transport
EN12830 approved for food
Memory for 16,000 measurements with date and time
Measuring interval: from 1 second to 1 hour
Log data is transmitted optically to the Data Collector
Find Data Collector under Accessories
No physical connection - thus IP67
Free presentation software, tools and Cloud
LCD display and LED alarm when the limit is exceeded
Measuring range: -40 - +80°C +/-0.5°C accuracy
Battery operating time: 2 - 4 years
Dimensions and weight: 62 x 47 x 19 mm, 45 grams
Battery: 1 x LS14250

1,217.00 kr

Item Number: LOG51S+

Physically in stock

2 Channel temperature, humidity log -25 - +70°C, 0 to 99%RH. Wireless to Data Collector 150m, combi sensor. IP64. battery

Wireless Temperature and moisture præsicions logger with memory
Sending measurement data to Data Collector (Base Station) at 870MHz
Distance between Data Logger and Data collector up to 150 meters
Battery operation up to 10 months at an upload per day
Data Logger is not on-line
2 x 8,000 measurements in memory with the date and timestamp
Accuracy of measurement: max. + / - 0.3 ° C range depending
Removable external sensor. Close O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data Logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Fixed antenna: 24 mm
Battery type: LS14250 x 1

2,748.00 kr

Item Number: LOG-WL507

Physically in stock

Log data collector wireless loggers. Battery-powered radio-relay station. Setup docking device with USB to PC.

Data collector for wireless data loggers
Repeater - Radio relay station provides greater range
Radio distance to Dataloggers is approx. 150 meters
Radio frequency is 870MHz
Battery operation as repeater (Radio relay station) for 6 months.
Automatic repeater function
Wireless Data Collector from Dataloggers.
Data is transferred to PC via USB
Bluetooth
Has docking holder for setting up Datalogger functions
Operating temperature: -10 - +60°C
Dimensions: 96 x 65 x 25 mm
Weight: 70g
Only for T&D Dataloggers

2,706.00 kr

Item Number: LOG-WL500M

On the way in
