4G Global LTE alarm and remote control, Input: 2 x Digital, 2 x Analog, 2 x Relay output, 1-wire for sensors, MQTT, 10 - 28VDC
GSM/LTE alarm - 4G - Global version
Supports all LTE frequencies
Configuration via USB (Windows program) or SMS
2 x digital inputs with "dry contact" or "logic level" mode
2 x analog inputs from 0 to 60VDC, 10 bits
2 x relay outputs with NO/NC contacts
1-Wire interface for 4 Teracom temperature and humidity sensors
Input can be navigated with alarm text etc.
SMS alarm - up to 5 numbers
Email alert - up to 5 email recipients, SMTP with TLS support
1 relay can be activated with calls from up to 100 phone numbers
Push mode – XML data is sent via HTTP Post to a remote server. Response from server may contain relay setup.
MQTT 3.1.1 support
Firmware update "over the air"
Supply voltage: 10 - 28VDC, 2Watt - optional PSU
Dimensions: 109 x 65 x 32 mm
Weight: 152g
2,600.00 kr
Excl. VAT
Quantity
On the way in
close

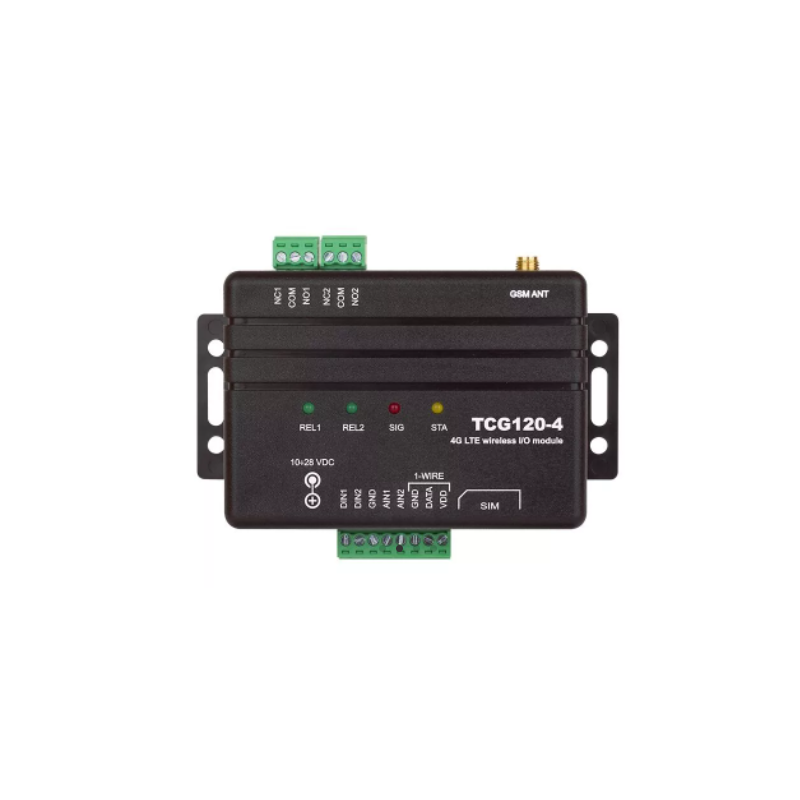

TCG120 is an I/O controller with GSM remote monitoring and control via mobile network. It has two digital inputs, two analog inputs. Its 1-Wire interface supports up to 4 Teracom humidity and temperature sensors. It's two relays have normally open and normally closed contacts.
The relays can be activated either externally (via SMS or HTTP response from external server) or locally - from the status of the monitored parameter. Only one parameter can control the relay at the same time, but for each parameter an e-mail or SMS can be sent to the alarm administrator.
TCG120 can initiate a connection (HTTP mail) to the remote dedicated servers - XML file, with current values for monitored parameters.
HTTP mail can be sent periodically or upon preset alarm conditions. The server can then respond with relay setup (see the manual under "Downloads"). This is very useful in client-server systems for GSM-GPRS remote monitoring and control
The controller can be used as a stand-alone unit or as part of data monitoring systems (SCADA).
