Multi-band 4G LTE Cat.1 controller, logger and alarm

Setup via USB, SMS and HTTP API

USB setup - use USB cable with Mini B male

2 digital “dry contacts”. High on contact

4 analog inputs, 0 - 10VDC or 4-20mA input (10bit)

4 relay outputs, COM, NO and NC

1-Wire input for up to 8 Teracom sensors

1 x RS485 for max. 8 MODBUS RTU sensors

Data logger with 70,000 loggings

Upload data to HTTP/HTTPS Post in XML/JSON

SMS alarm and Email alarm for 5 recipients

Push mode – XML data is sent via HTTP Post to a remote server. Response from server may contain relay setup.

10 to 28VDC, 370mA @ 12VDC - optional PSU

Dimensions: 158 x 119 x 34 mm

Weight: 470g

Temperature: -20 - +55°C

Rain sensor for weather station and alarms
Pulse signal When tilt container is filled with water
Making short contact between the 2 wires
Cable length: 2.8 meters
Dimensions: 150 x 60.5 x 92 mm (L x B x H)
distance between mounting holes: 135 mm

Web-based temperature and moisture data loggs
1-wire bus for a maximum of 16 sensors (Temp / Moisture)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
20 Override Schemes
Email Alarms, Custom (Encrypted Email Servers, such as Gmail)
Real Time Clock With NTP Server Synchronization
No Software Required
Basic Script Support for Advanced Flexibility
Configurable logging
Graph (logged data)
HTTPS / TLS encrypted
static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtration
On-site updates
Robust cabinet for DIN rail / wall
Supply voltage: POE or 9 - 28VDC, 134mA

CO2 - CO - temperature - humidity
Industrial / outdoor robust environment-measuring station
LCD color display
CO2 0-9999 ppm - electrochemical sensor
temperature of -20 - + 50 ° C, humidity 0 to 100% RH
dewpoint measurement based on the temperature and moisture
Up to 450,000 logs with date and time stamps
Web-based configuration interface
APP: iOS APP and Android APP, powerful software
DCON, Modbus RTU / TCP and MQTT protocols
RS-485 / Ethernet / PoE
Relay output for local alarm or building management
power supply: PoE and 12 - 48VDC ca. 3.5Watt
IP43 sealed enclosure (CO2 + temperature sensor)
Dimensions: 211 x 130 x 70 mm
DIN or wall mounting bracket

The indoor light-gauge, temperature and humidity sensor 3 in 1
For energy optimization and building automation systems
Measuring range of illumination: 0 to 20,000 lux
Temperature Range: -20 to + 60 ° C
humidity Measuring range: 0 to 100% RH
Supports DCON and Modbus RTU / TCP protocols
Supports MQTT protocol Ethernet interface
With RS485 / RJ45 Ethernet communications interface
Relay output - 6 Amp @ 250VAC
Power supply: PoE and 10 - 48VDC, ca. 2 Watt
Operating temperature: 0 - + 75 ° C
web configuration and firmware update via Ethernet
Ceiling Mounting

1 channel detection of fluid leakage with MODBUS
Shutter local alarm of detection of water leakage
Acoustic alarm - adjustable
RS485 2-wire MODBUS RTU
2 x LED indicators for power and alarm
Relay output for alarm for water leakage - 30VDC / 2A
Monitor cable for liquid detector
Sensor cable can be up to 500 meters
Sensitivity is adjustable
Supports DCON and Modbus RTU protocols
Embedded Dual Watchdog
Operating temperature: -25 to + 75 ° C
Small form factor with DIN bracket
Dimensions: 83 x 70 x 29 mm
Operating voltage: 10 - 30VDC

Built-in Web Server
Web HMI
Support for MQTT Protocol
2-port Ethernet Switch for Daisy-Chain Topology
Dual Watchdog
Operating Temperature -25 to +75°C
DI: 8 Channels
DO: 8 Channels

ARM Cortex - A53 CPU , 1.2 GHz
RAM 1Gb SDRAM
16GB of memory
2 x RS232/422/485
8 x DI and 4 x relay outputs
DC input 9-32V
4G module
OS : Linux Raspbian
User need knowledge of linux and programing
Documentation for DI/O and 4G module

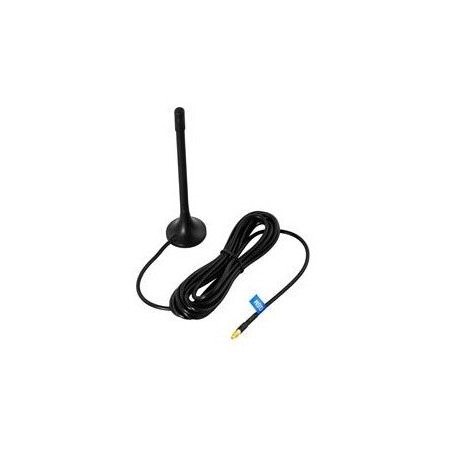

Antenna for GPS, 2.4GHz WIFI, 4G, LTE
5MHz bandwidth
Screw mounting
4 meter cable
Temperature: -40 - +85℃
Full IP67 Waterproof

3 x tænd/sluk, potentialfri relæ ouputs, 230 V AC, 16 A / 24 V DC, 10 A
1 x strømforsyning med 12-24 V AC / DC spænding
1 x RJ45 Ethernet
3 x Watvhdog til at overvåge forbrugere (ICMP / TCP)
1 Mini-DIN-stik til valgfri sensor eller seriel interface (RS232)
Programmerbar tænd / sluk-sekvens
SNMP Get/Traps (SNMPv1, SNMPv2c)
Understøtter Android og iPhone
Syslog og E-mail
DIN-rail montering i servere racks

4 x potential-free shutter release, & 230VAC / 16 A, & 24VDC / 10 A
8 x passive signal inputs - contact inputs
1 x RJ45 Ethernet
4 x Watchdog to monitor connected devices (ICMP / TCP)
1 Mini-DIN connector for optional sensor or serial interface (RS232)
Programmable on / off sequence
SNMP Get / Traps (SNMPv1, SNMPv2c), Syslog, e -mail
APP for Android and iPhone
2-color LEDs for status info on front
DIN rail mounting

The ideal choice for Server Room and Server rack monitoring.
4 x potential-free switching relay outputs - 36VDC / 3A switches
Large LED display for power measurement, IP address, sensor data and error reports
4 x Watchdog for monitoring connected PCs (ICMP / TCP)
12 x passive signal inputs - (contact inputs) for Phoenix plugs
4 x RJ45 for temperature / humidity sensors. RS232 / 485, 1 x RJ45 for LAN
Features, limit values, alarm receivers set up on the device via supplied software
2 x 12VDC power supply inputs (redundant)
PoE - Power over Ethernet for 2111-2 the model.
Free APP for Android and iPhone
SNMP Get / Traps (SNMPv1, v2c, v3)

automatisk transfer switch (ATS) til skifte til en alternativ strømforsyning
Typisk overførselstid 7 - 10 ms.
Brugerflade via web-browser med Password
Programmerbar sekventiel power up
6 x IEC C13 udgange 10A
1 x IEC C19 16A
3 x RJ45, LAN og Sensor
2 x IEC C20 16A strømforsyning
SNMP Get/traps og e-mail support

Bypass-Switch til udskiftning eller vedligeholdelse af uafbrydelige strømforsyninger (UPS)
19" rackmontering, 1U
Synlig LED-Display
1 output „zur USV“ IEC C19, 16A
1 input „von USV“ IEC C20, 16A
6 x IEC C13 udgange 10A
1 x IEC C20 16A  Strømforsyning
Lavt internt strømforbrug

Bypass-Switch til udskiftning eller vedligeholdelse af uafbrydelige strømforsyninger (UPS)
19" rackmontering, 1U
Synlig LED-Display
1 output „zur USV“ IEC C13, 10A / IEC C19, 16A
1 input „von USV“ IEC C14, 10A / IEC C20, 16A
4 x IEC C13 udgange 14A
3 x RJ45, LAN og Sensor
1 x IEC C14 10A/ IEC C20 16A Strømforsyning

4 ports PDU med samlet strømmåler via netværk
Med reststrømsmåling type A.
19" rackmontering, 1U
Måling af energi og elektriske dimensioner
Integreret Hotswap skuffe til udskiftning af processor/strømforsyning under drift
Måling af 2 resp. 4 separate faser
4 x IEC C13 udgange 14A
3 x RJ45, LAN og Sensor
4 x IEC C20 Strømforsyning 16A
SNMP Get/traps

4 ports PDU med samlet strømmåler via netværk
Med reststrømsmåling type A.
19" rackmontering, 1U
Måling af energi og elektriske dimensioner
Integreret Hotswap skuffe til udskiftning af processor/strømforsyning under drift
Måling af 2 resp. 4 separate faser
4 x IEC C13 udgange 14A
3 x RJ45, LAN og Sensor
4 x IEC C20 Strømforsyning 16A
SNMP Get/traps

20 ports PDU with individual and total power meters via network
Integrated residual current measurement type A
User interface via web browser with Password
16 x IEC C13 outputs 10A
1 x RJ45 to LAN and 1 x RJ45 for sensor, temperature, moisture, hPascal
4 x Schuko outputs 16A
SNMP Get / traps and email support

20 ports PDU with individual and total power meters via network
User interface via web browser with Password
16 x IEC C13 outputs 10A & nbsp;
1 x RJ45 to LAN and 1 x RJ45 for sensor, temperature, moisture, hPascal
4 x Schuko outputs 16A
SNMP Get / traps and email support
