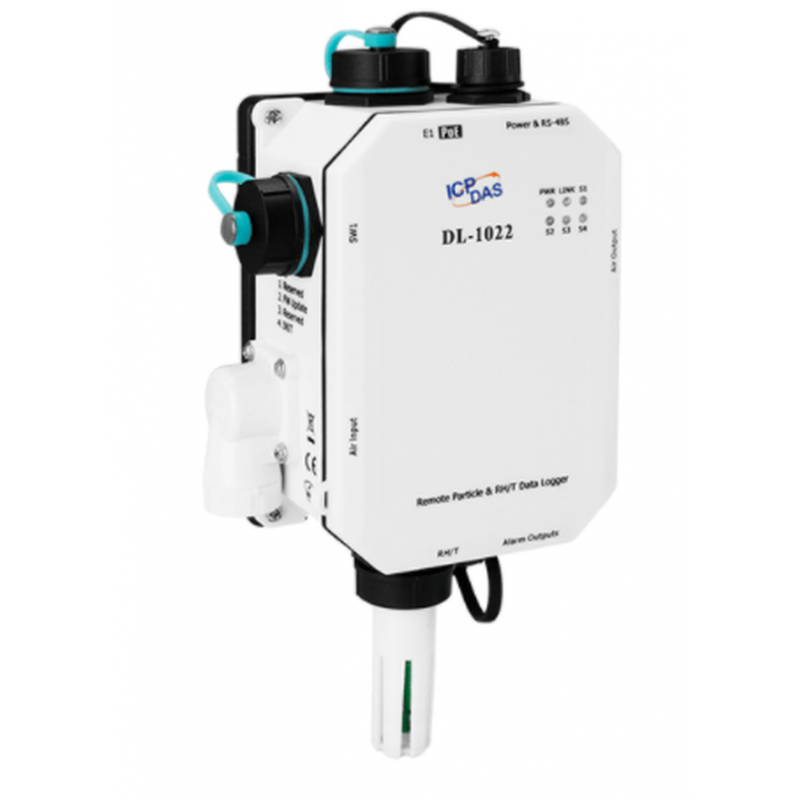

Environmental monitoring station, industrial and outdoor. CO2, particle, temperature, humidity. APP, MODBUS RTU/TCP, RJ45, RS485

Module for PT100 or PT1000 sensor with 4-, 3- or 2-wire
for nickel temperature sensor (Ni RTD)
16 bit resolution
15 Measurements per second (Total)
Supply voltage: 10 - 30vdc / 1 Watt
Master RS485 must establish bias voltage
Dim: 123 x 72 x 35 mm

The logger / controller with socket for internal I / O expansion bus (eg. Relay module)
is programmed with simple logic functions
IF-THEN-ELSE, AND and OR simplifies the setup
supports SNMP, SMTP , FTP, Modbus RTU and DCON
Ethernet 10/100 / 1000Mbit
setup via the integrated Web server
1 x RS232 ports
1 x RS485 ports
Supply voltage: 12 - 48VDC

CAN Bus Booster
CAN specification 2.0A and 2.0B
ISO 11898-2 standard
Max. Baudrate: 800 Kbps
Jumper for 120Ω Terminal resistance on the CAN bus
2 CAN channels
Automatic Baud Rate
Up to 100 nodes on each CAN port
Removable terminal block
DIN bracket
Supply: 10 - 30vdc

Spare part

Accessories for MFI-Mport. PIR sensor for ceiling mounting

Network module with digital I / O Korenix JETI / O 6550
Channels: 14/8
Digital inputs: 14 pcs., Logic 0: 0 - 4 V, Logic 1: 5 - 30V
Digital outputs: & nbsp; 8 pcs. Open collector, 5 - 40 V 250mA
Isolation: Optical 2500 VRMS for analog and digital inputs and outputs for the power supply
Magnetic 1500 V from the network interface for the power supply
10/100 Mbit m / RJ45 their connector
Operating temperature: - 25 ° C - 70 ° C
Supports Modbus / TCP, OPC server, SNMP. Software included for configuration
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block, Max 1.92 W

Modbus TCP Slave Module LAN or Internet
6 x Relay, End Contact 250VAC / 5A, 30VDC / 5A
Avoid inductive load
6 x Digital input. High is 10 - 50V
supply via PoE or 12 - 48VDC
is with I / O Pair Connection - Input is mirrored to exit.
with important "Sale Setting" which sets relays as desired
watchdog which sets relays in "Safe Setting" in error detection
Dim: 123 x 72 x 35 mm
built-in your bracket

ARM Cortex - A53 CPU , 1.2 GHz
RAM 1Gb SDRAM
16GB of memory
2 x RS232/422/485
8 x DI and 4 x relay outputs
DC input 9-32V
4G module
OS : Linux Raspbian
User need knowledge of linux and programing
Documentation for DI/O and 4G module

Advanced Controller with logging
With slot for internal I/O expansion module, A/D, D/A, D/I, D/O, relay
Program with simple logic functions - WISE (Web Inside Smart Engine)
Logic functions with IF-THEN-ELSE logic
Supports SNMP, SMTP, FTP, MQTT, Modbus / TCP / RTU and DCON
Ethernet 10/100 / 1000Mbit
Setup via the built-in Web server
1 x RS232 port
2 x RS485 port
Supply voltage: 12 - 48VDC
