Gateway / Protocol converter

PROFINET to Modbus Master Converter

4kV isolation between PROFINET and Modbus

Vibration and shock resistant metal housing

Operating temperature: -40°C to 105°C

1x RS485 up to 115200 bps for RS485

1x Ethernet ports 10/100 Base-T Autosensing

DIN rail mountable

Power input: 10-40VDC, 8-26VAC

Configuration via software

Dimensions: 76mm x 86mm x 40mm

Weight: 250g

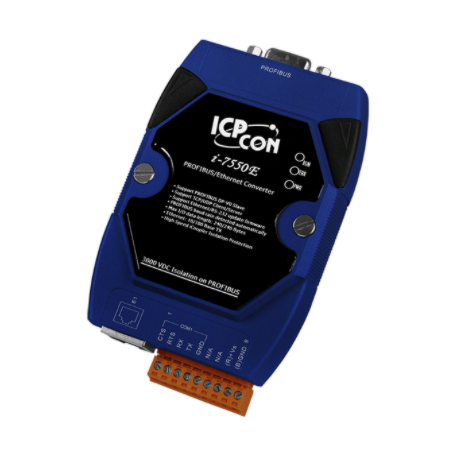

Gateway from Ethernet slave to PROFIBUS master
protocol / hierarchy: DP-V0 Slave
PROFIBUS Speed ​​(Kbps) in 10 step from 9.6 - 12000
speed setting is automatic
Max. Input data length: 240 byte
Max. Output data length: 240 bytes
Address setting: 0 ~ 126 Set by DIP switch or EEPROM
Ethernet protocol: TCP / UDP server / client
Configuration: Web Configuration

Serial to HART Convert
Allows 2 pcs. Hart Masters
Point-to-Point or Multi-Drop Hart Mode
Possibility of connecting 15 HART modules
Point-to-point or multi-drop HART mode
for configuration of modules
Isolated COM 1: RS-232 / 422/485
PWR / RUN / ERR INDICATION LED
Built-in Watchdog
4 kV ESD protection

PROFIBUS TO HART Convert, Gateway
4 x HART Canals
Max. 2 pcs. HART Masters
Point-to-Point or Multi-Drop HART Mode
Possibility of connecting 15 HART modules
PWR / RUN / ERR indication LED
Built-in Watchdog
4 kV ESD Protection
Operating temperature -25-75 ℃
for DIN rail mounting

Baud rate (bps): 10K - 1M
Terminator Resistor: 120 Ohms
3000VDC DC-to-DC isolation 2500Vrms for photo-couple
ISO 11898-2, CAN 2.0A and CAN 2.0 B
SC single mode, 1310 nm
RS-232 COM1
+10 - + 30VDC unregulated
-25 - + 75 degree driftemperatur
10-90% humidity

Ethernet Gateway for CANopen networks and Modbus RTU
1 x RJ45 10 / 100Mbps
Protocol: Modbus TCP Server
1 x RS232 / RS485 port (non-isolated)
Modbus RTU slave
Baud rate: 1200-115200
1 x CAN port
CANopen
CAN Baud rate: 10K - 1M
Built-in 120 ohm termination
Dimensions: 122 x 72 x 33 mm
Supply voltage : 10 - 30VDC, 2,5Watt
Operating temperature: -25 - + 75 ° C
DIN bracket

Supports Modbus TCP/UDP master and slave
Supports Modbus RTU/ASCII master and slave
Max. TCP connections (masters) per serial port: 32
1 x RJ45 Ethernet
3 x RS485 ports
Max. 254 notes
Max. baud rate: 115.2kbps
12 - 48VDC / 1.7 Watts
Dimensions: 95 x 52 x 27 mm
Temp: -25 - +75°C
Static IP or DHCP
Web server for configuration (HTTP)
Automatic RS-485 direction control
Terminal blocks
Cost-effective Modbus gateway

Protocol converter from M-BUS devices to PC/PLC which is Modbus Master
Up to 20 M-BUS units (meters)
RS485 Modbus interface for Modbus master
Free setup software
Supply voltage: 18 - 35VDC, 15 - 21VAC
Max. power consumption: 4 Watt
Baud rate: 1200 - 115,200 baud
Galvanic isolation
Temperature: -40 - +70°C
Dimensions: 71 x 60 x 60 mm

Supports M-Bus Standard: EN-13757, CJ / T -188
1 x RJ45 Modbus TCP
1 x M bus for maximum 100 slaves
M-Bus Power limiter
1 X RS232 for firmware update
Modbus TCP / RTU Function code 0x03 and 0x04 To read measurement data
Baud rate: DIP switch to M-Bus and serial port from 300 to 115200 BPS. Standard M-Bus port- Data format: data bit 8, parity straight, stop bit 1
supports up to 100 m bus slaves
m-bus power protection
short circuit protection on M-bus
Firmware updates via serial port
gives PWR, MTX and MRX 3 LED Indicators
Wall Mounting
Dim: 123 x 102 x 40 mm
Supply voltage: 10 - 30VDC

Compact Modbus / TCP for RTU / ASCII Gateway with PoE
must not be programmed
1 x RJ45 10 / 100Mbps
1 x RS232 (DB9 Han)
Supports Modbus TCP / UDP Master and Slave
Supports Modbus RTU / ASCII Master and Slave
Baud Rate Up to 115,200 BPS
Self-Tuner for RS232
IEEE 802.3af - PoE (PD)
Supply voltage U / Poe: 12 - 48VDC 2Watt
Goal: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - + 75 ° C

Compact Modbus / TCP to RTU / ASCII gateway with PoE
not to be programmed

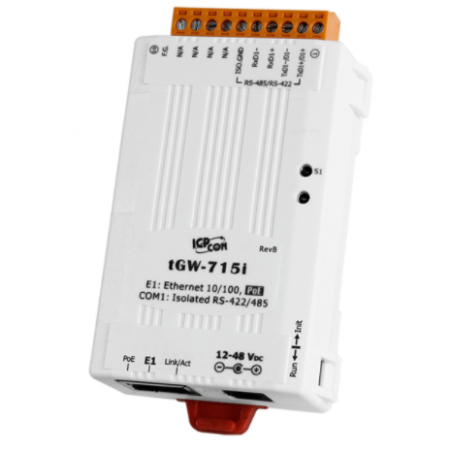

1 x RJ45 10 / 100Mbps
1 x RS485 / 422 (screw terminal)
baud rate up to 115,200 bps
Self-tuner for RS485 / 422
Automatic transmission / reception direction of RS485
IEEE 802.3af - PoE (PD)
Supply voltage u / PoE: 12 - 48VDC 2Watt
Dimensions: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - +75°C

Compact Modbus / TCP to RTU / ASCII gateway with PoE
not to be programmed
1 x RJ45 10 / 100Mbps
1 x RS232 / RS485 / RS422 (terminal block)
Choose only one COM port as interface
3-pin RS232 (RX, TX, GND)
baud rate up to 115,200 bps
Self-tuner for RS232
IEEE 802.3af - PoE (PD)
Supply voltage u / PoE: 12 - 48VDC 2Watt
Dimensions: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - +75°C

Compact Modbus / TCP to RTU / ASCII gateway with PoE
not to be programmed
1 x RJ45 10 / 100Mbps
1 x RS232 (terminal block) - 5-pin
1 x RS485 (terminal block ) - 2-pin
baud rate up to 115,200 bps
Self-tuner for RS232
IEEE 802.3af - PoE (PD)
Supply voltage u / PoE: 12 - 48VDC 2Watt
Dimensions: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - +75°C

Support input voltage 10 ~ 30VDC
Fully compatible with ISO 11898-2 standard

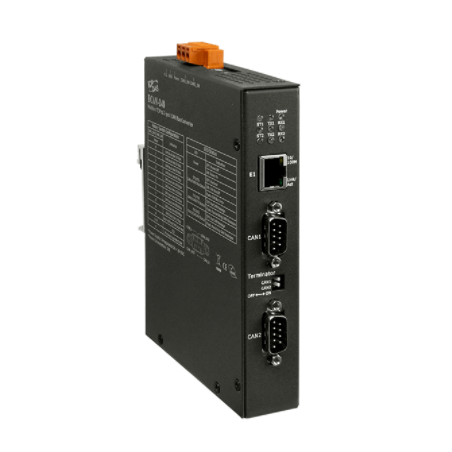

1 x RJ45 Ethernet interface
2 x CAN bus 9-pole D-sub
Mechanical selection of CAN Bus Baud rate
support for CAN bus ID filter function
Support for CAN Bridge
CAN Bus Monitoring
CAN Baud Rate from 10Kbps to 1Mbps
Modbus TCP Client / Server function Via Configuration
Support for TCP / UDP CAN Pair Connection
Bootloader for firmware updates
Supply voltage: 10 - 30VDC
Operating temperature: -25 to +75°C
Dim: 147 x 107 x 26 mm

Module to Can 2.0a and B
ISO 11898-2 standard
Baudrate 10Kbps for 1M bps
software for setting CAN and RS232 / 422/485
Transparency between RS-232 / 485/422 Via CAN bus
Full duplex on RS-232/422 units are not supported
CAN Bus Baud Rate Configuration
CAN Accept Filter Configuration
CAN 2.0A or 2.0B Specific Choice
RS-232 / 485/422 Baud rate and data file setting
RS-232/485/422 Respond Options
Setting: Normal or pair connection

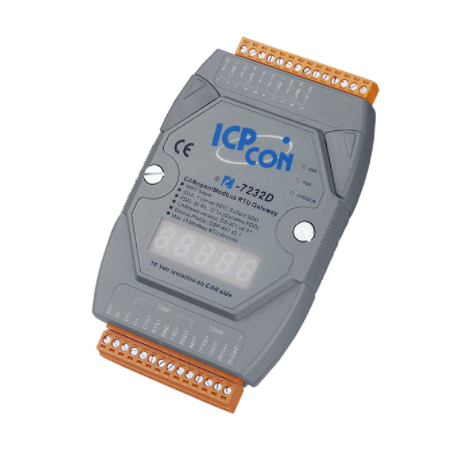

NMT Canopen Slave
Modbus RTU Master
Error Control: Node Guarding Protocol
Node ID: Setting CAN_MRU Utility Software or LSS Protocol
PDO modes: Eventless, externally requested, cyclic and acyclic Sync
Bob Mapping: Variable
Number of SDOs: 1 Server, 0 Client
Canopen Version: DS-301 V4.02
Device Profile: DSP-401 V2.1
CIA DSP -305 V1.1
Can Baud Rate: 10K - 1M BPS
Modbus Baud Rate 1200 - 115,200 BPS
LED indicators Run, Err and Overrun
Max. 10 Modbus RTU I / O Modules
Hiring program for configuration
7-segment LED to display Node ID, Can Baud Rate and RS-485 Baud Rate

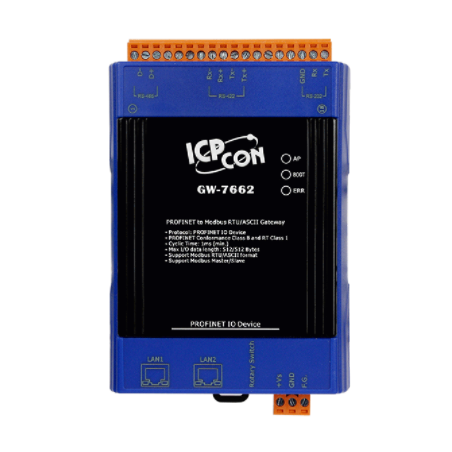

PROFINET / MODBUS konverter Gateway
PROFINET klasse B og RT klasse 1
1 x RJ45
Cyklisk tid: 1ms (min)
Generisk GSDML-fil (version 2.25)
Max længde af input/output data er 512/512 bytes
Understøtter Modbus Master og Slave mode
Understøtter Modbus RTU- og ASCII -format
RS232 or RS422 or RS485
Baud rate for COM1 fra 1,2 til 460,8 kbps
LED-indikatorer
4 kV kontakt ESD-beskyttelse til enhver terminal
Strømforsyning: +10 til +30 VDC
Driftstemperatur: -25 til +75°C

Module B - Serial for Fiber - Fiber for Serial Link
Automatic RS-485 Directional Control
Optical Fibers Allows Transmission Up to 15 km to the A module
avoiding lightning and EMI / RFI interference
Supports +10 VDC ~ +30 VDC
ESD protection for data line RS-232/422/485
DIN rail mounting
support operating temperatures from -25 ° C ~ +75 ° C

Module A - Serial for Fiber - Fiber for Serial Link
Automatic RS-485 Directional Control
Optical Fibers Allows Transmission Up to 15 km to B Module
Avoid lightning and EMI / RFI interference
Supports +10 VDC ~ +30 VDC
ESD protection for data line RS-232/422/485
DIN rail mounting
support operating temperatures from -25 ° C ~ +75 ° C
