Supports M-Bus Standard: EN-13757, CJ / T -188
1 x RJ45 Modbus TCP
1 x M bus for maximum 100 slaves
M-Bus Power limiter
1 X RS232 for firmware update
Modbus TCP / RTU Function code 0x03 and 0x04 To read measurement data
Baud rate: DIP switch to M-Bus and serial port from 300 to 115200 BPS. Standard M-Bus port- Data format: data bit 8, parity straight, stop bit 1
supports up to 100 m bus slaves
m-bus power protection
short circuit protection on M-bus
Firmware updates via serial port

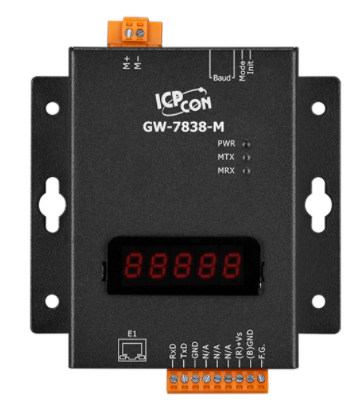

gives PWR, MTX and MRX 3 LED Indicators
Wall Mounting
Dim: 123 x 102 x 40 mm
Supply voltage: 10 - 30VDC
M-Bus (Meter-Bus) is a communication interface that is widely used in different meters, eg. Electric meters, water meters, heat meters, etc. Easy installation (two-wire system includes power and communication function) and robustness are the most important features. M-Bus has its own physical layer and protocol. Therefore, it is usually changed to other systems, e.g. Modbus, to facilitate overall use.
In automation, Modbus TCP is one of the most common communication standards. The manufacturer developed the gateway ETH-MOD-MBUS-I for Modbus TCP for M-Bus, enables direct transmission of meter data to a control system using Modbus TCP. ETH-MOD-MBUS-I supports operating up to 100 units on M-Bus. After an initial configuration of the M-Bus tool, ETH-MOD-MBUS I will read the measurement data autonomously. The PLC or PC as a Modbus TCP client can easily access measurement data via a TCP connection.
