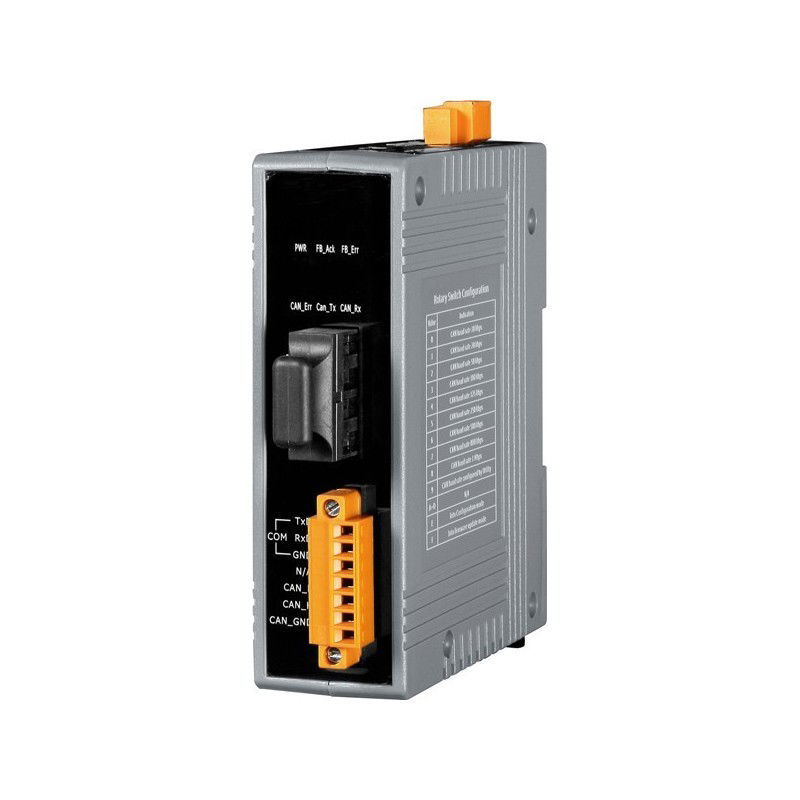

CAN bus to Single Mode Fiber. CAN 2.0A, CAN 2.0B. Manual CAN baud rate sw - 10K -1Mbps. 10 - 30VDC

Ethernet Gateway for CANopen networks and Modbus RTU
1 x RJ45 10 / 100Mbps
Protocol: Modbus TCP Server
1 x RS232 / RS485 port (non-isolated)
Modbus RTU slave
Baud rate: 1200-115200
1 x CAN port
CANopen
CAN Baud rate: 10K - 1M
Built-in 120 ohm termination
Dimensions: 122 x 72 x 33 mm
Supply voltage : 10 - 30VDC, 2,5Watt
Operating temperature: -25 - + 75 ° C
DIN bracket

Compact Modbus / TCP to RTU / ASCII gateway with PoE
not to be programmed
1 x RJ45 10 / 100Mbps
1 x RS485 / 422 (screw terminal)
baud rate up to 115,200 bps
Self-tuner for RS485 / 422
Automatic transmission / reception direction of RS485
IEEE 802.3af - PoE (PD)
Supply voltage u / PoE: 12 - 48VDC 2Watt
Dimensions: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - +75°C

Supports M-Bus Standard: EN-13757, CJ / T -188
1 x RJ45 Modbus TCP
1 x M bus for maximum 100 slaves
M-Bus Power limiter
1 X RS232 for firmware update
Modbus TCP / RTU Function code 0x03 and 0x04 To read measurement data
Baud rate: DIP switch to M-Bus and serial port from 300 to 115200 BPS. Standard M-Bus port- Data format: data bit 8, parity straight, stop bit 1
supports up to 100 m bus slaves
m-bus power protection
short circuit protection on M-bus
Firmware updates via serial port
gives PWR, MTX and MRX 3 LED Indicators
Wall Mounting
Dim: 123 x 102 x 40 mm
Supply voltage: 10 - 30VDC

Gateway from Ethernet slave to PROFIBUS master
protocol / hierarchy: DP-V0 Slave
PROFIBUS Speed ​​(Kbps) in 10 step from 9.6 - 12000
speed setting is automatic
Max. Input data length: 240 byte
Max. Output data length: 240 bytes
Address setting: 0 ~ 126 Set by DIP switch or EEPROM
Ethernet protocol: TCP / UDP server / client
Configuration: Web Configuration
