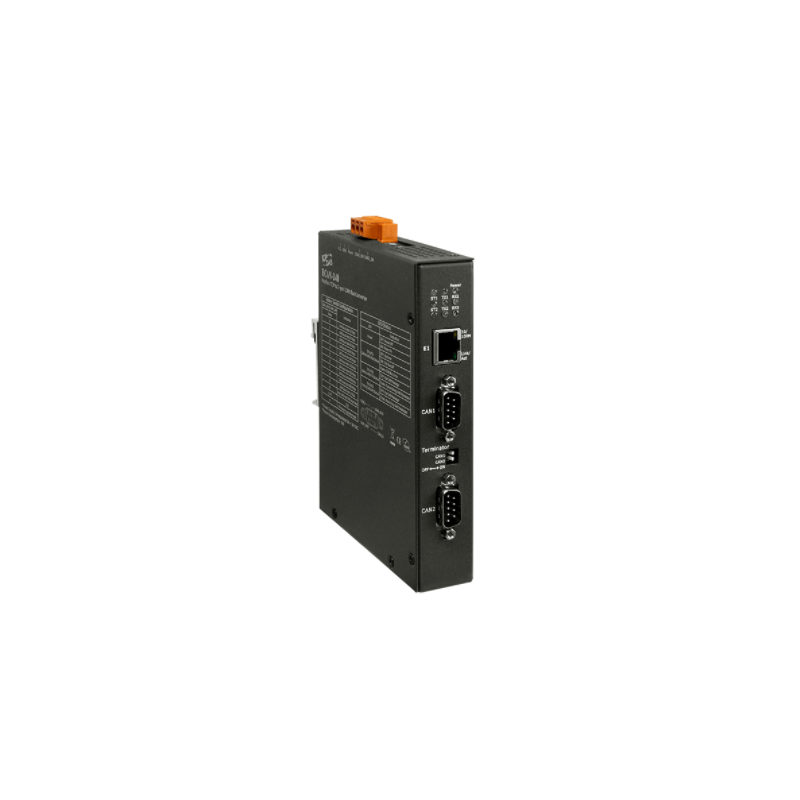

Modbus for 2 x CAN Port Gateway. CAN Bridge over network. Modbus TCP Server / Client. 10 - 30VDC, -25 to +75°C

Support input voltage 10 ~ 30VDC
Fully compatible with ISO 11898-2 standard
1 x RJ45 Ethernet interface
2 x CAN bus 9-pole D-sub
Mechanical selection of CAN Bus Baud rate
support for CAN bus ID filter function
Support for CAN Bridge
CAN Bus Monitoring
CAN Baud Rate from 10Kbps to 1Mbps
Modbus TCP Client / Server function Via Configuration
Support for TCP / UDP CAN Pair Connection
Bootloader for firmware updates
Supply voltage: 10 - 30VDC
Operating temperature: -25 to +75°C
Dim: 147 x 107 x 26 mm

£468.58
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number ETH-CAN2-MOD-GW
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

The Eth-Can2-Mod-GW module is a Modbus TCP for 2-Ports CAN Bus Gateway, which means that the module can easily be integrated with an industrial network. Eth-Can2-MOD-GW has 2 CAN bus interfaces, which means that several CAN applications can be supported, such as a Can-Bridge (Bridge) or a CAN Message Router, which means that ETH-CAN2-MOD-GW Can be used to connect to 4 different CAN networks so that they can communicate with each other.

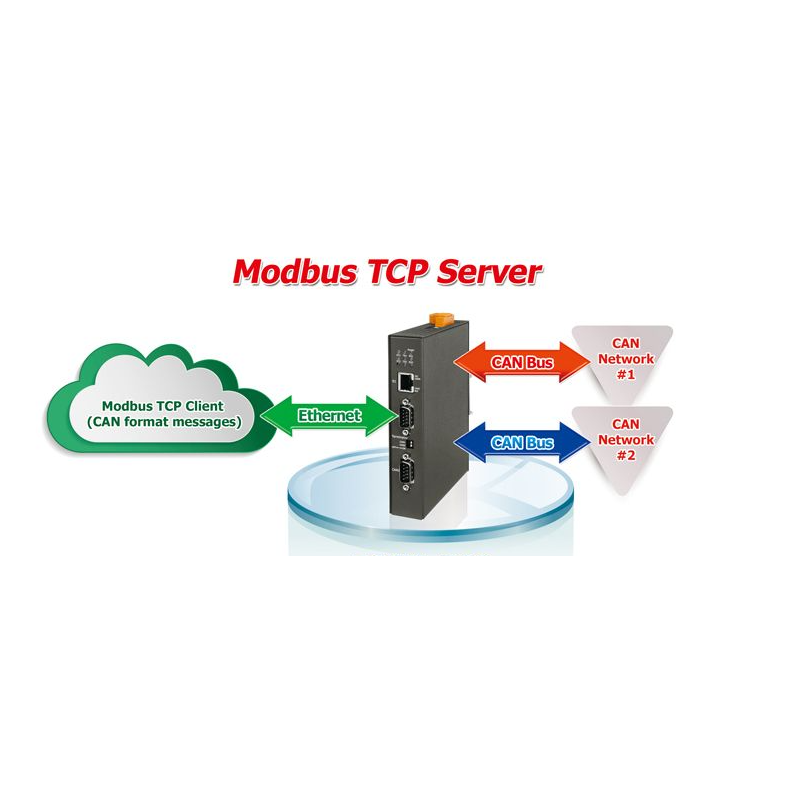

Modbus TCP Server The function is used to implement communication between a CAN device and a Modbus TCP client. When Eth-Can2-MOD-GW is Modbus TCP Server, the Modbus TCP client must use Modbus commands based on the CAN format to access ETH-CAN2 mod-GW.
Eth-Can2-Mod-GW Translate these commands for messages in CAN format and send them to the CAN networks.
Similarly when a CAN form message message is received from the CAN network, translates ETH-CAN2 against GW message to Modbus format , which can then be accessed using a Modbus command.

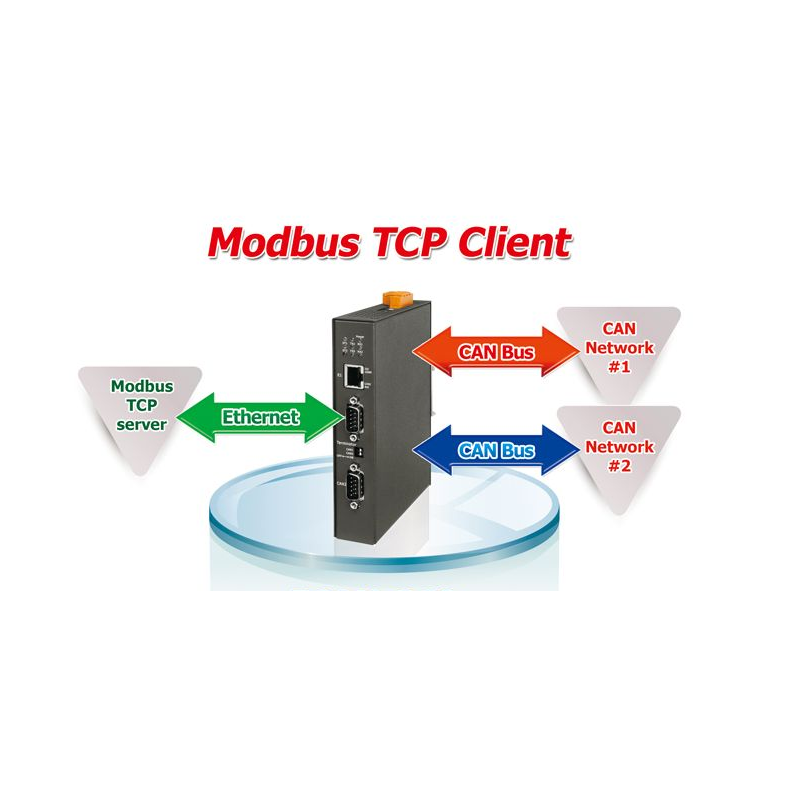

Modbus TCP Client function Used to implement communication between a CAN bus and a Modbus TCP server. Which can access the Modbus TCP Server via the command configuration. When ETH-CAN2-MOD-GW receives I / O data, it will forward them to the external CAN devices for analysis, control or other operations. When the ECAN 240 module is configured, it is also able to access the Modbus TCP server via a CAN message.

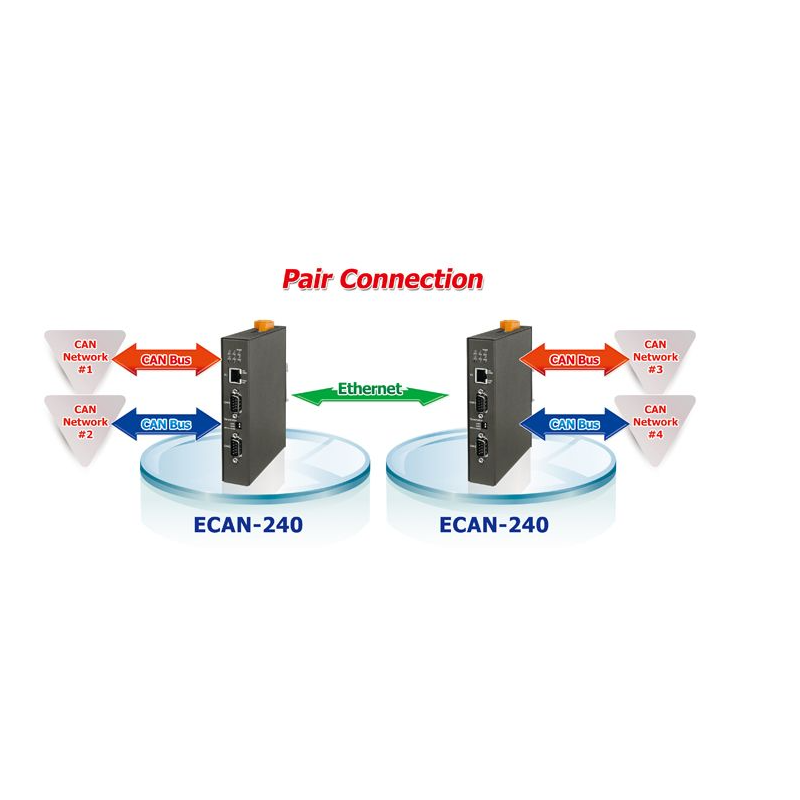

Pair Connection is for communication between 2 ends of CAN network. Can Network # 1 can communicate with CAN Network # 3 or CAN Network # 4 using parsing configuration. Similarly, Can Network # 2 can also communicate with Can Network # 3 or Can Network # 4 in the same way. PAIR connection on ETH-CAN2-MOD-GW is implemented via either TCP or UDP protocol.
