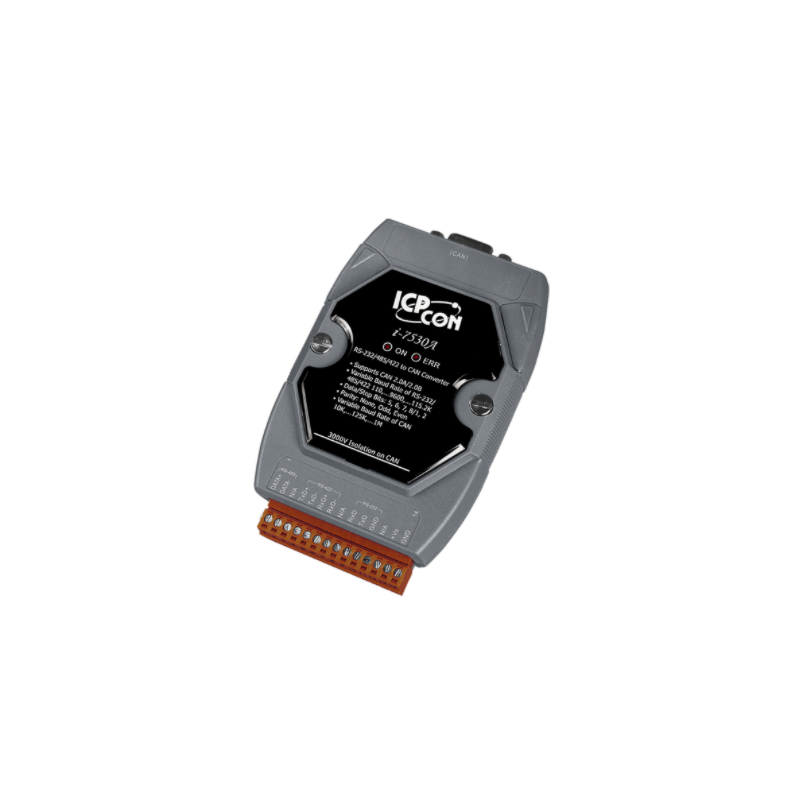

RS232 / RS422 / RS485 Converter (Slave) to Can2.0 A / B Master. Modbus RTU slave to CAN. 10 - 30vdc.

Module to Can 2.0a and B
ISO 11898-2 standard
Baudrate 10Kbps for 1M bps
software for setting CAN and RS232 / 422/485

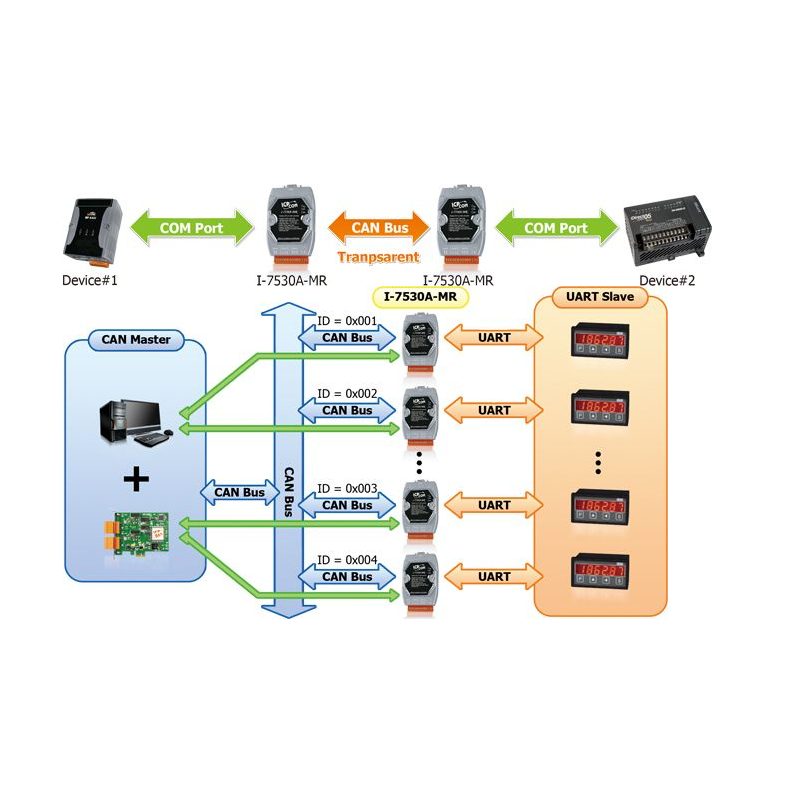

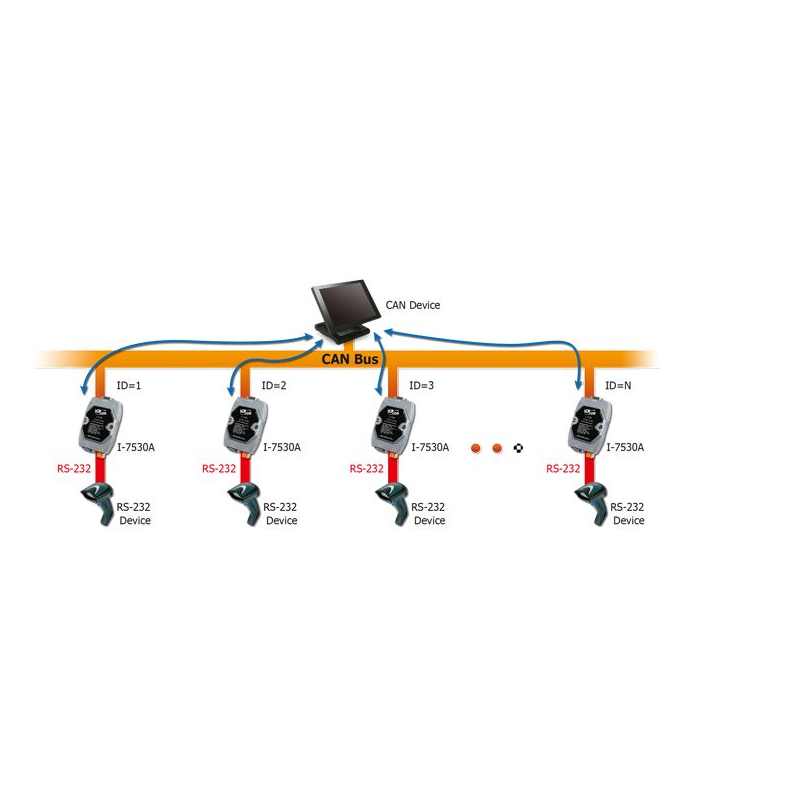

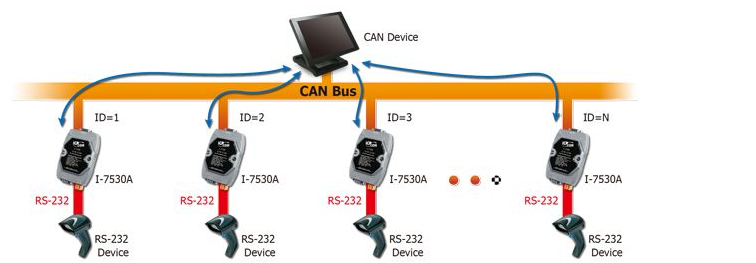

Transparency between RS-232 / 485/422 Via CAN bus
Full duplex on RS-232/422 units are not supported
CAN Bus Baud Rate Configuration
CAN Accept Filter Configuration
CAN 2.0A or 2.0B Specific Choice
RS-232 / 485/422 Baud rate and data file setting
RS-232/485/422 Respond Options
Setting: Normal or pair connection

M485-CAN-IA-M
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

PLC, HMI and SCADA are popular in the various industrial control applications, but most of them do not have CAN interfaces. Users always experienced difficulties due to connection of sensors or actuators that have only a CAN interface. The basic function of the M485-CAN-AI m is compatible with I-7530A, and "MR" stands for "Modbus RTU". So M485-CAN AI-M supports the Modbus RTU protocol in its RS-232/422/485 port. Modbus RTU is popular and widely supported by most PLCs, HMIs and SCADAs.

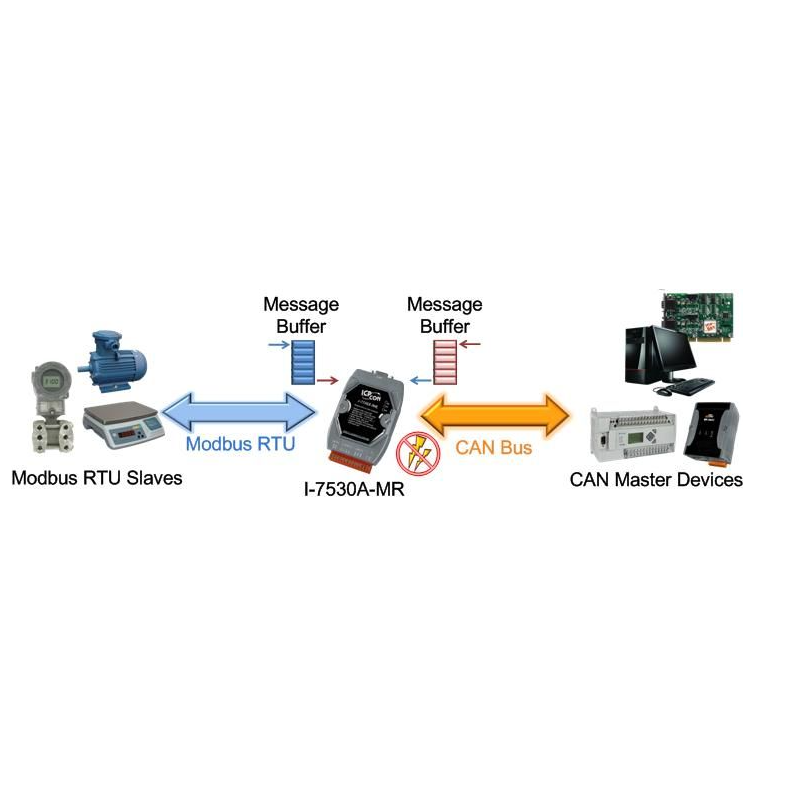

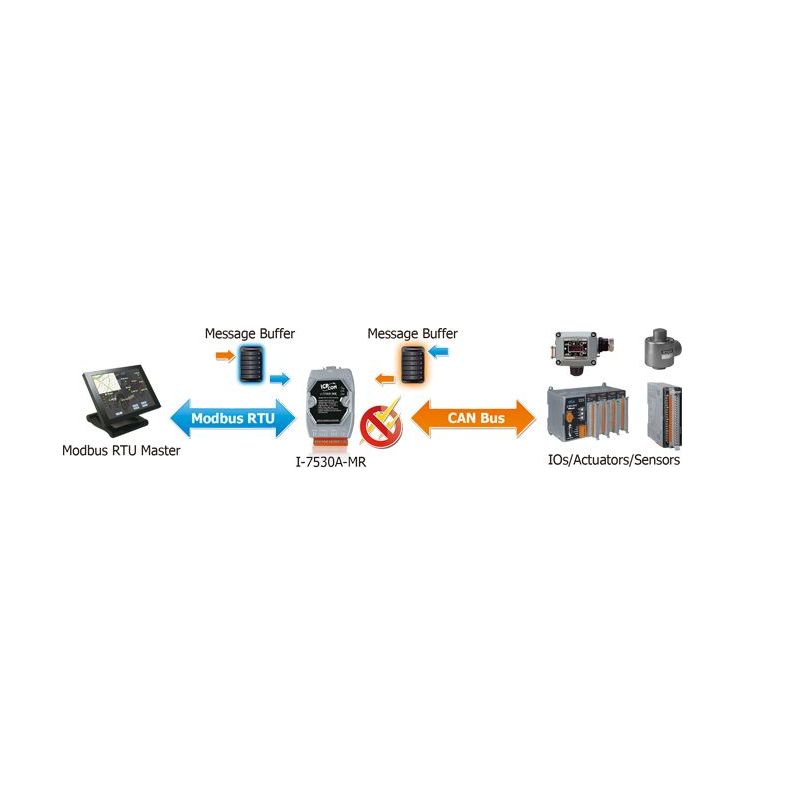

M485-Can-Ai-M is useful to use standard Modbus RTU protocol to access CAN network without problems . And with the specially designed firmware, in addition to normal received CAN message buffer, it offers special memory space to store up to 100 kinds of CAN messages that are urgent and must be treated immediately. The function helps PLC, HMI and SCADA use Modbus RTU function code 3,4,16 to access CAN devices in an easy way. In Modbus RTU mode, it allows a modbus RTU Master to communicate with CAN devices on a CAN network. The following figure shows the application architecture for this mode.
