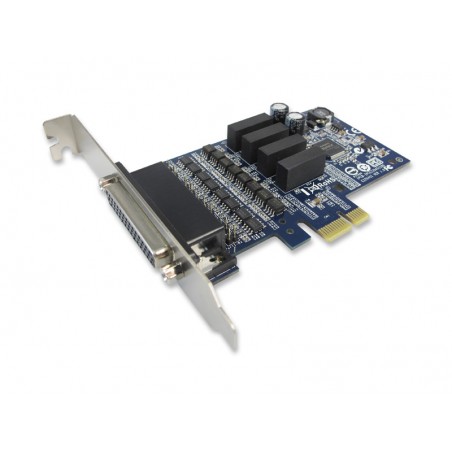

2-port RS-422/485

Communication speeds up to 921.6 Kbps.

2KV overvoltage protection, IEC-61000-4-5 Level 3.

1.5KV insulated protection meets IEC-60747 -5-5

16C950 UART controller

RS-422 and RS-485 auto detection and switching technology

jumper and software free.

On-chip hardware automatic flow control to guarantee nothing data loss.

15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.

Plug-n-Play, I / O address and IRQ assigned by BIOS.

Certified by CE , FCC, VCCI, BSMI, RoHS and Microsoft WHQL authentication.

Windows 11 24H2 64 bit

Windows 11 23H2 64 bit

Windows 11 22H2 64 bit

Windows 11 21H2 64 bit

Windows 10 22H2 (22H2) 32/64 bit

Windows 10 21H2 (21H2) 32/64 bit

Windows 10 21H1 (21H1) 32/64 bit

Windows 10 20H2 (20H2) 32/64 bit

Windows 10 20H1 (2004) 32/64 bit

Windows 11 IoT Enterprise 24H2

Windows 11 IoT Enterprise LTSC 2024

Windows 11 Enterprise LTSC 2024

Windows 10 IoT Enterprise 22H2

Windows 10 IoT Enterprise 21H2

Windows 10 IoT Enterprise LTSC 2021

Windows 10 Enterprise LTSC 2021 32/64bit

Windows Server 2022 64bit

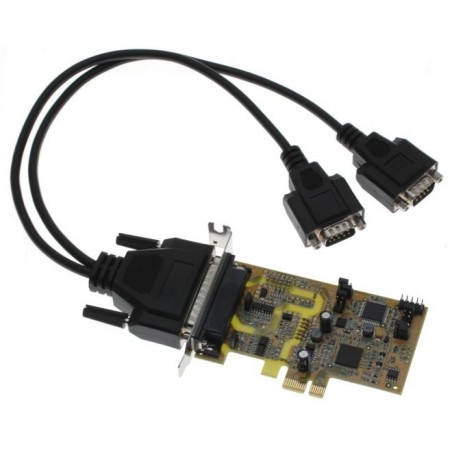

2 port RS485 / RS422 smart, normal and low profile PCI Express x1 serial card.
PCI Express x 1 compliant
921.6 Kbps maximum baud rate for super fast data transfer
128-byte FIFO and on-chip H/W, S/W power management
Low form factor suits small PCs
Drivers are provided for Windows XP / Vista / 7/8/10 (32/64 bit), Linux 2.6.x / 3.x
15 KV ESD protection

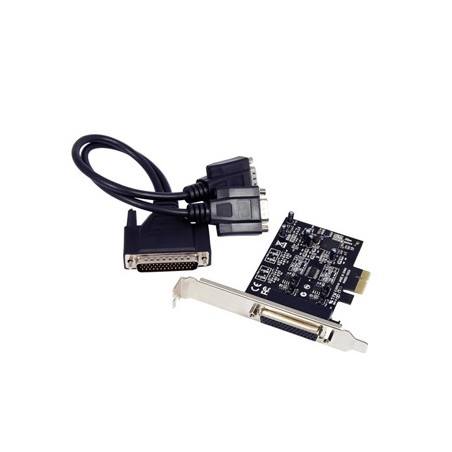

• PCI Express x 1, 2x RS232, RS422/485
• RS485 ART (Automatic Receive Transmit control), RS485 in 3 operation modes
• optical isolation, surge protection (also in RS232), Compact board size (half-size)
• Built-in termination resistors

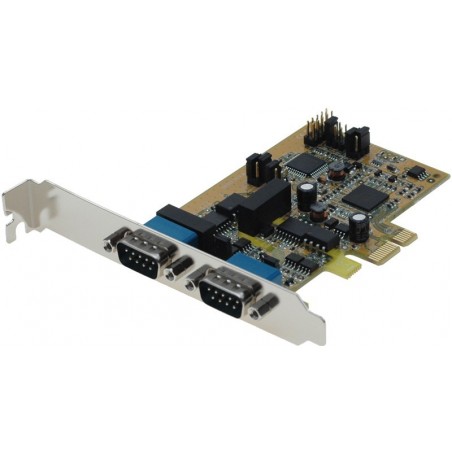

PCI Express card with 2 x isolated RS422/485 ports

2 RS422/485 serielle porte til PCI Express
