Spænding og strøm

Spænding og strøm

On this site you will find our wide range in voltage measurement via USB interface. Several of our models are standalone devices and can be logged and displayed without the use of PC using. Display. The measured values ​​can then be exported to USB or SD card for further processing of data. See our selection below.

Spænding og strøm
There are 11 products.
16-Channel USB Voltage Measurement & I/O Module, 16bit

Multi I / O module for measurement and with USB port
16 Analog inputs, +/- 10V, +/- 5V, +/- 2V, +/- 1V
16 bit resolution
frequency Up to 250kHz Total Samplings-Rate
2 Analog Exit +/- 10 Volt
4 Digital Entrance TTL / CMOS
4 Digital Outputs TTL / CMOS
1 Counter Input, 16 Bit
Voltage Variety from USB The port
Buy DAQ Software: NEXTVIEW
Dim: 167 x 113 x 30 mm

$720.29
Item number USB-AD16S16
On the way in

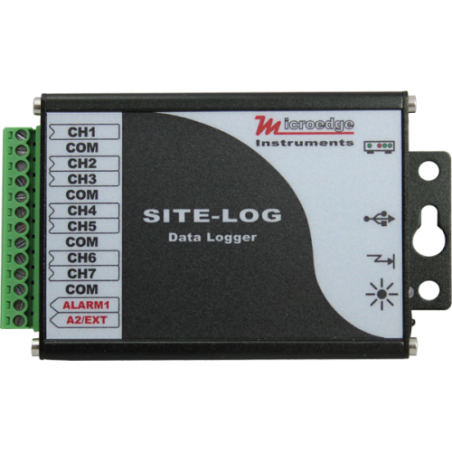

7 kanals 0 - 20VDC spændings-datalogger, hastighed 20ms til 12 timer, 16bit opløsning

The 16-bit analog-to-digital converter
Versions: 0-20VDC, 0-10VDC, 0-5Vdc, 0-2VDC
With temperature compensation
4 Megabytes of memory to log data
USB and RS232, automatic baud rate up to 115.2kbit
Programmable input ranges (0-2 VDC, 0-20 VDC)
Battery operation - 10 year battery
Acc: Software for configuring, downloading, graphing, analysis and alarm reporting (supplied)
onfigurable controls alarm / surge control
Measurement speed of from 20 milliseconds (channel 1) to 12 hours
Robust aluminum housing
coated printed circuit board for protection against moisture, corrosion

$877.81
Item number LOG-MFV
On the way in
7 channel 0 - 20Vdc voltage data logger, speed 20ms to 12 hours

16-bit analogue-to-digital converter
With temperature compensation
4 Megabyte memory to log data
USB and RS232, automatic baud rate up to 115.2kbit
Programmable input ranges (0-2 VDC to 0-20 VDC)
Battery operation - 10 year battery
Acc: Software for configuring, downloading, graphing, analysis and alarm reporting (not included)
Configurable alarm controls / overvoltage control
Measurement speed from 20 milliseconds (1 channel) to 12 hours
Robust aluminum housing
coated printed circuit board for protection against moisture, corrosion

$1,183.35
Item number LOG-MPV-1
Physically in stock
7 kanal 4-20mA strøm-datalogger, hastighed 20ms til 12 timer, 16bit opløsning, 2MB hukommelse

16-bit 4-20mA to-digital converter
With temperature compensation
2 Megabyte memory to log data
USB and RS232, automatic baud rate up to 115.2kbit
Input ranges (4-20mA, version with 0-50mA)
Battery operation - 10 year battery
Add on: Software for configuring, downloading, graphing, analysis and alarm reporting (not included)
Configurable alarm controls / overvoltage control
Measurement speed from 20 milliseconds (1 channel) to 12 hours
Robust aluminum housing
coated printed circuit board for protection against moisture, corrosion

$967.70
Item number LOG-MFCB
On the way in
7-channel 4-20mA current data logger, speed 20ms to 12 hours, 16bit solution

16-bit 4-20mA to-digital converter
With temperature compensation
4 Megabyte memory to log data
USB and RS232, automatic baud rate up to 115.2kbit
Input ranges (4-20mA, version with 0-50mA)
Battery operation - 10 year battery
Tilkøbes: Software for configuring, downloading, graphing, analysis and alarm reporting (not included)
Configurable alarm controls / overvoltage control
Measurement speed from 20 milliseconds (1 channel) to 12 hours
Robust aluminum housing
Coated printed circuit board for protection against moisture, corrosion

$877.81
Item number LOG-MFC
On the way in
4 channel voltage data logger with graphical display. +/- 300 mV to +/- 24 volts.

4 channel data logger with display
External memory with SD slot
USB port for PC
input: DC to 100Hz
+/- 0.3 Volt to +/- 24 volts
2ms Log -Interval with 10 Microvolt resolution
Log intervals: 2 MS to 60 minutes
Number of log intervals: 23
Daisy-Chain 4 x Log-MCR4V
Battery operation: 4 days to 130 days, dependent on logging
External power supply: Micro-USB adapter (not incl.)

$464.53
Item number LOG-MCR4V
On the way in
7 kanal 4-20mA præcisions strøm-datalogger, hastighed 20ms til 12 timer, 16bit opløsning

16-bit 4-20mA to-digital converter
Temperature Compensated AD converter to 4 Megabyte memory to log data
USB and RS232, automatic baud rate up to 115.2kbit
Input ranges (4-20mA version with 0-50mA)
Battery operation - 10 year battery
, if you acquire: Software for configuring, downloading, graphing, analysis and alarm reporting (not included)
Configurable alarm controls / overvoltage control
measurement speed from 20 milliseconds ( 1 channel) to 12 hours
Robust aluminum housing
coated printed circuit board for protection against moisture, corrosion

$1,215.27
Item number LOG-MPCB
On the way in
7 kanal 4-20mA strøm-datalogger, hastighed 20ms til 12 timer, 16bit opløsning, 8MB hukommelse

16-bit 4-20mA til-digital konverter
Med temperaturkompensation
8 Megabyte hukommelse til log-data
USB og RS232, automatisk baudrate op til 115.2kbit
Inputområder (4-20mA, version med 0-50mA)
Batteridrift - 10 års batterilevetid
Tilkøbes: Software til konfiguration, download, plotning, analyse og alarmrapportering (medfølger ikke)
Konfigurerbare alarmkontroller / overspændingskontrol
Målehastighed fra 20 millisekunder (1 kanal) til 12 timer
Robust aluminiumskabinet
Lakeret printkort til beskyttelse mod fugt, korrosion

$1,226.83
Item number LOG-MPC-1
On the way in
Strøm Datalogger 4 - 20mA, 20mS sampletid, 16bit opløsning

The 16-bit A / D converter in data logger failed
With temperature compensation to 8 Megabyte memory to log data
USB and RS232, automatic baud rate up to 115.2kbit
Battery operation - 12 year battery
optional: Software for configuration export, plotting, analysis and reporting (not included)
Configurable alarm controls
measurement speed from 20 milliseconds (1 channel) to 12 hours
Robust aluminum housing
coated circuit boards to protect against moisture, corrosion
Dimensions: 88 x 65 x 24mm
Weight: 200 grams

$607.71
Item number LOG-MICDC-25
On the way in
8 kanal 4-20mA strøm-datalogger til Wifi, hastighed 20ms til 12 timer, 16bit opløsning

Current / current data logger of Wifi
16-bit 4-20mA to-digital converter
With temperature compensation to 8 Megabyte memory to log data
USB, RS232 and WiFi, automatic baud rate up to 115.2kbit
Input ranges (4-20mA, 0-50mA version)
Battery operation - 10 year battery
, if you acquire: Software for configuring, downloading, graphing, analysis and alarm reporting (not included)
Configurable controls the alarm / surge control
measurement speed of from 20 milliseconds (channel 1) to 12 hours
Robust aluminum housing
coated printed circuit board for protection against moisture, corrosion

$1,552.86
Item number LOG-MPL-CW
On the way in
7 kanals 0 - 20VDC spændings-datalogger, hastighed 20ms til 12 timer

16-bit analog-til-digital konverter - høj nøjagtighed
Med temperaturkompensation
4 Megabyte hukommelse til log-data
USB og RS232, automatisk baudrate op til 115.2kbit
Programmerbare inputområder (0-2 VDC til 0-20 VDC)
Batteridrift - 10 års batterilevetid
Tilkøbes: Software til konfiguration, download, plotning, analyse og alarmrapportering (medfølger ikke)
Konfigurerbare alarmkontroller / overspændingskontrol
Målehastighed fra 20 millisekunder (1 kanal) til 12 timer
Robust aluminiumskabinet
Lakeret printkort til beskyttelse mod fugt, korrosion

$967.70
Item number LOG-MFVB
On the way in
Showing 1-11 of 11 item(s)
