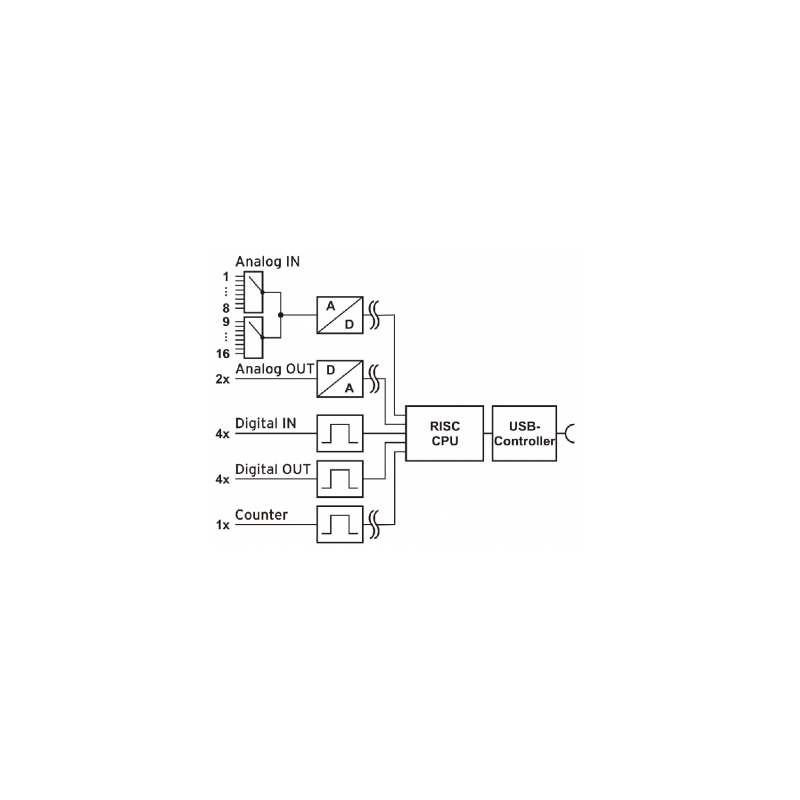

Multi I / O module for measurement and with USB port
16 Analog inputs, +/- 10V, +/- 5V, +/- 2V, +/- 1V
16 bit resolution
frequency Up to 250kHz Total Samplings-Rate
2 Analog Exit +/- 10 Volt
4 Digital Entrance TTL / CMOS
4 Digital Outputs TTL / CMOS
1 Counter Input, 16 Bit
Voltage Variety from USB The port
Buy DAQ Software: NEXTVIEW
Dim: 167 x 113 x 30 mm

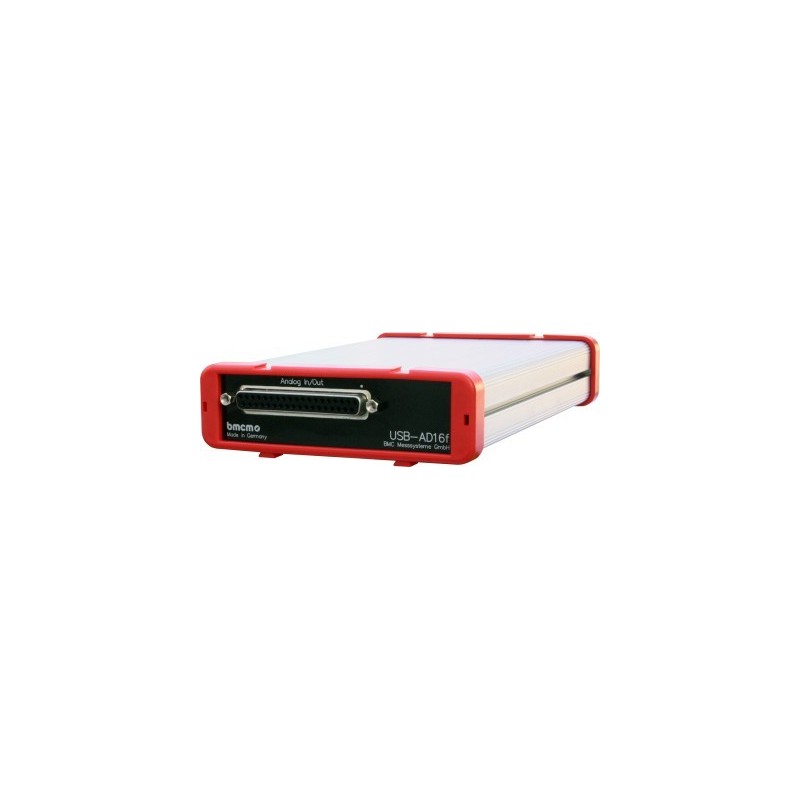

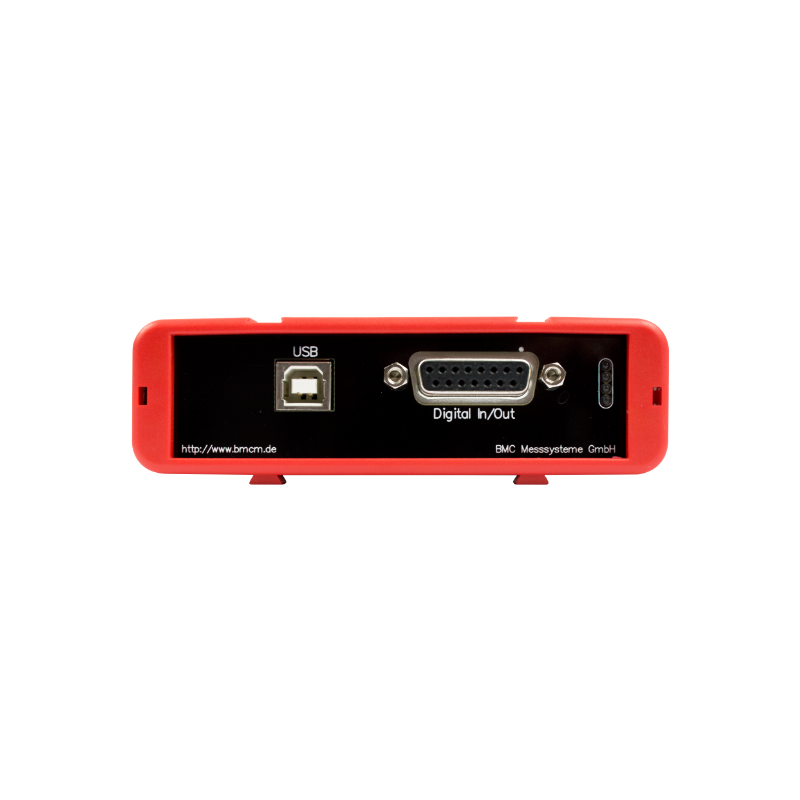

Measurement and control. Extremely powerful. Exactly measurement of input and get output signals with USB-AD16S16. High performance USB data arranged in aluminum house of high technical. Is especially suitable for dynamic applications.
250 kHz Total sampling speed so that even the smallest peaks of high frequency signals are registered. The measurement range is selected via software for each channel separately.
Galvanic isolation of the analog channels, then the DAQ system and the PC are perfectly protected.
Digital modes are recorded or set to 4 digital inputs and outputs each. Digital inputs are sampled time synchronously with the analog inputs. The extra counter inlet is galvanically isolated.
Plug Play.
widely supported: The data collection system can be used under Windows® XP / 7/8/10 as as well as under Mac OS X, free BSD and Linux.
the complete Software for installation and programming is included for free.
DAQ software can be purchased - NEXTVIEW®. Try for free. The software for data collection and analysis. A fully functional 14-day sample is included in delivery to directly test the functionality of USB-ad16f.
Forlængerkabel med DB37 han til DB37 hun stik
AWG28
Guldbelagte stik
Terminal card with screw terminals
DB37 male / female cable of 1.8m included
For DIN rail mounting
103 x 85 x 50 mm (W x L)
Compact Modbus / TCP to RTU / ASCII gateway with PoE
not to be programmed
1 x RJ45 10 / 100Mbps
1 x RS232 / RS485 / RS422 (terminal block)
Choose only one COM port as interface
3-pin RS232 (RX, TX, GND)
baud rate up to 115,200 bps
Self-tuner for RS232
IEEE 802.3af - PoE (PD)
Supply voltage u / PoE: 12 - 48VDC 2Watt
Dimensions: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - +75°C
Module for PT100 or PT1000 sensor with 4-, 3- or 2-wire
for nickel temperature sensor (Ni RTD)
16 bit resolution
15 Measurements per second (Total)
Supply voltage: 10 - 30vdc / 1 Watt
Master RS485 must establish bias voltage
Dim: 123 x 72 x 35 mm
Web based controller with I/O, 1-wire bus
4 x digital inputs (Common GND)
1-wire bus, max. 16 sensors (temp / moisture etc.)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
16 Automatic Restart
20 Over Rule Terms
E-mail Alarms by defined conditions
Supports encrypted e- Mail servers such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Configurable Logging
Graph (Logged Data)
HTTPS / TLS encrypted
Static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: PoE or 9 - 28VDC
8 x Digital input over Ethernet / MQTT
8 x Digital output over Ethernet / MQTT
Input voltage: up to +50VDC
Built-in Web Server
Modbus TCP/UDP and MQTT protocols
2 port Ethernet switch (LAN Bypass) for Daisy-Chain
Double watchdog (programmable
I/O-pair connection (Push and Poll)
Supports web configuration and firmware update via Ethernet
8 x input channels for Wet contact and Dry contact
Wet is active when voltage is applied
Dry is active at closing contact
LED display to show I/O status
Dimensions: 127 x 99 x 33 mm
Supply voltage: 10 - 48VDC / 3W
