HDMI Extender - extender, over CAT 5/6 cable

HDMI 1.3, 3D

1080p/60Hz

70 meters at 720p

40 meters at 1080p

Bandwidth: 2.25Gbps

Audio: LPCM 2.0

USB Micro (TX device)

The RX unit is powered by the TX

At short distance - no external voltage

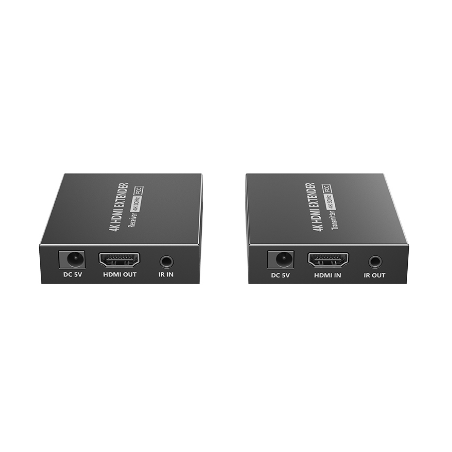

HDMI Booster up to 40 meters at 4K30
HDMI Booster up to 70 meters at 1080p
No delay - zero laency
HDCP 1.4, HDMI 1.4
Resolution from 800x600 to 3840x2160/24, 25, 30Hz
HDR support
With EDID review
POC - only the transmitter must be supplied with 5VDC (PSU included)
Operating temperature: -20 - +60°C
Dimensions: 75 x 60 x 16.5 mm
Weight: 127g

Transmits HDMI video and audio and USB up to 150 meters over network cable
Transfers HDMI video and audio and USB over local TCP/IP network
USB is for keyboard and mouse only
Set with transmitter and receiver
1920 x 1080 @60Hz
A transmitter to multiple receivers over non-managed switch.
Supports keyboard and mouse ONLY
Supports TCP/IP and local EDID
HDMI 1.3 / HDCP 1.2
Transmitter: 1 x HDMI, 1 x USB-B, 1 x RJ45 Ethernet
Receiver: 1 x HDMI, 2 x USB-A, 1 x RJ45 Ethernet
built-in auto-adjustment system
Built-in ESD protection system
Power supply: DC 5V/1A (supplied)
Dimensions: 92 x 70 x 25 mm

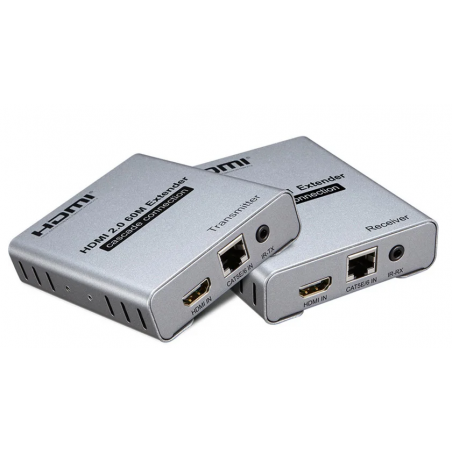

4K 60HZ up to 60m (HDMI 2.0)
4K 30HZ up to 120m (HDMI 1.4)
HDMI2.0/HDCP2.2
Point-to-Point
CAT6 cable recommended (at least CAT5e required)
IR transmition
5VDC Transmiter and Receiver

HDMI Matrix over IP.
Video Wall configuration
Setup with DIP switches (TX-RX Pair)
Max 24 transmitters and 96 receivers (contact us for buying TX or RX units separately.) < br> HDMI 1.3, HDCP 1.3.
HDMI loop out to the local monitor
Resolution 1080p @ 60/50/30/25 / 24Hz, 720p @ 60 / 50Hz.
point to point over Cat 6. Maximum . 100meter. Point to many Hotels can be supplied via PoE (802.3af) or 12VDC 1A (PSU included).
Power Consumption: 2.5W.
Switch must support protocol: IGMP Snooping or IFMP.
Delay: 120ms
Operating temperature: 0 ~ 40 ° C.

HDMI video transmitter PoE
Suitable for video wall
With HDMI Loop Out
Delay of approx. 1 second from transmitter to receiver
HDMI 1.4a - H.264
By IP multicast use switch with IGMP Snooping
Range up to 100m
Cables Kat. 5th / 6
EDID Emulation
IR Transfer
1 x RJ45, 1 x DB-9, 1 x HDMI Input, 1 x HDMI Output
Supply IEEE 802.3af / at PoE +; 5V DC, 2A (not supplied)
As receiver, use HDMI-MULTI-HD-M

HDMI Video Receiver with PoE
Transmitter Module is purchased: HDMI-Multi-HD-T
Video Wall with a maximum of 64 units
H.264 Video Encoder / Decoder, IR transfer
Delay of approximately 1 second from transmitter to receiver
HDMI 1.4a
Connection over IP - Use switch with IGMP Snooping
Max. 64 Groups
Range Up to 100m - Point to Switch or to Transmitter
Cables Cat 6a. Good quality
Edid Emulation - possibly not on all screens, then buy it from Danbit
1 x RJ45, 1 x DB-9, 1 x HDMI exits
Supply IEEE 802.3AF / to POE + or 5V DC, 2a (not included)
Requires quality switch When used over IP
Dim: 130 x 82 x 30 mm

4K HDMI Extender over Patch Cable (Cat 5e / 6)
HDMI 1.4 / HDCP 1.4
With HDMI Loop out
Audio Input and Output
Up to 120 meters (Point-to-Point)
4K @ 30Hz
Plug and Play
Power supply: 5V 1A (2 pcs. Included)
Dimensions: 60 x 56 x 19 mm

HDBaseT Repeater med HDBase ind / ud
Maks. afstand 100 meter
Egnet til Mid-range Repeater.
Input og output for HDMI
Kan fjernbetjenes med RS232
Med EDID
Forsyningsspænding: 12VDC
Mål: 190 x 125 x 34 mm

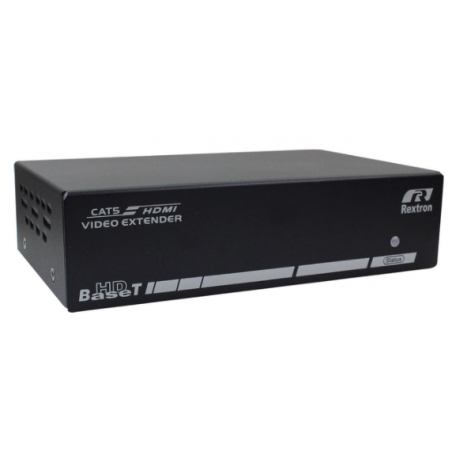

Send incompressed 4K / HD video and audio over CAT6A / 7 cable up to 100 meters
HDbaseT communication protocol (5 in 1)
HDbaseT Supporter: Audio Video, Operation, Ethernet, USB, Power
Can be powered from HDbaset with PSE
PSE is equipment that sends Poe out on the RJ45 port
power from Mini-USB by no PSE connected
map HDMI cable, eliminates the need for extra cables
Resolution Up For UHD (3840 x 2160), Deep Color and HD audio formats
4K @ 60Hz 4: 2: 0
4K @ 30Hz 4: 4: 4
HDCP compatible and Blu-Ray ready
Plug-and-Play No Software Installation
Requires Best Quality Cable! No Support if not the cable is from Danbit

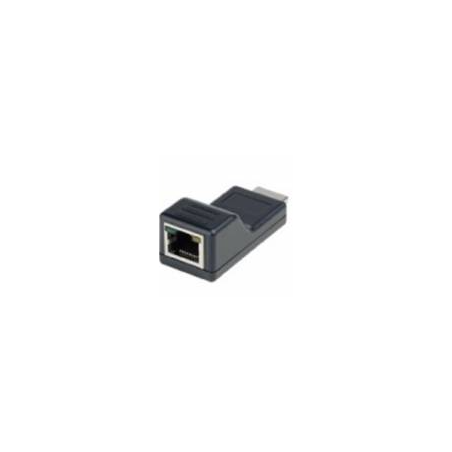

HDMI receiver for HDMI-MULTI-T4

Up to 70 meters with 1080p@60Hz

Input for 5VDC if cable is too long

1 x HDMI male

1 x RJ45 female for patch cable

Point to point cabling

With EDID transmission

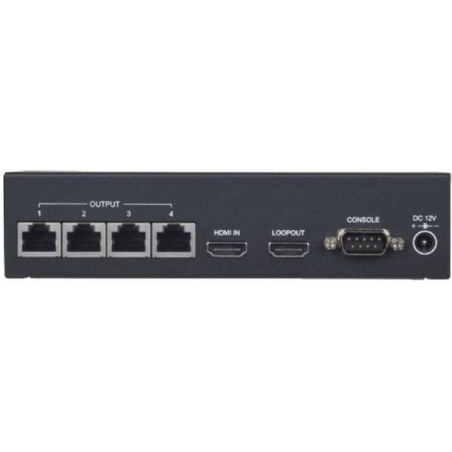

1 pc. 4 channel HDMI transmitter

4 pcs. HDMI-MULTI-R4 receivers

Up to 70 meters to receivers

Resolution up to 1080p@60Hz.

HDMI distribution up to 70M.

No external power is required for the RX unit.

Built-in HDMI loop out port on TX unit for an additional HDMI display.

Can be stacked to another TX for 1 in 8/12 out.

Supports RS232, CEC, EDID.

Supports RS232 control.

4K HDMI Extender Over IP
HDMI 1.4 / HDCP 1.4
Up to 120 meters (point-to-points)
4K @ 30 Hz
2 x USB-A 2.0 (HID emulation)
One-to-One or One-To-Many
Max 32 RX Can be connected One TX (Via Ethernet Switch)
Remote-IR from TX to RX
Plug and Play
Power Supply: 5V 1A (2 included)
Dimensions: 107 x 105 x 27 mm
Operating temperature: -15 - + 55 ° C
Weight: TX 499G, RX 494G
acquisition: K-USB4AM-AM -Fe to connect the USB-A port to PC

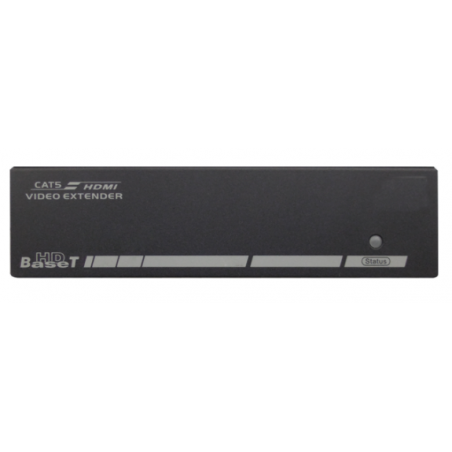

Receives HDMI video signal via Cat.6A cable up to 100 meters
Resolution: 4K @ 60Hz 4: 2: 0)
Resolution: 4K @ 30Hz 4: 4: 4
Full HD (1920 x 1080)
User hdbaset technology
PoE (POH) - only a power supply of the receiver unit.
HDCP compliant and ready for Blu-ray
Supports IR remote
automatic power saving function (can selectable)
Plug and Play, no software installation
Powered by 48VDC
Dimensions: 140 x 85 x 34 mm
REQUIRE THE BEST QUALITY CABLE! No support if the cord is not from Danbit

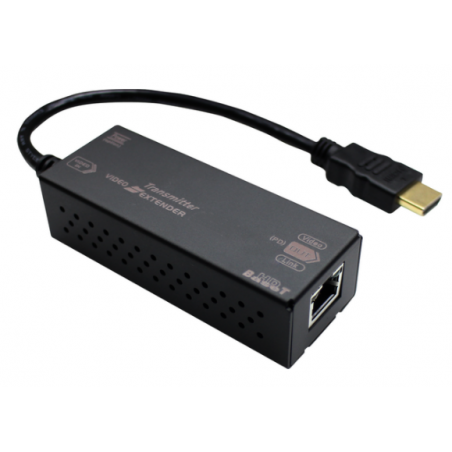

Transmits uncompressed HD video and audio over CAT6a / 7 cable up to 100 meters
Can be powered monitors or receivers with hdbaset with PSE
PSE is the equipment that sends PoE out on RJ45 port
Power from mini-USB with no PSE connected
Map HDMI cable, eliminating the need for extra cables
Resolution up to UHD (3840 x 2160), Deep Color and HD Audio formats
4K @ 60Hz 4: 2 : 0
4K @ 30Hz 4: 4: 4
HDCP compliant and Blu-ray ready
Plug and Play no software installation
Compact size.
Easy to install
REQUIRE THE BEST QUALITY CABLE! No support if the cord is from Danbit

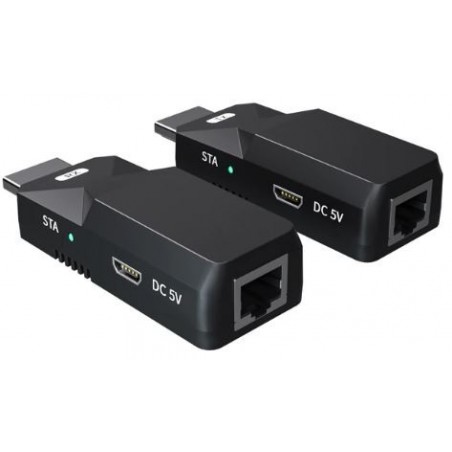

HDMI sends and receives over RJ45 Cat. 6/6e
1080P@60Hz
HDMI 1.3, HDCP 1.2
EDID
Suitable for transferring HDMI over an existing RJ45 installation
Up to 50 meters (Depends on cable quality)
Use only quality cable
HDMI male, RJ45 female
POWER over cable, the supply to the reciver module is transferred via cable.
Can be supplied with 5vDc via Micro USB Power on each module

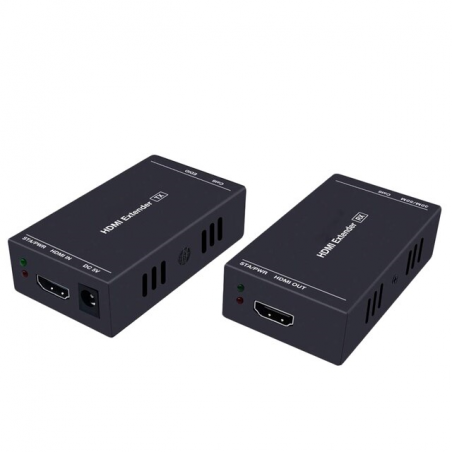

HDMI BOOSTER HD 1080p
HDMI signal over single CAT 5e/6 cable
Resolution 1920 x 1080 @60Hz
POC: Power Over Cable. Transmitter powers Receiver
HDMI 1.3/HDCP 1.2
Supply voltage: 5VDC

4K HDMI/USB video receiver PoE over LAN
Suitable for Video wall
Use Multi casting switch (IGMP Snooping)
1080p or 4K (3840 x 2160) HDMI resolution
HDMI 1.4a - approx. 0.1 second delay between transmitter and receiver
1 x RJ45, 1 x DB-9 female, 1 x HDMI female
4 x USB 2.0 type A (mouse/keyboard/USB touch)
Can be fitted up to 8 x 16 video wall
Transmitter/receiver selector - 16 channels (DIP)
Supply: IEEE 802.3af/at PoE+; 12V DC 3A (not included)
Range up to 100m over direct Cat. 5e/6 UTP cables
EDID emulation and IR transfer
As transmitter, use HDMI-MULTI4K-T

4K HDMI / USB video transmitter PoE over LAN
Suitable for Video wall
Use Multi casting switch (IGMP Snooping)
1080p power. 4K (3840 x 2160) HDMI Resolution
HDMI 1.4a - approx 0.5 sec Transmitter and Receiver Slow
1 x RJ45, 1 x DB-9 female, 1 x HDMI female, 1 x VGA DB-15 female
1 x USB 2.0 Type B (PC / Server)
Can be packed up to 8 x 16 video wall
Send and Receive Choices - 16 Channels (DIP)
Supply: IEEE 802.3af / at PoE +; 12V DC 2A (not supplied)
Range up to 100m over direct Cat. 5e / 6 UTP cables
EDID emulation and & nbsp; IR transfer
As receiver, use HDMI-MULTI4K-R
