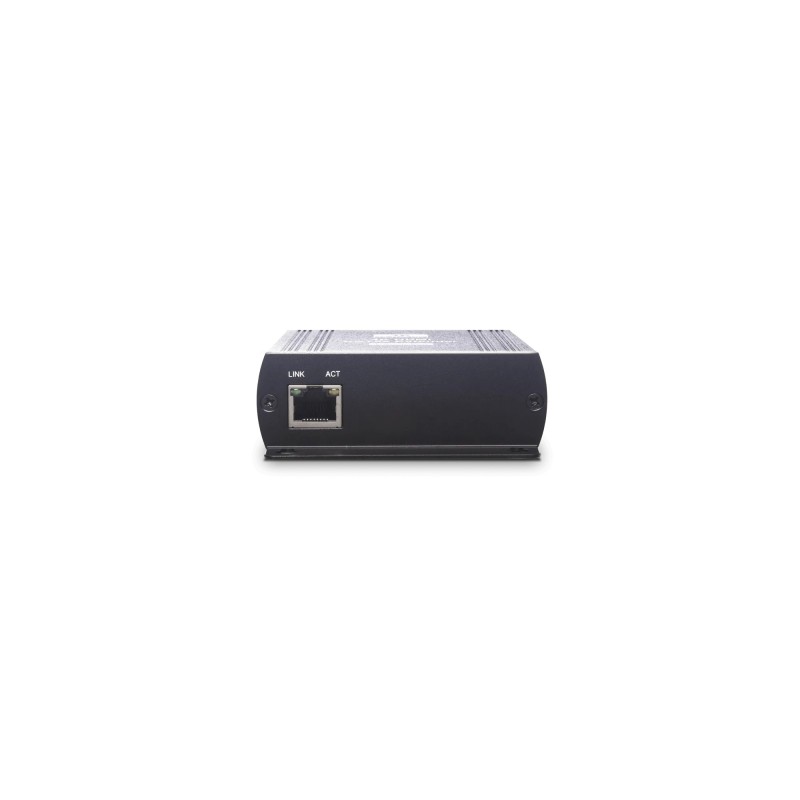

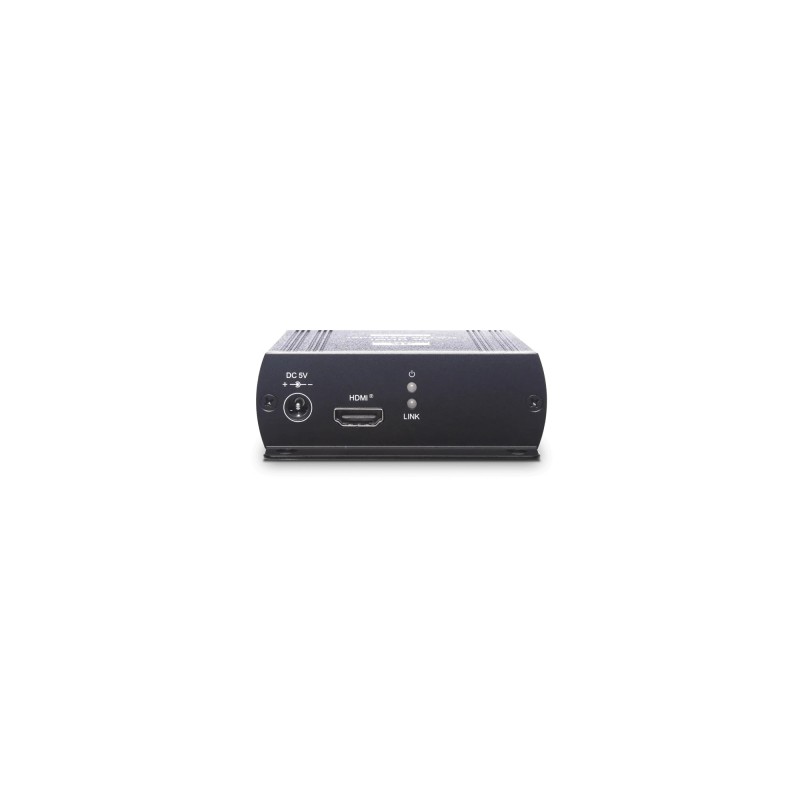

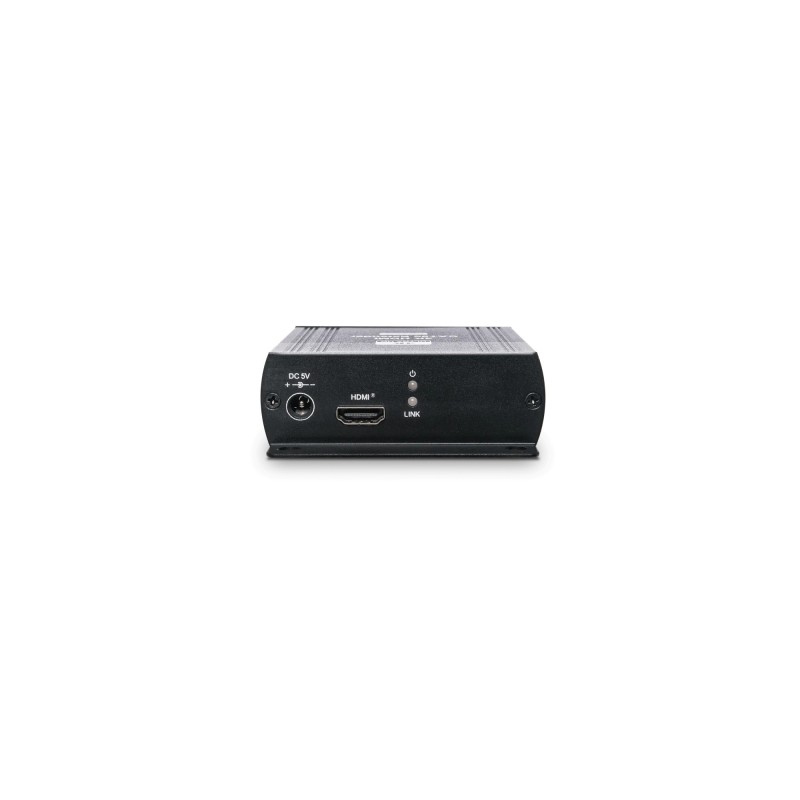

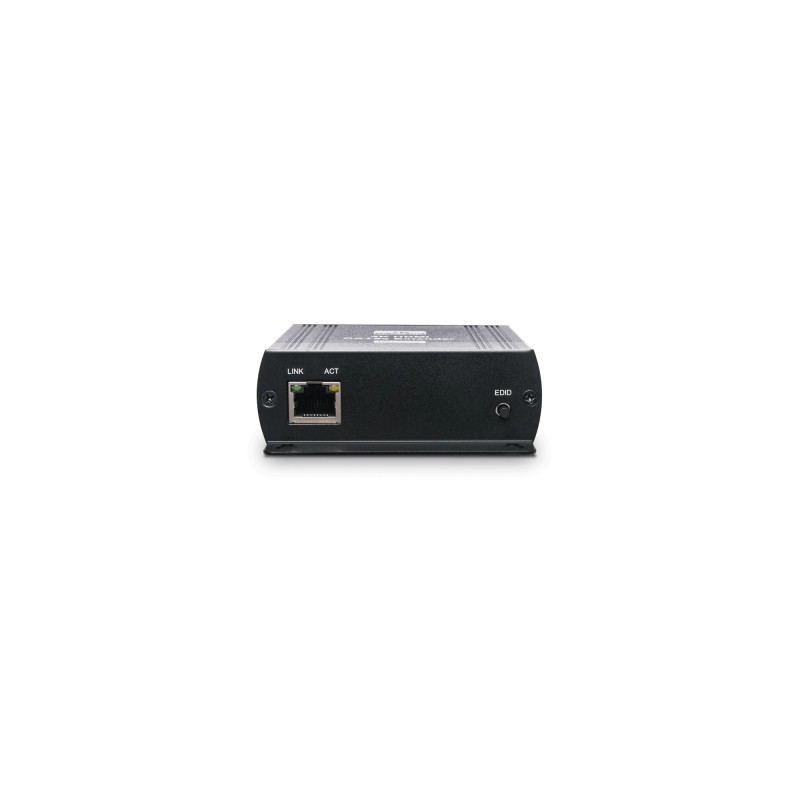

4K HDMI Extender over CAT5e (120 m) / CAT6 (140 m) with HDMI Loop-Out

Supports up to 4K@30Hz (4:4:4) resolution for crisp, clear video

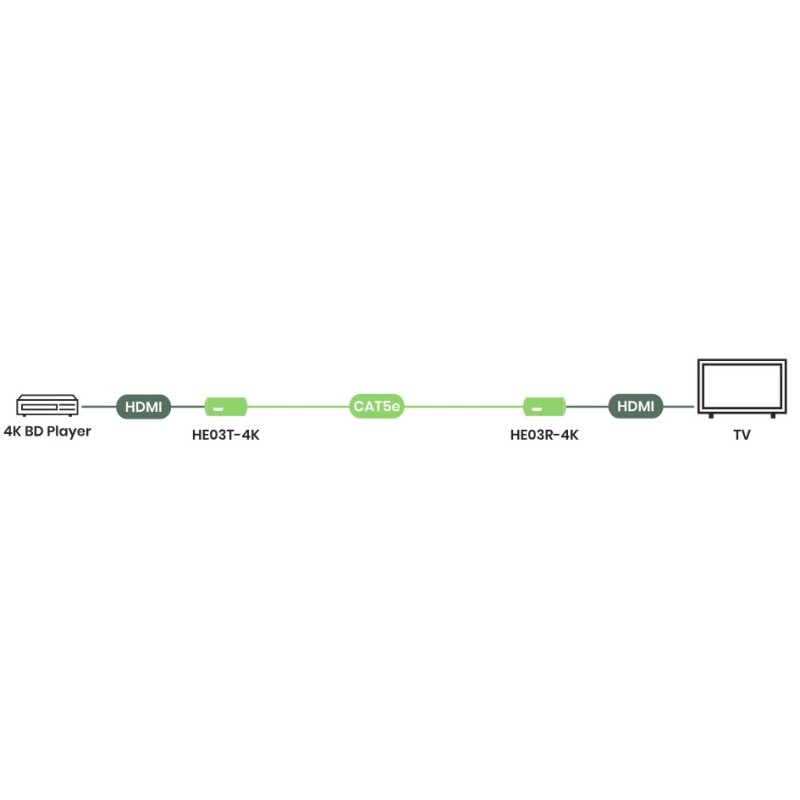

Extends HDMI up to 120 m over CAT5e or 140 m over CAT6 cabling

HDMI loop-out for local display connection

Compatible with SR01X IP repeater for extended distance and flexibility

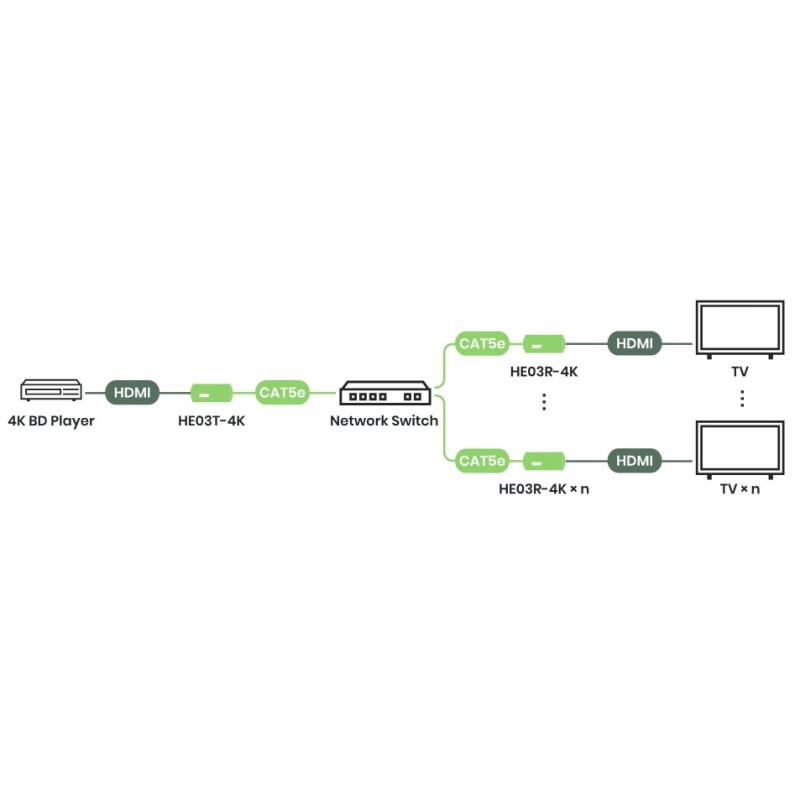

Works with Ethernet switches for signal distribution across multiple displays

Ideal for digital signage, classrooms, conference rooms, and retail AV setups

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number BOOST-HDMI120-4K3
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Input TX: HDMI, RX: RJ45
Output TX: RJ45, RX: HDMI
Operating Temperature 0-55℃
Resolution Max: 4K@30Hz 4:4:4
Power Supply TX: 5V 2A, RX: 5V 2A

Professional HDMI extender that delivers 4K@30Hz (4:4:4) video signals over standard network cabling. It extends HDMI up to 120 meters using CAT5e or up to 140 meters using CAT6, making it an excellent solution for digital signage, classrooms, retail, and professional AV installations.

A built-in HDMI loop-out allows a local display to be connected at the transmitter side, while the extender can also be integrated with the SR01X IP repeater or Ethernet switches for longer distances and more advanced distribution setups. This ensures maximum flexibility in larger AV networks.

Key Features:

  1. Supports up to 4K@30Hz (4:4:4) resolution for crisp, clear video
  2. Extends HDMI up to 120 m over CAT5e or 140 m over CAT6 cabling
  3. HDMI loop-out for local display connection
  4. Compatible with SR01X IP repeater for extended distance and flexibility
  5. Works with Ethernet switches for signal distribution across multiple displays
  6. Ideal for digital signage, classrooms, conference rooms, and retail AV setups
