RJ45 female connector for chassis mounting
RJ45 male connector 2 x RJ45 female STP
IP68 close with waterproof cap attached - RJ45W-P - accessories
IP68 close with waterproof housing with cable attached - RJ45W-S - accesories
CAT5e and CAT6 (1000BastT) Ethernet speed Space and cost saving IP68 rating In accordance with IEC/EN 60950-22 Plastic: for anti UV light & UL 94V-0 for low flammability rating Packing: excellent in tensile strength and extensibility 10 cm (Special cable length can be ordered with volume orders) Plastic housing: Engineering Thermoplastic, UL 746C (f1 quality) Contact pins: Phosphor Bronze Gasket: Silicone, UL50E/UL157 Multiple cable lengths OptionsRJ45 UTP female connector for chassis mounting. 10 cm UTP cable with RJ45 connector Acquisition waterproof cap for female connector RJ45WP-P Waterproof back.
Chassis connector with built-in RJ45 female connector 20 cm cable with RJ45 male Provides a waterproof connection Additional RJ45WP-P cap not in use. 21mm thread
IP69K waterproof RJ45 connector for chassis mounting. Anti-oxidation and anti-UV Plastic housing: Technical thermoplastic. Fire protection according to UL 94V-0. Contacts: Phosphor Bronze. Surface treatment: Gold plating over nickel in contact. Møttrik: Technical thermoplastic flammability class UL 94V-0 Gasket: silicone Panel thickness: 1.5 ~ 2.5mm
Set consisting of chassis and connector part and cap Plug for cable mounting Cap to chassis: 3.1 cm (outer disc) Threaded plug: 3.1 cm (outer disc), 2 cm (inner circle) Waterproof - IP68 tight 28mm hole in chassis
IP67 sealed USB 3.0 Chassis connector
for outdoor chassis mounting
IP67 Waterproof with hood Attrated
for regular USB cable
Hole in chassis: 24.2mm
flat hole side: 24.5mm

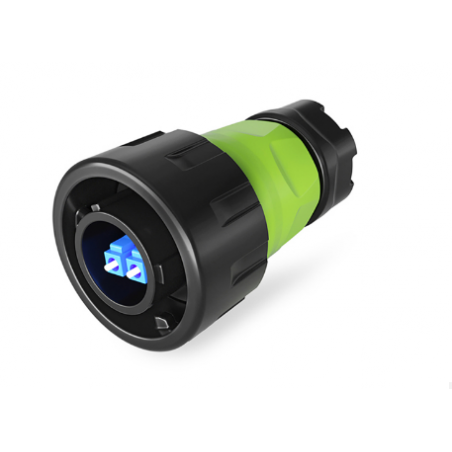

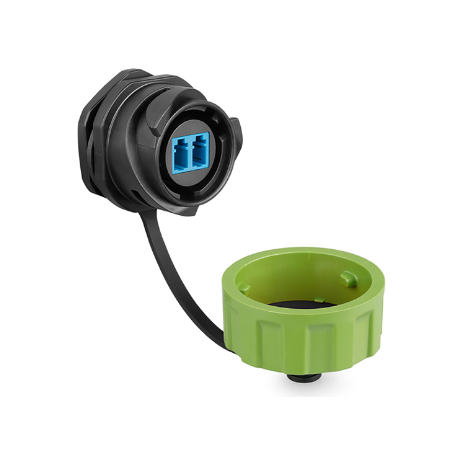

IP67 fiber set with female / female chassis connector and male connectors with snap-lock with SM fiber
Is a set ready for installation.
Other fiber cable can be mounted into the wall. Easy to replace.
USB3.0 Socket Connector Waterproof Bayonet Connection Dual USB Port Metal Shell USB 3.0 but is USB2.0 compatible Data transfer up to 600MB Zinc surface Can withstand high frequency noise and electromagnetic interference Silicone protective plug IP68 sealed Counterparty: K-USB3-WATER-P-3M
