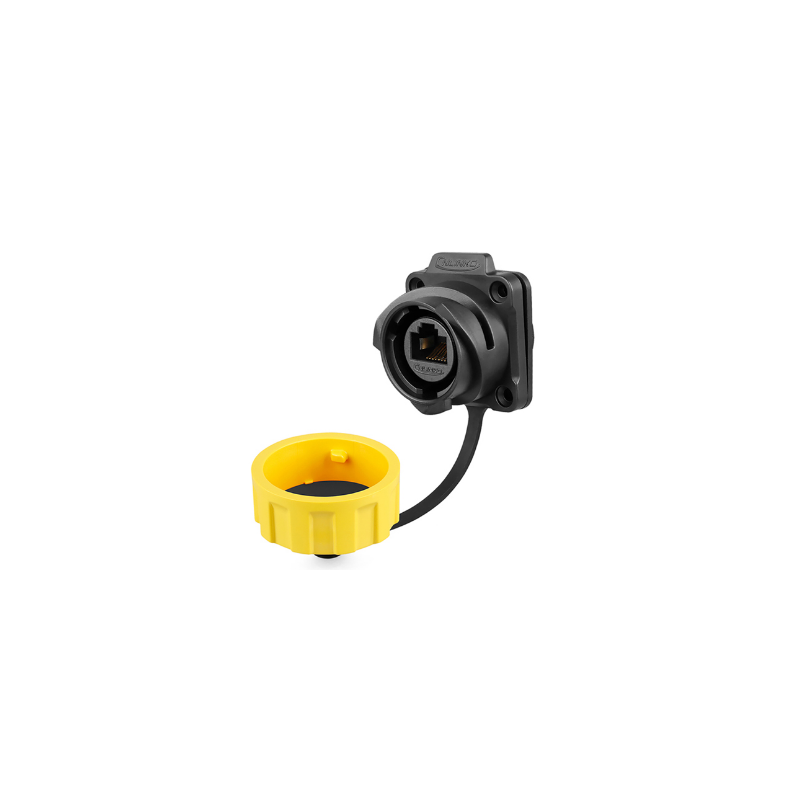

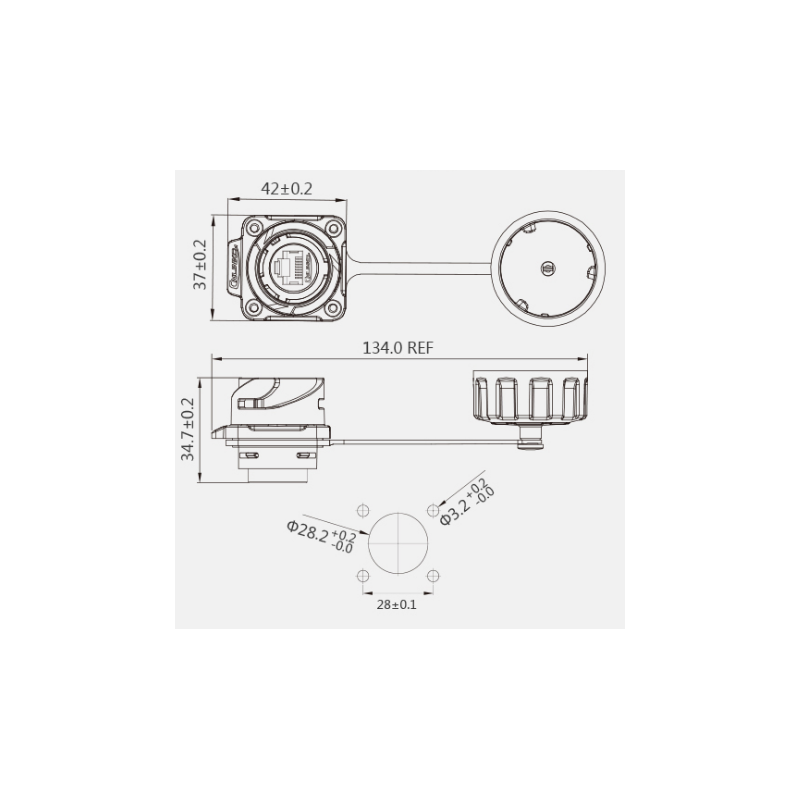

Waterproof RJ45 chassis connector. IP67 sealed. 24mm hole, flange for 4 screws. RJ45 female/female. Quick coupling

Waterproof cap for RJ45W chassis connector with bayonet

RJ45 female connector for chassis mounting
Thread: (13/16"-UNEF28)
RJ45 pass-through connector 2 x RJ45 female STP
IP68 tight with waterproof cap attached - RJ45W-P - purchased separately
IP68 tight with waterproof housing with cable attached - RJ45W-S - purchased separately

Waterproof RJ45 connector
RJ45 female female connector (through connector)
For panel mounting
20mm thread
IP67 sealed
Gold plated connectors
UV protected and fireproof, for outdoor use
Suitable for industrial environment
Black plastic
Note: Mount RJ45 pcs without pull/bend relief - there is no space in the plug

Waterproof STP RJ45 set for chassis/panel and patch cable
Female through connector for panel/chassis mounting
Waterproof housing for patch cable with std. relief fitted.
Cable diameter: 5.5 to 7 mm
Hole size 25.7mm
IP67 sealed
UV protected and fireproof
For outdoor use
Suitable for industrial environment
Black

IP69K waterproof RJ45 connector for chassis mounting.
Anti-oxidation and anti-UV
Plastic housing: Technical thermoplastic. Fire protection according to UL 94V-0.
Contacts: Phosphor Bronze.
Surface treatment: Gold plating over nickel in contact.
Møttrik: Technical thermoplastic flammability class UL 94V-0
Gasket: silicone
Panel thickness: 1.5 ~ 2.5mm

Cable connector for RJ45 chassis connector
For permanent installation of RJ45 cable in chassis connector.
Used for RJ45 patch cable with plug fitted

Waterproof Cable Housing for RJ45 - Fits the RJ45W chassis connector

Vandtæt plast-hus til RJ45 UTP kabel
Hus med snap-lås til RJ45 patch-kabel
Indsætningstab er maks. 0.7dB
Flammesikker: UL94-V0
IP67 tæt ned til 1.5 meter under vand
Til Ø24mm - chassis stik
Meget robust
Vandtæt hætte i kæde
PBT plastikhus
