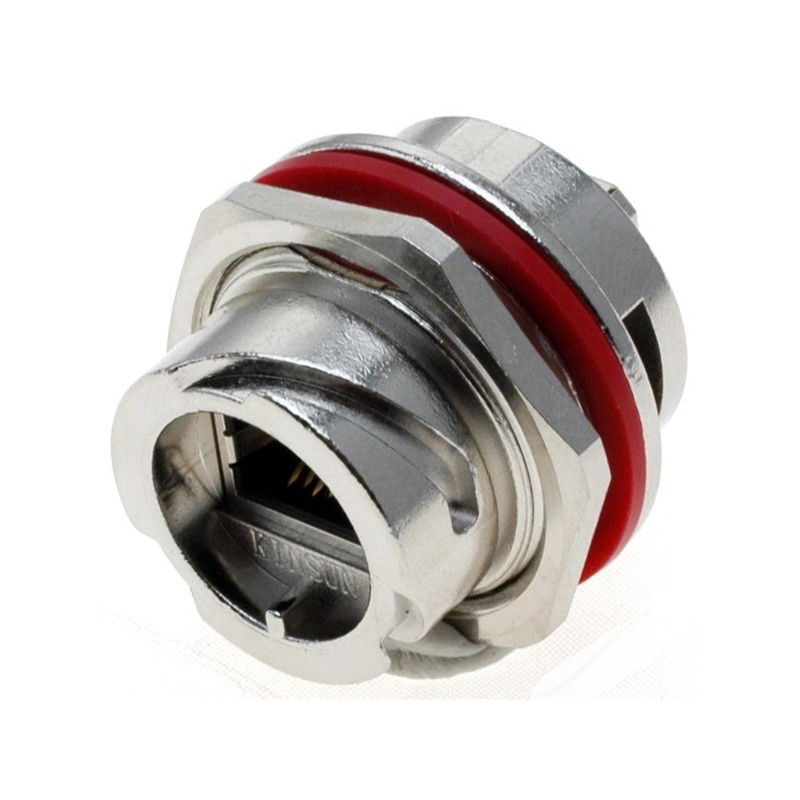

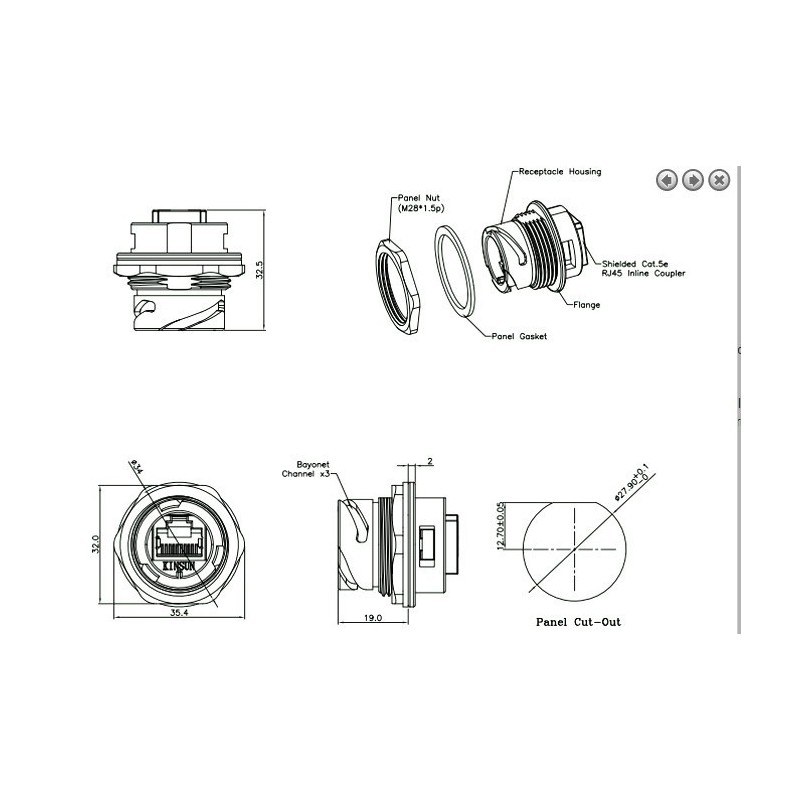

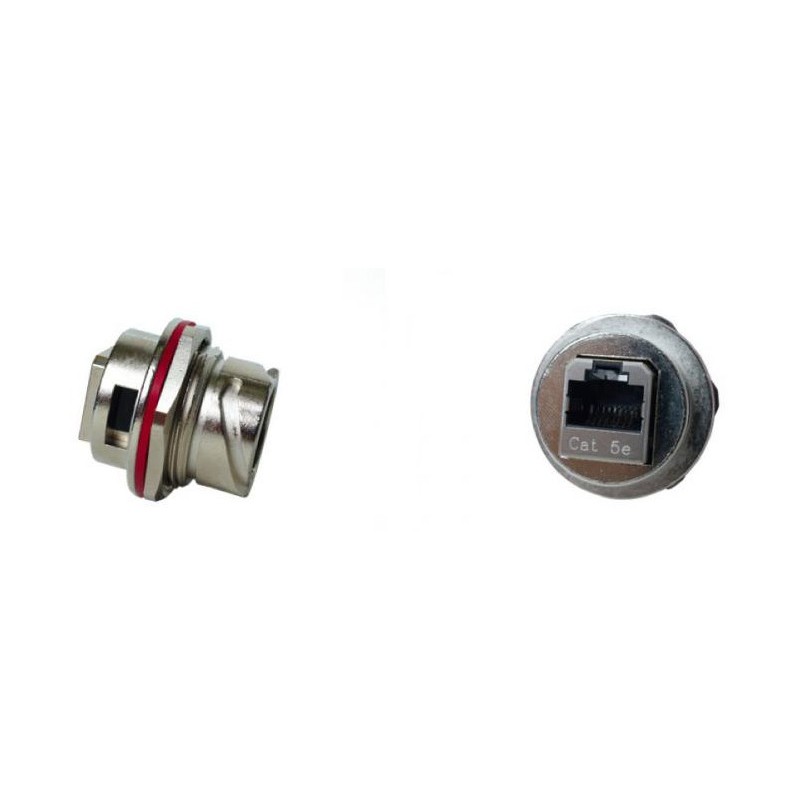

RJ45 female connector for chassis mounting
Thread: (13/16"-UNEF28)
RJ45 pass-through connector 2 x RJ45 female STP
IP68 tight with waterproof cap attached - RJ45W-P - purchased separately
IP68 tight with waterproof housing with cable attached - RJ45W-S - purchased separately
Housing: Zn Alloy 3, Nickel Plated
Panel nut: copper alloy, nickel plated
Panel gasket: Silicone
RJ45 Jack metal shell: copper alloy, nickel plated
RJ45 Jack plastic housing: Technical thermoplastic flammability UL94 V-0
RJ45 socket: phosphor bronze, finish: gold over nickel connector can be front-mounted to a maximum panel thickness of 3.2 mm.

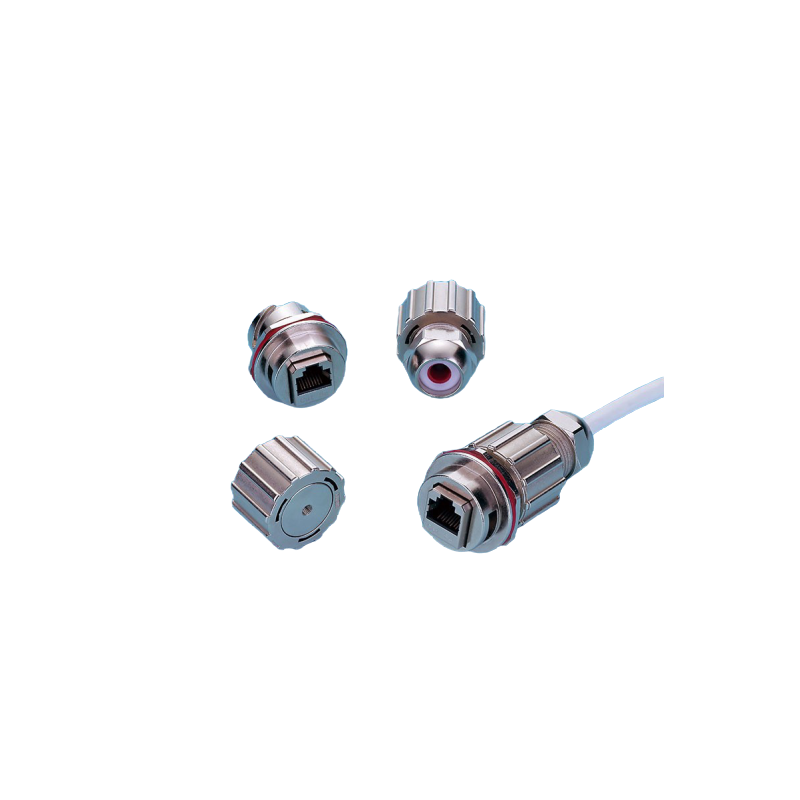

Waterproof Cable Housing for RJ45 - Fits the RJ45W chassis connector
Waterproof cap for RJ45W chassis connector with bayonet
Outdoor RJ45 coupler
RJ45 cables with bend relief:
It may be necessary to remove about 3mm of bend-relief
cables with extra shackle the trigger must often be removed
Page-wings at the release may have to be removed/minimized.
2 x RJ45 shielded she
IP68 waterproof
8PC8C
CAT5e and CAT6 (1000BaseT) Ethernet speed
Space and cost saving
IP68 rating
In accordance with IEC/EN 60950-22
Plastic: for anti UV light & UL 94V-0 for low flammability rating
Packing: excellent in tensile strength and elongation ability
10 cm (Special cable length can be ordered when ordering in volume)
Plastic housing: Engineering Thermoplastic, UL 746C (f1 grade)
Contact pins: Phosphor Bronze
Gasket: Silicone, UL50E/UL157 Multiple cable lengths Options RJ45 UTP female connector for chassis mounting.
10 cm UTP cable with RJ45 connector
Acquisition waterproof cap for female connector RJ45WP-P
Waterproof back
Thread: (13/16"-UNEF28)
Waterproof House for LC Single Mode Fiber Cable
Easy to install the fiber cable in the house
with Snap lock for the chassis jack
Inserting loss is max. 0.7dB
Flame Safe: UL94-V0
IP67 down to 1.5 meters under water
Dim: Length 66 mm, diameter 26 mm
PBT plastic housing
Waterproof hood with thread and strap
For RJ45WP-10FM
For RJ45WP-20FM
For RJ45WP-60FM
Thread (13/16"-UNEF28)
