Rated Current 20A
Operating voltage op to 500V
Working Tempeture -40 °C to 80 °C
Waterproof IP67
2Pin version

Waterproof IP67 connector with 5 meter HDMI cable

Fits chassis connector: STIK-HDMIWP-IP67CH

HDMI 2.0 4K

5m HDMI cable with connector

Panel mounting

Operating temperature -40 - 80 °C

Chassis fiber connector with LC / LC
Waterproof IP67 female/female chassis / panel connector
with LC pass connector

USB3.0 Bayonet with Bayonet - USB female/female - Metal
USB 3.0 She / She - USB2.0 Compatible
Data Transfer Up to 600MB
Zinc surface
can withstand high frequency noise and electromagnetic disorders
Silicone Protective plug
IP67 Close to the Bayonon page with hood attached

Waterproof chassis connector with USB 3.0

Attached 50 cm cable with USB 3.0 A-male

IP67 sealed from the front

Socket with lid

No counterparty

Hole: ø25.2 - flat side: 24.5 mm

Outdoor RJ45 coupler
RJ45 cables with bend relief:
It may be necessary to remove about 3mm of bend-relief
cables with extra shackle the trigger must often be removed
Page-wings at the release may have to be removed/minimized.
2 x RJ45 shielded she
IP68 waterproof
8PC8C

Waterproof RJ45 connector for 2 x screened RJ45 female connector, 8P8C at both ends
IP68 close to UV protected and fireproof, for outdoor use
Suitable for industrial environment
Til 3-8mm diameter cables
Black

IP65 waterproof and dustproof RJ45 connector (female)
up to 1000V and 1.5A
Push/pull locking system
UL certified
Operating temperature: -40°c~80°c
Certificates: CE, ROHS, CCC, ISO9001: 2008 Standard.
Anti vibration
Dimensions: 71 mm x 22.5 mm
Diameter: 5.5-7mm
Contact resistance: <30mOhm
Insulation resistance > 500MOhm
Material: Zinc alloy

Cable: 26-24 AWG

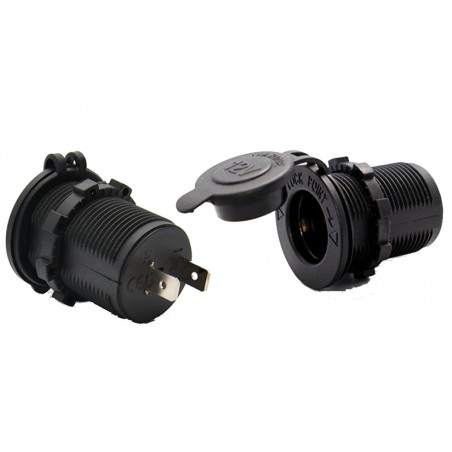

Waterproof adapter for cigarette lighter
For cigarette lighter, 12 or 24V
IP67 close, dust and waterproof
5.5 x 2.9cm (H xB)
Ø: 21mm
Black

Waterproof RJ45 connector
RJ45 female female connector (through connector)
For panel mounting
20mm thread
IP67 sealed
Gold plated connectors
UV protected and fireproof, for outdoor use
Suitable for industrial environment
Black plastic
Note: Mount RJ45 pcs without pull/bend relief - there is no space in the plug

Waterproof STP RJ45 set for chassis/panel and patch cable
Female through connector for panel/chassis mounting
Waterproof housing for patch cable with std. relief fitted.
Cable diameter: 5.5 to 7 mm
Hole size 25.7mm
IP67 sealed
UV protected and fireproof
For outdoor use
Suitable for industrial environment
Black

Waterproof M25 RJ45 to PCB connector - adapter
For panel mounting
With printed circuit board for soldering
IP67 tight
UV protected for outdoor use
Suitable for industrial environment
Withstands shaking/vibration

IP67 waterproof VGA - HD-Sub connector
DB15HD he plugs
IP67 close
Diameter: ø3,5mm - ø7,0mm Chalet For outdoor use
Overall kit with all parts

IP67 waterproof VGA - HD-Sub connector
DB15HD female connector
IP67 close
Diameter: ø3,5mm - ø7,0mm Chalet For outdoor use
Overall kit with all parts

IP67 waterproof simplex single mode sC socket
Simplex Single Mode SC she simplex SC connector she
IP67 close Chalet For outdoor use
Use with coupler

The water and dust resistant blind plug to the LC fiber optic connectors
protector connector when it is not in use
IP67 close
For outdoor use

The water and dust-proof coupler (gland) to the SC simplex fiber optic connectors
IP67 close
For outdoor use

Vand og støvtæt samlestik (gland) til Duplex LC fiber optisk stik
IP67 tæt
Til udendørs brug

RJ45 connector with 60 cm cable, IP68-tight
Thread: (13/16"-UNEF28)

​USB3.0 connector waterproof bayonet metal

USB 3.0 - USB2.0 compatible

Data transfer up to 600MB

Zinc surface

Can withstand high-frequency noise and electromagnetic interference

Silicone protective cap

IP68 tight

Counterpart: K-USB3-WATER-P-3M
