VDSL Coax

VDSL Coax

Coaxial cable is generally used by cable operators, telephone companies and ISPs worldwide to transmit data, video and voice communication, but it has also been widely used in the home. It has existed for a long time as a technology (since the early 20th century) and has many unique advantages for reliable, accurate transmission. The key to the success of the coaxial cable has been the shielded design that allows the cable's copper cores to transmit data quickly without succumbing to interference or damage from environmental factors.

VDSL Coax
There are 6 products.

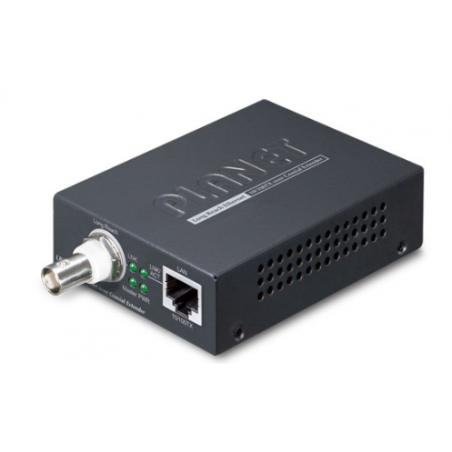

Ethernet over Coax cable, up to 2km. Master to Slave 1:1 up to 1:4

Break the 100 meter limit with VDSL over RG59 coax cable
1 x RJ45 10/100 Mbit
Up to 94 Mbit/s - duplex (automatic speed optimization)
Transparent (untouched) data connection
128-bit AES encryption
Frequencies: 2 - 28MHz
Same device can be Master or Slave (DIP)
Establishes even the best connection
Dimensions: 97 x 70 x 26 mm
Temperature: 0-50°C
5VDC 2A power supply included
75Ω cable must be used
Use 2 pcs. ETH-VDSL-RG for a point to point connection
Use 1 pc. Master for 4 pcs. Slaves - 1:4

$179.05
Item number ETH-VDSL-RG
Physically in stock

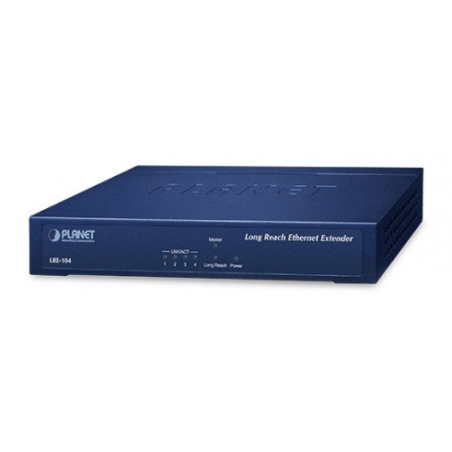

4 CH Long Reach Ethernet VDSL. point to point RJ11/RJ45/Coax. Up to 2km with coax

4 ch Network extender over 2-wire, RJ45 or Coax cable
Provides transparent Ethernet connection up to 2000 meters
Range with up to 46Mbps: max. 1200 meters COAX
Range with up to 28Mbps: max. 1000 meters RJ11
Range with up to 73Mbps: max. 699 meters RJ45 UTP
Range depends on cable quality etc.
4 x RJ45 for LAN
1 x RJ45 for Link (RJ11 can also fit in the female connector
1 x BNC Coax 75ohm
DIP switch to select Master or Slave mode
Dimensions: 155 x 86 x 26 mm
Cabinet: Metal
Weight: 347g
Supply voltage: 12VDC/1A
Temperature: 0 - +50°C

$218.87
Item number ETH-VDSL4+AR
On the way in
Ethernet over Coax cable, 1 km with PoE. Data and PoE via coax cable (25W)

1000 meter - network extender over coax cable.
Poe transferred in cable
1 x 10 / 100mbit base-TX RJ45
Auto-Negotiation / Auto-MDI / MDI-X
Poe Standard: IEEE 802.3AT / BY
PoE Output: 48-56VDC Max. 25 Watt
PoE Mode: End-Span, RJ45 Pin 1/2 (+), 3/6 (-)
1 x BNC Hun - RG59 Coax
Max. Distance: 200m w / Poe +, 1000m w / Poe, 1600m without Poe
Power supplied from 48-56VDC min. 2amp

$378.88
Item number ETH-VDSL-RG+P
On the way in

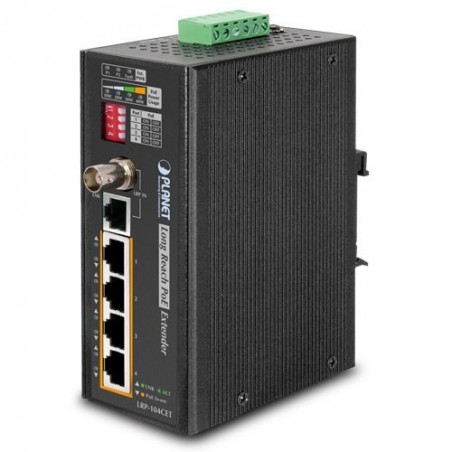

Ethernet Switch POE 10/100Mbit over 75 ohm Coax cable or CAT.6 UTP cable. VDSL

Ethernet over Coax or UTP cable
can be powered with PoE from PoE Switch
can be powered with Poe from injector
4 x 10 / 100Mbit with PoE (Power Budget is 20W)
1 x RJ45 Poe Long Reach
1 x BNC Port to Long Reach Coax
PoE and Ethernet Data Via Coax Up to 1km
PoE and Ethernet Data Via Networking Up to 500m
Supply 44-56V DC or PoE from Switch / injector
for wall mounting or DIN rail
Dim: 135 x 87.8 x 56 mm
Operating temperature -20 to + 70 °

$582.67
Item number ETH-VDSL2IP
On the way in
