Certified Panel PC

19" 1280 x 1024 Marine approved Panel PC
Projective multitouch screen PCAP
Marine standard: DNVGL-CG-0339, IEC60945 4th. IACS-E10
Intel Core i5-5200U 2.2GHz
4GB RAM, 128GB SSD (mSATA) Dual ethernet
Supports Win 10 IoT Enterprise (must be purchased separately)
2 x USB 3.0, 1 x USB2.0
1 x RS232 (RS422/485)
2 x RJ45
Option: 8 ch DI/DO (additional purchase)
Option: 4 x NMEA 0183 port (additional purchase)
Supply voltage: 24VDC / 65Watt
DC input: 9 - 36VDC
Dimensions: 429 x 382 x 73 mm
Weight: 7.8 kg

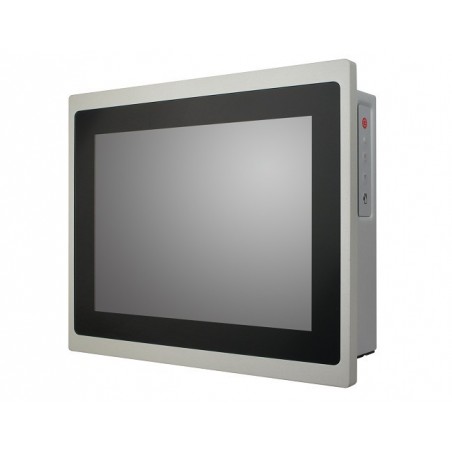

10.4" TFT-LCD
resolution 1024x768
Touch
24V DC
IP65 Front
USB
RS232


EN50155 certification
Optical bonding
Front bezel IP65 and full IP54 protection
Movable and programmable membrane keypad
24V DC power input with M12 connector, 48V DC, 72V DC or 110V DC as options
​Two M12 LAN ports and one M12 USB port
Additional rack mount kit

15" til 21.5"
CPU N2930, i3/i5 Gen.6
1 x Mini PCIe (udvidelse)
M12 Interfave til VGA, USB, RS232/422/485 (vantætte stik)
450 til 1000 cd/m2 lysstyrke
Max opløsning fra 1024x768  til 1920x1080 afhængig af skræemstørrelse
Projected Capacitiv Touch
Forsyningsspænding DC 9~36V
316 Stainless Steel
Vesa mount eller Panel Mount
GODKENDELSER:
CSA C22.2 No.61010
CE / FCC Class A, ATEX Zone2 Ex nA ic IIC T4 GcClass I, Division2, Group ABCD T4ANSI/ISA 12.12.01-2013CSA Std. C22.2 No213-1987

21.5" TFT-LCD
Intel Celeron Processor N2930
8GB DDR3L onboard
1 x 128GB 2.5" MLC SSD mounted
1 x 64GB mSATA MLC SSD mounted
316 Stainless Steel Chassis
Total IP66 Grade with M12 Waterproof Connector
Variety of IO applications
Wide range DC 9~36V Power Input
Support Panel Mount & VESA Mount
Support Projected Capacitive Touch
Full Flat Bezel and Fanless Design
ATEX/IECEx Zone2, Zone22 and C1D2/C2D2/C3 Certified

CPU support Celeron, i3, i5, i7 Gen.8
Max. 32GB RAM
21.5” True-Flat
16:9 Ratio
1920x1080 pixel
PCAP touch USB
Wifi
BT
2 x RJ45
4 x USB3.0
1 x RS232, 1xRS232(5v/12v support)/422/485
1 x HDMI, 1 x DVI-D
Ultra Slim 49.9mm with 3 Pieces Design
Fanless & Front Panel IP65
Simple Installation & Easy Assembly
Industrial Quality & Chic Appearance
Support TPM and Intel vPro (Optional)
Magnetic I/O Port Cover For Easy Maintaining ( Optional)
Extensional Power Button (Optional)
TPM
9~36Vdc
543x334x49.9 mm
OS support: Win10, Win 11, Linux
