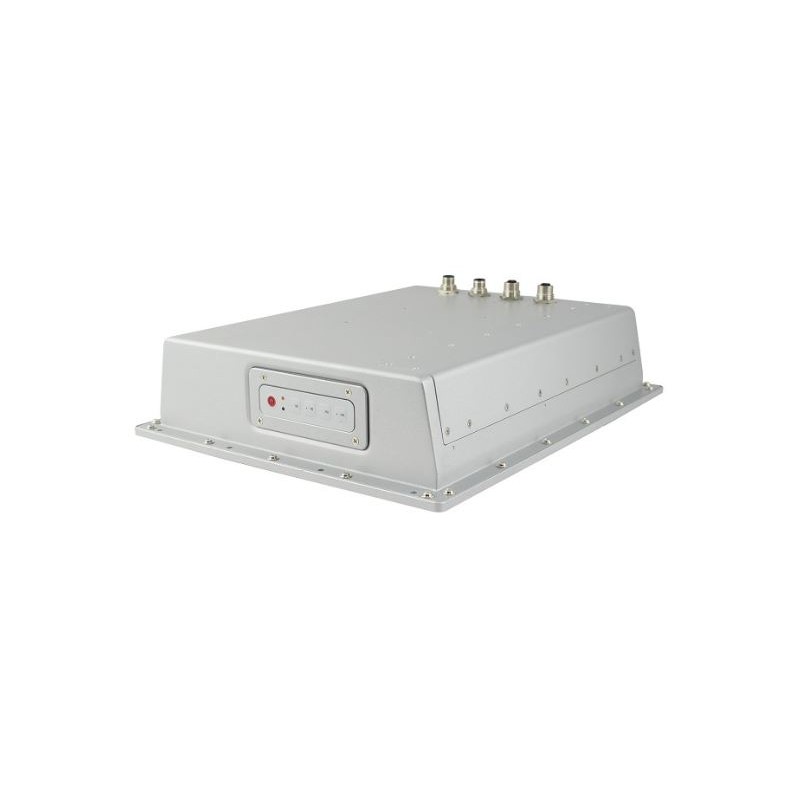

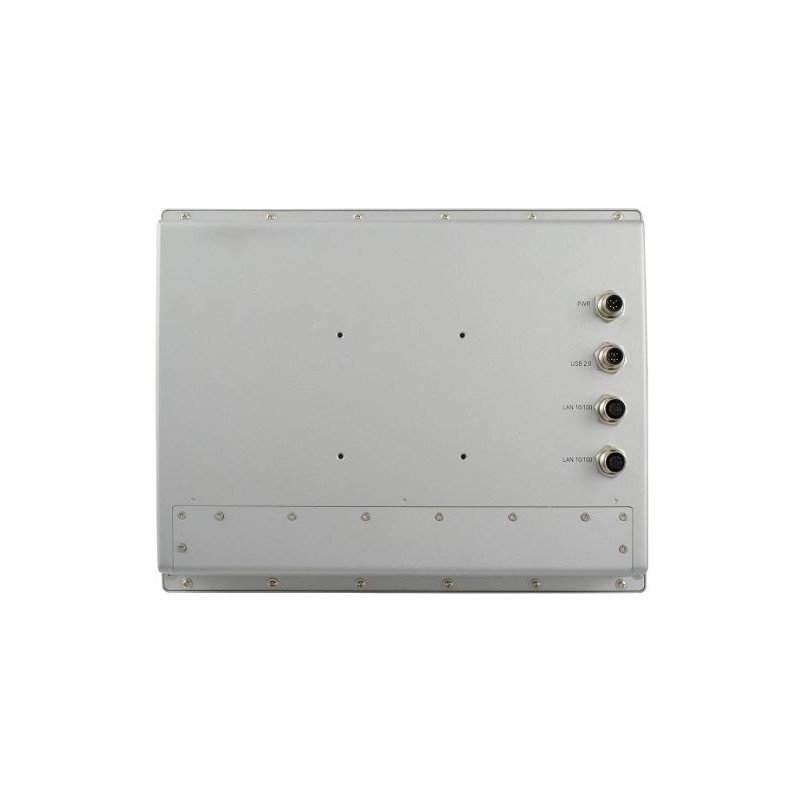

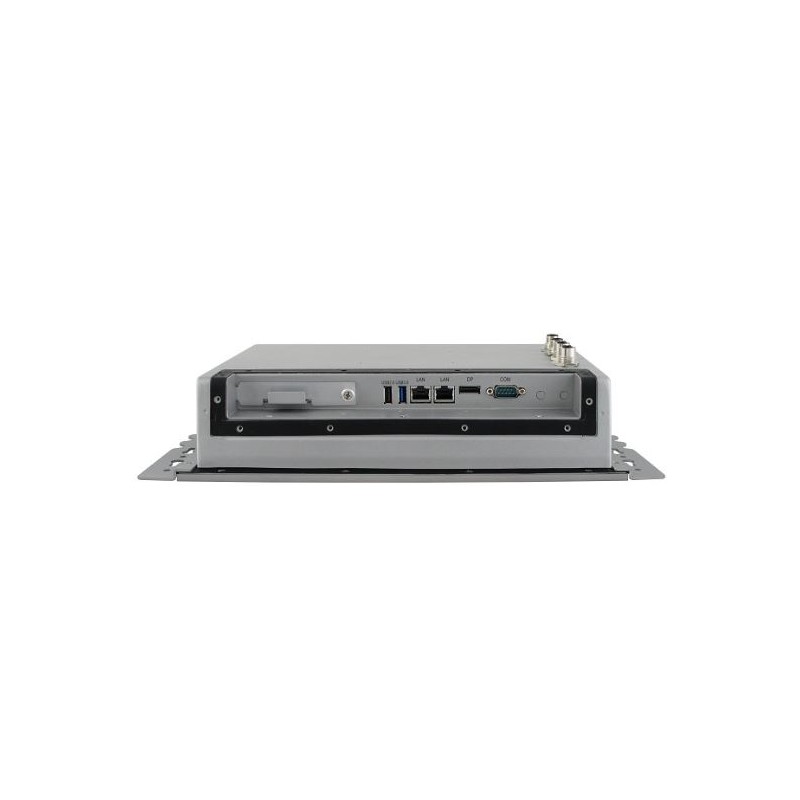

EN50155 Certified Intel® Atom™ Processor E3845 12.1" Transportation Projected Touch Panel PC

12.1” Industrial Panel PC
Intel Apollo Lake N4200 (1.11 GHz) 4 Core, 4 Threads, CPU built-in
Onboard 4GB DDR3L 1603MHz max. 8GB (optional)
Flat front panel
P-CAP Touch
​Fanless Design
IP66 front
2x GbE LAN RJ-45
2x USB 3.0, 4x USB 2.0 (optional)
1x DB9 (RS232/422/485), 1x DB9 RS232
OS support: Windows embedded 7, Win7, Windows 10 IoT
Opt. 4G LTE/WI-FI/BT extension
Opt.: UPS built-in
Opt.: Isolated RS232/485.
DC 9 ~ 36V  Power Supply

21.5" FHD projected capacitive multi-touch screen
6th/7th gen Intel® Core ™ i7 / i5 / i3, Pentium® Celeron® processor (Haswell)
2.5" 7/9.5 mm SATA HDD, CFast ™ and mSATA
2 Gigabit LAN,
2 USB 3.0
2 USB 2.0
2 COM ports
IP65 flat front bezel and rugged design
Supports panel mount and optional VESA arm / desktop stand / wall mount
2 PCI Express Mini card slots
Power supply 19Vdc / 112Watt, 4 Pole

17" TFT-LCD Projected Capacitive Touch.
Intel 6th Gen. Core i3 built-in i3-6100U / i5 (option).
1 x 260Pin SO-DIMM DDR4 up to 16GB 2133MHz.
Flat front panel meets IP66
die-cast aluminum Chassis Fanless design
DC 9 ~ 36V wide range Power Input
Udskæringsmål : 422x331mm
Mål: 439x348x64.8mm (WxHxD)

OPTION: CAN Bus, UPS battery, 4 xUSB
OPTION: OPTICAL bonding for direct sunlight

10" Industrial Panel PC
OS: Android 10
Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
Resolution: 1280 x 800 (16:10)
Viewing angle: 170°/170°
Light sensor (automatic dimming)
10.1" IPS screen with 1000 nits brightness and capacitive touch
1 x RJ45 Gigabit Ethernet
4 x GPIO (2 inputs, 2 outputs)
3 x RS232 (via DB9 octopus cable)
1 x HDMI output
2 x USB-A host
1 x USB-C OTG
3.5mm audio output
Memory: 2GB LPDDR3 + 16GB eMMC, Option: 4GB + 64GB
Supply voltage: 9~36VDC (mains adapter not included)
Operating temperature: -10° ~ +60°C
Dimensions: 249 × 166 × 32mm
Weight: 980g

12.1 "TFT
CPU Gen.6 I3 Standard (I5 Option)
with or without touch resistive, Projected capacitive 7h Anti Scratch surface
1 x 260-pin SO-DIMM DDR4 2100MHz Max. 16GB
2 x USB 3.0
1x 2½ "SSD Sata Bay
1 x Mini Pcie Slot Full Size
1xDB9 RS232 / 422/485, COM1, 1X RS-232 DB9 COM 2
2 x RJ45 GBE LAN RJ45
IP66 Front
Vesa Mount 100x100
319x245x51.7mm
1 x 3 Pin DC 9 ~ 36vdc
Windows IoT Support

24" TFT Full HD 16:9 LCD with Projected Capacitive Touch
Max. Resolution1920x1080
​Designed with Aluminum Die-Cast Front Frame
IP65 Compliant Front Panel
1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
Built-in Two 5W Internal Speakers
Convertible Display System (CDS) Supported
Supports Panel / VESA / Rack Mounting
OPTION! (Resistive 5-wire Touch / Glass)
9~48VDC via 3-pin Terminal Block

17" TFT SXGA 5:4 LCD capacitive touch
Pentium N4200
1x DDR3L SO-DIMM MAX. 8GB RAM (supplied without, get price with ram)
Resolution Up to 1280 x 1024 (SXGA)
350 nits Brightness
Designed with Aluminum
IP65 Compatible front panel
1xVGA, 1xDP (triple display)
1x 2.5" SATA Drive (supplied without, get price with SSD installed)
1x MSATA
2x LAN RJ45 Intel I210 (POE OPTION ADD ON)
4x USB 3.0
4x RS232/422/485
8x Isolated DIO
2x Mini-PCI
SIM Socket
SUPPORT OS: WINDOWS 10/11
9~48VDC via 3-pin Terminal Block

12.1 "Industrial Panel PC
Intel Celeron N2930 (1.83GHz), 4core, 4 Threds, CPU built
Onboard 4GB DDR3L 1333MHz max. 8GB (optional)
Flat front panel
P-CAP Touch
Fanless Design
DC 9 ~ 36V wide-ranging Power Input
IP66 front
3x USB
1x DB9 (RS232 / 422/485), 1 x DB9 RS232.
Option: high brightness 1000 nits
Option: 4G LTE / Wi-Fi / BT expansion
Option: UPS built-
Option: Isolated RS232 / 485.
