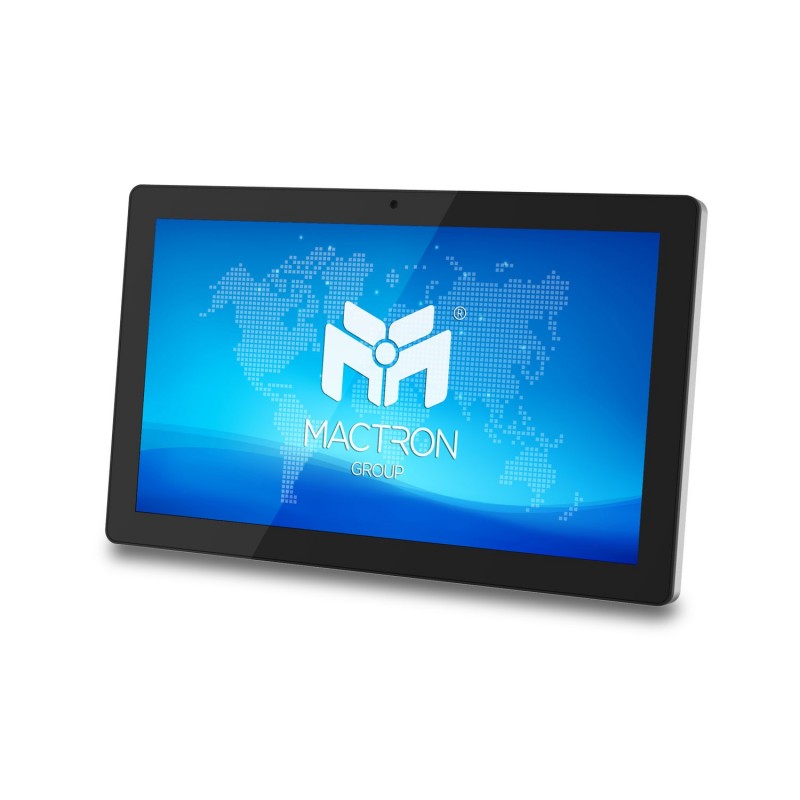

21.5" Medical Premium Windows Touch Panel PC Celeron,I3,I5,I7,16:9, PCAP touch, Medical Certificate

CPU support Celeron, i3, i5, i7 Gen.8
Max. 32GB RAM
21.5” True-Flat
16:9 Ratio
1920x1080 pixel
PCAP touch USB
Wifi
BT
2 x RJ45
4 x USB3.0
1 x RS232, 1xRS232(5v/12v support)/422/485
1 x HDMI, 1 x DVI-D
Ultra Slim 49.9mm with 3 Pieces Design
Fanless & Front Panel IP65
Simple Installation & Easy Assembly
Industrial Quality & Chic Appearance
Support TPM and Intel vPro (Optional)

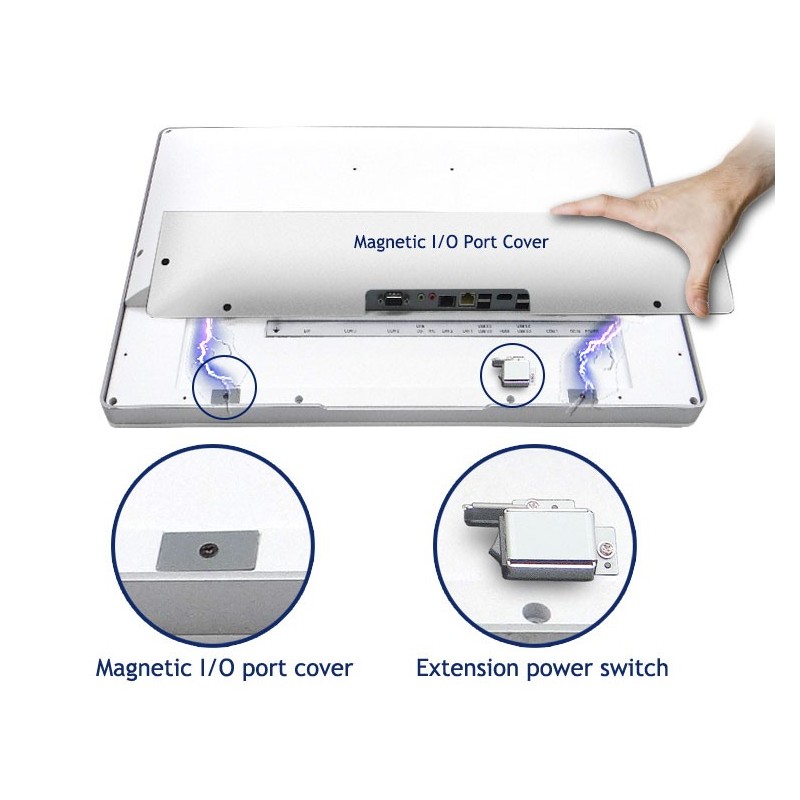

Magnetic I/O Port Cover For Easy Maintaining ( Optional)
Extensional Power Button (Optional)
TPM
9~36Vdc

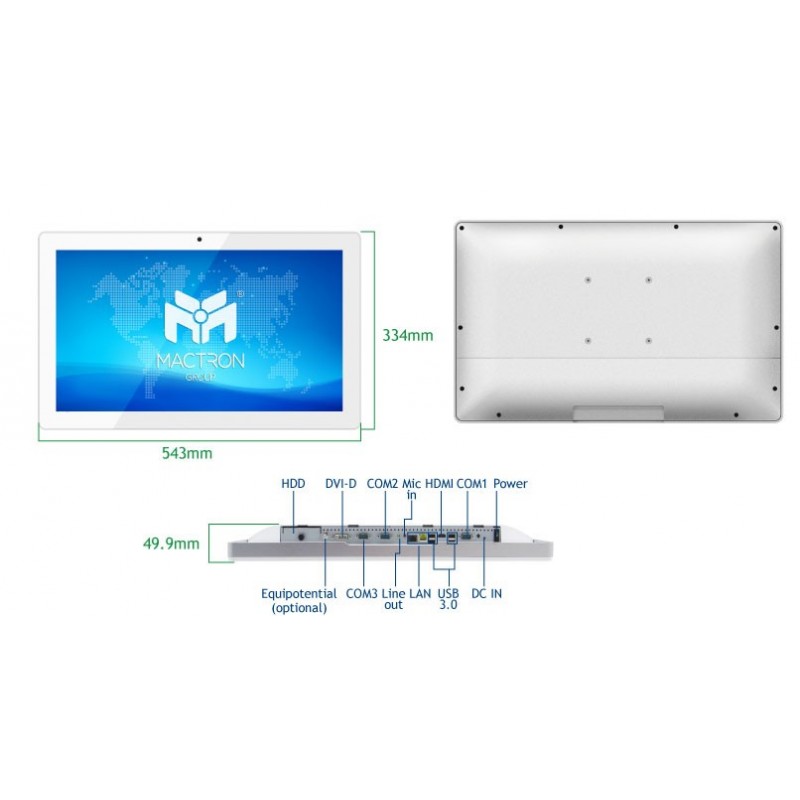

543x334x49.9 mm

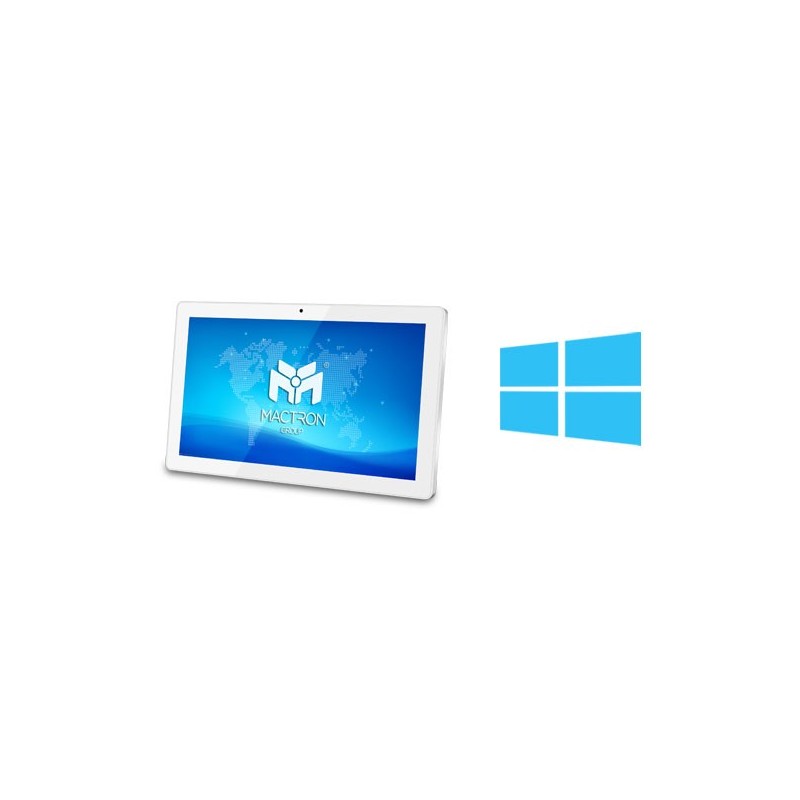

OS support: Win10, Win 11, Linux

IPP21.5MEDIC
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Smart Healthcare Solution
Bringing diagnostics, health records to the digital world offers a chance to improve efficiency and satisfaction.

21.5” Medical Grade Touch All In One System Panel PC
Intel® Whiskey Lake i5-8365UE vPro
-Medical Anti-Bacterial Materials
-Medical Power Adapter
-Electrostatic Discharge Protection
-Medical Certificate

CPU
Intel Core i5 Processor: i5-8365UE vPro Intel Core i7 Processor: i7-8665UE vPro (optional) Intel Core i3 Processor: i3-8145UE (optional) Intel Celeron Processor : 4305UE (optional)
Farve
Black, Silver, Black / White, Silver, White, need to be specified when ordering
Approval
FCC Class B, CE Mark, CB, ICE60601
bluetooth
1 x Bluetooth
Dimensioner
543 x 334 x 49.9 mm
Ethernet
2x RJ45, Intel I219LM (Phy); Intel I211 (PCIe)
Forsyning
support 9-36V DC-in, Power adapter 90W/19V, 3-pin
Grafik
Intel UHD
Hukommelse
2 x S.O.DIMM, DDR4 2400MHz, 8GB (Up to 32GB)
IP-Tæthed
IP65 on the front
Kamera
2M WebCam (HD webcam, USB interface)
Luftfugtighed
Operating 20% - 80% RH non-condensing
Lyd
Realtek ALC662VDO-GR
M.2
1 x PCIex4 M.2 2280 B or SATA I/F (Up to 1TB)
Mål og vægt
7.6-8 kg (net weight)
Opløsning
1920 x 1080 ; 16:9
OS SUPPORT
Windows 10, Windows 11, Linux

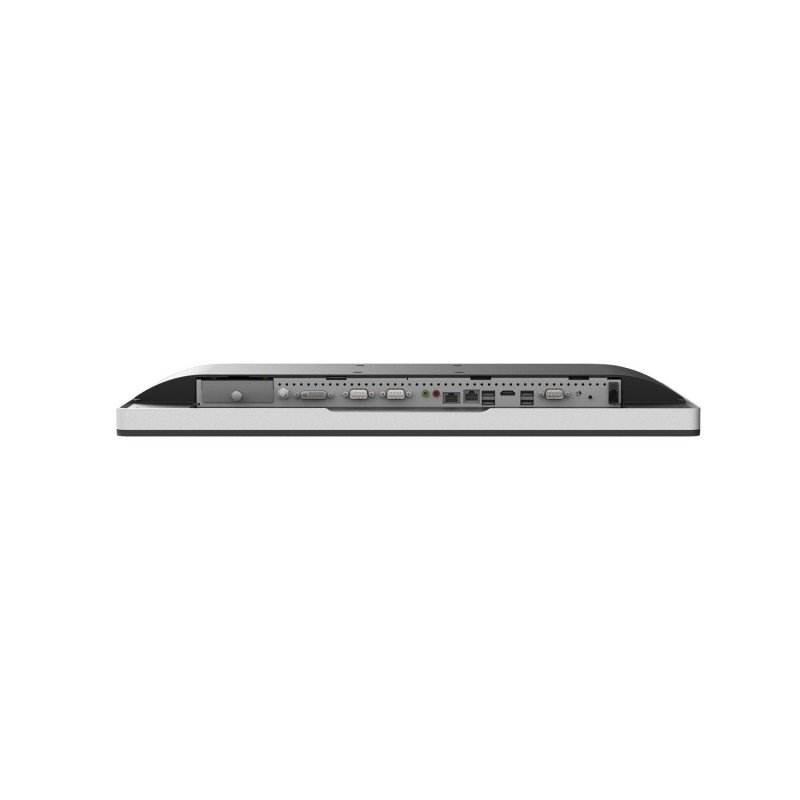

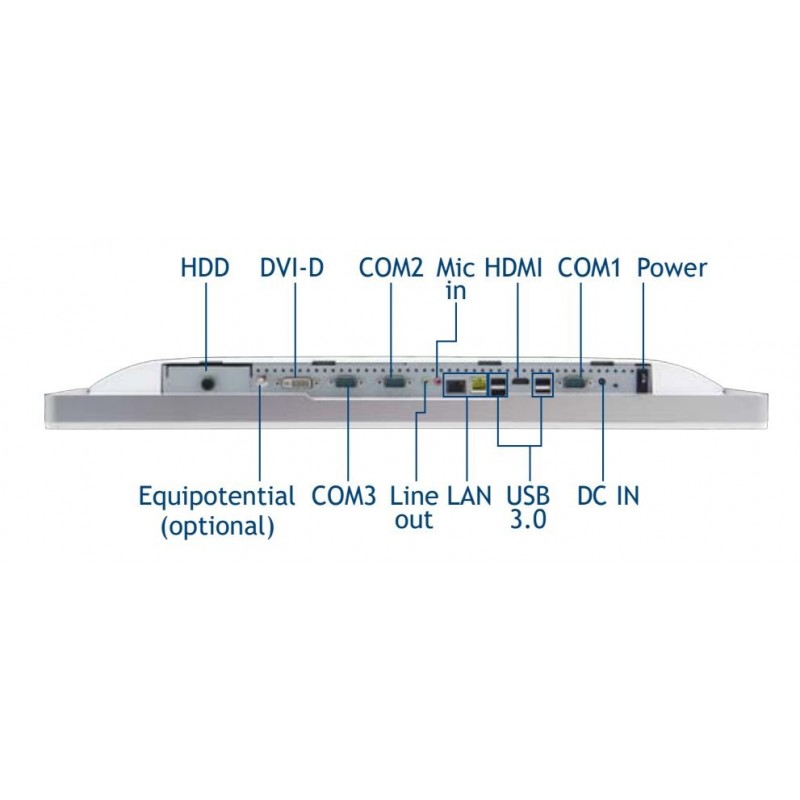

Porte
1 x DB9 (RS232), 2 x DB9 (RS232/422/485)-(RS232 support 5V/12V)
Skærm
21.5" LVDS I/F
SSD
1 x SSD 2.5" 7mm Sata max 1TB
Touch
True-Flat PCAP touch, USB I/F
TPM
yes
Udgange
1xHDMI, 1xDVI-D
USB
4 x USB3.0

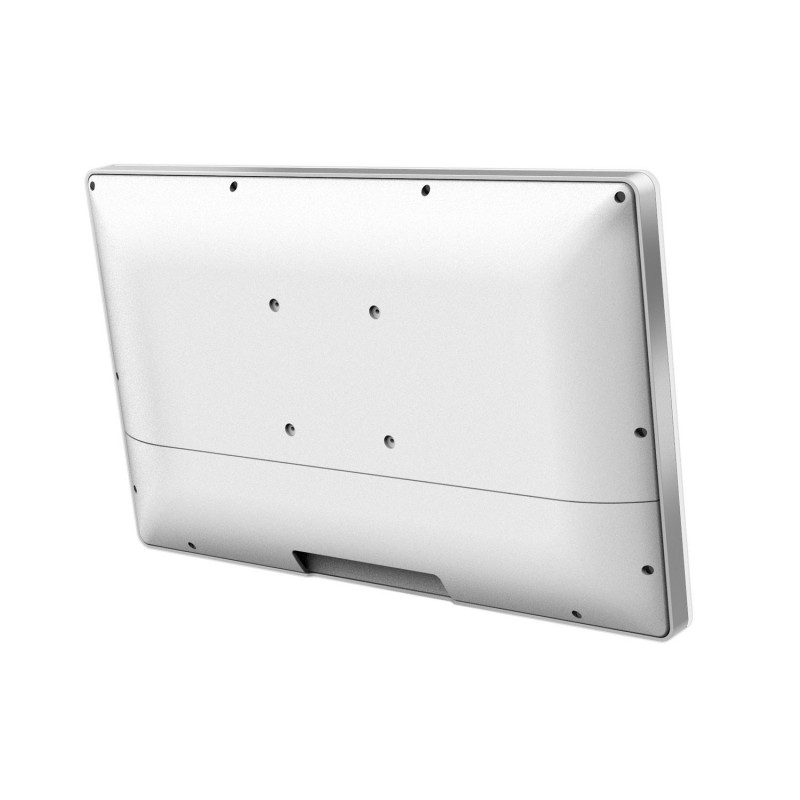

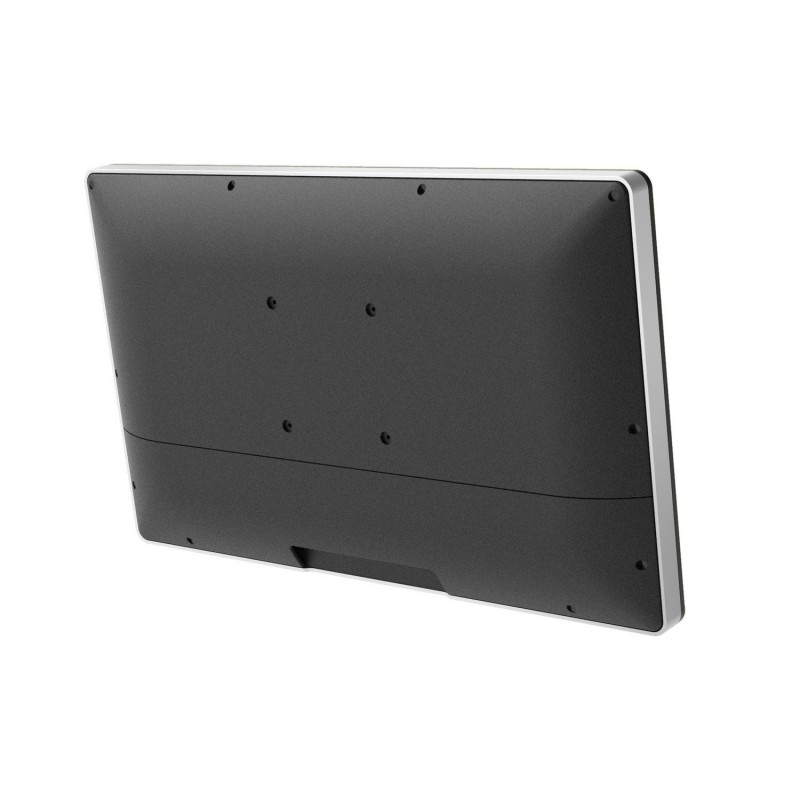

VESA standard
Vesa mount 100x100
speaker
2 x 2W
Nits
350 nits

4 other products in the same category:

24" Medical godkendt Panel...

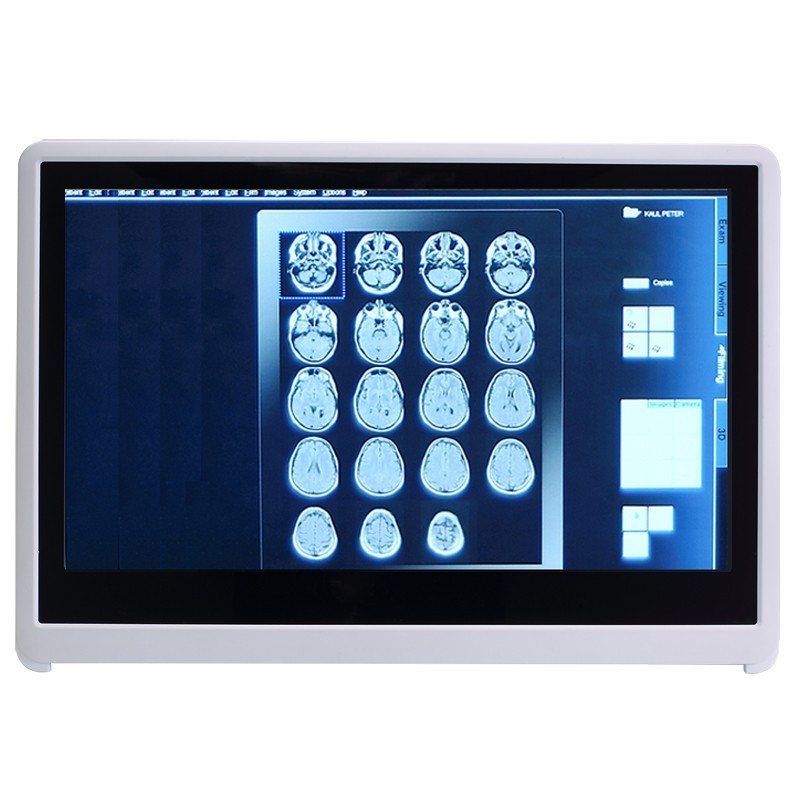

24" Medical godkendt Panel PC, i3/i5/i7 CPU, multi-touch, Scanner, Wifi

24" FHD TFT LCD display med LED backlight
G3 4th gen. Intel® Core™ i7/i5/i3, Celeron® & Pentium® mobile proc.
Build-to-order - bestykkes efter ønske
EN60601-1 og CE godkendt
IP65 tæt front
10-punkts multi-touch
Antimicrobakteriel kabinet
Super tynd og letvægt design
vægbeslag, VESA beslag og fod

Price 26,101.00 DKK
Product code: IPP24MEDICB
On the way in
Quick view

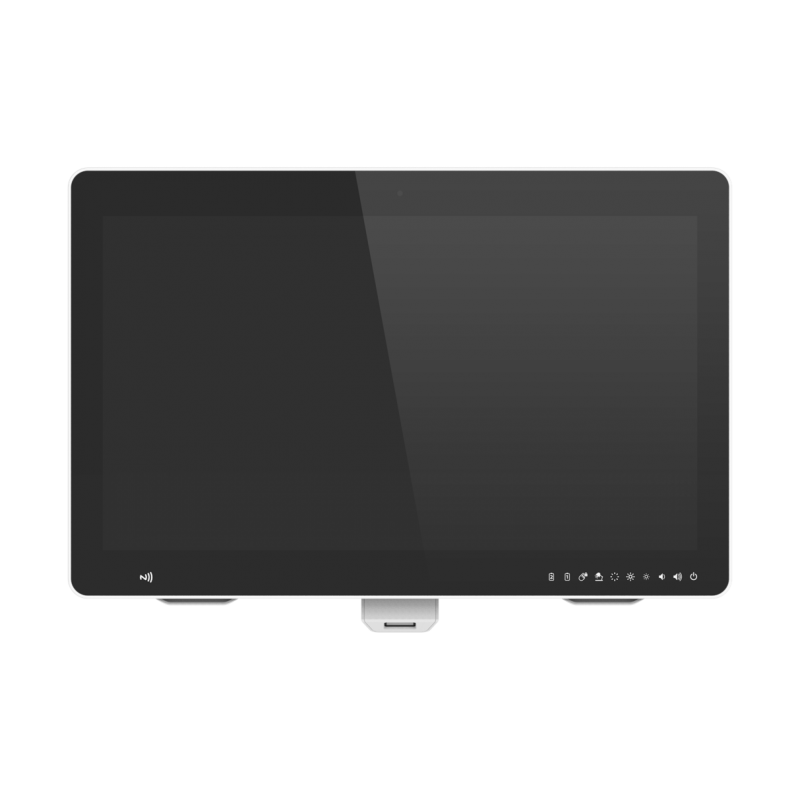

24" Medical approved panel...

24" Medical approved panel PC med batteri backup

24" Fanless Medical Panel PC
1920x1080 MVA LED panel
Intel 4th gen. Haswell Core i7/i5/i3 CPU
P-CAP multi-touch 10 fingers
Medical UL60601-1 3rd edition certification
Anti-bacteria (MRSA)
Seamless in front & ultra slim 65mm only
Easy wipe surface with no internal corner
IP65 at front side

Price Call for price
Product code: IPP24MEDIC
On the way in
Quick view

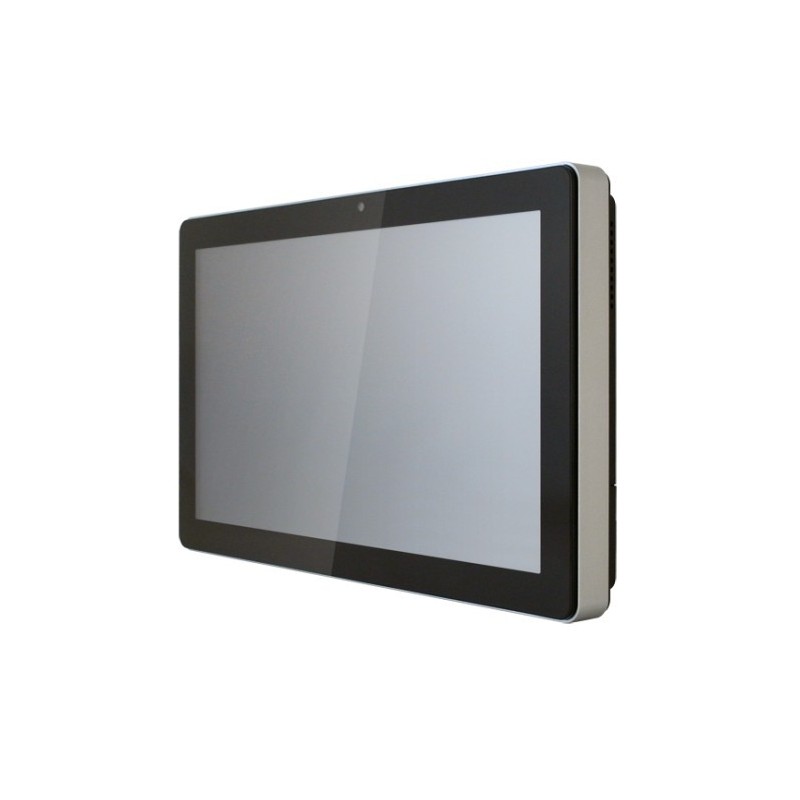

24" Medico approved panel...
