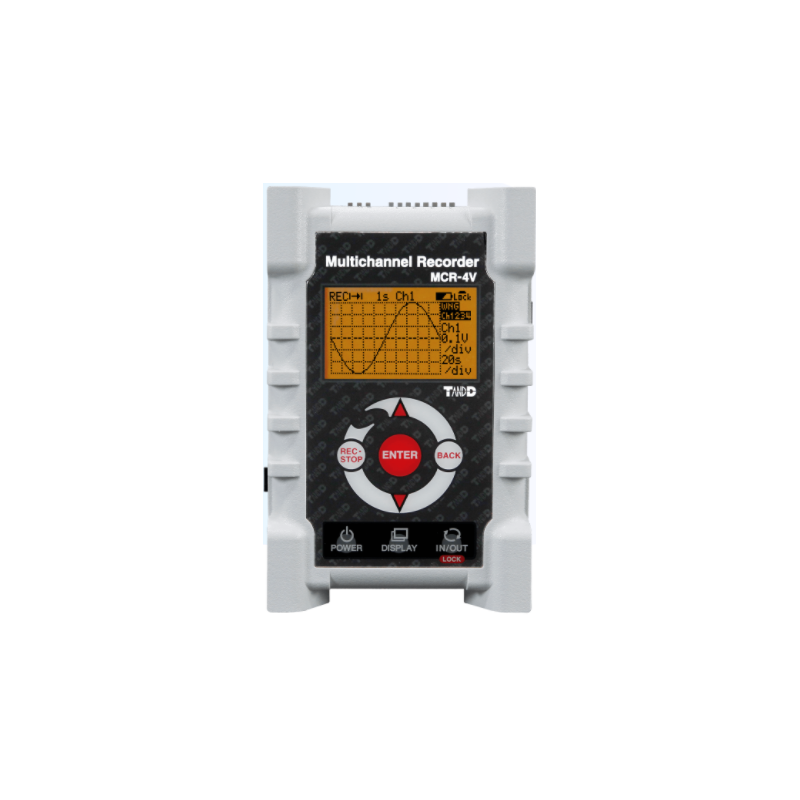

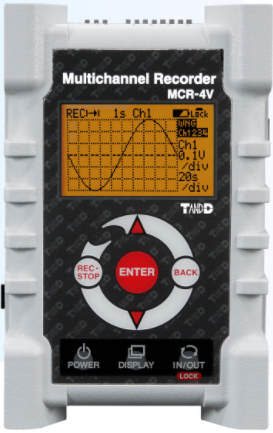

4 channel voltage data logger w/Graphic display. +/- 300mV to +/- 24volt. Each channel is isolated. 480,000 in memory

4 channel data logger with display
External memory with SD slot
USB port for PC
input: DC to 100Hz
+/- 0.3 Volt to +/- 24 volts
2ms Log -Interval with 10 Microvolt resolution
Log intervals: 2 MS to 60 minutes
Number of log intervals: 23
Daisy-Chain 4 x Log-MCR4V
Battery operation: 4 days to 130 days, dependent on logging
External power supply: Micro-USB adapter (not incl.)

5,076.80 SEK
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number LOG-MCR4V
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Andet 4 enheder kan kobles sammen så der kan logges på 16 kanaler. Tilslutning af signaler der skal måles er via klemmeterminaler. Med avancerede funktioner til dataopsamling og -lagring, grafisk visning m.m.
Data 480.000 målinger i alt på en kanal. Kan sættes til at stoppe logningen ved fuld eller overskrive de ældste data først
Driftstemperatur 0 – 50 °C
Forsyning Batterier 2 stk. AA eller via USB maks. 250mA
Indgang 4 stk. differentielle impedans 1,1 MΩ
Måleområde ±24 V; ±6 V; ±;1,5 V ±0,3 V maks. ±50V
Nøjagtighed ±0,3 %
Opløsning Ved 24V 2.4mV, 6 V 0,6mV, 1,5 V 0,3mV og 300mV 0,06mV. 50-60 Hz Filter til: 0,01 mV. 50-60 Hz Filter fra: 0,1 mV
Skærm Display til visning af loggende og aktuelle måle data, ved visning kan data skalere til f.eks. en temperatur
Software Windows 2000, XP, Vista, Win7 og Win8
USB USB tilslutning til overførelse af målte data til PC

MCR series loggers are 4-channel battery-powered loggers. LOG-MCR4V is a voltage logger that can measure up to 24V. With multi-channels and a large internal memory (up to 480,000 readings per unit), LOG-MCR4V is perfect for measuring voltage and power signals in different locations for long periods. In addition, recording can be performed, even when using short recording intervals, over longer periods using an SD card and the "Auto Data Export" function. With LOG-MCR4V can 4 voltages Logged and displayed without the use of a PC.
The measured values ​​can be retrieved via USB or transferred to the SD card, for further processing of the supplied software.

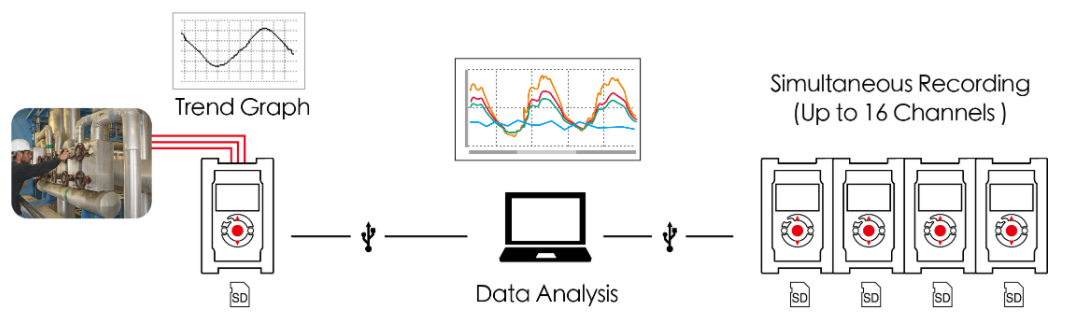

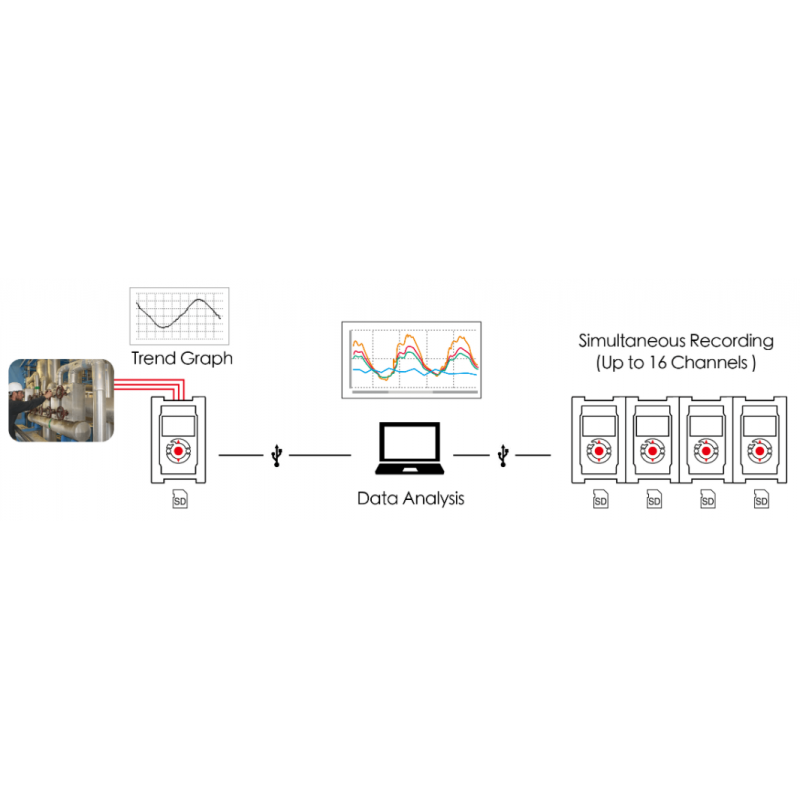

4 pcs. LOG-MCR4V can be connected so that up to 16 channels can be logged up, as 3 of the modules act as a slave devices and inherit the setup from the master device.

Andre produkter i samme kategori:

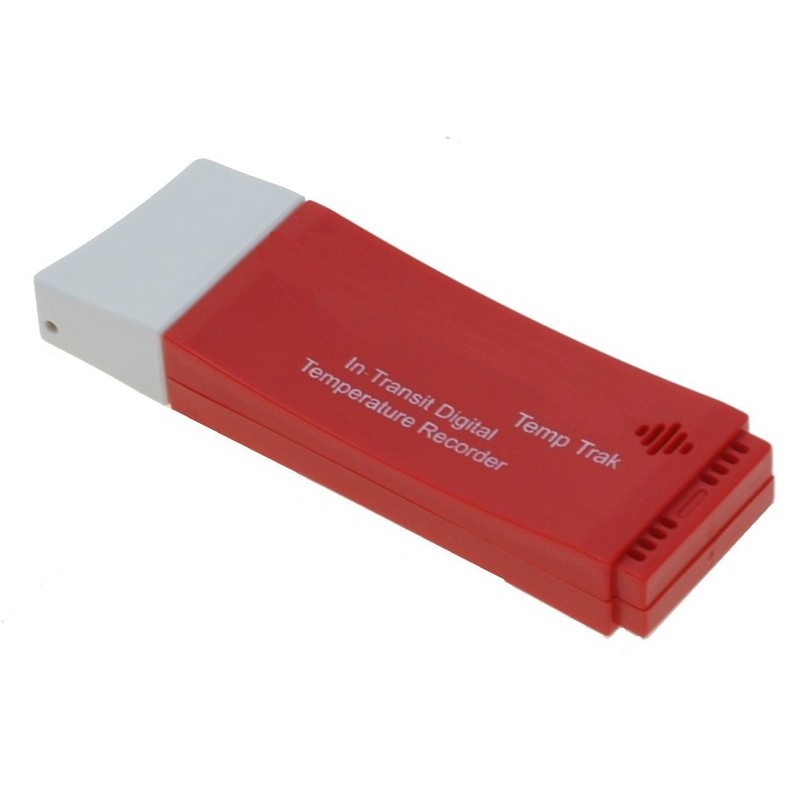

Independent temperature logger with battery
Temperaturlogger, USB

Temperature logger with USB interface and fixed interval.
Disposable meter.
Interval: 20 min.

718.40 SEK
Item Number: TEMP-LOG-USB-F
Physically in stock
ADD TO CART
Quick view

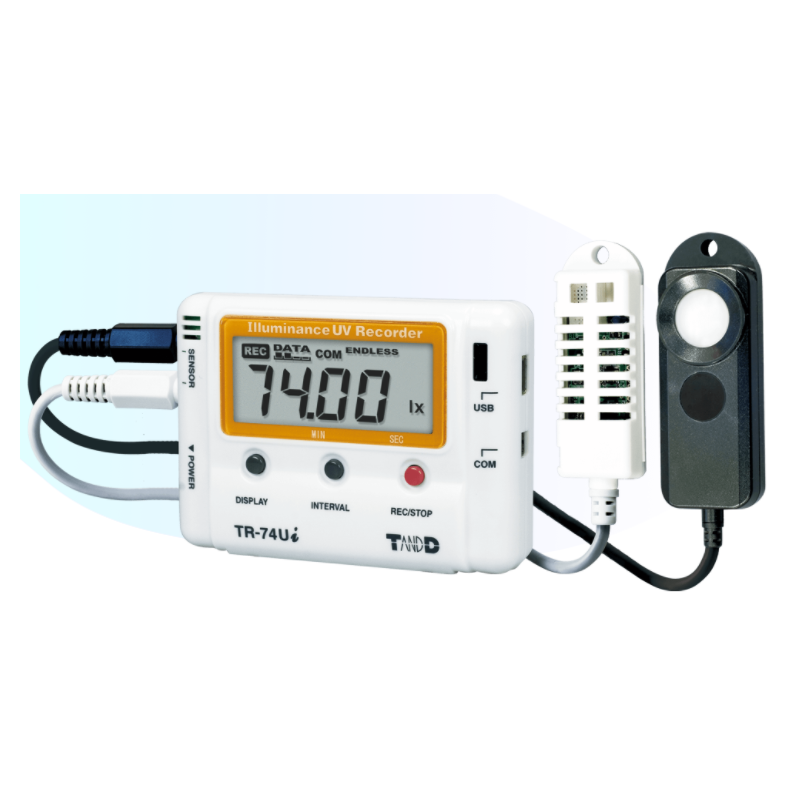

Temperature, humidity, UV, brightness data logger. Transfer via USB port. 0 - +55°C, 10 - 95% RH, 0 - 130kLux
Temperature, humidity, UV, brightness data logger. Transfer via USB port. 0 - +55°C, 10 - 95% RH, 0 - 130kLux, mW/cm2

Temperature, humidity, UV. Lux data logger with memory
measurement data for PC via USB port
measurement data for PC via RS232 Port
8,000 measurements per Type in memory with date and time stamp
Luminance: 0 - 130,000lux
UV intensity: 0 - 30mW / cm2
External sensors
Free Cloud Service: TD Webstorage for data collector
LCD Display Displays current measurements
PC Software: Tools and presentation included
Dim: 78 x 55 x 18 mm
Battery type: AA X 1

5,644.80 SEK
Item Number: LOG-74UI
On the way in
ADD TO CART
Quick view

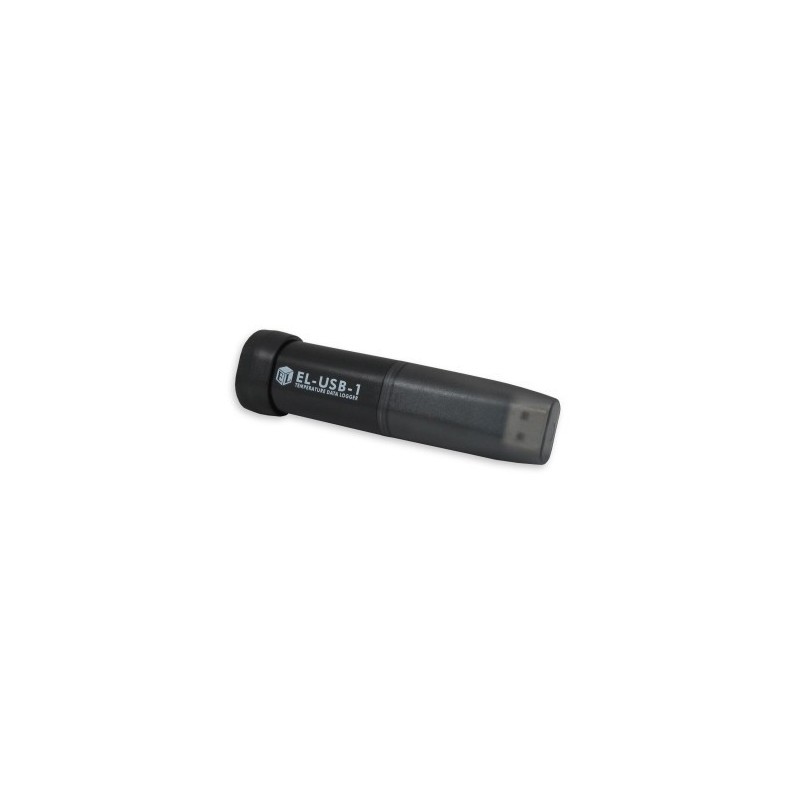

IP67 temperature logger with USB interface (incl. Software)
Temperature logs from -35 - +80°C with USB interface, IP67. Incl. software

USB Temperature logs incl. Software
Operating temperature: -35 To + 80 ° C
USB interface for set-up and data Download
2 Programmable / custom alarms
IP67
Windows from XP up to 10 (32 and 64 -Bit).

1,531.20 SEK
Item Number: TEMP-LOG-USB-EL1
On the way in
ADD TO CART
Quick view
16-Channel USB Voltage Measurement & I/O Module, 16bit
16 x Voltage measurement +/- 10V 16bit, 2 x analog +/- 10V output, 16bit, 4 x digital I / O for USB

Multi I / O module for measurement and with USB port
16 Analog inputs, +/- 10V, +/- 5V, +/- 2V, +/- 1V
16 bit resolution
frequency Up to 250kHz Total Samplings-Rate
2 Analog Exit +/- 10 Volt
4 Digital Entrance TTL / CMOS
4 Digital Outputs TTL / CMOS
1 Counter Input, 16 Bit
Voltage Variety from USB The port
Buy DAQ Software: NEXTVIEW
Dim: 167 x 113 x 30 mm

7,872.00 SEK
Item Number: USB-AD16S16
On the way in
ADD TO CART
Quick view

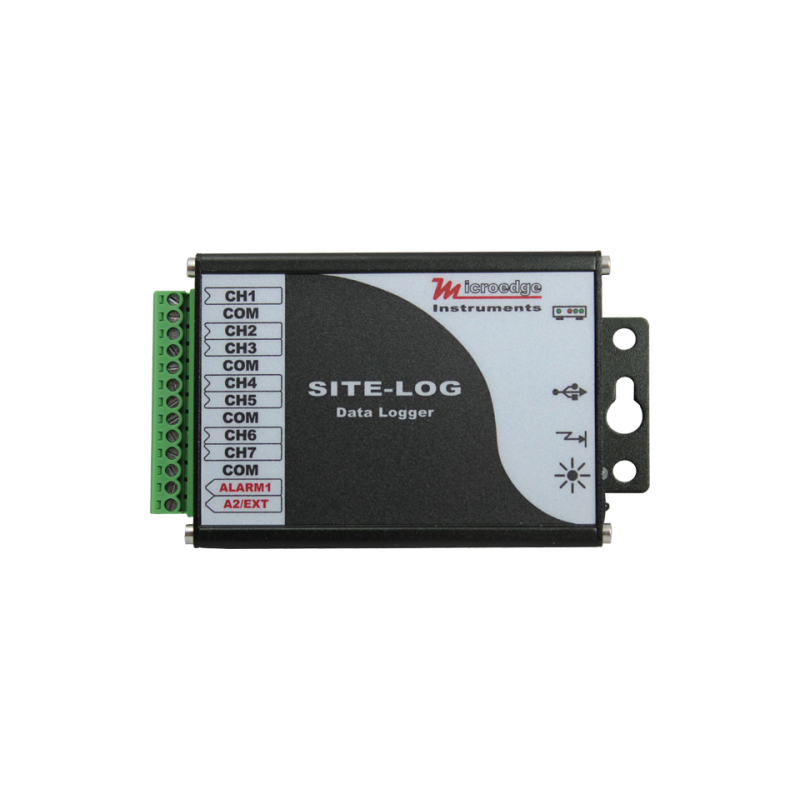

7 kanals 0 - 20VDC spændings-datalogger, hastighed 20ms til 12 timer
