Temperature logs from -35 - +80°C with USB interface, IP67. Incl. software

USB Temperature logs incl. Software
Operating temperature: -35 To + 80 ° C
USB interface for set-up and data Download
2 Programmable / custom alarms
IP67
Windows from XP up to 10 (32 and 64 -Bit).

TEMP-LOG-USB-EL1
957.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

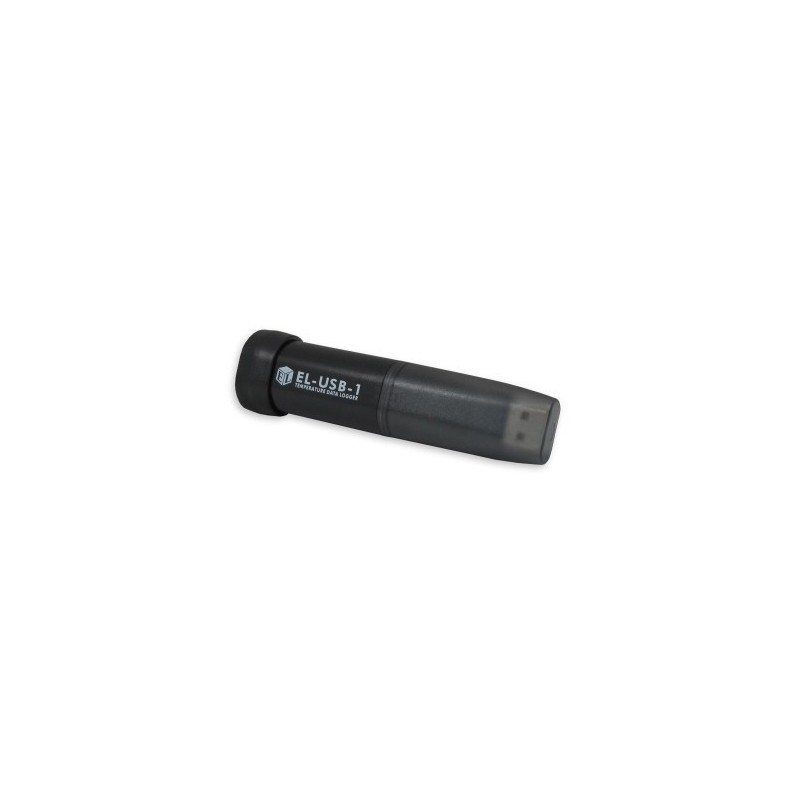

USB temperature data logger with a measurement range of -35 to +80°C (-31 to +176°F).
The data logger can store up to 16,382 readings and is supplied with a long-life replaceable lithium battery allowing the unit to log data continually for at least one year (depending on logging rate and temperature). The status of EL-USB-1 is indicated by flashing red, green and orange LEDs. The data logger is protected against moisture to IP67 standard when the protective cap is fitted.

Data logger configuration software is supplied, allowing the user to easily set-up the data logger.
Selectable parameters include logging rate, measurement units, high & low alarms and start-time.
The logged data stored in EL-USB-1 is downloaded via the configuration software.
Once downloaded data can be graphed, printed or exported to other applications.
The data logger configuration software is compatible with Windows XP (SP2 or later), Vista, Windows 7, 8 and 10 (32- and 64-bit).

Andet
Logging rate: 10s, 1m, 5m, 30m, 1hr, 6hr or 12hr
Batteri
Replaceable Internal Lithium Battery
Dimensioner
27mm x 94mm
Driftstemperatur
-35 to +80°C
IP-Tæthed
IP67
LED
Bright Red, Green and Orange LED Indication
Nøjagtighed
±1.0°C (±2.0°F)
OS SUPPORT
Windows XP (SP2 or later), Vista, Windows 7, 8 and 10 (32- and 64-bit)
Weight
43 g
