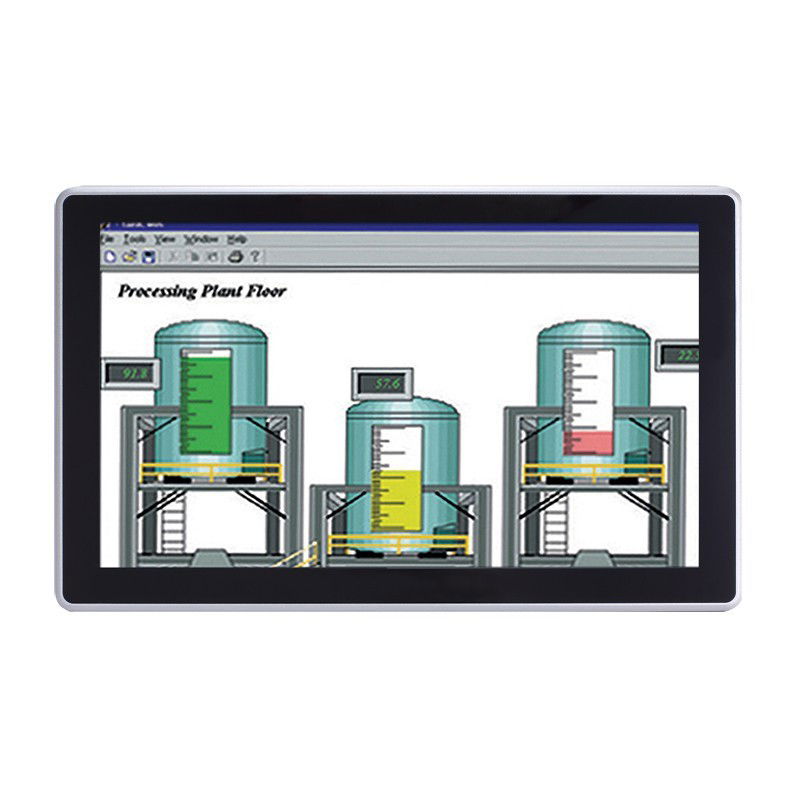

18.5 FHD Wide TFT Multi Touch, RS232/422/485, USB, IP65 close front Intel i7/i5/i3 & Celeron Panel mount, Vesa, Wallmount

18.5" FHD
Fanless design with LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W)
projected Capacitive multi-touch
1x260 DDR4-2666/2400 SO-DIMM max 32GB
Supports WLAN module and antenna (optional)
1 x 2.5" SATA HDD/SSD, 1 x MSATA
2 x LAN Gbit
4 USB (2xUSB 2.0, 2xUSB3.0)
2 COM (1xRS232, 1xRS232/422/485)
1 HDMI, 1 DisplayPort, and 1 VGA
IP65-rated aluminum front bezel
Supports panel mount, VESA mount, and wall mount
OS support Windows 10 IoT Enterprise, Windows 10
460,8 x 77 x 285 mm (WXDXH)

PPC18.5IB
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Build To Order panel PC
Contact sales regarding complete solution with CPU, RAM and OS.

We offer special models. Write their wish.

CPU
LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (Tj 100°C, TDP 35W)
Chipset
Intel® H310
Billede
1920 x 1080 pixels
Dimensioner
460.8 x 77 x 285 mm (18.11" x 3.04" x 11.22")
Driftstemperatur
0°C to +50°C (+32°F to +122°F)
Effekt
120W
Ethernet
2 x 10/100/1000Mbps
Forsyning
+12V/+19V/+24VDC 1 x Terminal block
Hukommelse
1 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
IP-Tæthed
IP65 front bezel
M.2
1 x M.2 Key E 2230 (for Wi-Fi)
Montering
OPTION NEED TO BE ORDERED Panel mount VESA mount Wall mount
mPCIe
1 x Full-size PCI-Express Mini Card slot (PCIe + SATA + USB)
Mål og vægt
weight (net/gross) 7.8kg (17.2lb)/10.2kg (22.5lb)
OS SUPPORT
Windows® 10 IoT Enterprise, Windows® 10
Porte
1 x 9-pin D-sub Male for RS-232 1 x COM for RS-232/422/485
Skærm
18.5" FHD TFT
Touch
Projected capacitive multi-touch 5-wire resistive touch
TPM
TPM 2.0
Udgange
1 x HDMI 1 x DP 1 x VGA
USB
2 x USB 3.0 2 x USB 2.0
Nits
LCD 500 nits
