10.1" Panel PC m/ WIN CE6.0

Panel PC 10,1" med Windows CE 6.0.

IPP10.1CE
3,362.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

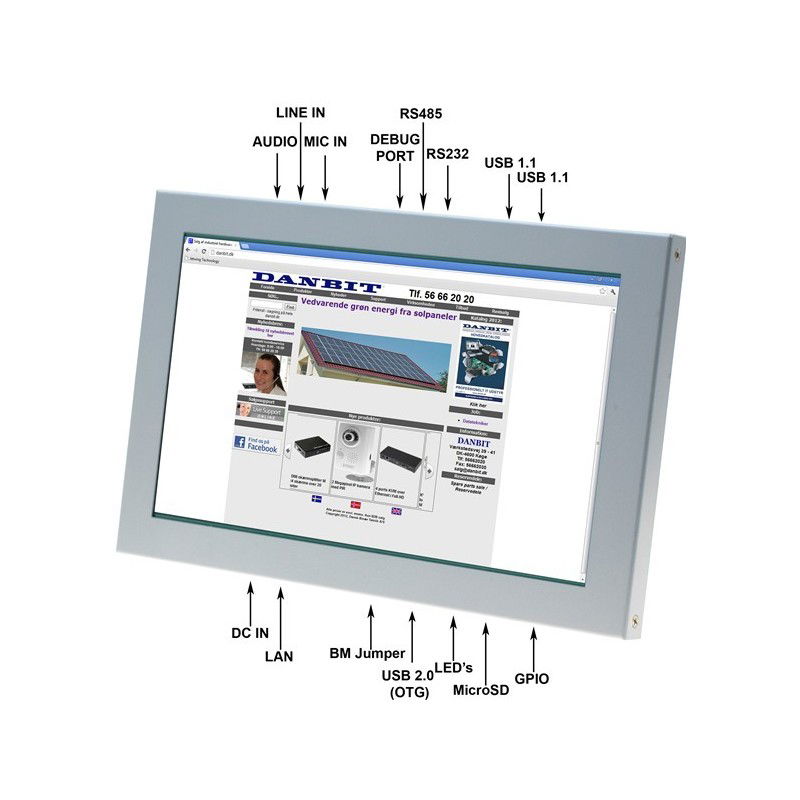

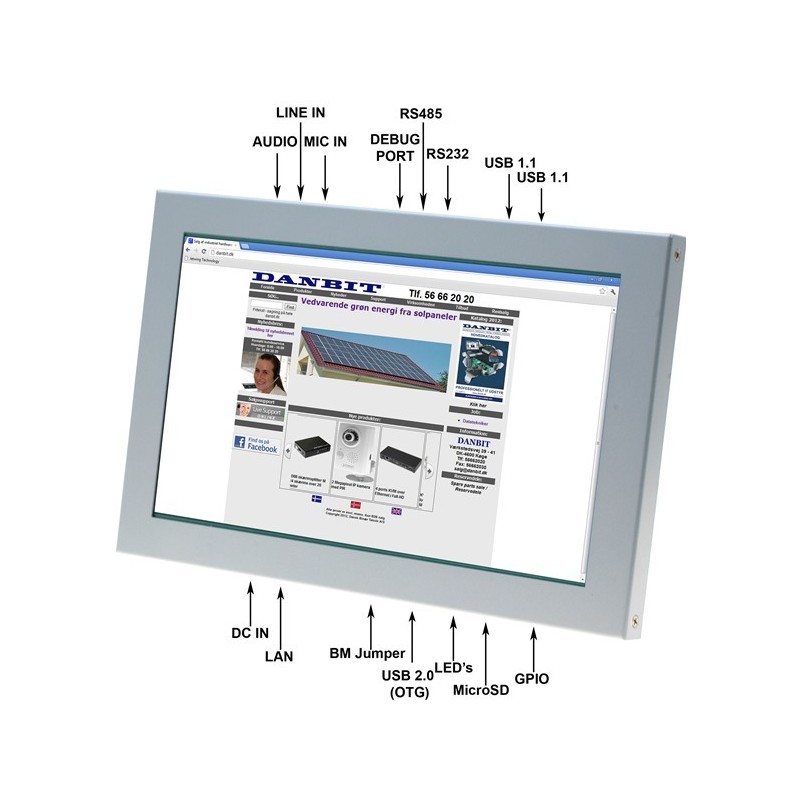

10,1” touch betjent panel PC.

Leveres med Windows CE6.0.

CPU
Telechips, ARM11-TCC89x/91x/92x 700 MHz
Dimensioner
170 mm (H)
Drev
512MB NAND flash (8-bit)
Driftstemperatur
0°C - 50°C

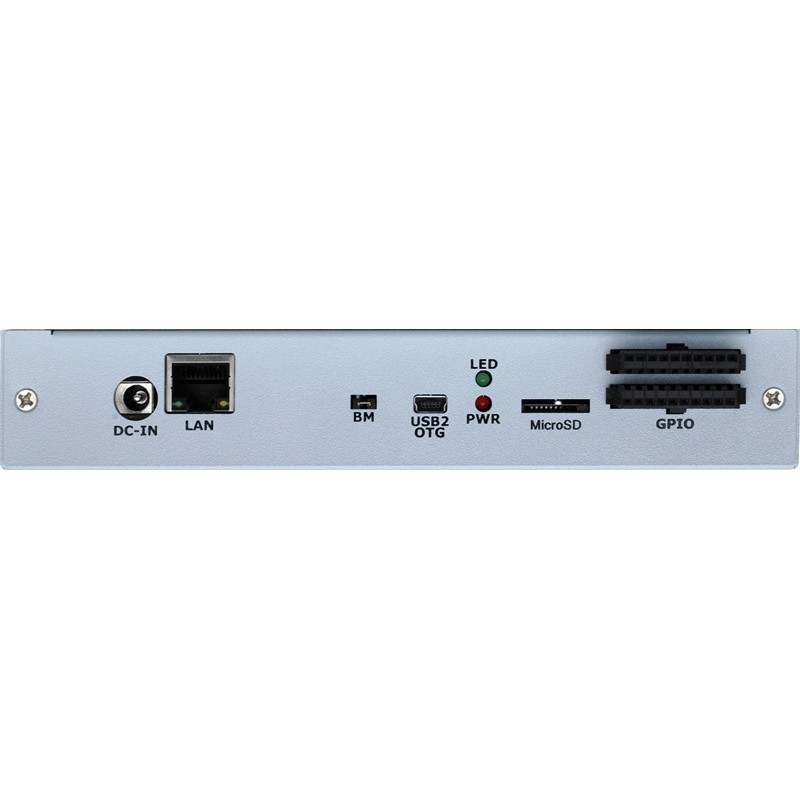

I/O
1 x 16 kanals digital GPIO
Indikering
2 x LED, rød indikerer +5VDC leveret til bundkortet og grøn er programmerbar, der aktiveres vha. GPIO indgangen
Ledige Slots
1 x Micro Secure Digital (Micro SD)
Lyd
1 x line-in 3,5 mm mini jack. 1 x audio 3,5 mm mini jack. 1 x mikrofon 3,5 mm mini jack
Materiale
Stålkabinet
Montage
Panel, væg eller VESA 75 x 75
Mus/tastatur
Via USB eller touch
Netværk
1 x 10/100 Mbit Ethernet m/RJ45 stik
OS SUPPORT
Leveres med Windows CE6.0
RAM
256 MB DDR2. Kan ikke opgraderes

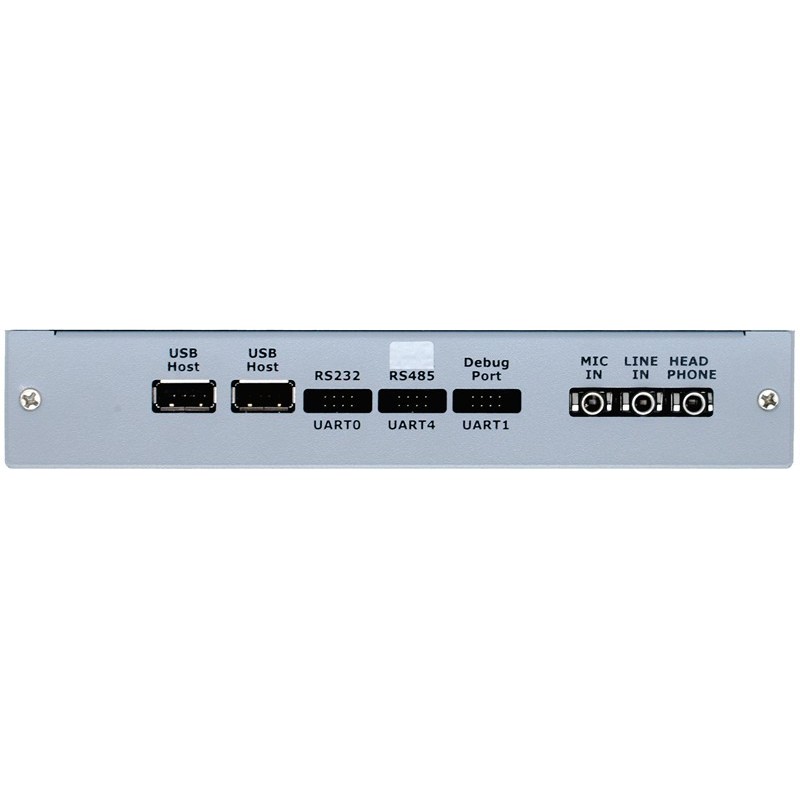

Serielleporte
1 x RS232. 1 x RS232 (debug) og 1 x RS485. Der medfølger 1 x serielkabel med 8-bens IDC hustik (2.0 mm pitch) til DB9 hunstik
Skærm
10,1” TFT LCD, 200 cd/m2. Maks. opløsning 1024 x 600 punkter. Touch Resistive 4 wire
Strømforsyning
100-240 VAC til 12VDC 1,5A strømadapter
USB
2 x USB 1.1 type A-hun. 1 x USB 2.0 (understøtter USB ”On-The-Go”) type mini-B hun (Hi-Speed)
Weight
0,8 kg
