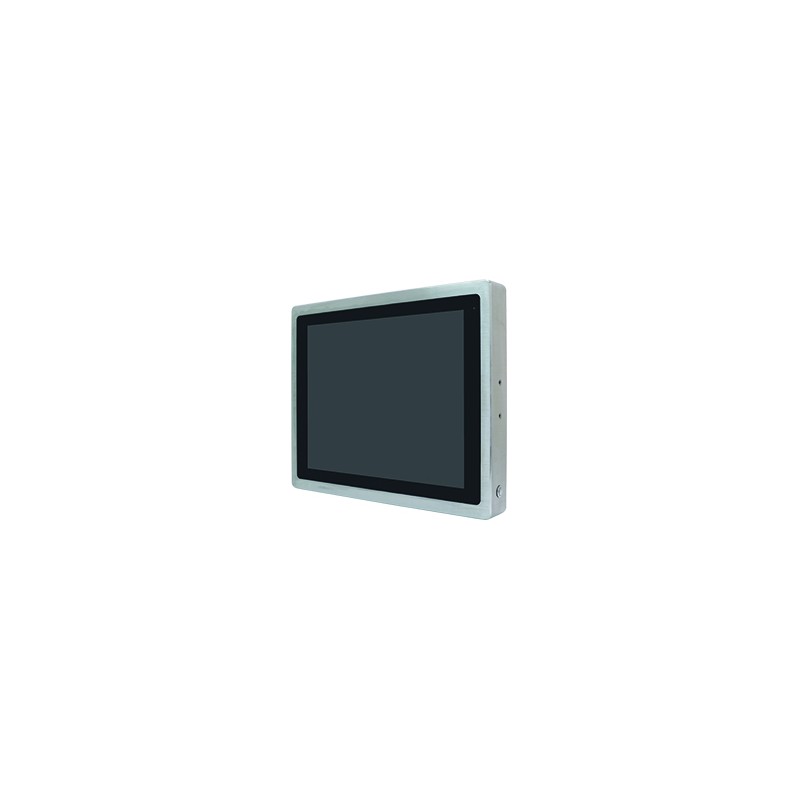

15" waterproof Panel PC IP65 / IP69K for & rear i3 or i5 processor, M12 connectors, flat front design, pcap touch

Build To Order
15 "Panel PC (optional: 17" / 19 "contact us)
Option: CPU Intel 6th gen. Core i3-6100 or I5
4GB 1 x SO-DIMM DDR 3L (option 8GB)
Projective Capacitive Touch (pcap)
1x USB2.0 M12 8 pin
1x RS232 / 422/485 COM1 M12
1x Ethernet M12
1x POWER M12 3 PIN 9 ~ 36V DC
1x 2.5 "SATA SSD
1x mPCIe slot for Option: Wifi / BT
324 x 399 x 53mm
Available with OS, RAM, CPU, SSD installed
Option RFID on the side
Option: 1000nits
Option: 2 x M12 can be used to ONE of the following extensions:
2x USB2.0
1x USB 3.0
1x LAN
1x COM < br> 1x CAN

IPP15-IX-IP65
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Build To Order. Can supply complete with SSD OS installed.

Other models and solutions can be offered.

15 "and 19" are available.

Please contact our sales department
1 x USB (M12 8 pin)
1 x LAN (M12 8 pin)
1 x COM (M12 8 pin)
9 ~ 36V DC input (M12 3 pin)
OS support: Win7, 8.1 Pro, Windows 10 IoT 2016
Option: high Brightness

CPU
i3-6100, Option i5
Farve
Max. 16.5M
Approval
CE/FCC class A
Betragtningsvinkel
170(H)/170(v) (1000 nits model 170(H)/160(v))
Driftstemperatur
-20℃ ~ +60℃
Effekt
Arround 42W
Ethernet
1xM12 8 pin
Forsyning
9~36V DC, M12, 3 Pin
Hukommelse
Onboard 4GB DDR3L 1600MHz, option 8GB
IP-Tæthed
Full IP65/IP69K
Kontrast
1000:1
Compositions
304 stainless steel Option: 316
Montering
Vesa mount 75x75, Option: Yoke Mount
mPCIe
1x Mini PCIe for option: wifi/BT
OS SUPPORT
Win7, win8, Win 10
Porte
1xM12 COM 1 RS232/422/485
RFID
Option!
Skærm
15" 1280x1024, 350 Nits. Option: 1000nits
Storage
1x2.5" HDD/SSD
Touch
PCAB, Option Resistive or glas touch lighttransmission from 80% to 90%
USB
1 x M12 8-pin for USB 2.0 with waterproof cap, Option 2 x USB 2.0, 1 x USB 3.0
Weight
8kg
