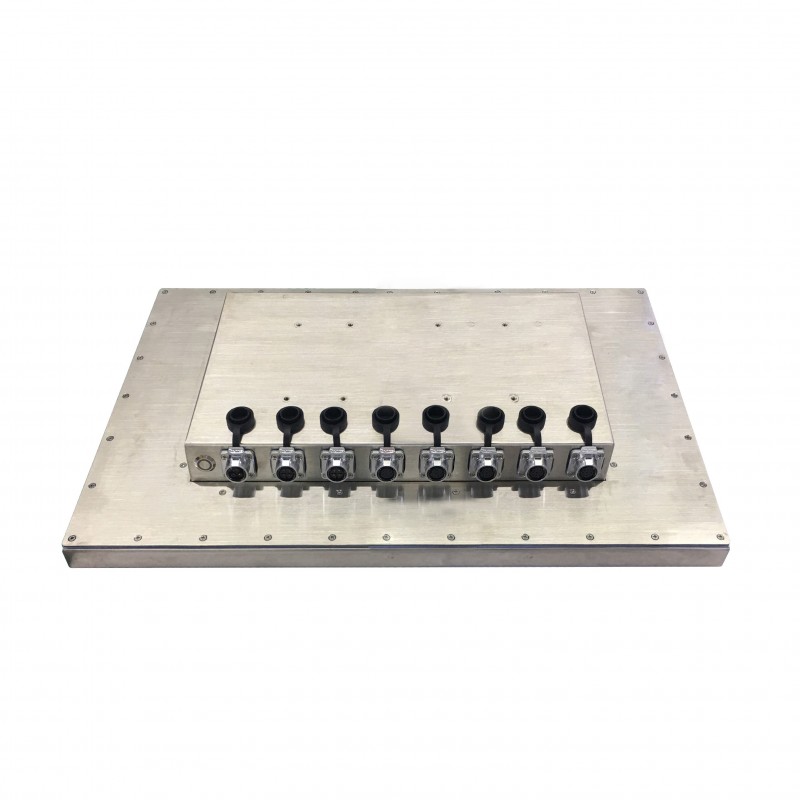

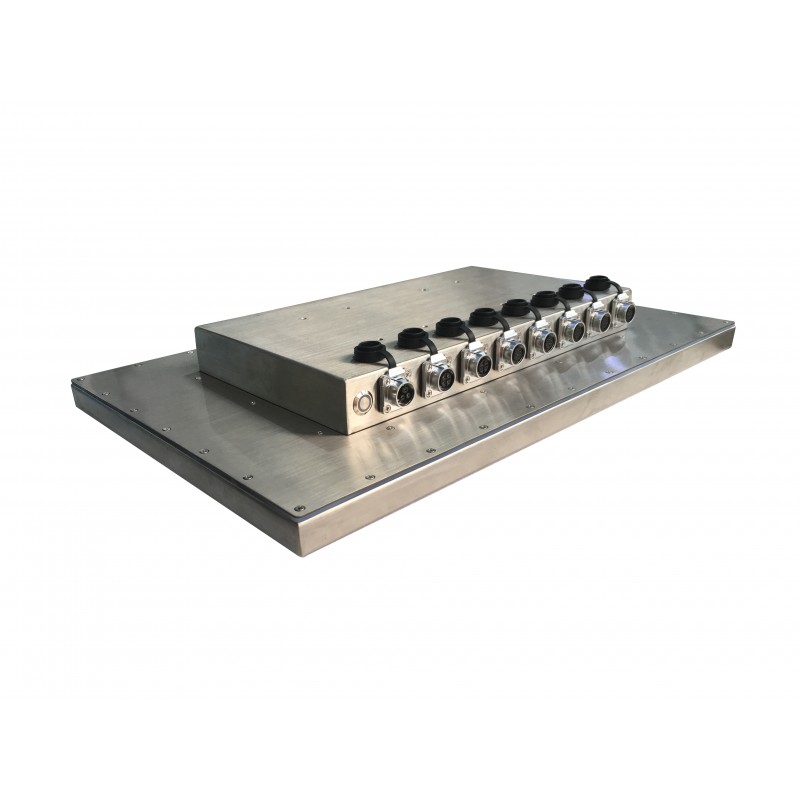

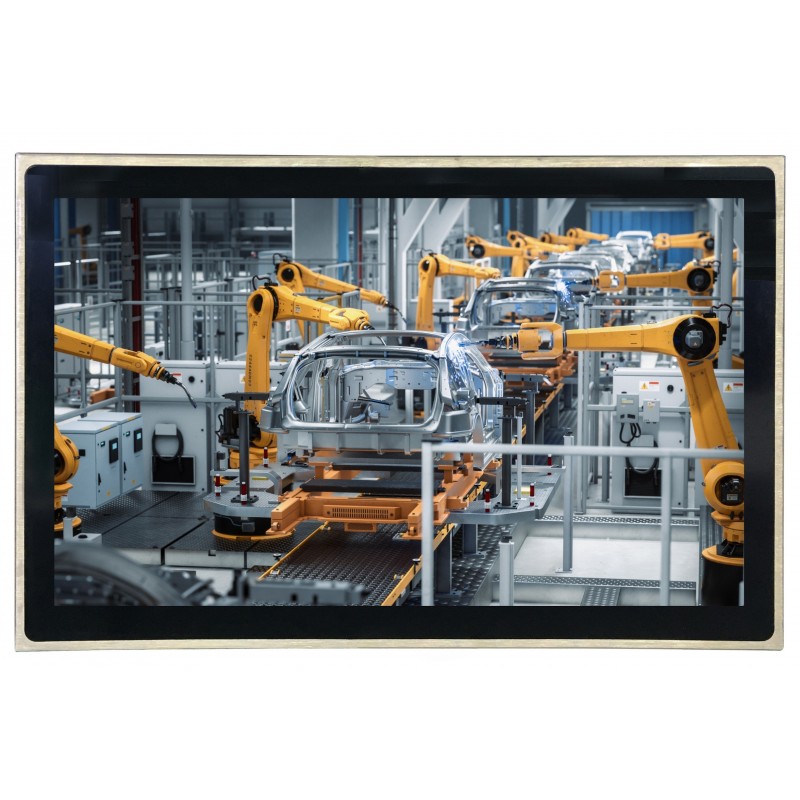

15.6" industrial 6-sided IP65 Panel PC with resistive touch and Intel Celeron J1900 CPU, stainless steel

19 "TFT-LCD 1280x1024
Projected Capacitive Touch.
Intel 6th Core I3-6100U 2.3GHz (Option I5 3.0 GHz CPU)
Max. 16GB RAM DDR4
Flat Front Bezel
Grade 304 Stainless steel cabinet (Grade 316 for option).
IP66 / IP69K RATED with M12 connector.
Option: RFID
Press the power button on the side edge of Hygienic Cleaning.
OS Supoort: Windows Embedded 7 / 8.1, Windows 10 Iot Ent Ltsb
9 ~ 36v DC Power Input

Stainless Steel 304

Industrial Design

VESA 75/100

2-axis movement

Processor Intel® Celeron® Processor N3350
Intel® Apollo Lake SoC with integrated chipset
Projective capacitive touch screen
Full Flat Design
Waterproof ON/OFF Button
2 x USB
1 x COM (DB9)
1 x LAN Metallurgy Waterproof Connector
Full System IP65, IPX9K
Addons must be ordered separately: NFC / WiFi / auto dimming / high brightness Solution​

Fanless and rugged design
7th Gen Intel® Core™ i3 7100U / i5 7300U / i7 7600U CPU
Resolution 1280 x 1024 dpi
5 Wires Resistive touch solution
Full 304 IP65 6 sides stainless enclosure

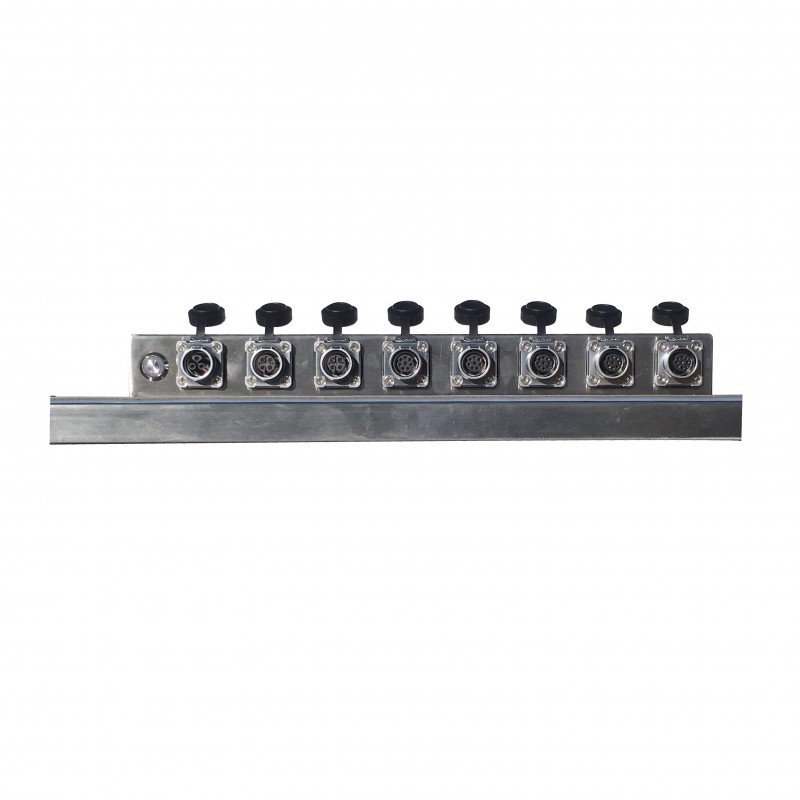

All IP65 M12 waterproof connectors
1 x USB, 2 x RS232, 1 x GLAN
VESA mount Yoke mount
Full 316 IP65 6 sides stainless enclosure optional
Optical bonding, high brightness sunlight readable solution
OS SUPPORT:WIN10 pro/ embedded/ IOT/ Linux Fedora 25, Ubuntu 16.04

21.5" PC in stainless steel
1920x1080 250nits, (Special request 1000Nits for sunlight use)
I3 or I5 CPU
RAM max. 64GB
M.2 1 x 2280 (sata default, PCI-e selection in BIOS) for SSD
USB 1x M12 waterproof
COM 1x M12 RS232/422/483 (default RS232) waterproof
Lan 1x M12 waterproof
1x Full size mSATA/mPCI
1x NANO SIM
1x m.2 E-Key 2230 (PCIe+USB) for WIFI/BT module
easy-to-clean front design
Grade 304 stainless steel cabinet
(option 316 Stainless steel cabinet can be ordered on request)
IP66 / IP69K IP
M12 connector
Can be ordered with Resistive Touch, Projected Capacitive Touch and Glass (specified when ordering)
Press the on/off button on the side edge for hygienic reasons
100x100 Vesa mounting
Yoke Mount (is without stand, must be ordered separately)
571 x 362 x 55 mm
0~50°C
DC 9~36V
CE/FCC Class A
OS Support: Windows 10 IoT ENT LTSB, Windows 11

15" til 21.5"
CPU N2930, i3/i5 Gen.6
1 x Mini PCIe (udvidelse)
M12 Interfave til VGA, USB, RS232/422/485 (vantætte stik)
450 til 1000 cd/m2 lysstyrke
Max opløsning fra 1024x768  til 1920x1080 afhængig af skræemstørrelse
Projected Capacitiv Touch
Forsyningsspænding DC 9~36V
316 Stainless Steel
Vesa mount eller Panel Mount
GODKENDELSER:
CSA C22.2 No.61010
CE / FCC Class A, ATEX Zone2 Ex nA ic IIC T4 GcClass I, Division2, Group ABCD T4ANSI/ISA 12.12.01-2013CSA Std. C22.2 No213-1987

23.9"  Stainless Steel Panel PC
8th Gen Core i5-8365UE 1.6GHz,  or Core i3-8145UE  2.2 Ghz
1 x 260 SO-DIMM DDR4 2400MHz max. 32GB RAM
TPM 2.0
1 x M12 Ethernet
1 x M12 RS232/422/485 default 232
1 x M12 USB 2.0
1 x 2½" SATA3 SSD  (opt)
1 x M.2 ;M-key (PCIe x4/SATA3 Auto detect), Support 2242 default
RFID mpdul design for fron as OPT. (need to be ordered)
1 x Mini PCIe for 4G/5G. Wifi/BT
1 x Nano sim socket
easy to clean Design
Grade 304 Stainless Steel Enclosure
(Option 316 can be ordered special)
IP66/IP69K IP
M12 Connectors
Standard 250 nits, (High Brightness on request 1000 nits)
Resolution 1920 x 1080
Can be ordered with Resistive Touch, Projected Capacitive Touch, and Glass (Specified when ordered)
Touch on/off Button on the Side Edge for Hygienic Cleaning
Special order can be with 2 x M12 spare for (2x USB2.0 or 1 x USB 3.0 or 1 x LAN or 1 x COM)
Vesamount
YOKE-Mount as opt.
DC 9~36Vdc
OS support: WIN 10 / WIN 11

17″ SXGA display with standard brightness (300 cd/m²) or high brightness (1000 cd/m²) options

Compatible with 12th or 13th Gen Intel® Core™ i3/i5 processors

Dual DDR4-3200 SO-DIMM slots, up to 64 GB total

IP66/IP69K-rated stainless-steel housing (304 std or optional 316) designed for harsh environments

Wide input voltage: 9–36 V DC

Front I/O with waterproof M12 connectors for LAN, serial (RS-232/422/485), USB 2.0, and power switch

Optional RFID reader and SIM slot (LTE/5G or Wi-Fi/BT support)

Touch options: Projected Capacitive (>90% light transmission) or 5-wire Resistive (80%)

Front brightness: 30,000 h standard / 50,000 h high brightness backlight life

Solid-state build, VESA (75 × 75 mm) and yoke mounting ready

Compact dimensions: 432 × 358 × 55 mm, weight: ~7.9 kg

Windows 10/11 support

–30 °C to 50 °C (operation), 10–95% RH (non-condensing)
